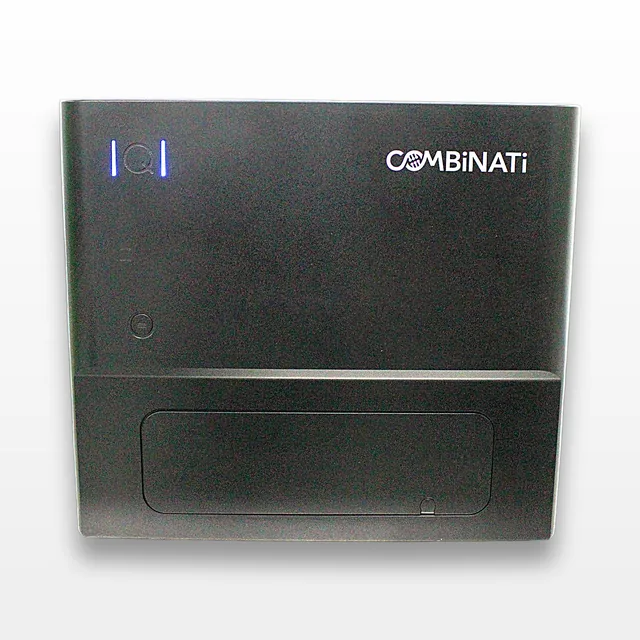

Combinati Absolute Q Digital PCR System dPCR with MAP Tech 90-Min Process
Combinati
Details
-
CategoryMolecular Biology
-
Dimension24.0in x 23.0in x 21.0in
-

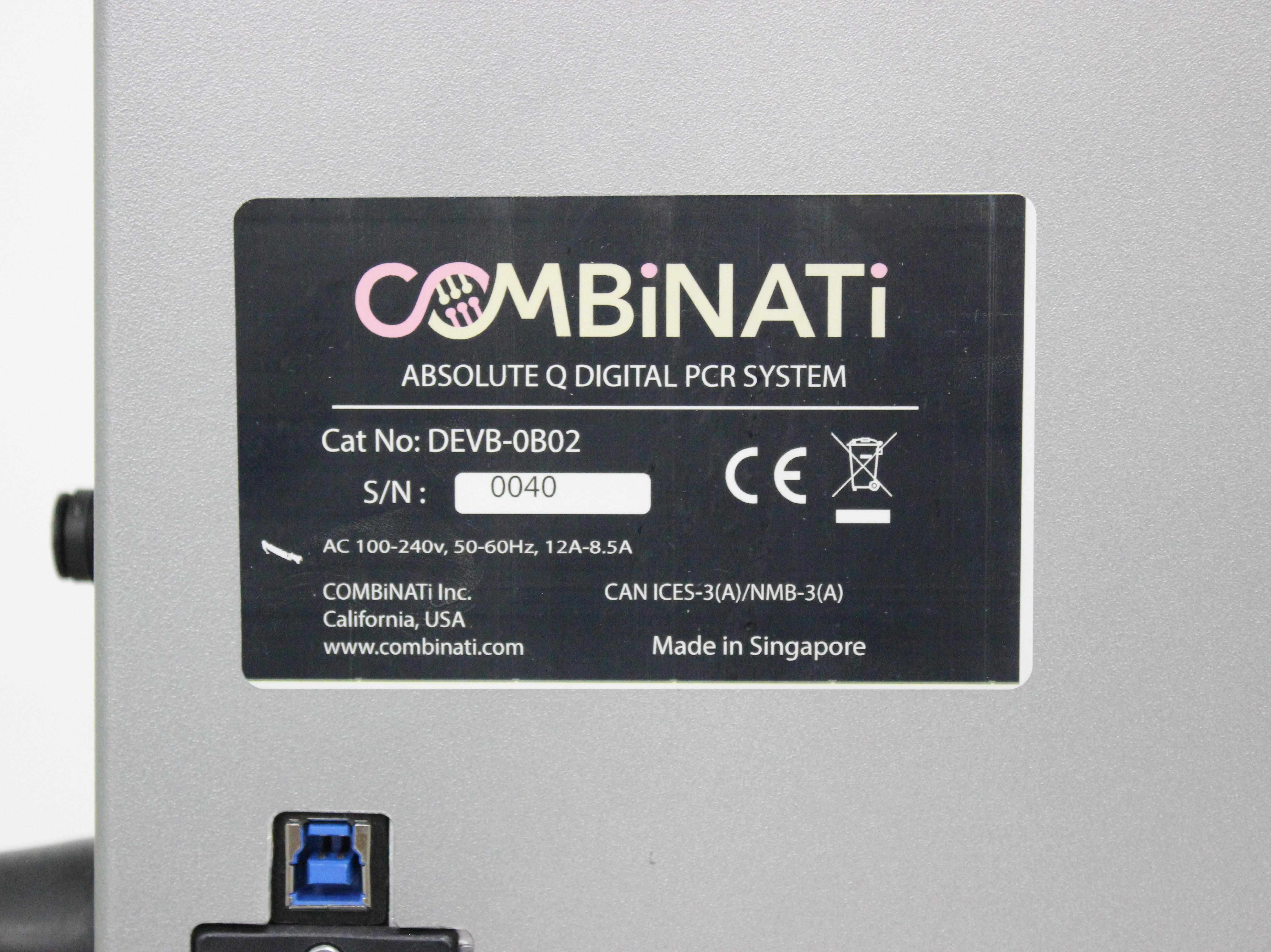

Serial0040
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

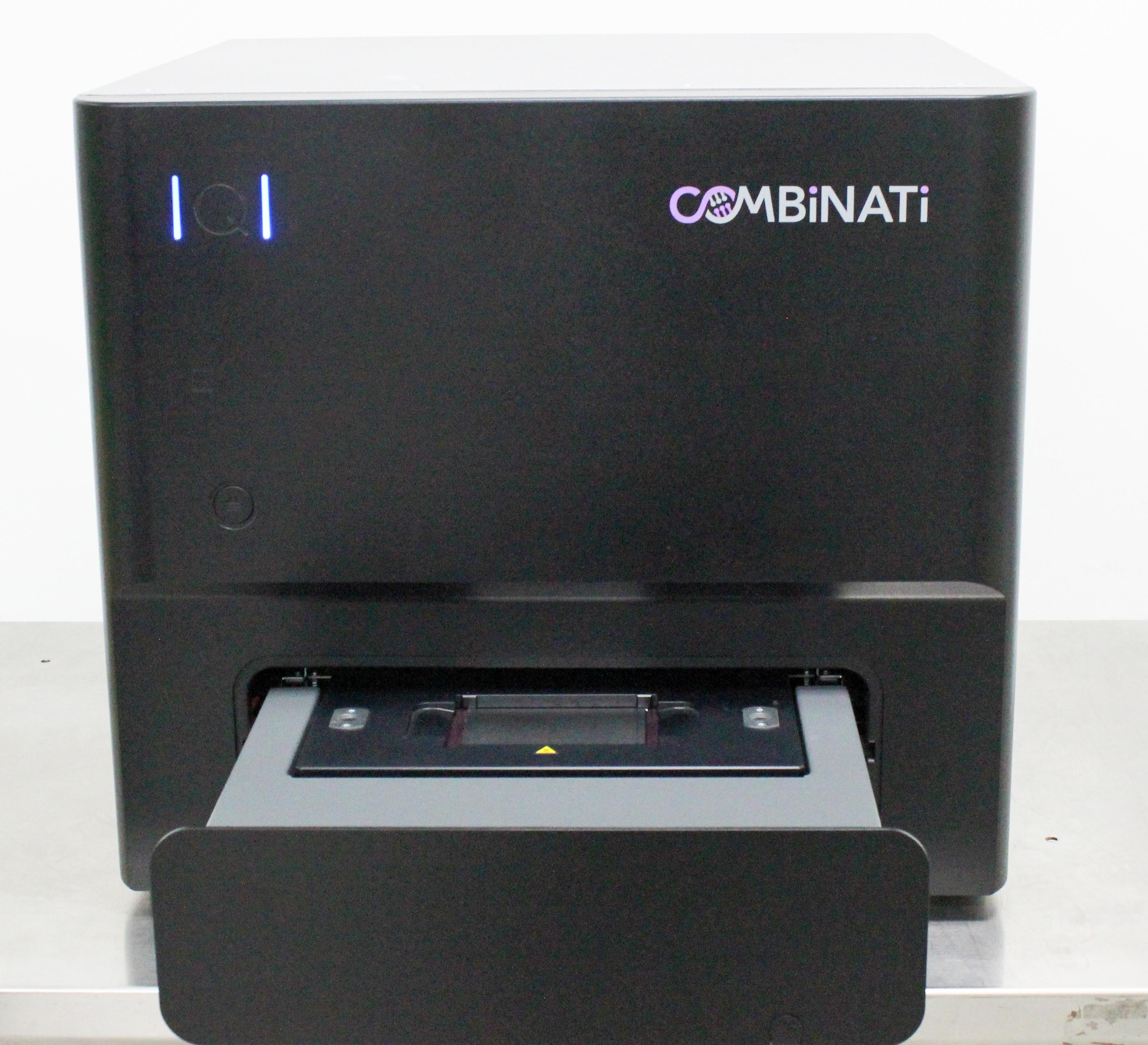

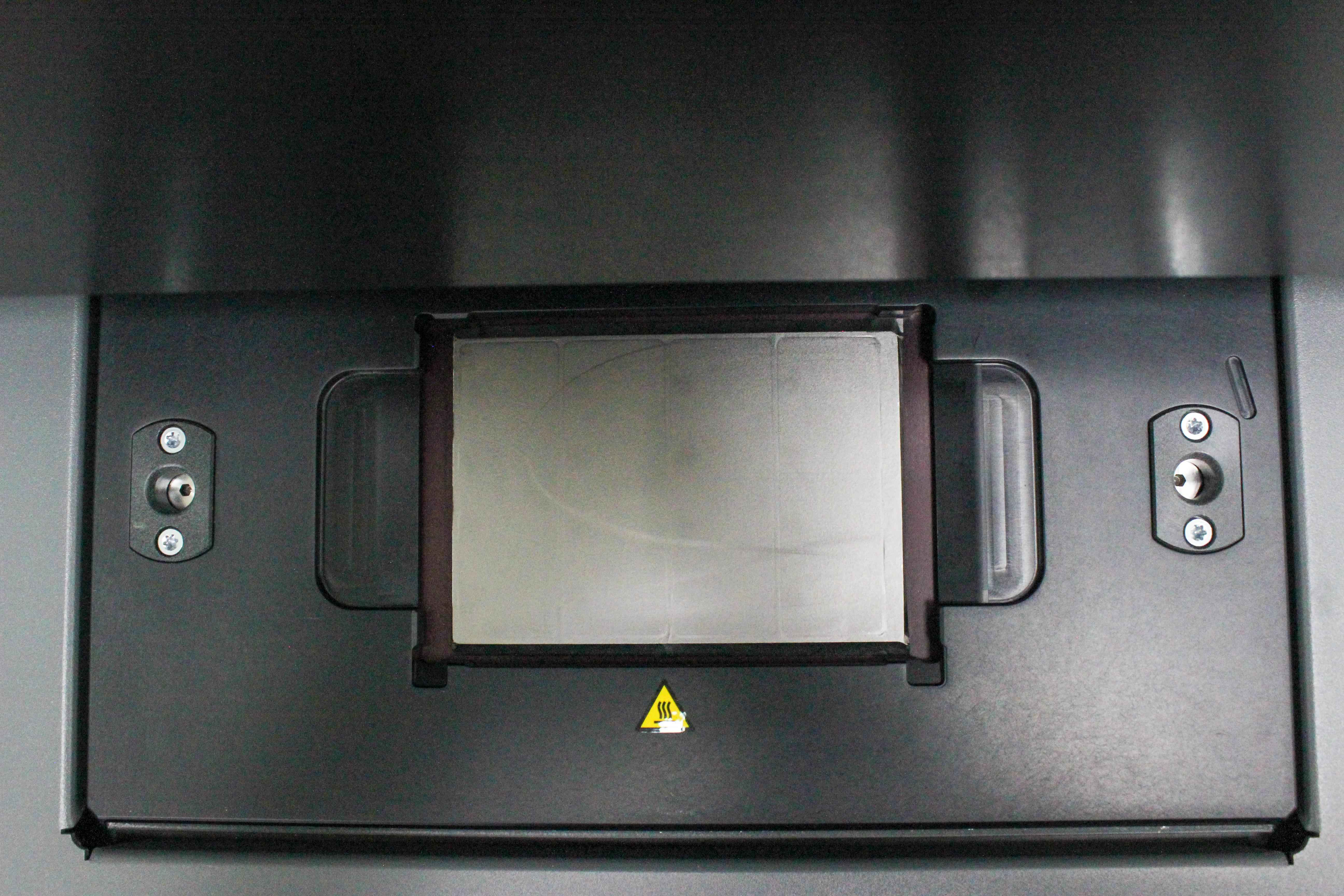

Offered for sale is the Combinati Absolute Q Digital PCR System (Model: DEVB-0B02), a sophisticated plate-based digital PCR platform that integrates essential dPCR functions such as compartmentalizing, thermal cycling, and data acquisition into a single unit using proprietary microfluidic array plate (MAP) technology. This advanced dPCR setup mirrors the familiar qPCR workflow, enhancing ease of use, minimizing manual intervention, and ensuring consistent results. With the user-friendly QuantStudio Absolute Q platform, only one hands-on step is required, clocking in under five minutes, thanks to its industry-leading MAP technology. Expect high consistency with outstanding analysis across 20,480 micro-chambers per reaction, and with over 95% of input samples analyzed per reaction, minimizing waste. The system enables rapid turnaround, with full reagent digitization, thermal cycling, and data gathering completed within 90 minutes. Please note, the computer necessary for operation is not included.
Technician comment

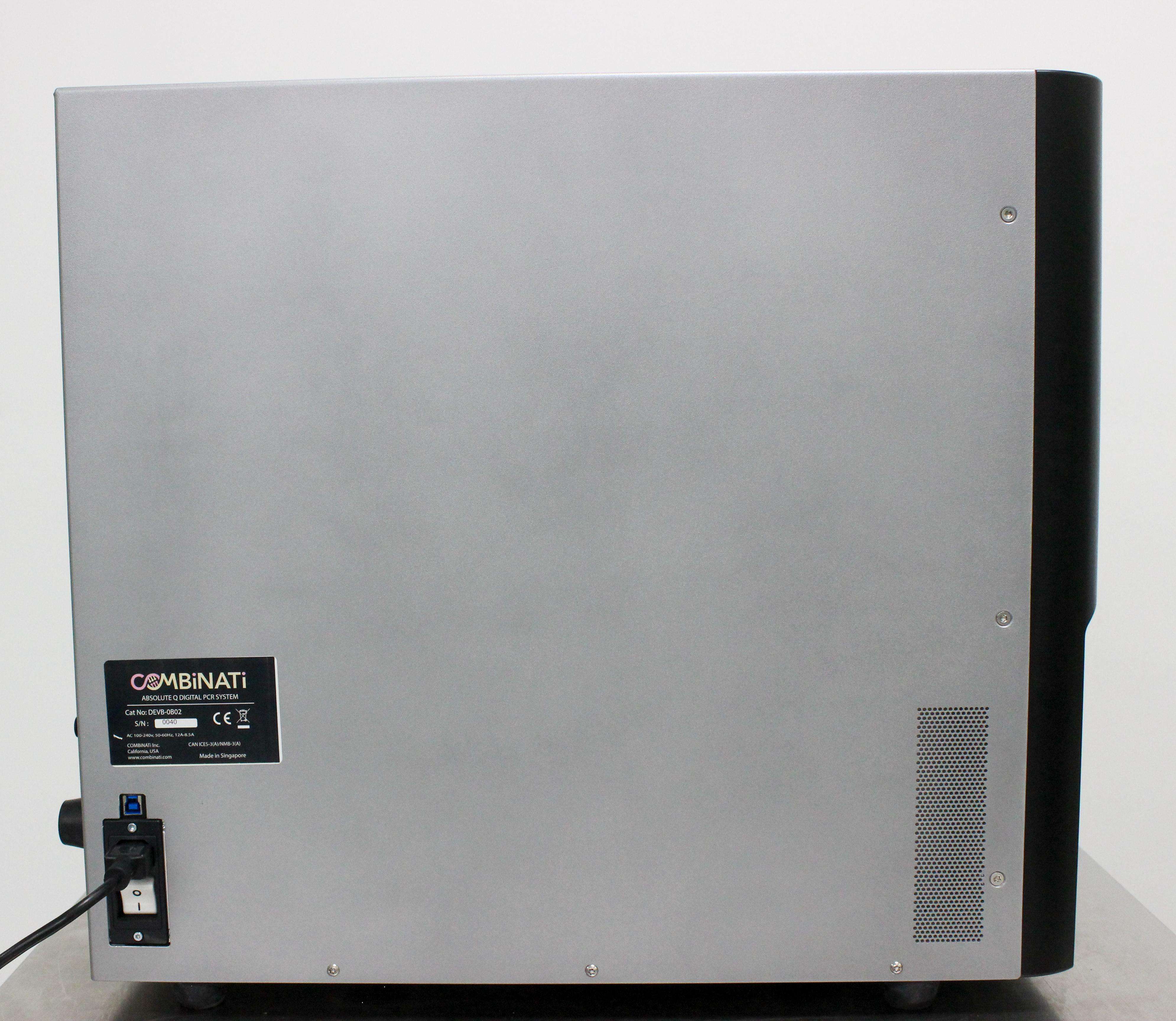

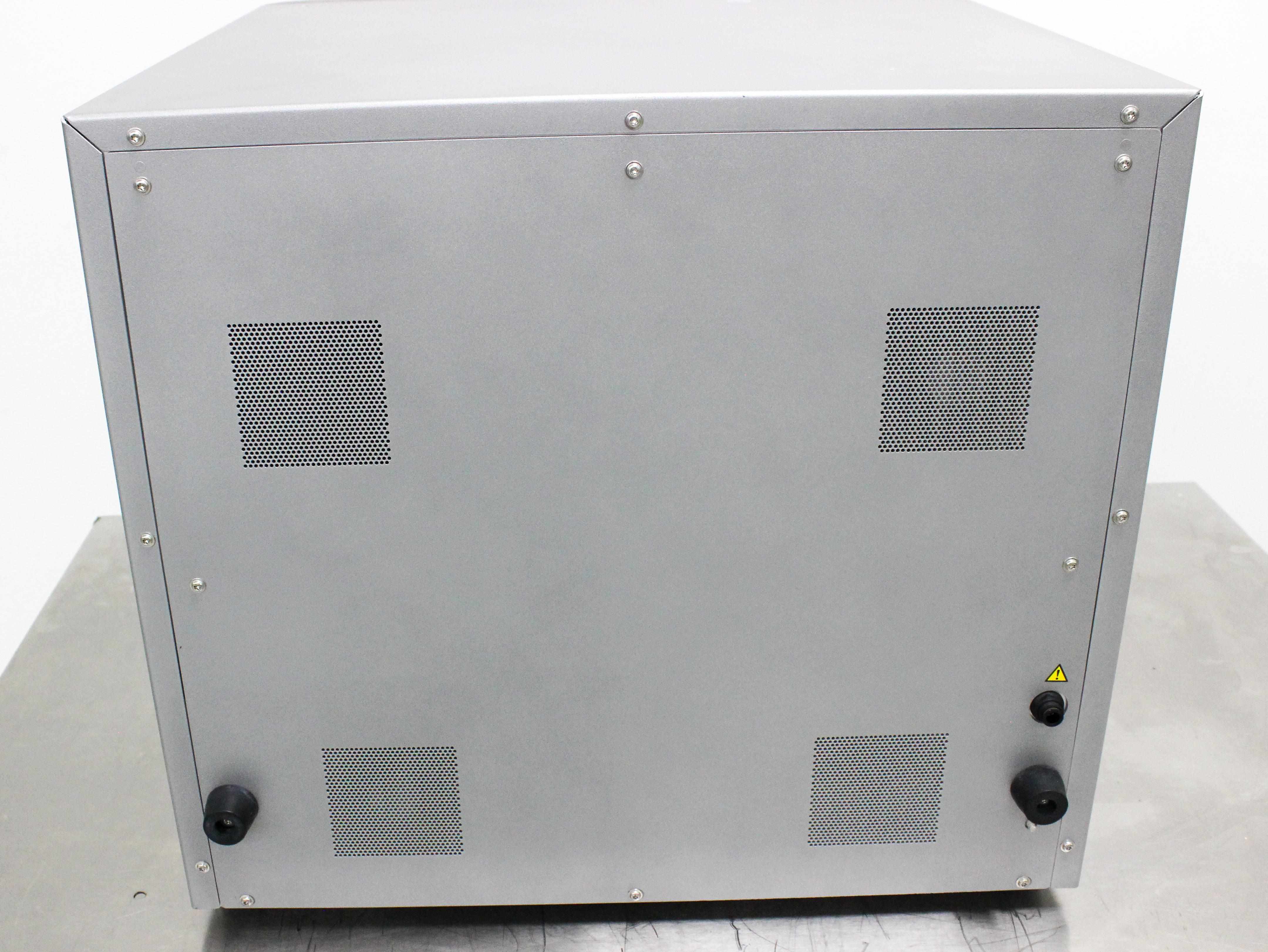

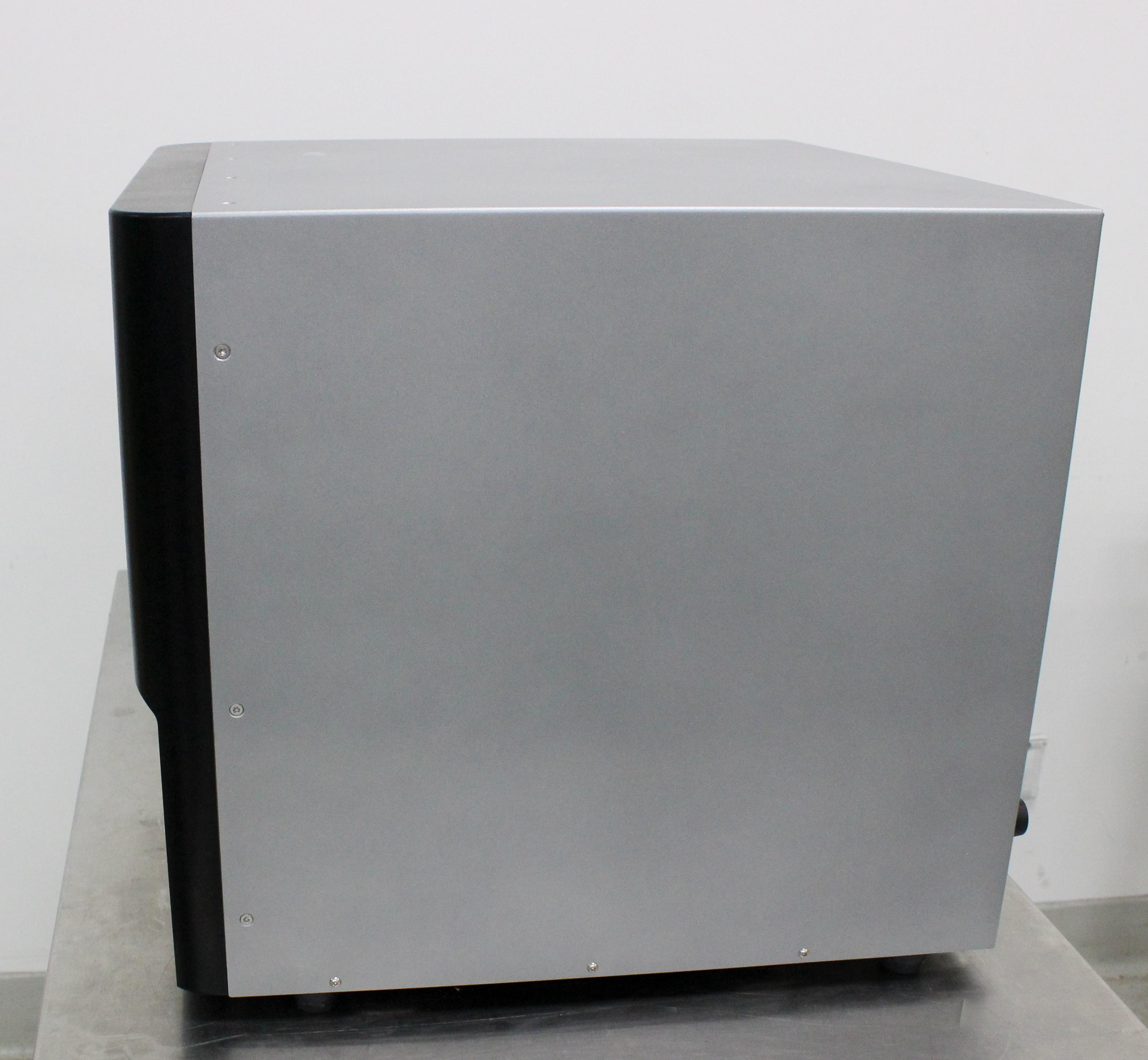

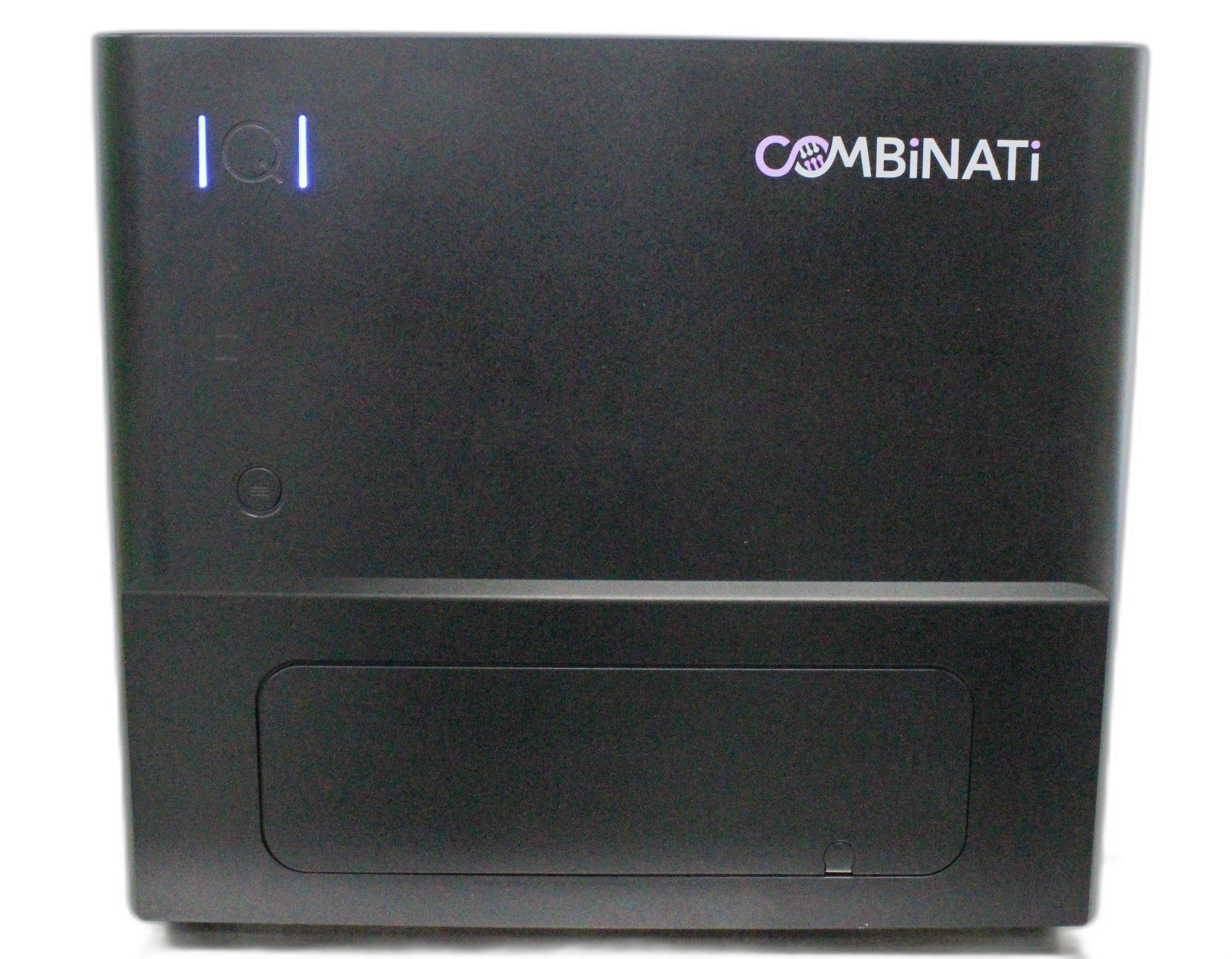

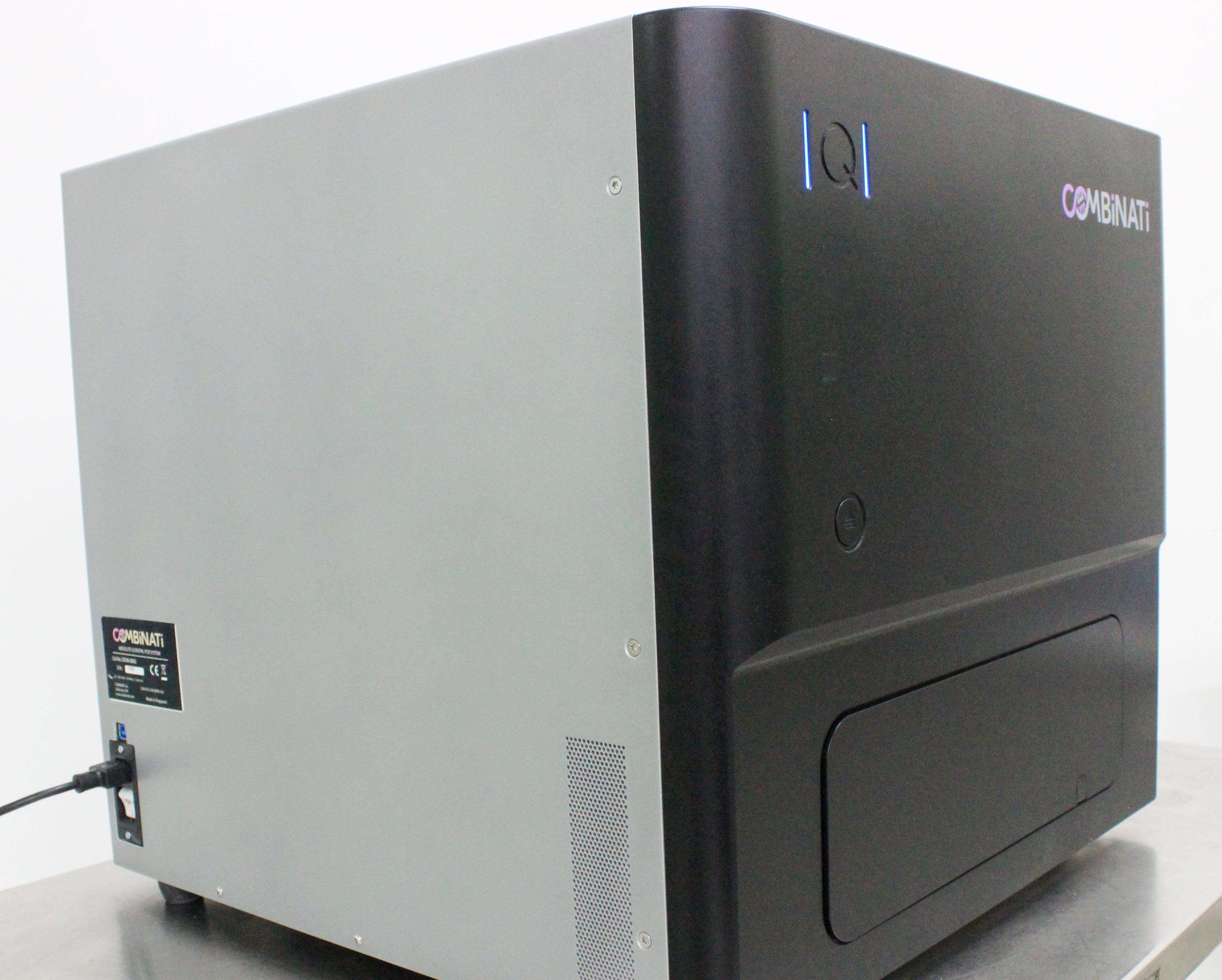

Unit is preowned from a working environment. Overall excellent cosmetic condition. Need software to fully test. No software included. See photos for details.
Key Features
- Plate-based digital PCR platform
- Microfluidic array plate (MAP) technology
- Single instrument operation
- 20,480 micro-chambers per reaction
- 95% sample analysis efficiency
- 90-minute full cycle time
Specifications
- Dye compatibility: FAM, HEX, VIC, ABY, ROX, CY5, JUN
- Optical multiplexing: Five optical channels, ROX used for reference
- Dynamic range: Five logs
- Precision: ±10%
- Dimensions (unpacked): 620 mm (l) x 600 mm (w) x 540 mm (h)
- Weight: Approx. 60 kg
- Cooling mode: Forced convection
- Power input: 100–240 Vac, 50–60Hz
- Rated current: 12 A (110 V), 8.5 A (230 V)
- Maximum noise level: 70 dB
Weight
Imperial: 158.4 Pounds
Metric: 71.85 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 27.6 lb x 25.2 lb
Metric: 73.15 cm x 70.1 cm x 64.01 cm
Harmonized Code
902750
Harmonized Code Details
The harmonized code 902750 covers instruments and apparatus for physical or chemical analysis. Applied due to the equipment's role in digital PCR and sample analysis.
