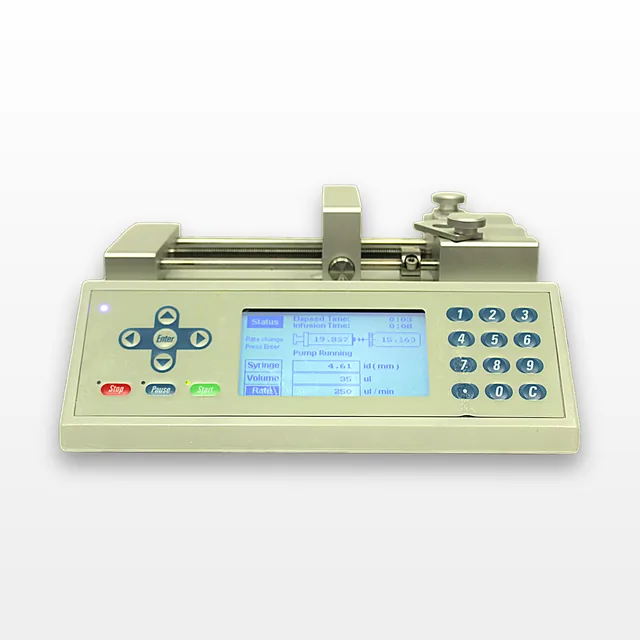

Chemyx Fusion 100T Syringe Pump
Chemyx
Details
-
CategoryPump
-
Dimension24.0cm x 15.0cm x 11.0cm
-
Serial93985
-
Shipping TypeFedEx Ground
-
Voltage / Hertz240V / 50Hz/60Hz
Description
The Chemyx Fusion 100T syringe pumps are dual-channel syringe pumps designed to handle precision dosing applications in chemical, pharma, and biotech R&D. The infusion syringe pump ensures pulseless, reproducible pump rates with an ease of use and system value unmatched in its class. It holds syringes from 0.5L to 60 mL, with rates from 0.0001 L/min to 140 mL/min and control via touchscreen, USB, RS232, and TTL. This used pump is in good condition with the ability to operate in a wide range of temperatures and humidity levels. It is suitable for applications such as analytical techniques, chemical research, pharmaceutical development, and biotech R&D.
Key Features- Dual-channel syringe pump
- Pulseless, reproducible infusion pump rates
- Wide range of infusion rates and syringe sizes
- Touchscreen and USB control
- Mode: Infuse Only
- Accuracy: < 0.35%
- Reproducibility: < 0.05%
- Syringe Size (Min/Max): 0.5L to 60mL
- Syringe Type: Plastic and Glass
- Minimum Flow Rate: 0.0001 L/min (with 0.5L syringe)
- Maximum Flow Rate: 90 mL/min (with 60mL syringe)
- Linear Force: 29lb (13.1kg)
- Display: 4.3 inch LCD Screen
- Connectivity: RS232 and USB-B Ports
- System Dimensions: 24 x 17 x 11 cm
- Power: 110/220 VAC
- Weight: 3kg
- Motor Drive: 0.9 Stepper Motor with Micro-stepping
- Step Resolution: 0.198 m/step
- Operating Temperature: 4C to 40C (40F to 104F)
- Storage Temperature: -10C to 70C (14F to 158F)
- Humidity: 20% to 80% RH, non-condensing
Metric: 3 kg
Imperial: 7 lb
Metric: 24 cm x 17 cm x 11 cm
Imperial: 9.5 in x 6.7 in x 4.3 in
841381
Harmonized Code DetailsThe chosen harmonized code is for pumps specifically designed for dispensing of medical solutions. As the Chemyx Fusion 100T is a syringe pump used in medical and research environments, this harmonized code is appropriate for import/export purposes.
