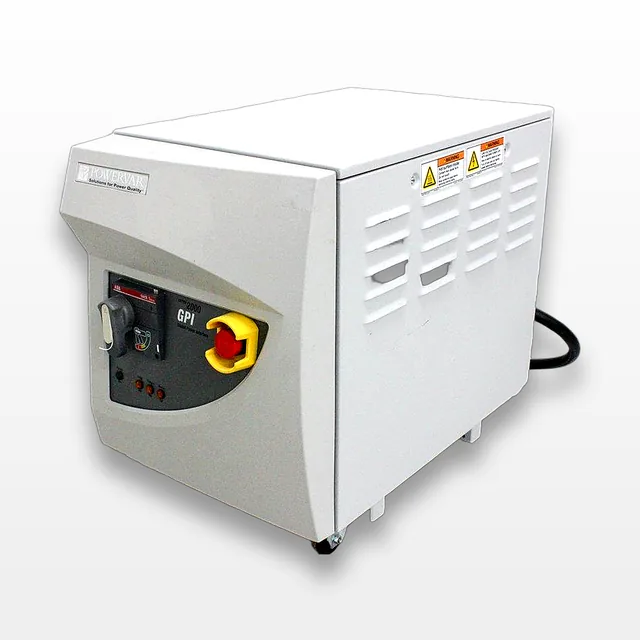

Powervar Power Conditioner ABC15.0-20D40Y Three-Phase Noise Elimination Unit
Powervar
Details
-
CategoryComputer / IT
-
Dimension18.0in x 32.0in x 26.0in
-
Serial7401564R-1140011
-
Shipping TypeFreight
-
Voltage / Hertz220V / 60Hz US
Description
The Powervar Power Conditioner ABC15.0-20D40Y, part of the GPI Series 2000, is engineered to remove high-frequency noise and voltage spikes from AC power. This three-phase device ensures robust protection across all transformer phases, benefiting complex electronic systems by reducing hardware malfunctions, service issues, downtime, and enhancing manufacturing yield. Key specifications include a 15 kVA capacity, >97% efficiency under full load, and comprehensive noise rejection capabilities. The unit has been tested to withstand up to 6000 volts at 3000 amps. Although cosmetic wear is present, the unit powers on and runs basic tests successfully. Ideal for settings where clean power is crucial for reliable electronic function.
Technician comment
Power conditioner will need to be hardwired to fully test. See photos for details.
Key Features
- Three-phase device for comprehensive protection
- Eliminates high-frequency noise and voltage spikes
- 15 kVA continuous capacity
- Tested up to 6000 volts at 3000 amp ringwave
- >97% efficiency at full load
- Noise rejection capabilities under ANSI/IEEE C62.41 standards
- Copper transformer wires with Class H insulation
Specifications
- Input Voltage: 208/240/480/600 delta connection (4 wire)
- Output Voltage: 208/120 wye (5 wire)
- Capacity: 15 kVA
- Output: 1536 BTU/Hr.
- Efficiency: > 97% at unity power factor
- Noise Rejection: Less than 10 volts normal mode, less than 0.5 volts common mode
- Surge Voltage Withstand: Up to 6000 volts @ 3000 amp
- Material: Copper wires with Class H insulation, Nomex paper insulation
- RoHS compliant
Weight
Imperial: 655.2 Pounds
Metric: 297.19 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 38.4 lb x 31.2 lb
Metric: 54.86 cm x 97.54 cm x 79.25 cm
Harmonized Code
8504.40.95
Harmonized Code Details
8504.40.95 applies to static converters, including power conditioners, given their role in transforming electric currents for diverse industrial applications.
