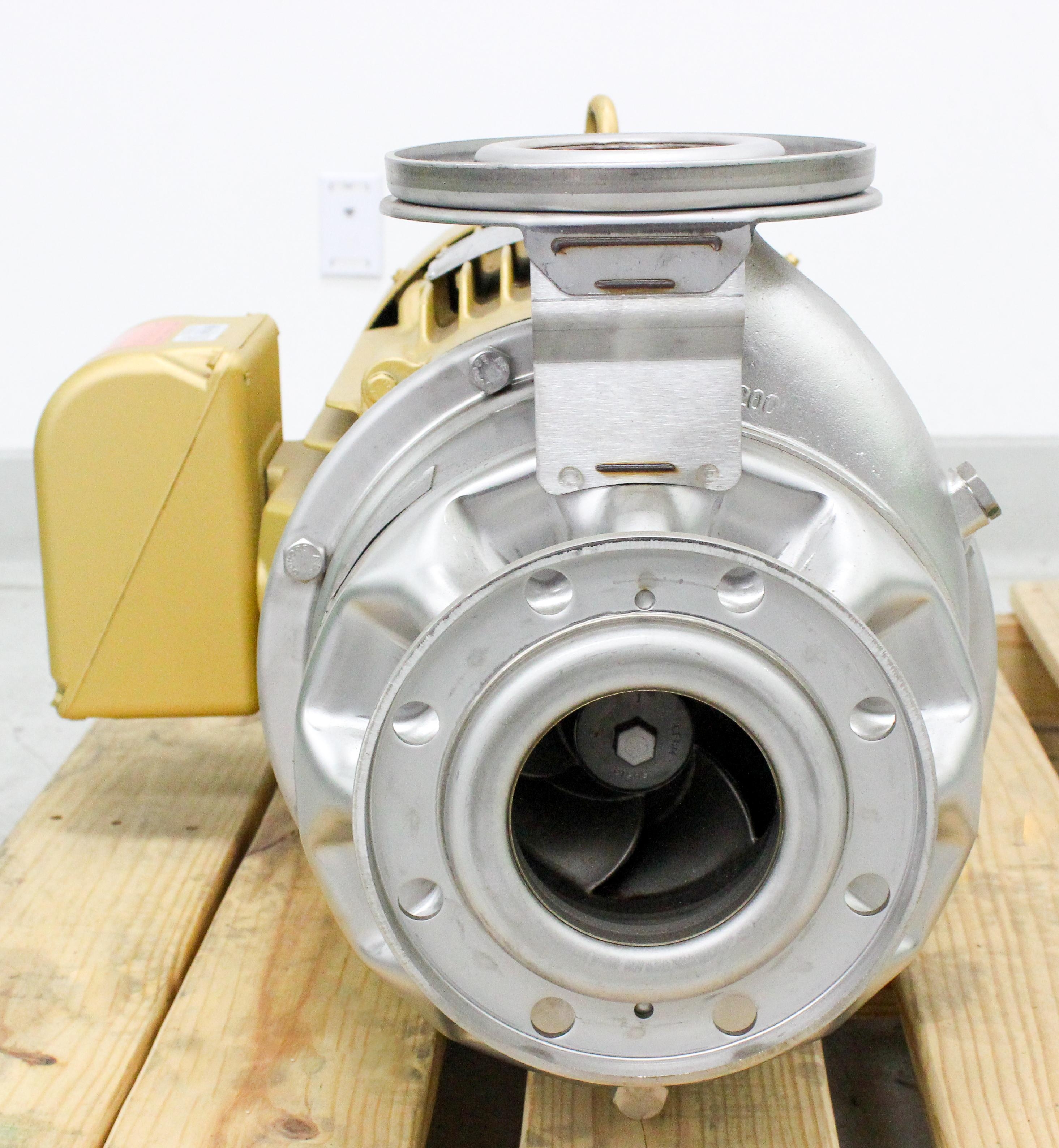

Goulds e-SH 316 SS Centrifugal Pump 230-460V 3525 RPM 30 HP Industrial Use
Goulds Water Technology
Details
-
CategoryPump
-
Dimension21.0in x 33.0in x 17.0in
-
SerialS033669
-
Shipping TypeFreight
-
Manufacturing2006-03-08
-
Voltage / Hertz230V-460V / 60Hz US
Description

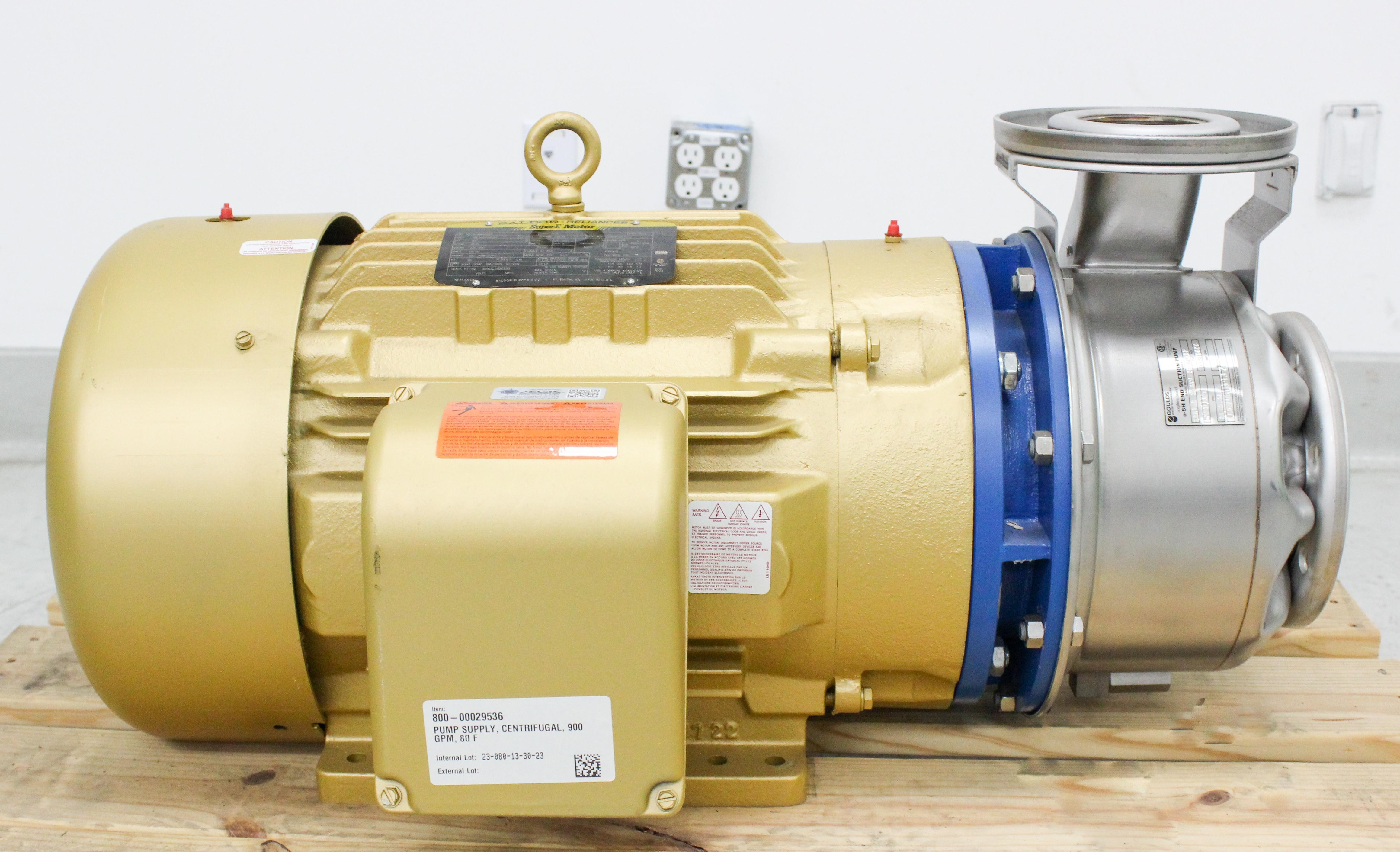

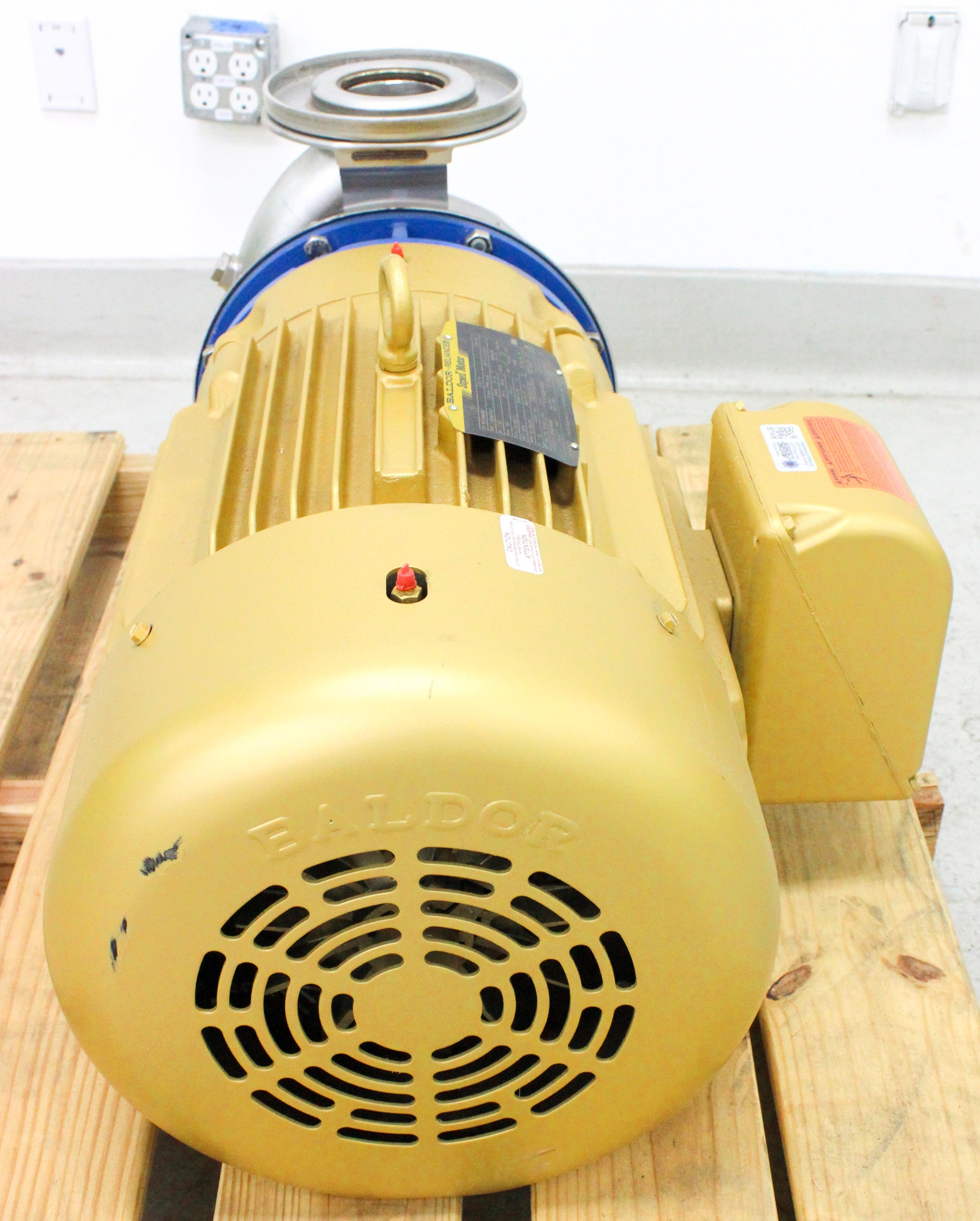

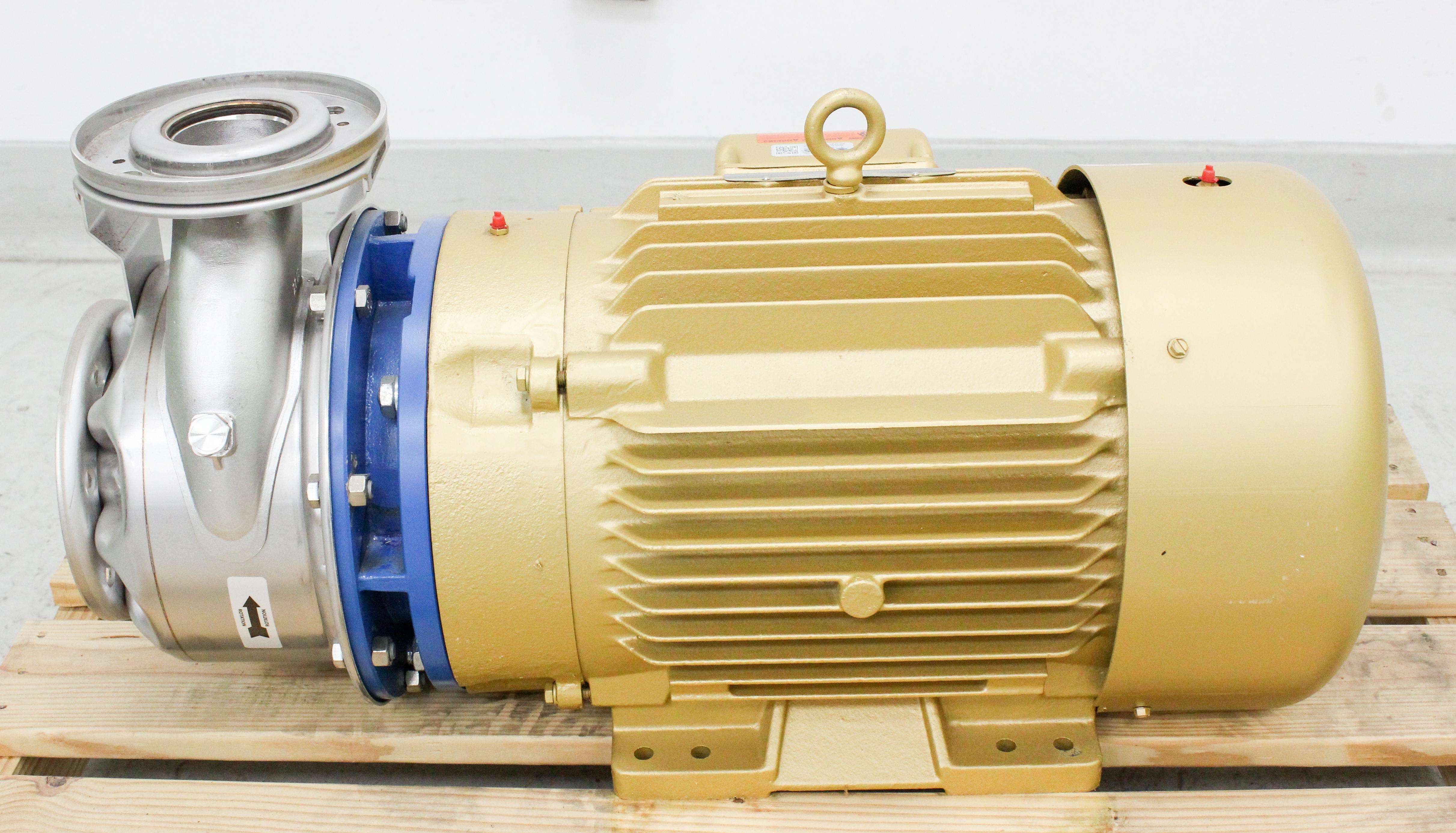

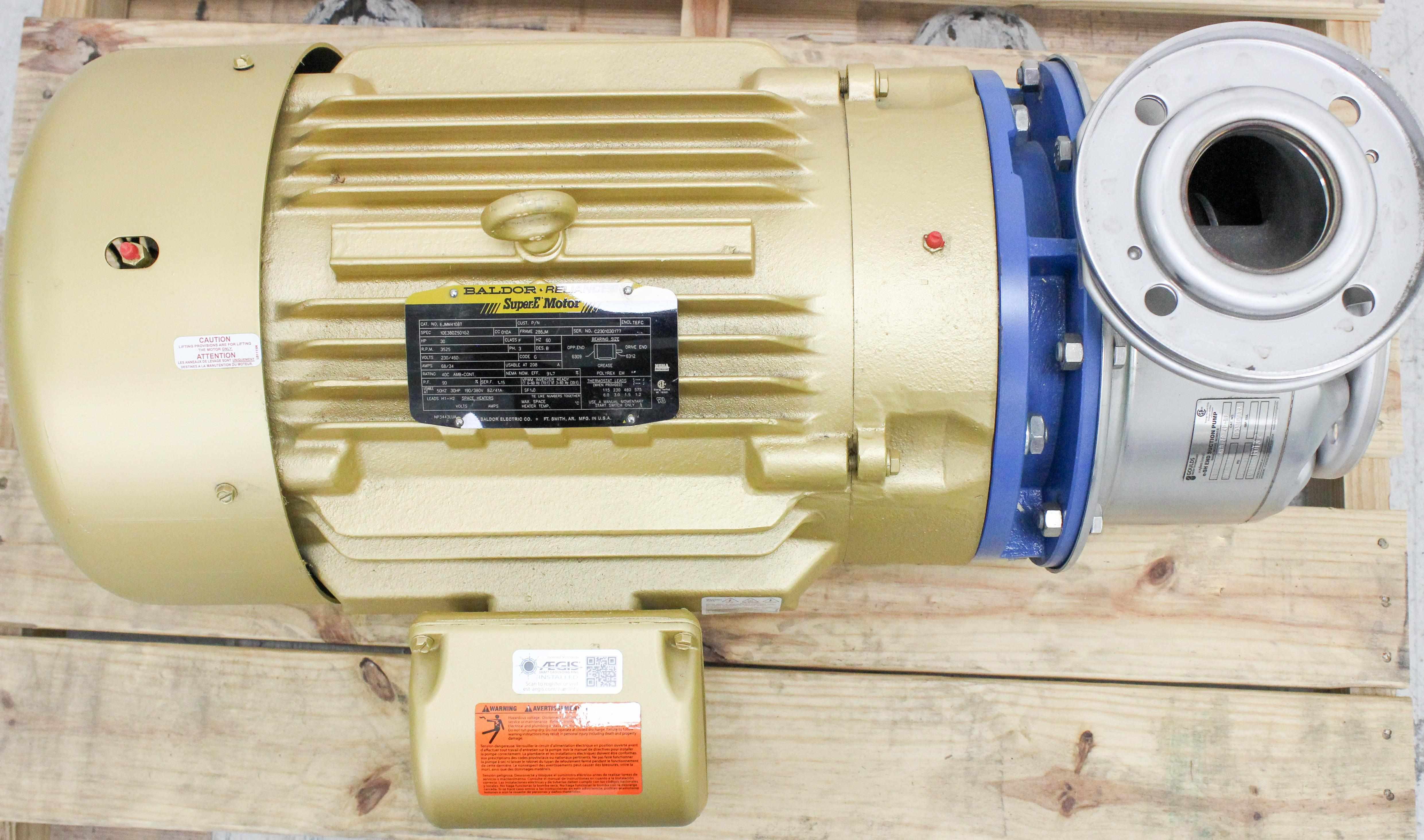

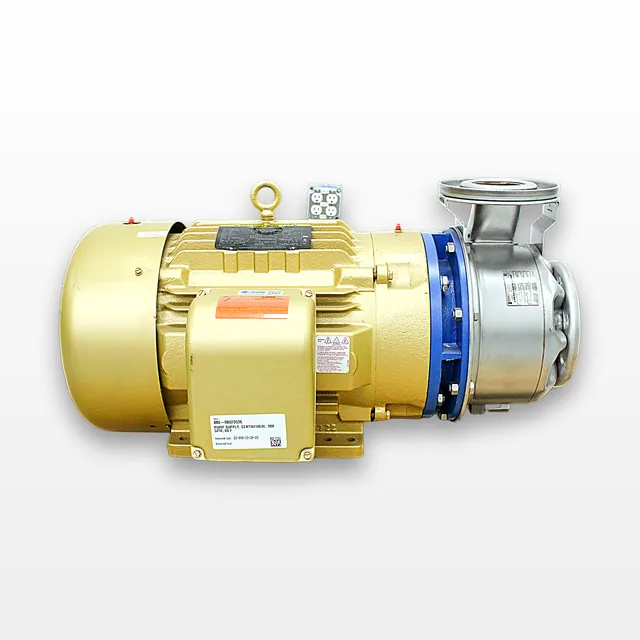

This 2006 Goulds Water Technology e-SH 316 Stainless Steel End Suction Centrifugal Pump is built for exceptional efficiency and reliability in diverse applications. The corrosion-resistant 316 stainless steel impeller facilitates handling of water and various liquids in commercial and industrial settings. The back pull-out design allows for easy maintenance by accessing the impeller, bracket, and motor without disconnecting the piping. Interchangeable mechanical seals and replaceable wear rings extend lifespan. Powered by a Baldor Reliance Super-E Premium Efficiency Motor, the pump provides 30 HP at 3525 RPM with superior energy efficiency. Ideal for water treatment, chemical processing, and food & beverage industries, it is capable of handling liquid temperatures up to 250°F. The motor operates on 230/460V with a robust TEFC design for durability.
Technician comment
Model e-SH suction pump was removed from a working laboratory environment. Unit is in excellent overall condition. No signs of excessive wear or damage observed. Motor powers on properly, and pump appears structurally sound. Further testing may be required for application-specific performance verification.
Key Features
- 316 stainless steel construction for corrosion resistance
- Back pull-out design for simplified maintenance

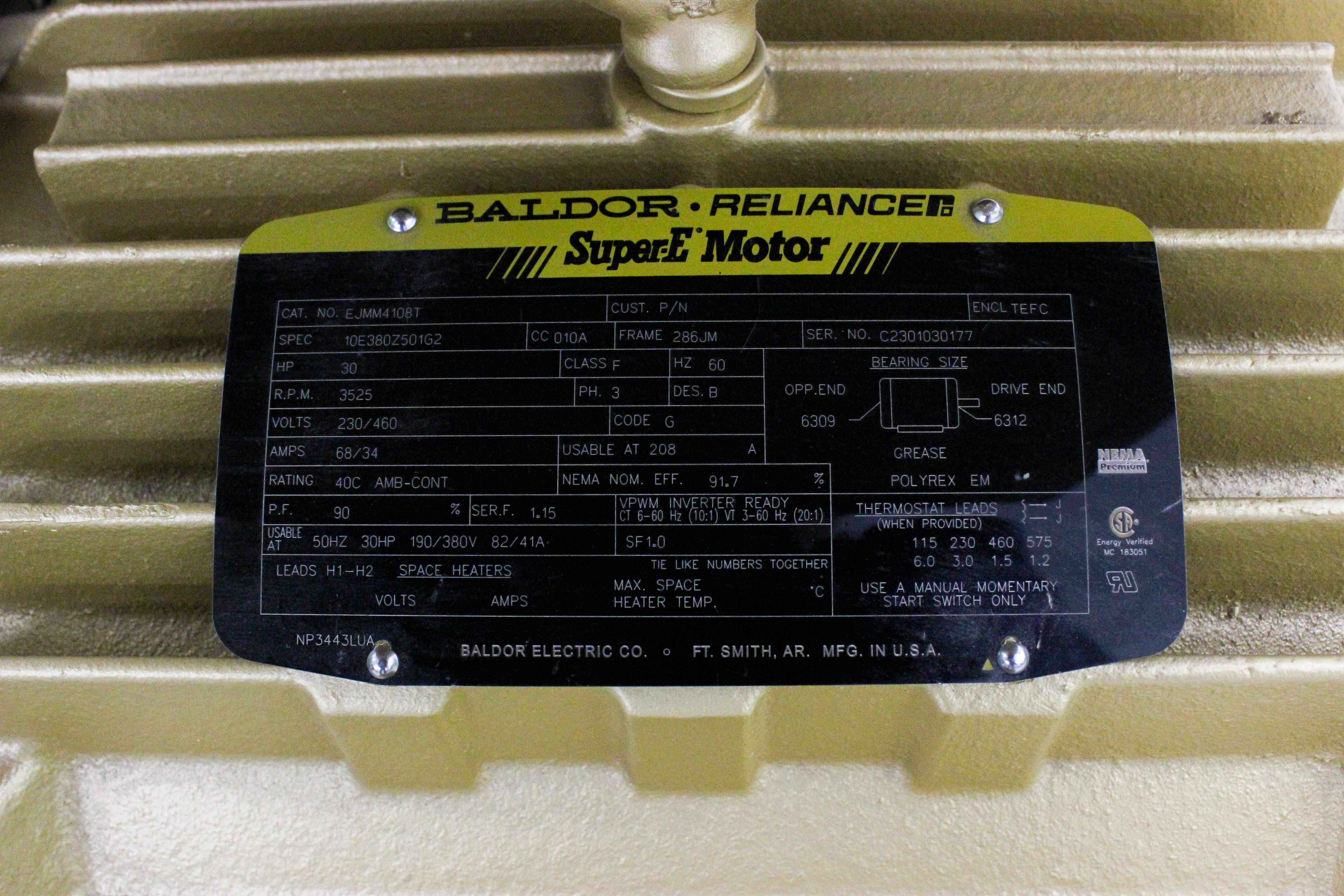

- 30 HP Baldor Reliance Super-E Premium Efficiency Motor
- Operational power: 230/460V, 3-phase
- 3525 RPM with NEMA efficiency of 91.7%
- Inverter duty rated for variable speed applications
- Handles liquid temperatures up to 250°F
Specifications
- Brand: Goulds Water Technology

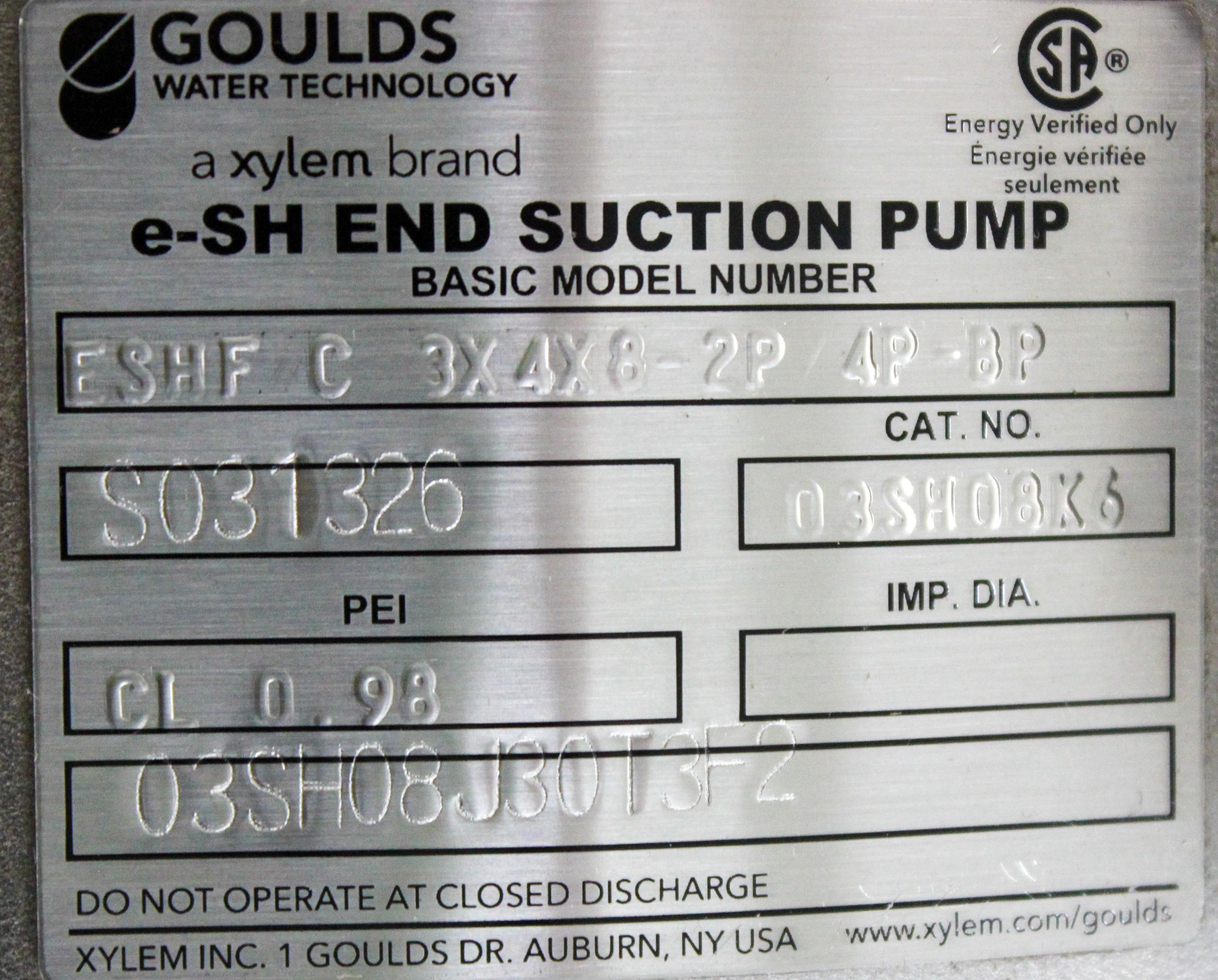

- Model: e-SH 316 Stainless Steel End Suction Centrifugal Pump
- Motor: Baldor Reliance Super-E Premium Efficiency
- Horsepower: 30 HP
- Speed: 3525 RPM
- Voltage: 230/460V, 3-phase
- Frame: 286JM
- Insulation Class: F
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- NSF/ANSI 61 Drinking Water System Components Standard compliance
- Built Date: March 8, 2006
- Country of Origin: United States
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 25.2 lb x 39.6 lb x 20.4 lb
Metric: 64.01 cm x 100.58 cm x 51.82 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Centrifugal pumps for liquids, other than submersible pumps. This code is appropriate based on the pump's design and application in circulating various liquids, compliant with international customs requirements.
