Sumitomo Cyclo HBB Gear Motor Helical 10 HP 45.5 RPM 3 Phase Efficient
Sumitomo
Details
-
CategoryOther
-
Dimension25.0in x 30.0in x 21.0in
-
SerialCA0245318
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

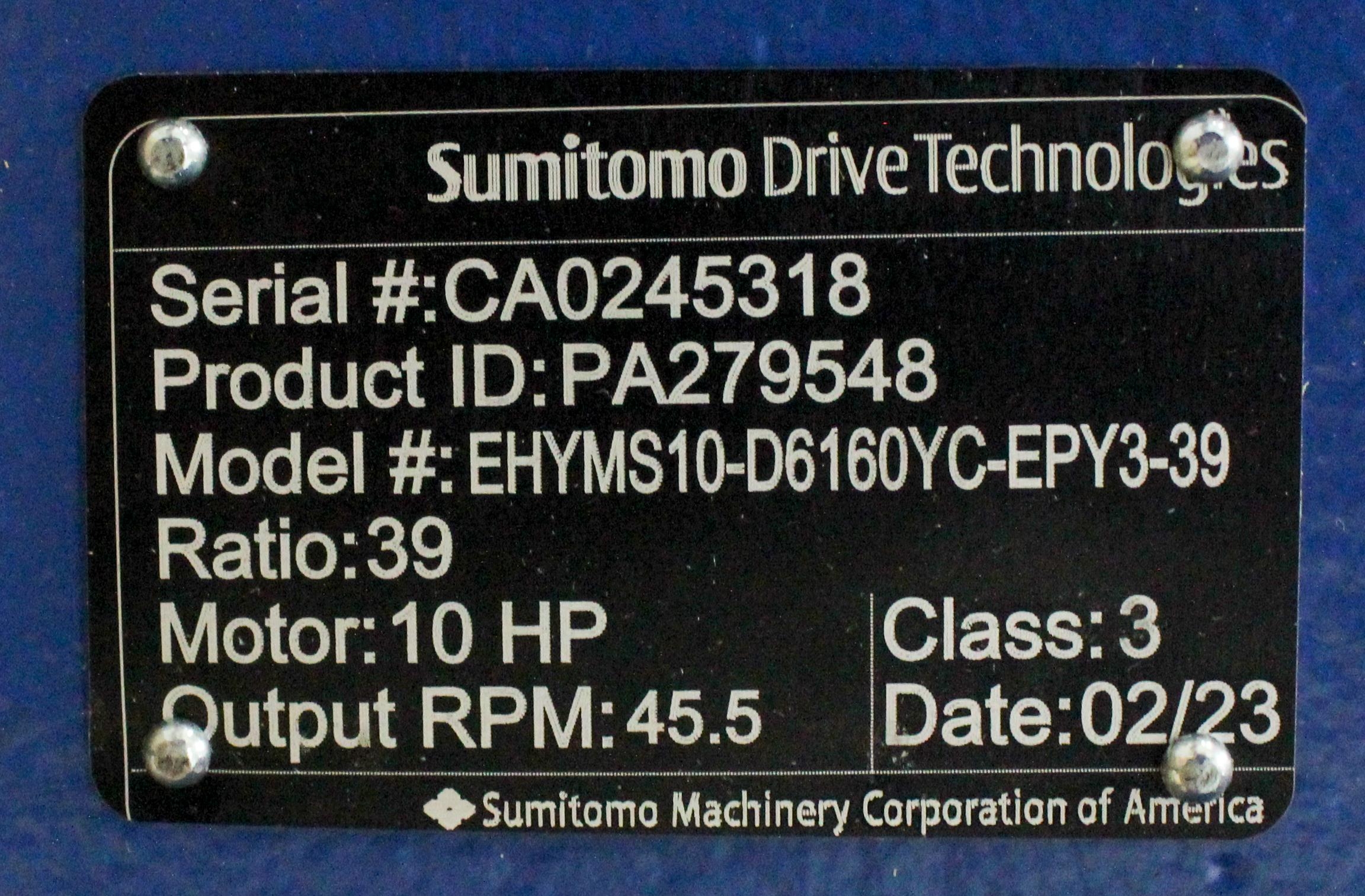

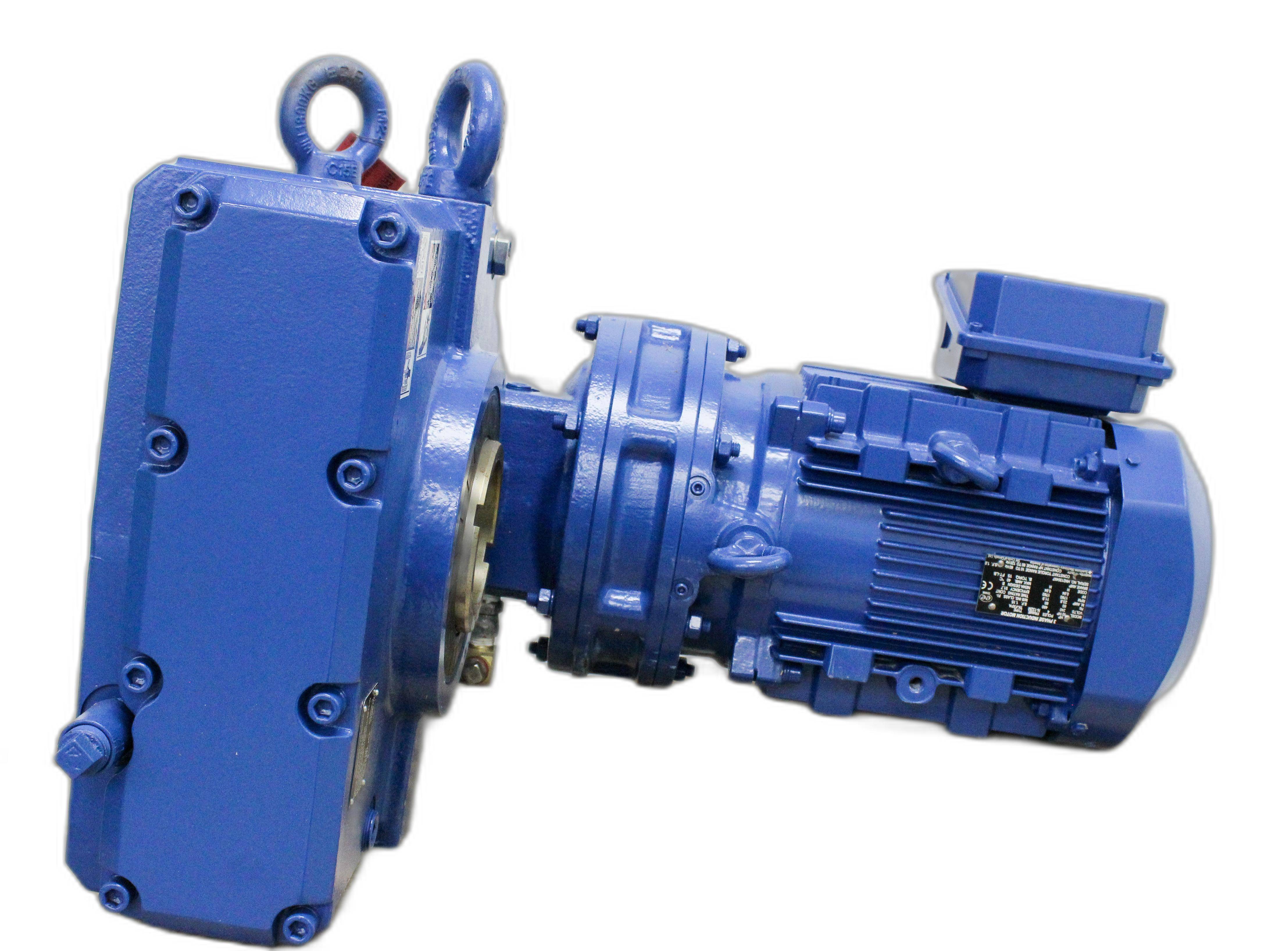

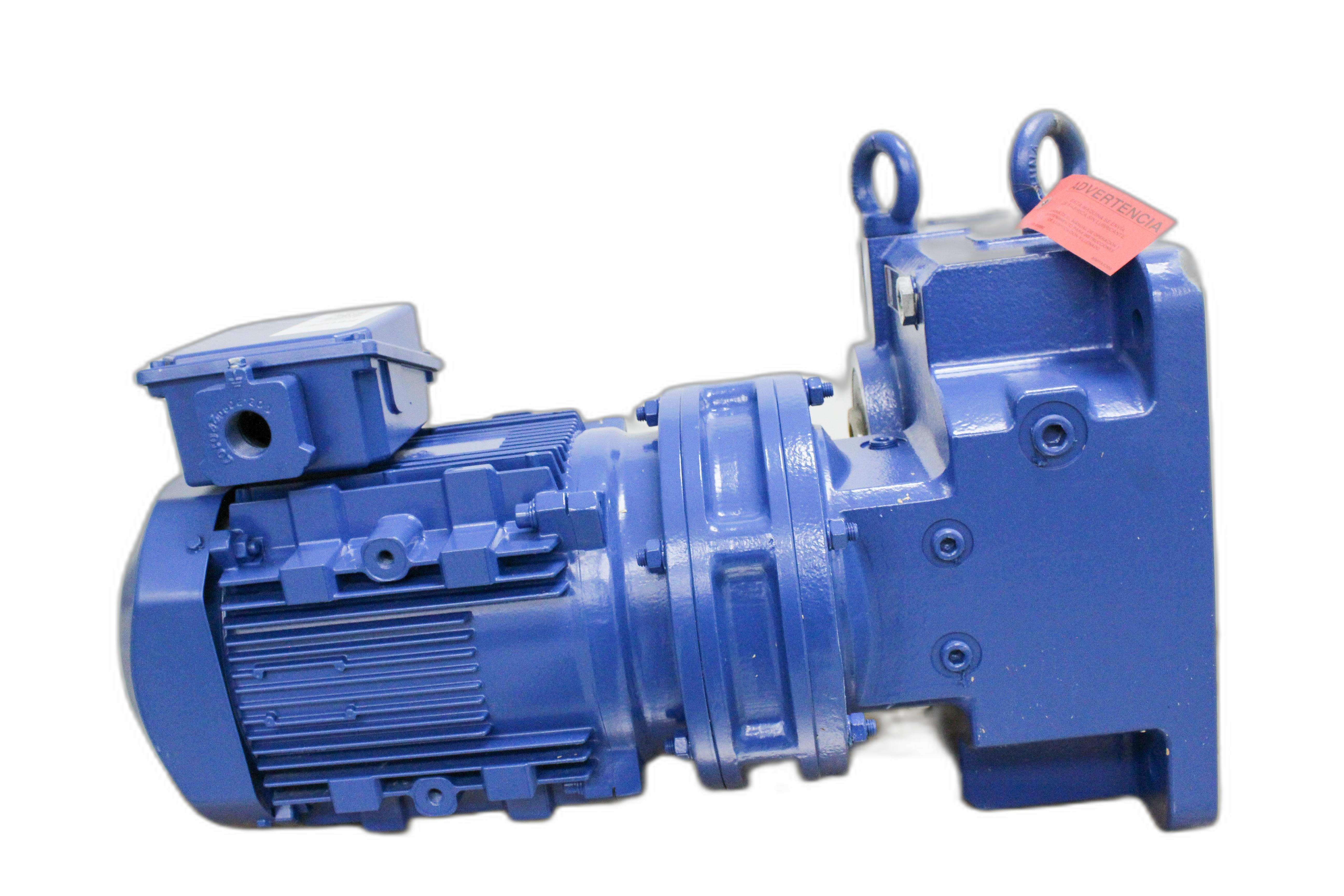

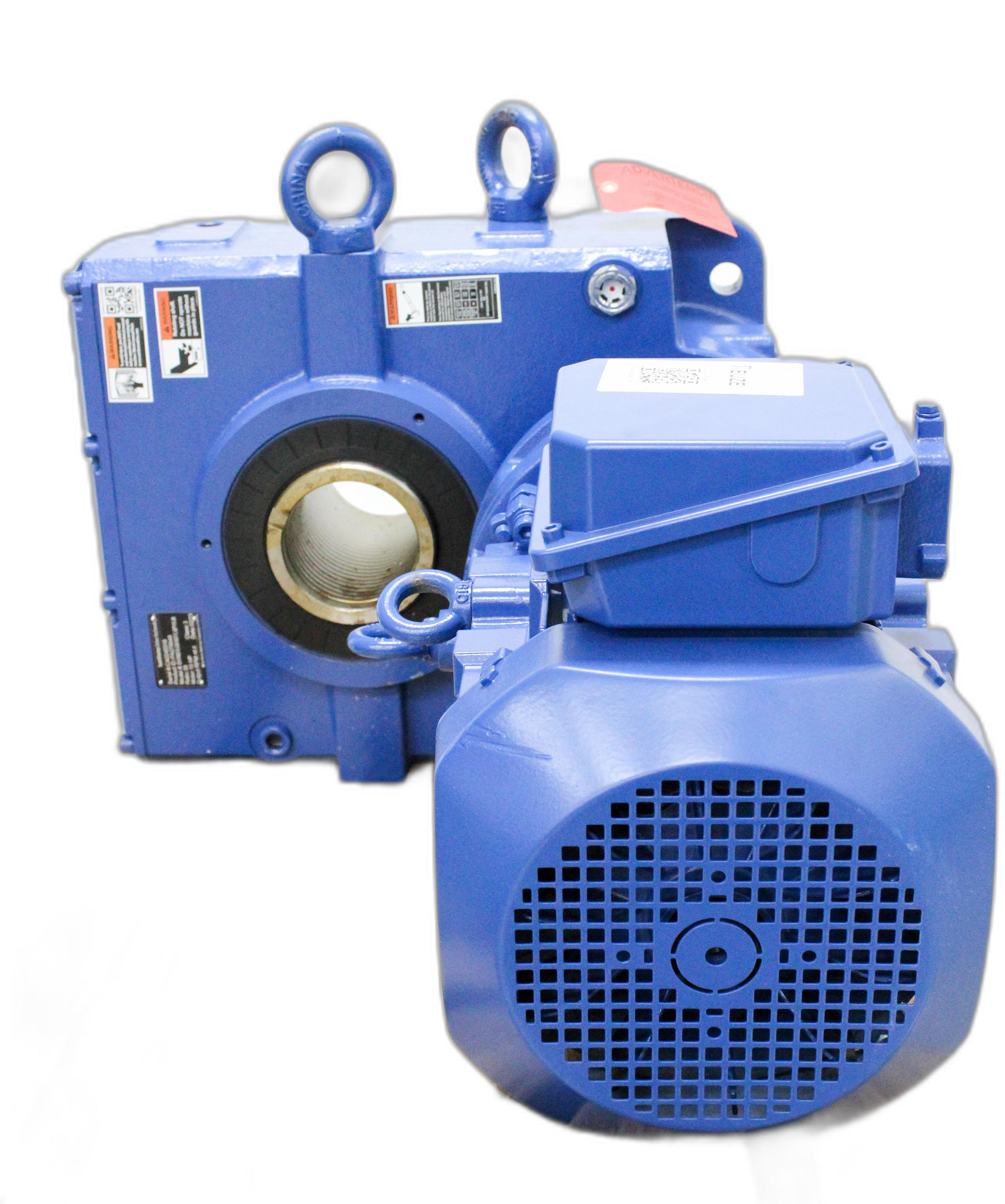

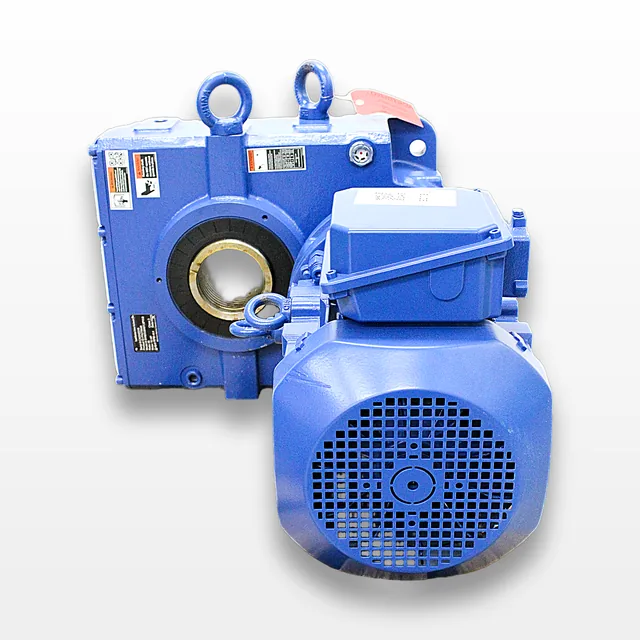

This Sumitomo Cyclo HBB Helical Buddybox Gear Motor, Model EHYMS10-D6160YC-EPY3-39, was manufactured in 2023 and is in excellent condition. Featuring a 10 HP motor with an output speed of 45.5 RPM, it embodies a quiet, efficient, and reliable performance. The unique design merges the sleek Cyclo technology input with a durable helical gear output. This unit exhibits a robust modular design, allowing a compact, adaptable setup with a wide range of speed and torque outputs. Ideal for demanding applications, it includes a simple splash lubrication system to extend lifespan, and its design eliminates external fan needs due to no thermal limitations. Key features like the patented Taper-Grip Bushing facilitate easy, backlash-free installation and removal. Perfect for CEMA Screw Conveyor Drive adaptations or other heavy industrial applications, this piece ensures high torque density and smooth operation.
Technician comment

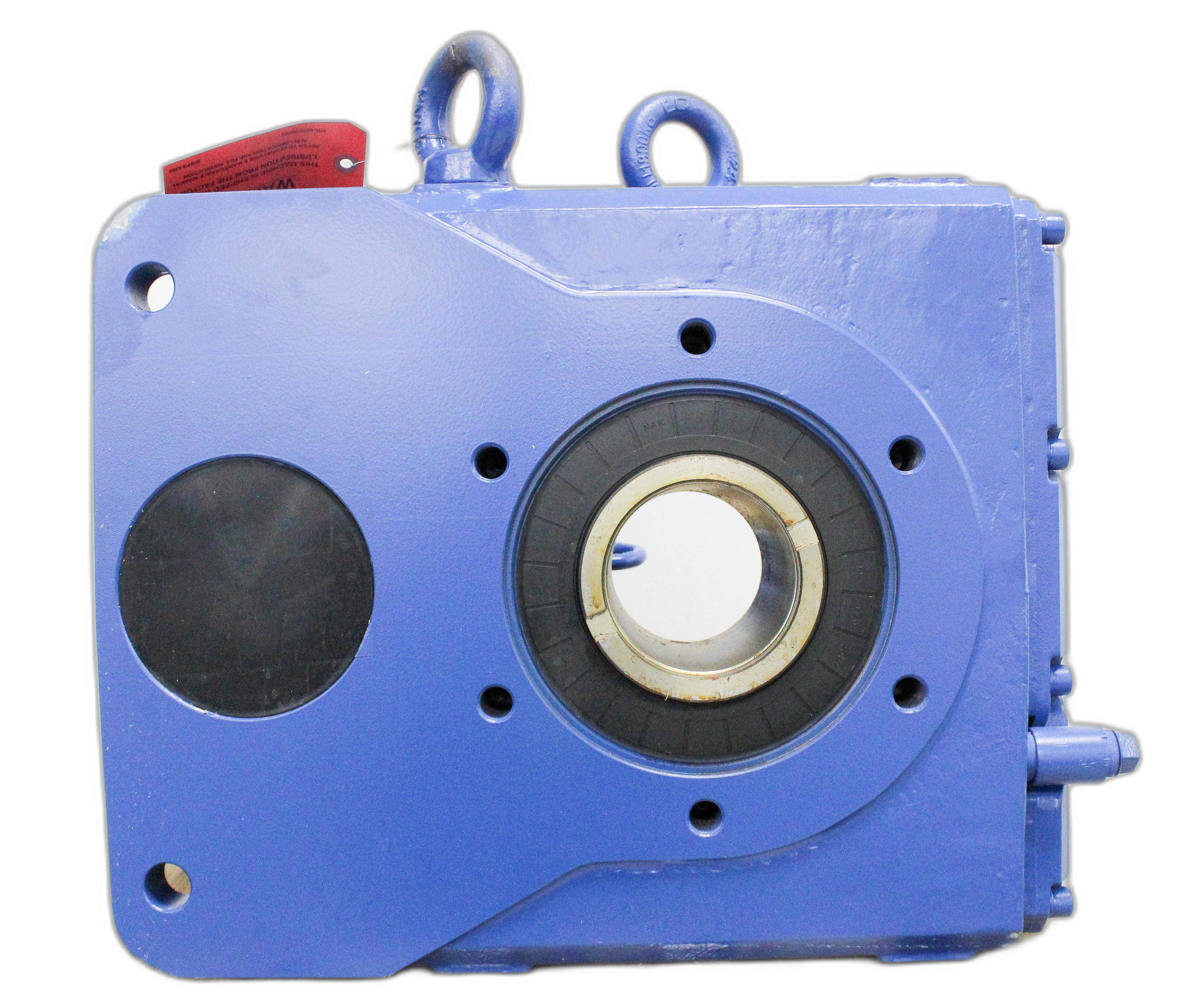

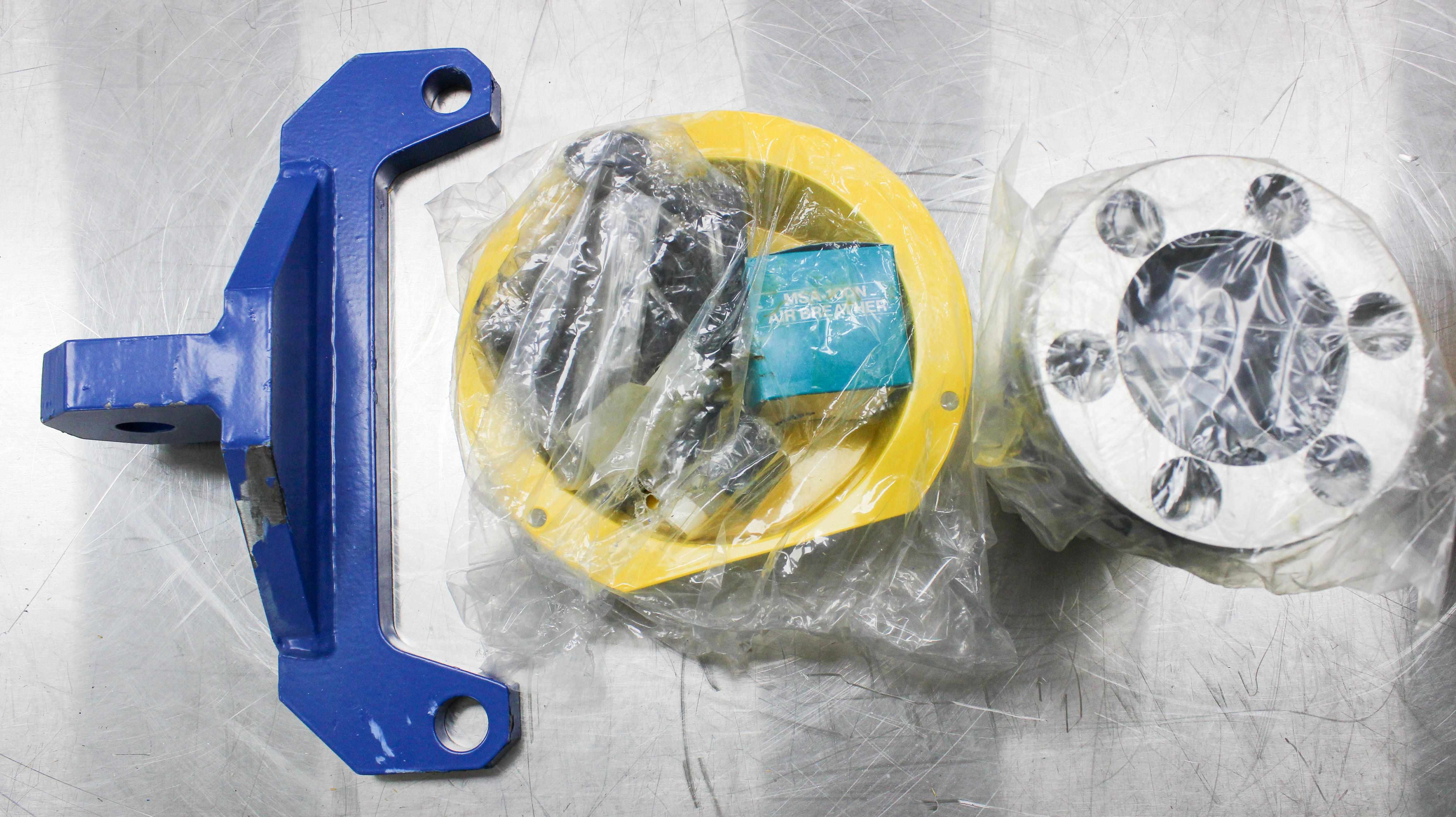

The Sumitomo Cyclo HBB Helical Buddybox Gear Motor was removed from a working environment. The housing is in excellent like-new cosmetic condition. Bracket shows chipped paint. See photos for details.
Key Features
- 10 HP motor
- Output speed of 45.5 RPM
- Rugged helical-gear output
- Cycloid technology for quiet, efficient performance
- Modular design with splash lubrication system

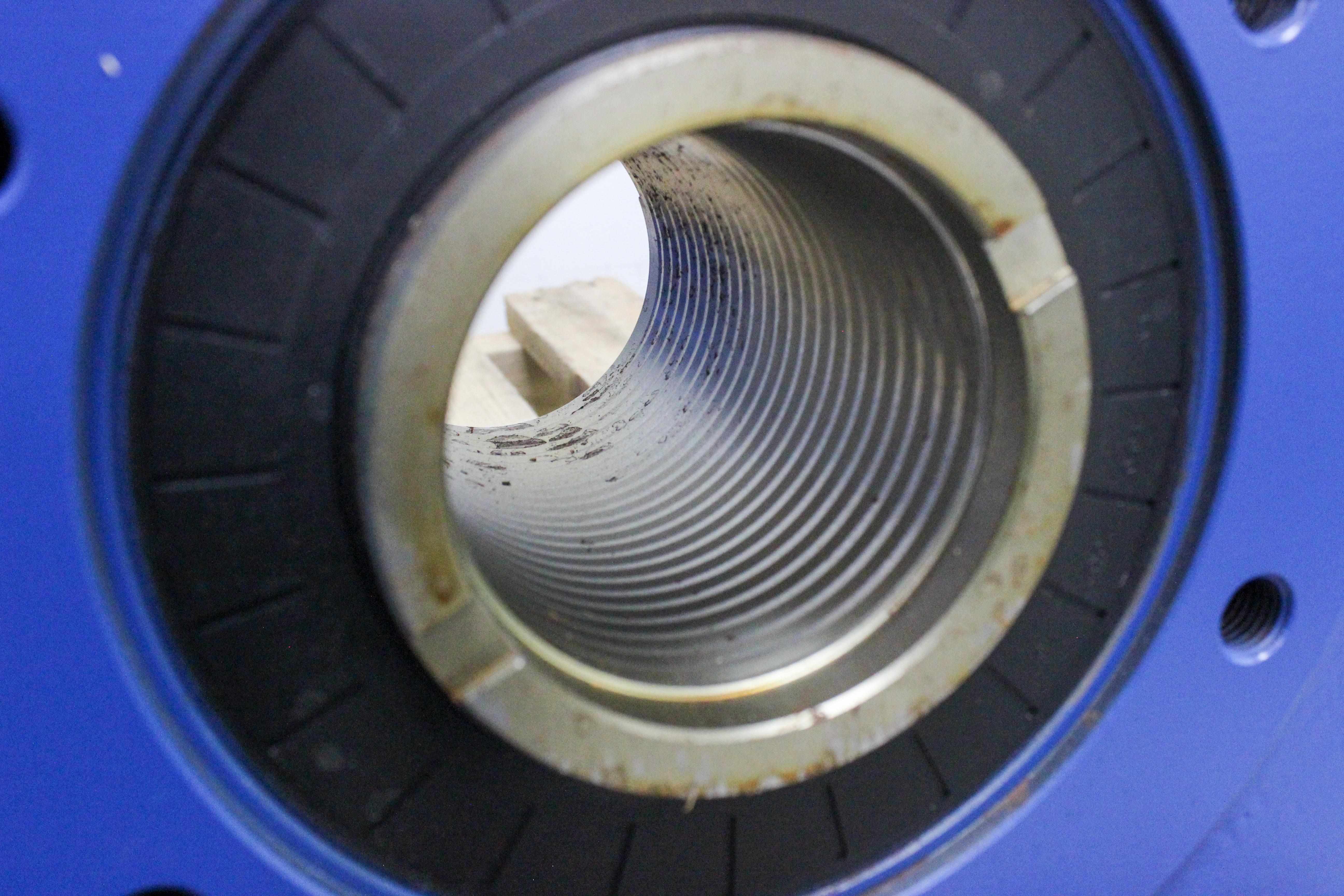

- Patented Taper-Grip Bushing for easy installation
- CEMA Screw Conveyor Drive option
Specifications

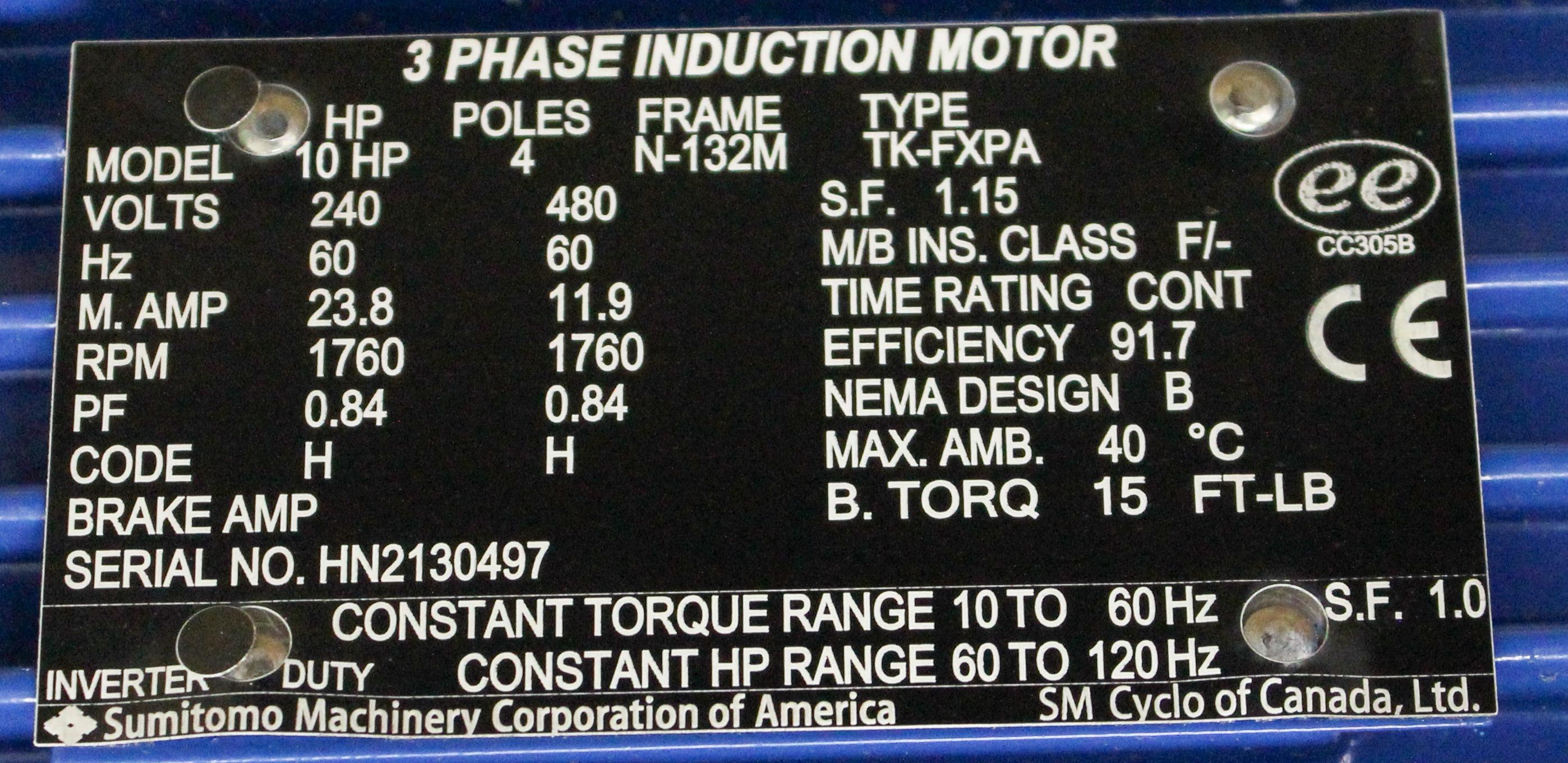

- Motor: 10 HP
- Output RPM: 45.5
- Offset parallel, helical gearbox design
- Double output seals minimizing leakage
- Torque Capacity: Up to 75,800 in. lbs
- Ratios available: 11:1 to 26,000:1 and greater
- Mounting options: Hollow Shaft, Flange, Face
- Motor Standards: NEMA, IEC, JIS, UL, CSA, CE
Weight
Imperial: 1200.0 Pounds
Metric: 544.31 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 36.0 lb x 25.2 lb
Metric: 76.2 cm x 91.44 cm x 64.01 cm
Harmonized Code
85015220
Harmonized Code Details
AC motors, multi-phase, exceeding 750 W but not exceeding 75 kW; ideal for industrial applications like machinery and heavy-duty operations, fitting the characteristics of the Sumitomo Cyclo HBB Helical Buddybox Gear Motor.
