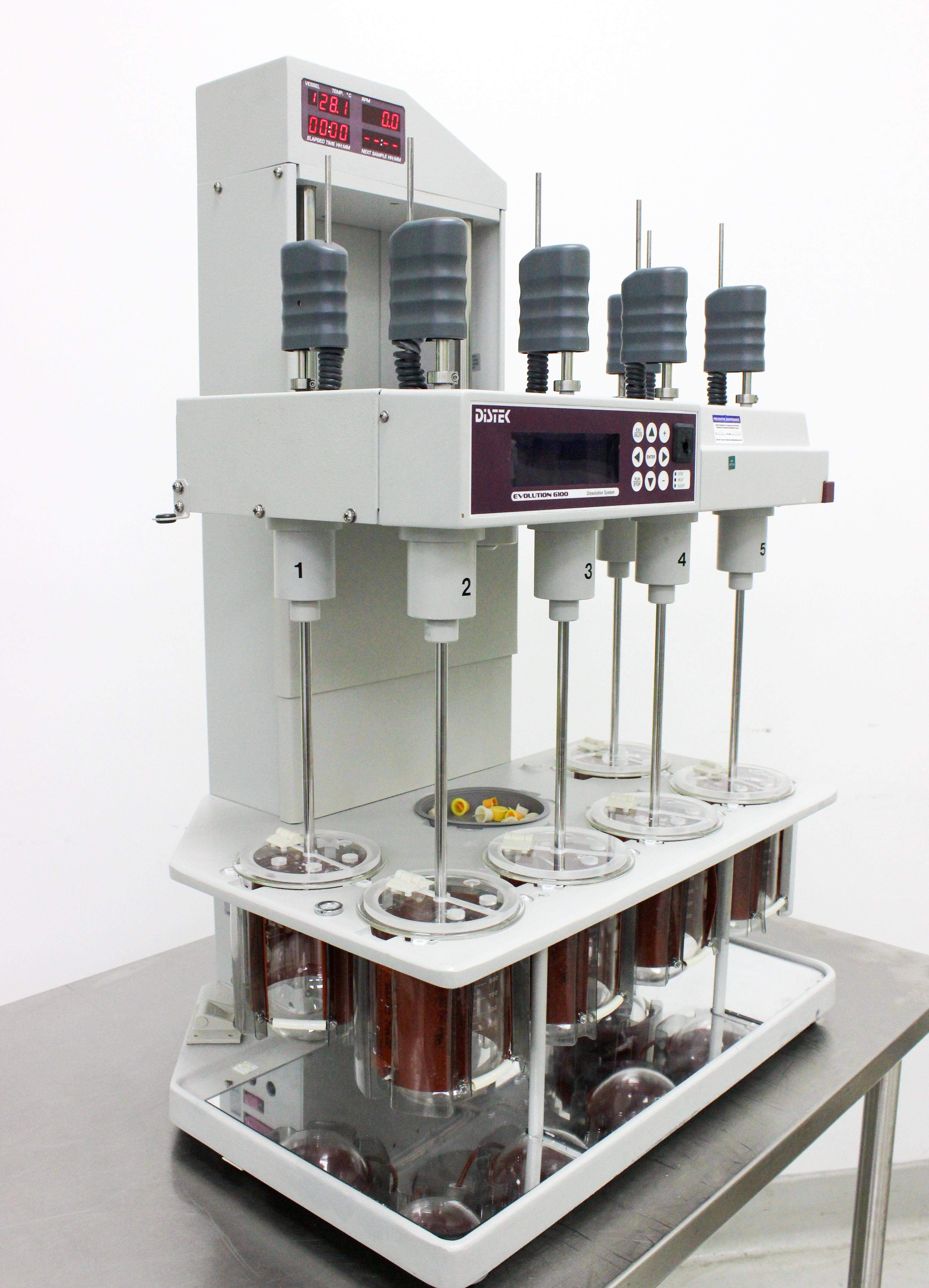

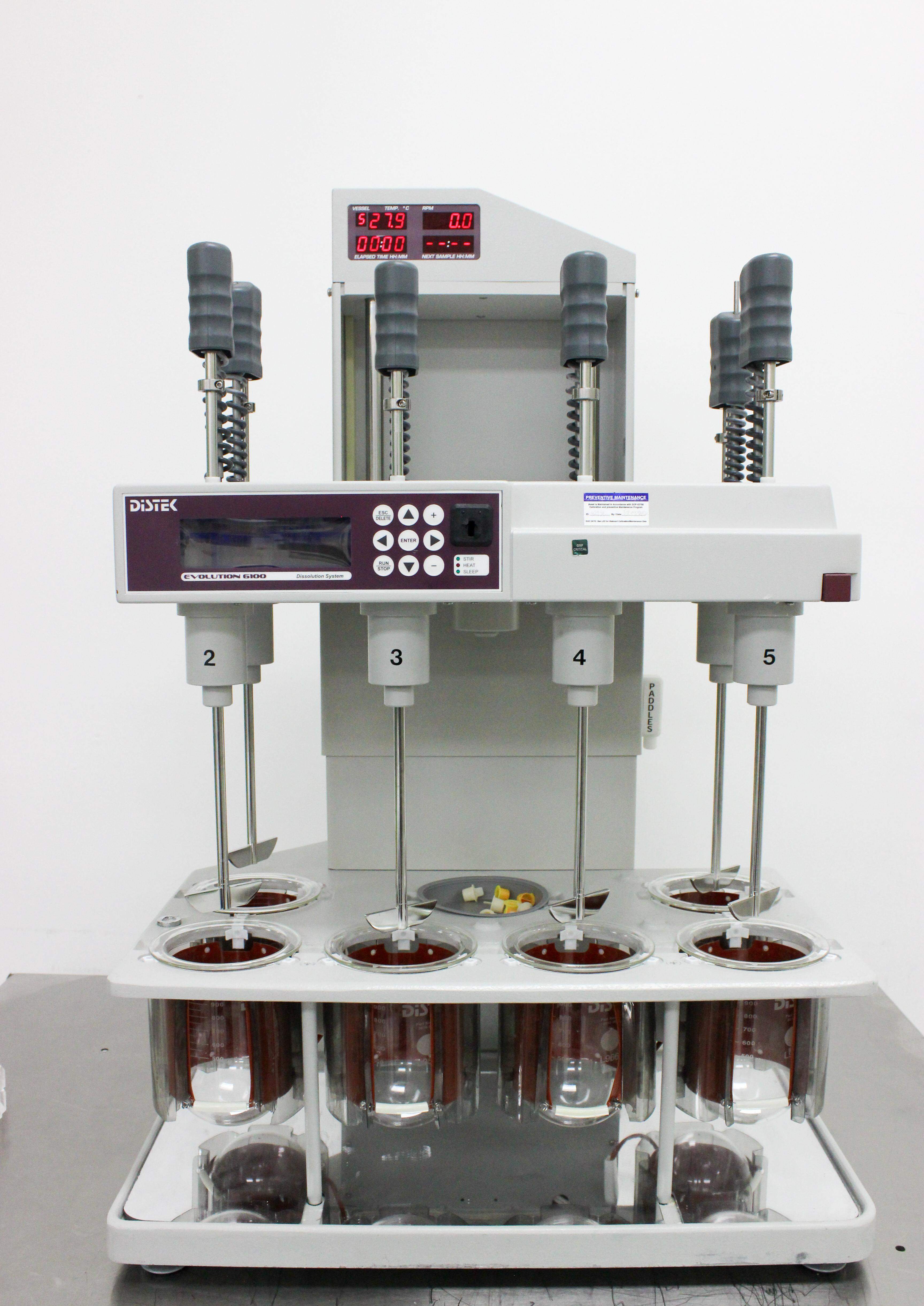

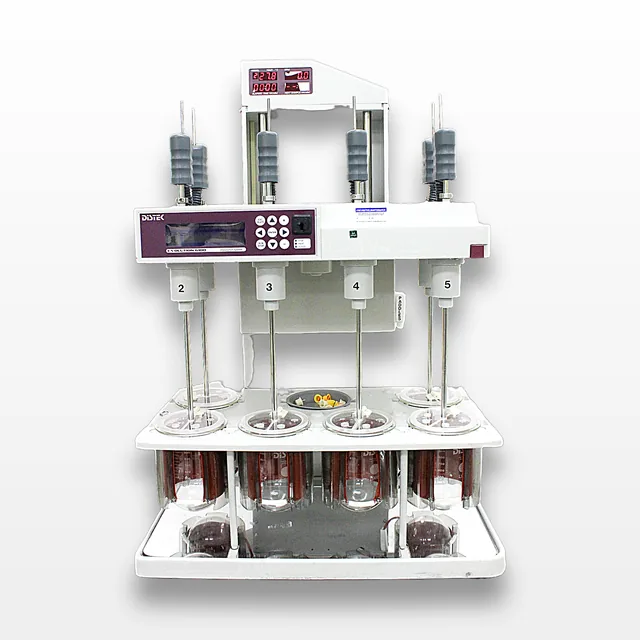

Distek Evolution 6100 Bathless Dissolution System with RPM & Temp Control
Distek
Details
-
CategoryChemistry
-
Dimension20.0in x 26.0in x 39.0in
-

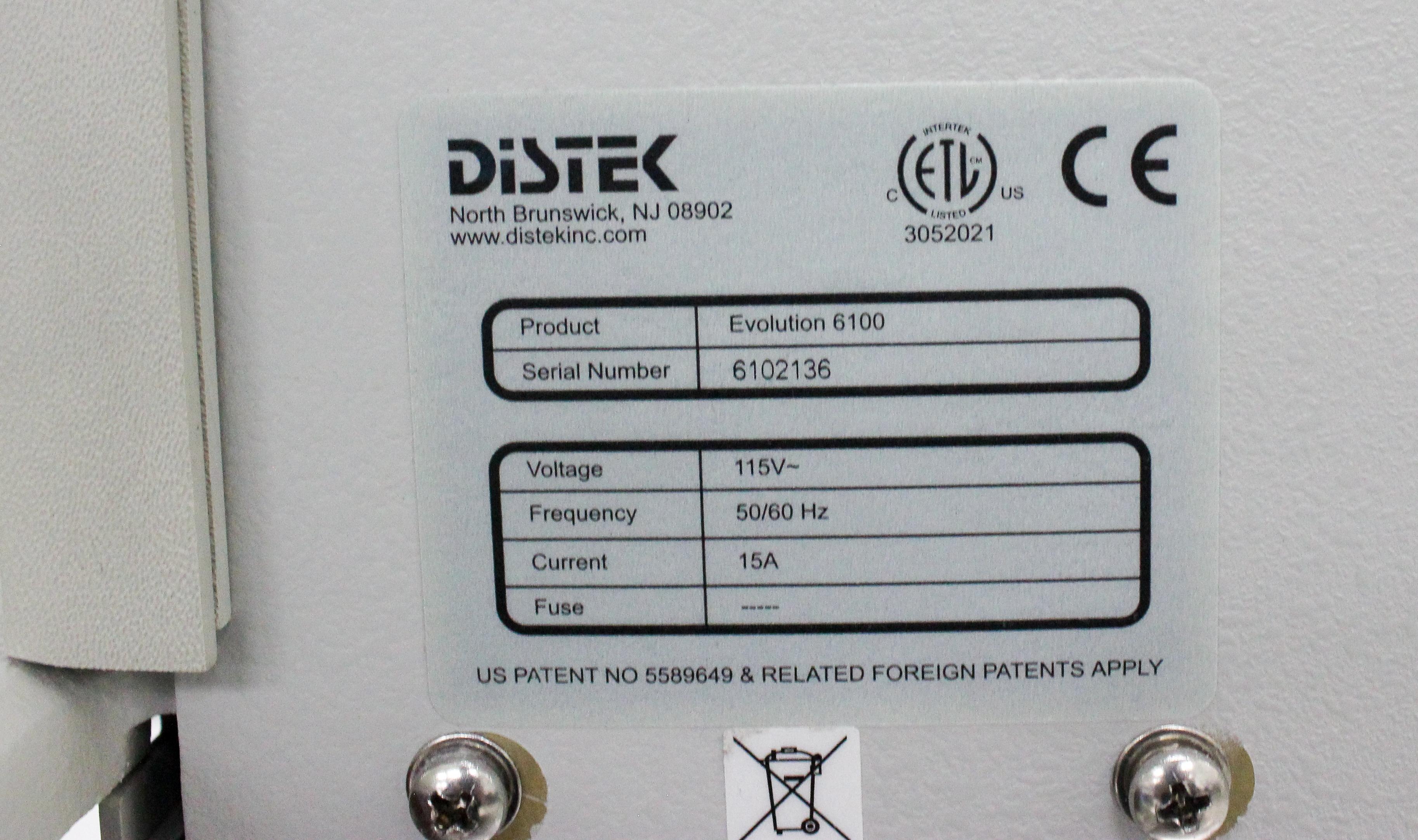

Serial6102136
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

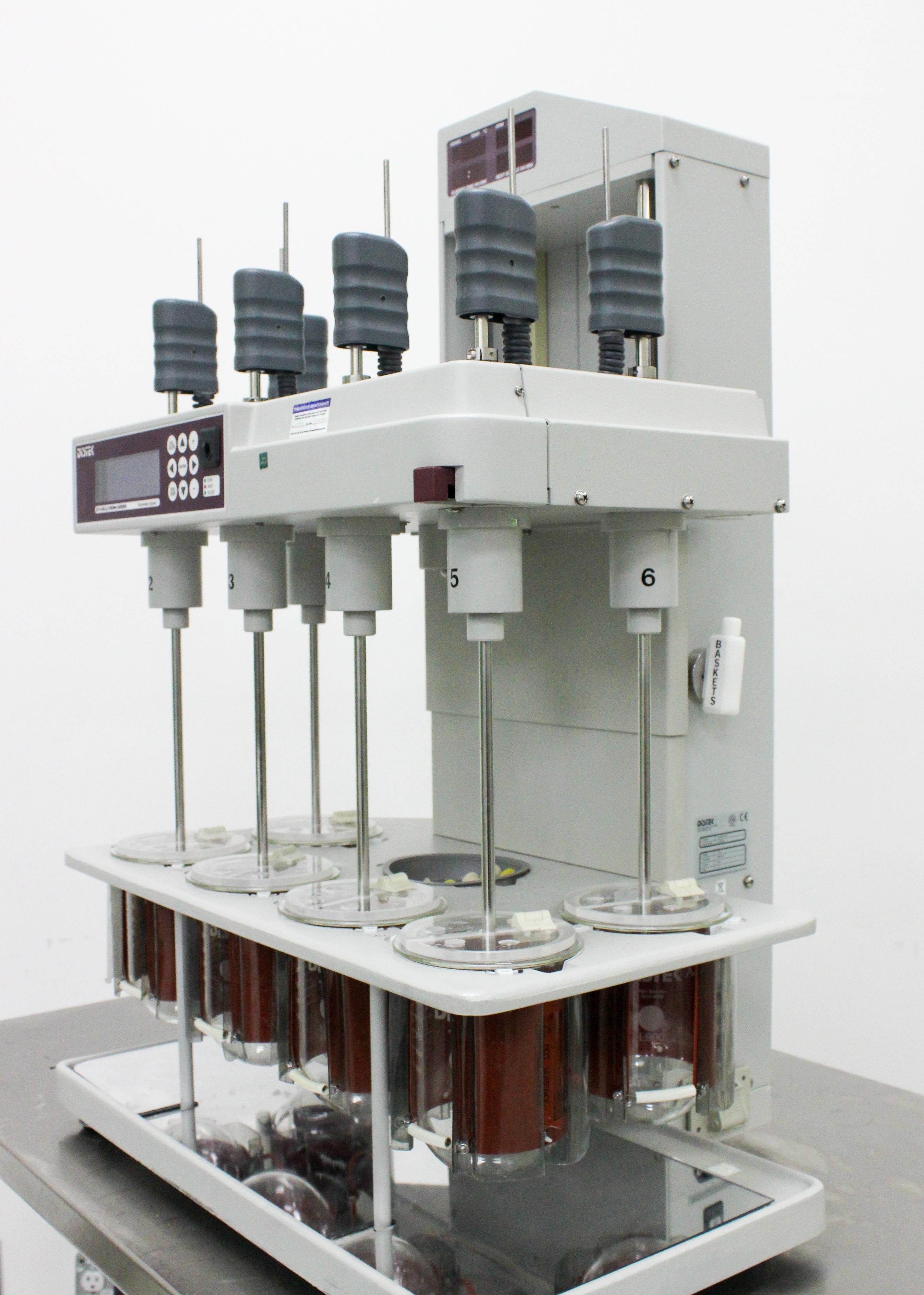

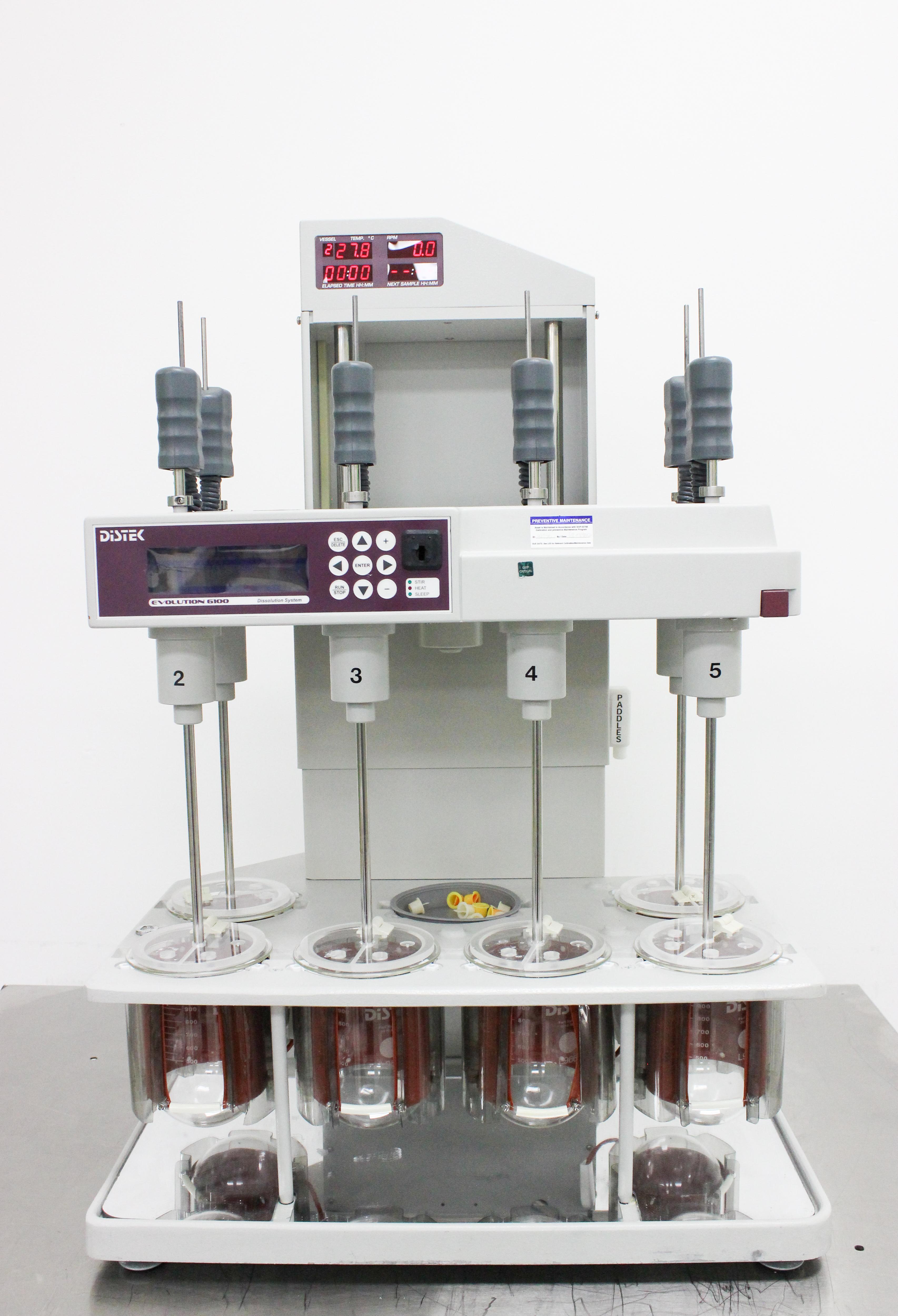

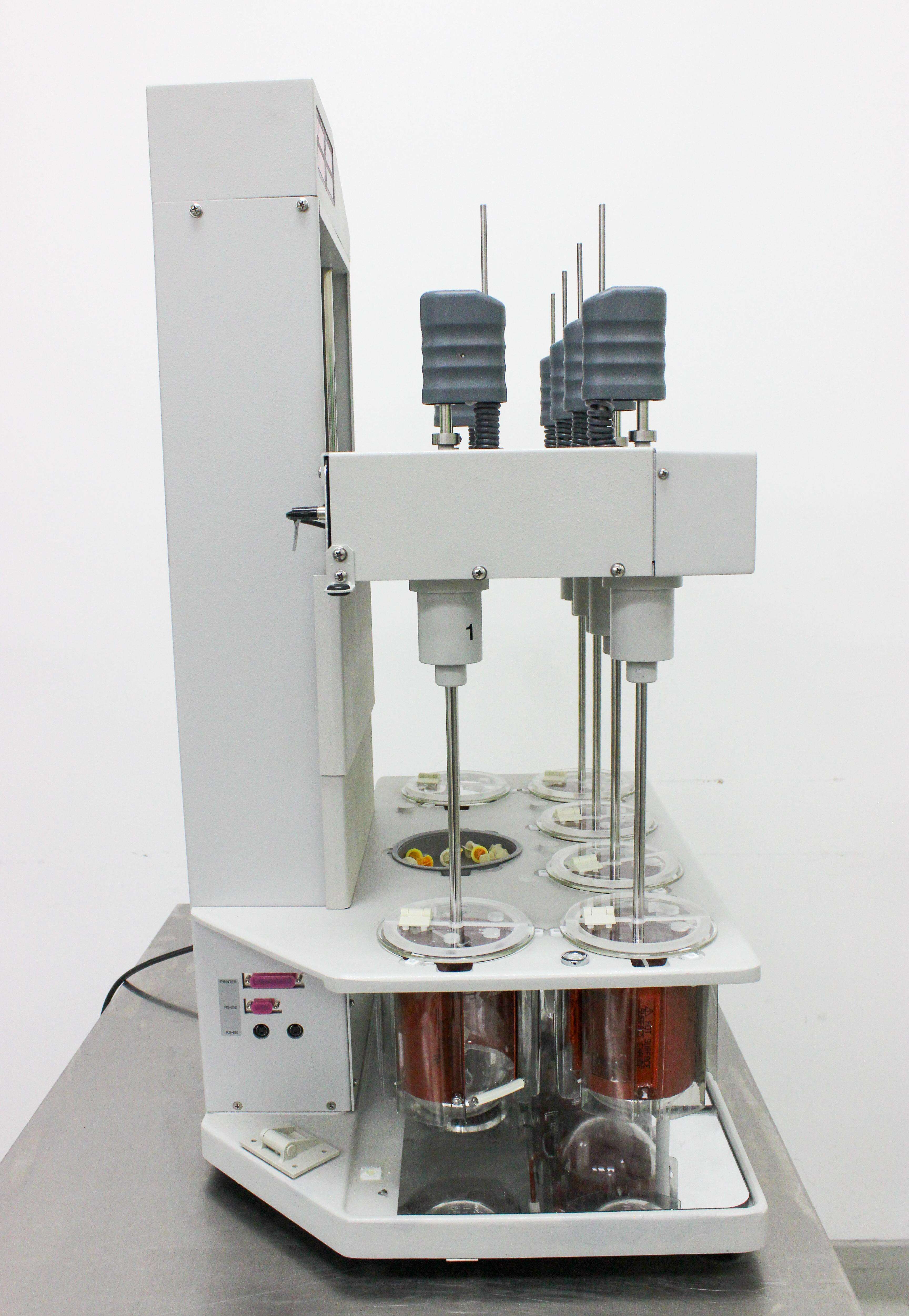

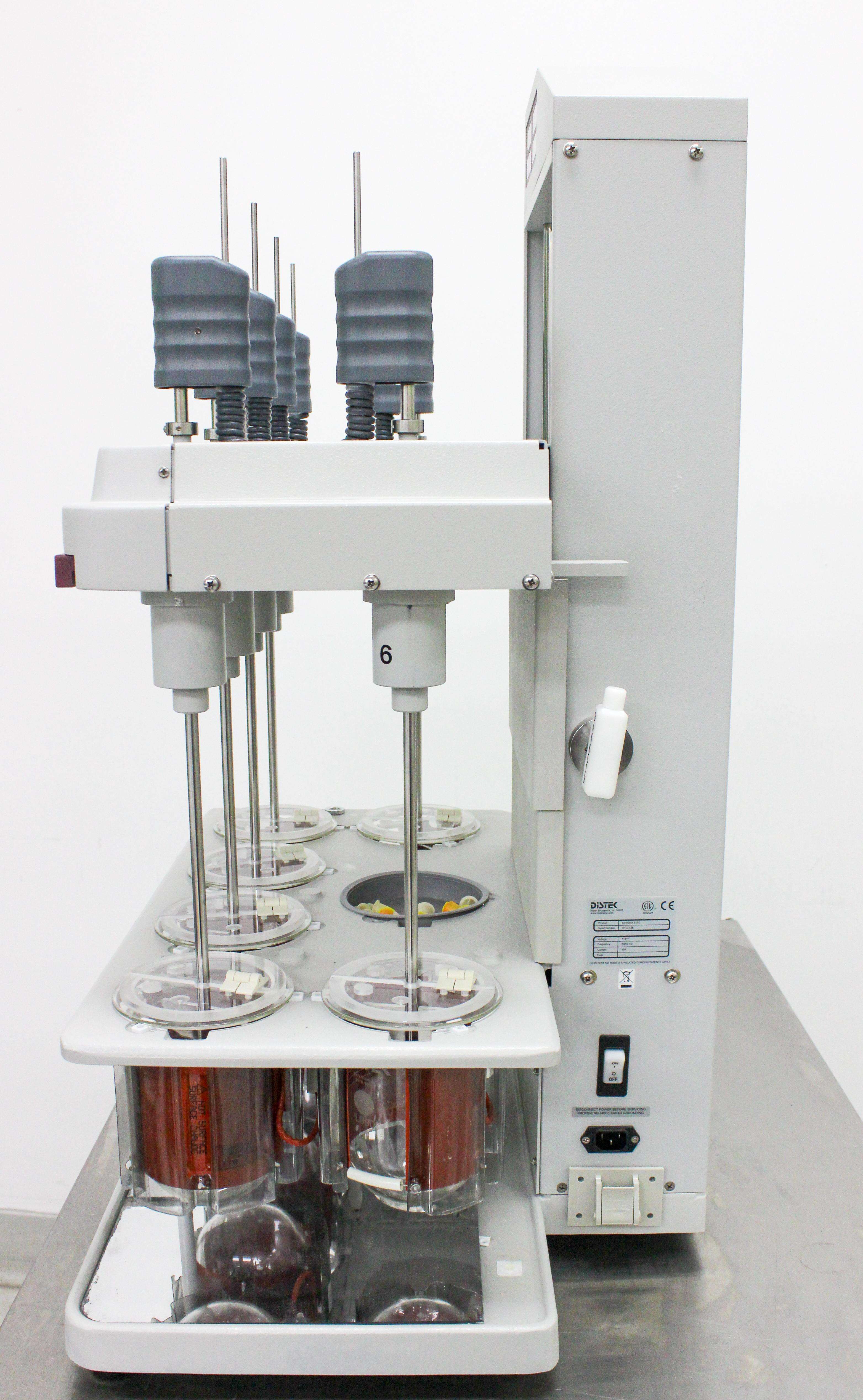

The Distek Evolution 6100 is a reputable bathless dissolution system designed for precise temperature control and test result reporting. Originating from the United States and weighing 150 pounds, this unit offers patented bathless technology, eliminating water bath maintenance and minimizing noise. With its enhanced user interface, it includes features such as auto-detection of shaft movement, rapid media heating, and security with password protection, elevating productivity for dissolution chemists. The Evolution 6100 can handle up to seven vessels with volumes ranging from 500 mL to 1000 mL. It showcases a high torque, permanent magnet motor with RPM control ranging from 25 to 350 RPM and a digital display for easy monitoring. Constructed from durable materials like cast aluminum and stainless steel, this preowned unit is fully functional and powers on without errors, though display brightness adjustment may be needed. This makes it an invaluable addition to laboratories seeking reliable dissolution testing solutions.
Technician comment

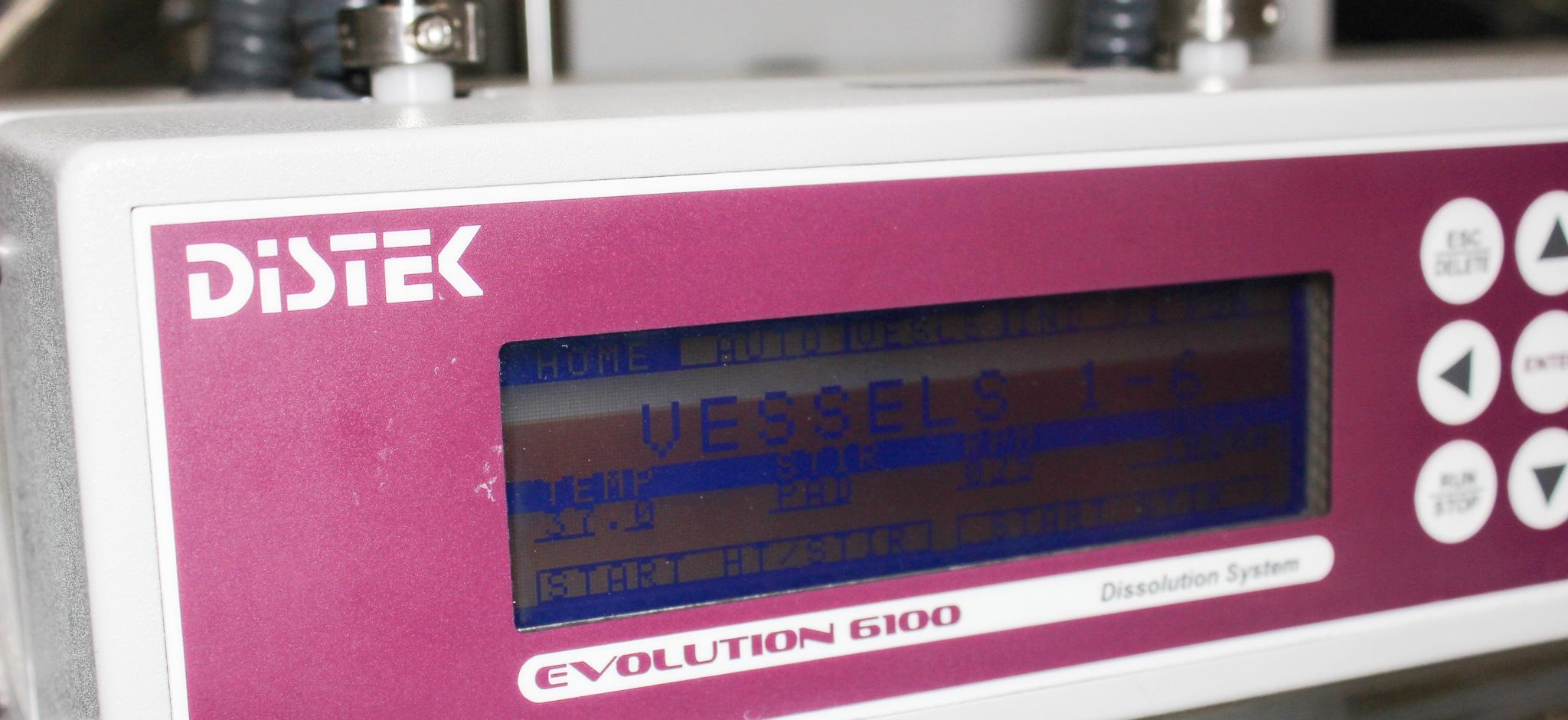

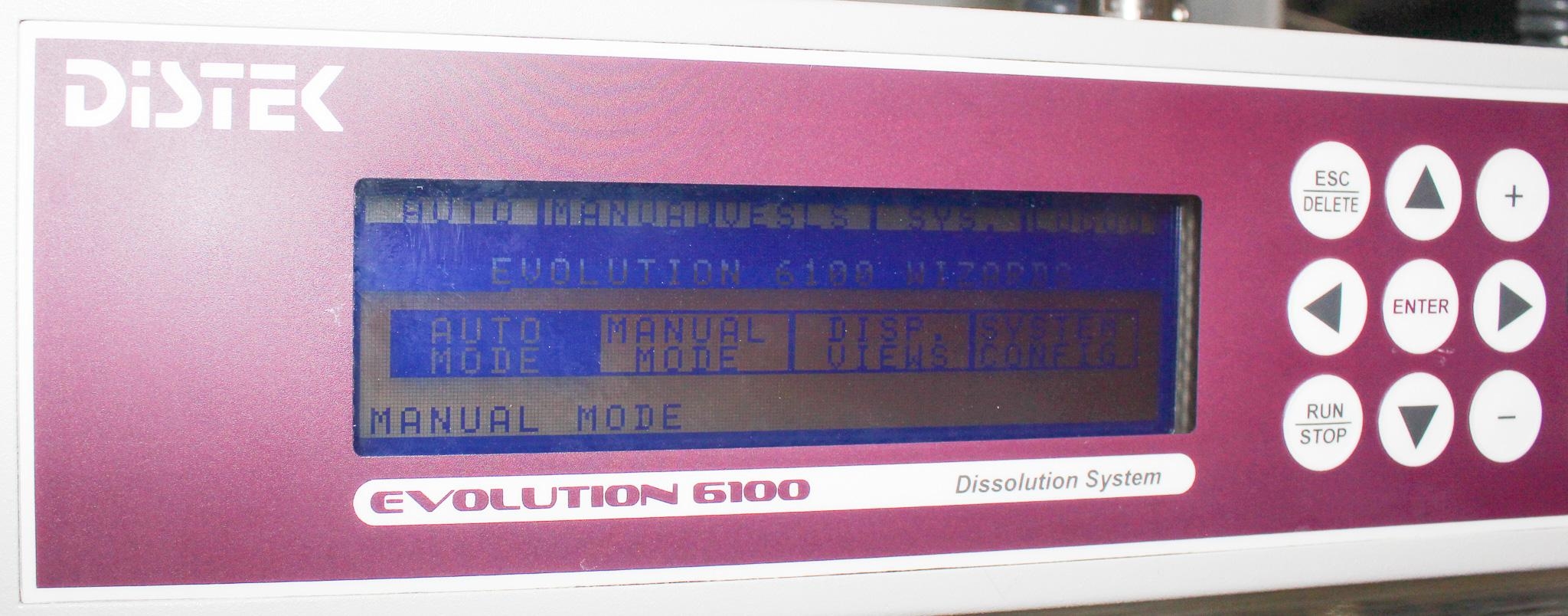

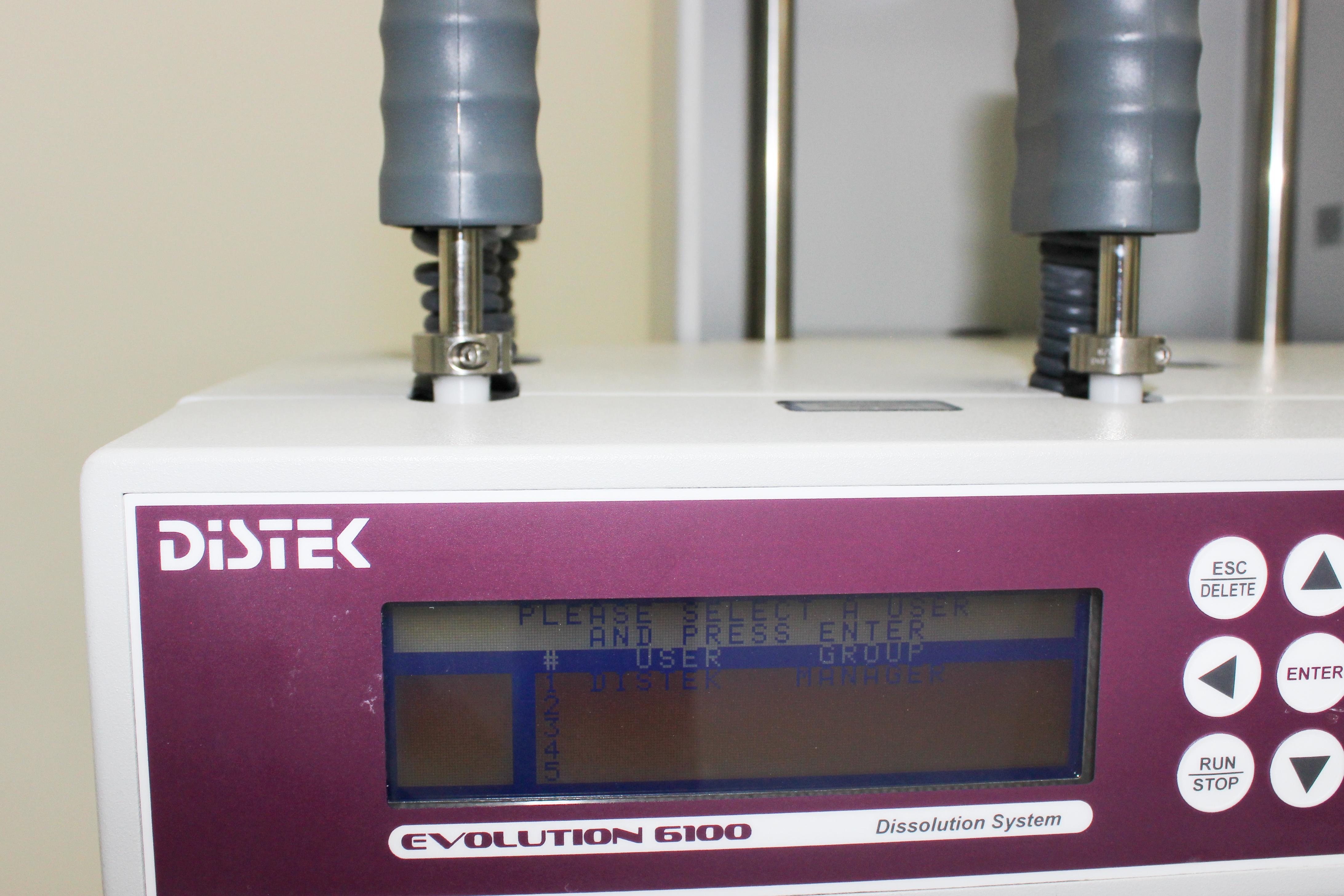

Distek Evolution 6100 bathless dissolution system powers on without errors, All functions seem to be working. (LCD display is dark and brightness will need to be adjusted.) Unit is preowned from a working laboratory environment. User: Distek PW: Distek
Key Features
- Patented Bathless Technology
- Embedded Temperature Sensor in Stirring Shaft
- USP Tolerance Checking
- Rapid Media Heating
- Security and Password Protection
- Method Storage with Audit Trail
- Printer Sharing Capability
Specifications

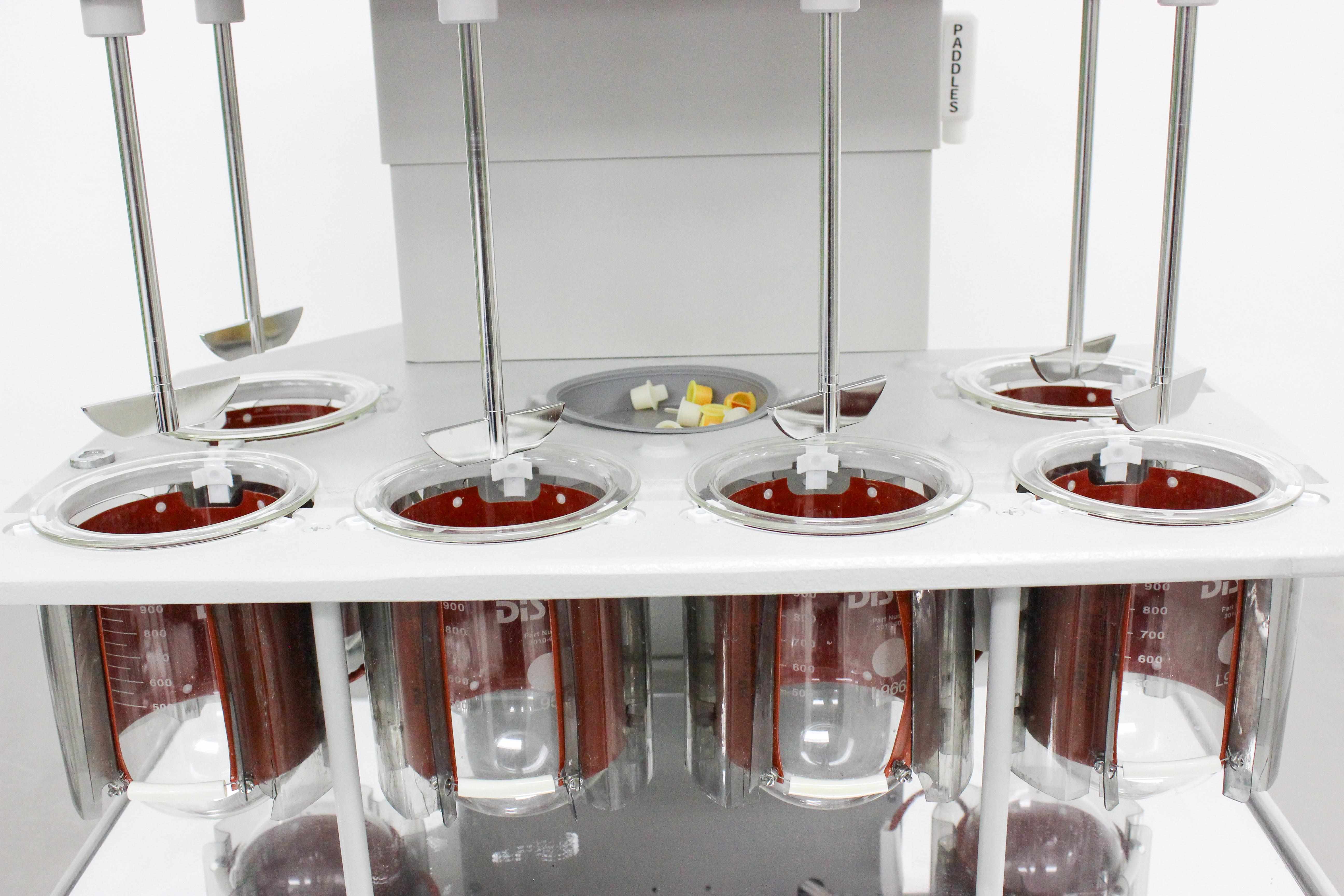

- Dissolution Vessels: Up to Seven
- Volume: Programmable 500 mL – 1000 mL
- Vessel Heating Rate: 2ºC per Minute
- RPM Control Range: 25 – 350 RPM, Digitally Controlled, Closed Loop
- Resolution: 0.1 RPM
- Accuracy: ± 0.2 RPM
- Display: LED’s, 0.75” (19 mm) High
- Motor: High Torque, Permanent Magnet
- Vessel Temperature Control: Independently Controlled Two-Zone Heater Jackets
- Calibration: Built-in Calibration Probe
- Interface Ports: RS-232 (2), RS-485 (1), Parallel Printer (1)
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 31.2 lb x 46.8 lb
Metric: 60.96 cm x 79.25 cm x 118.87 cm
Harmonized Code
9027.80.45
Harmonized Code Details
Harmonized code 9027.80.45 is appropriate for instruments for physical or chemical analysis, particularly for testing and analysis of dissolution processes in pharmaceutical applications. This code captures the intended use and technical specifications of the Distek Evolution 6100.
