sku: 3320121643
1 In Stock

Thermo Scientific

Q EXACTIVE HF
US • REUZEit West Coast US - R
AS-IS
$50,000.00
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Mass Spectrometry
  • Dimension
    30.0in x 55.0in x 38.0in
  • Serial
    05206L
  • Shipping Type
    Freight
  • Manufacturing
    2016-01-01
  • Voltage / Hertz
    230V / 50Hz/60Hz

Description

Product Information

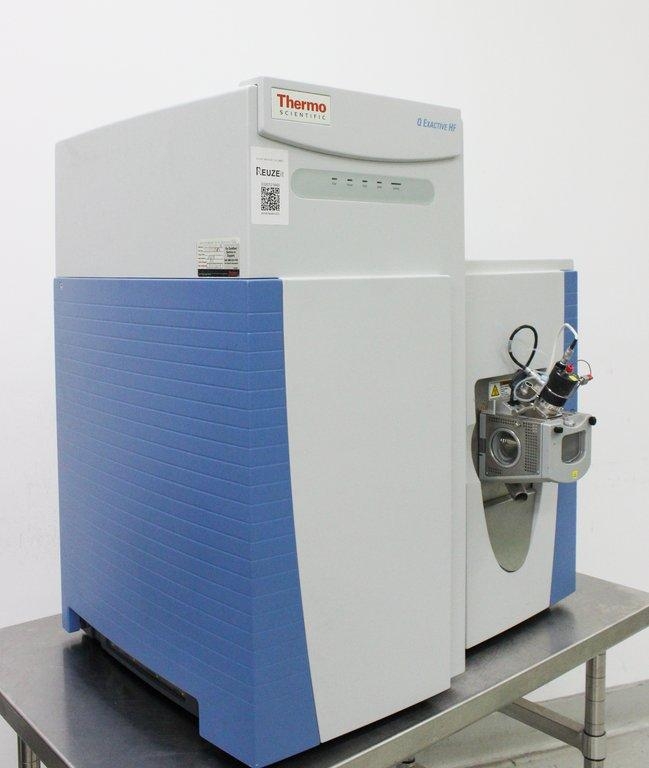

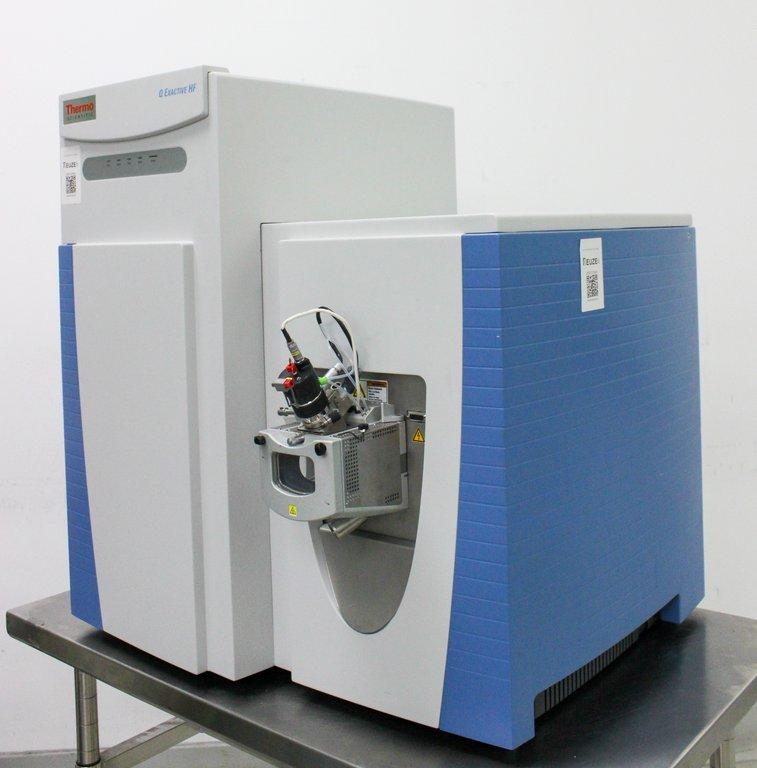

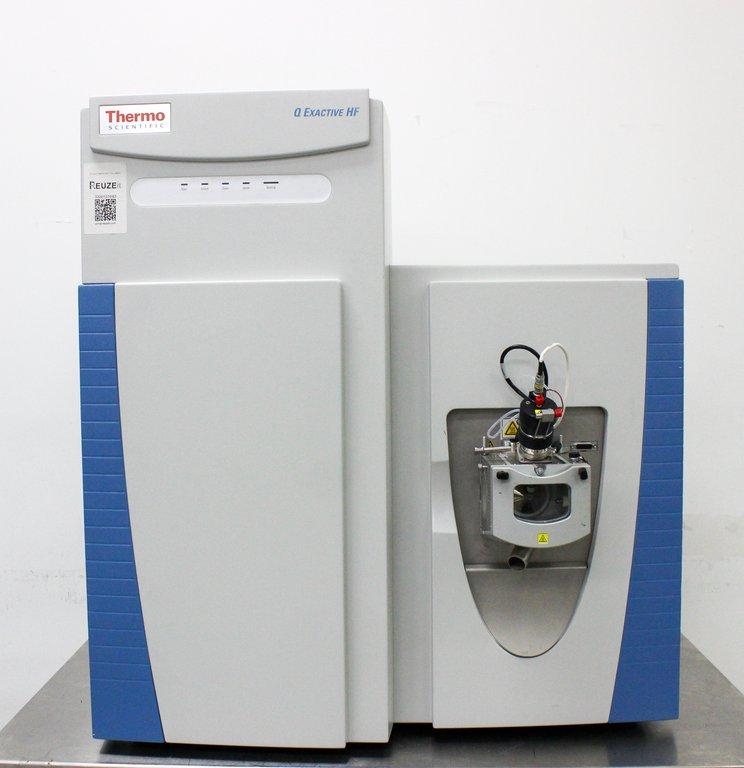

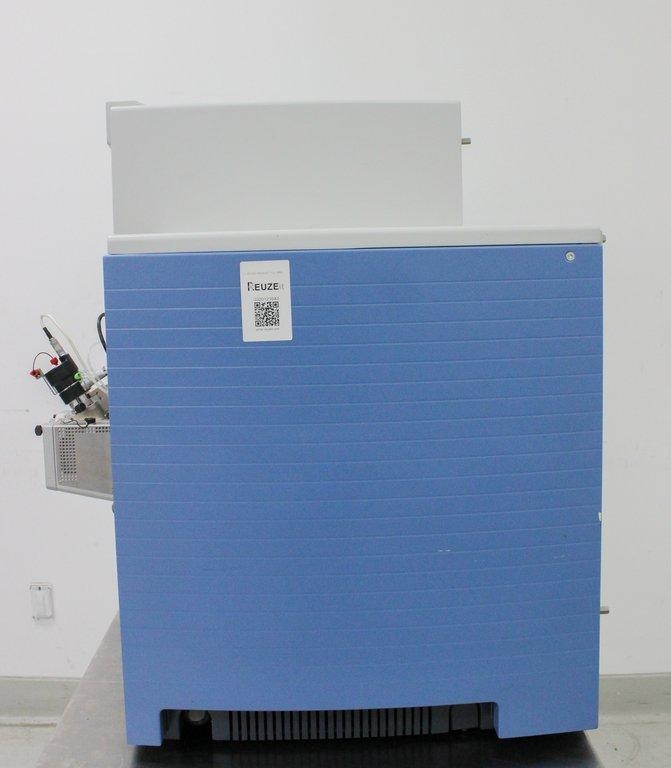

Presenting the 2016 Thermo Q Exactive HF hybrid quadrupole-Orbitrap mass spectrometer, sporting an ultra-high-field Orbitrap analyzer for enhanced speed and resolution. This mass spectrometer is designed to boost analytical capabilities in metabolomics and proteomics, offering advanced technical possibilities including a metabolic platform with 240,000 resolving power and lipidomics analysis throughput with a scan speed of up to 18 Hz. Multiple quantitation approaches such as Data-Independent Acquisition (DIA), Selected Ion Monitoring (SIM), and Parallel Reaction Monitoring (PRM) are supported, along with improved intact protein analysis. Key specifications: mass range of 50-6,000 m/z, resolution of 240,000 at m/z 200, and a scan rate up to 40 Hz. Instrument was sourced from a working lab and powers on successfully; however, full validation and calibration are required upon installation. Note: A shipping bracket on the right side is damaged. Includes Ion Source. Computer not included.


Technician comment

Instrument powers on successfully and was sourced from a working lab environment. System will require full validation, calibration, and method setup at the destination site prior to use. Inquire with us for system validation/calibration at an additional cost. Shipping tab/bracket on the right side is damaged; no other testing was performed. ***Includes Ion Source***


Key Features
  • Ultra-high-field Orbitrap analyzer
  • 240,000 resolving power
  • Lipidomics analysis throughput up to 18 Hz
  • Multiple quantitation approaches: DIA, SIM, PRM
  • Enhanced protein analysis capabilities

Specifications
  • Mass range: 50–6,000 m/z
  • Resolution: 240,000 at m/z 200
  • Scan rate: up to 40 Hz at 7,500 m/z 200
  • Mass accuracy: internal <1 ppm RMS, external <3 ppm RMS
  • Polarity switching: <1 sec per cycle
  • Dynamic range: >5000:1
  • Multiplexing: Up to 10 precursors per scan

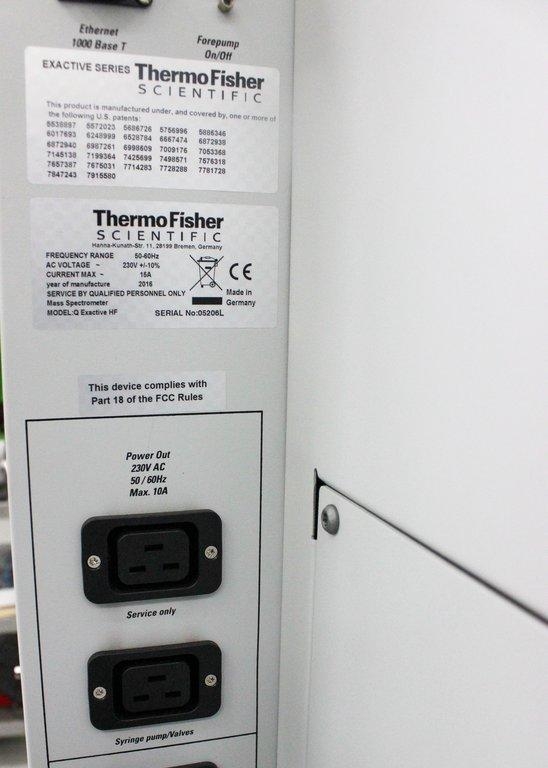

  • Power: Requires 2 x 230 VAC single phase, 15 A, 50/60 Hz
  • Gas: High-purity nitrogen supply, 99.999% purity recommended
  • Operating environment: 15–26 °C, 40–70% RH

Weight

Imperial: 528.0 Pounds

Metric: 239.5 Kilograms


Shipping Dimensions

Imperial: 36.0 lb x 66.0 lb x 45.6 lb

Metric: 91.44 cm x 167.64 cm x 115.82 cm


Harmonized Code

9027.20.20


Harmonized Code Details

9027.20.20 - Chromatographs and electrophoresis instruments. This code applies as the product is a high-performance mass spectrometer used for in-depth laboratory analysis.
