Qiagen QIAcube Connect Device DNA/RNA/Protein Purification System 9002864

Product Information

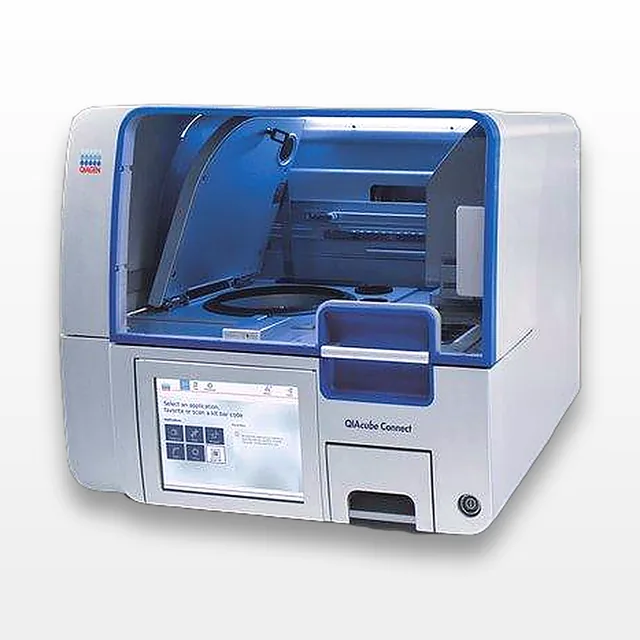

The Qiagen QIAcube Connect is an advanced automated DNA/RNA/Protein purification system that performs fully automated sample processing of up to 12 samples using selected Qiagen kits. It is equipped with a centrifuge, heated shaker, UV LED, and robotic gripper. The QIAcube Connect can be preinstalled with various protocols for processing QIAGEN spin columns for the purification of RNA, genomic DNA, plasmid DNA, viral nucleic acids, proteins, DNA, and RNA cleanup. The user-friendly interface and remote monitoring through the QIAsphere App make this system ideal for professionals trained in molecular biological techniques. With customizability expanding to over 3000 protocols, it offers a seamless workflow for laboratories involved in sequencing analysis, gene expression analysis, genotyping, proteomics, and microbiome research. Software not included.

• Automates over 80 QIAGEN kits with over 140 standard protocols for DNA, RNA, and protein sample processing
• Customization options allow expansion to over 3000 protocols
• Remote monitoring capabilities through the QIAsphere App
• Features a variety of pre-installed protocols for purifying RNA, genomic DNA, plasmid DNA, viral nucleic acids, proteins, DNA, and RNA cleanup
• Built-in UV light source for full worktable decontamination and sample carryover prevention
• Dedicated kits for RNA and DNA preps simplify automated spin-preps

• Power: 100-240 V AC, 50/60 Hz, 650 VA
• Operating temperature: 18 to 28°C (64.4 to 82.4°F)
• Relative humidity: 15-75% (non-condensing)
• Dimensions (hood closed): W65 cm x H58 cm x D62 cm
• Mass: QIAcube Connect - 71.5 kg (157.6 lb.), Accessories - 3 kg (6.6 lb.)
• Centrifuge: 10,640 rpm maximum, 12,000 x g maximum, swing-out rotor maximum 45, 12 rotor positions
• Syringe size: 1 ml, pipetting range 5-900 l
• Touchscreen: 10.4" TFT with resolution 800*600 SVGA
• UV lamp wavelength: 278nm, Optical power: 200-300mW
• Data output: USB stick: USB2.0, Compatible OS: Windows, Mac OS
• Mass Spectrometry: LC/MS, GC/MS, Mass Selective Detector, Mixing Pump, Needle/Pipette Puller, Source, Zero Air Generator

Metric: 71.5 kg

Imperial: 157.6 lb

Metric: 65 cm x 62 cm x 58 cm
Imperial: 25.6 in x 24.4 in x 22.8 in
