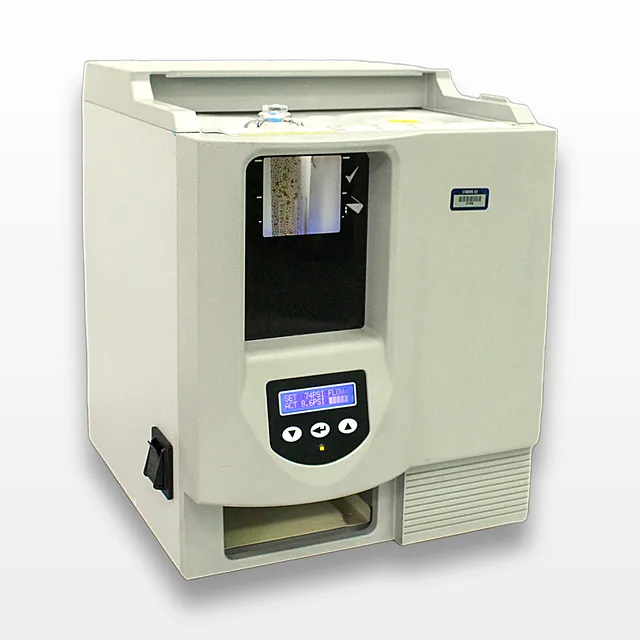

Parker Hannifin H2PEM-100 Hydrogen Generator PEM Cell
Parker Hannifin
Details
-
CategoryProcess / Scale-Up
-
Dimension20.0in x 14.0in x 18.0in
-
Serial12PHG5053
-
Shipping TypeFedEx Ground
-
Manufacturing2012-02-15
-
Voltage / Hertz100-230V / 50Hz/60Hz
Description
The Parker Hannifin H2PEM-100 Hydrogen Generator, manufactured in 2012, is a pre-owned unit in working order based on intake inspection. This hydrogen generator utilizes a Proton Exchange Membrane (PEM) cell to efficiently produce hydrogen on demand, offering a safe and economical alternative to high-pressure gas cylinders. It is compact, requiring only one square foot of bench space, and operates with an electrical supply. The unit features an easy-to-read display for water level indication and includes a built-in safety circuit to shut down the generator in case of a hydrogen leak. The generator maintains an outlet purity of 99.9995% and operates at an outlet pressure of 10-100 psig. Note that the upper front lid cover and bottom-left access panel are missing, which does not affect functionality. Minor cosmetic blemishes are present due to regular use. Buyers should validate the unit's fitness for their specific application.
Technician comment
The unit powers on successfully and has been run self test without issues. This unit has missing its upper front lid cover, and bottom-left access panel/cover (does not affect functionality). Has minor cosmetic blemishes from regular use. See photos
Key Features
- Proton Exchange Membrane (PEM) cell
- Compact design
- Easy-to-read display
- Built-in safety circuit
- Outlet purity of 99.9995%
Specifications
- Outlet Purity: 99.9995%
- Outlet Pressure: 10-100 psig
- Outlet Fitting: 1/8 in. compression
- Power Needs: 110-230 V (50-60 Hz)
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 24.0 in x 16.8 in x 21.6 in
Metric: 60.96 cm x 42.67 cm x 54.86 cm
