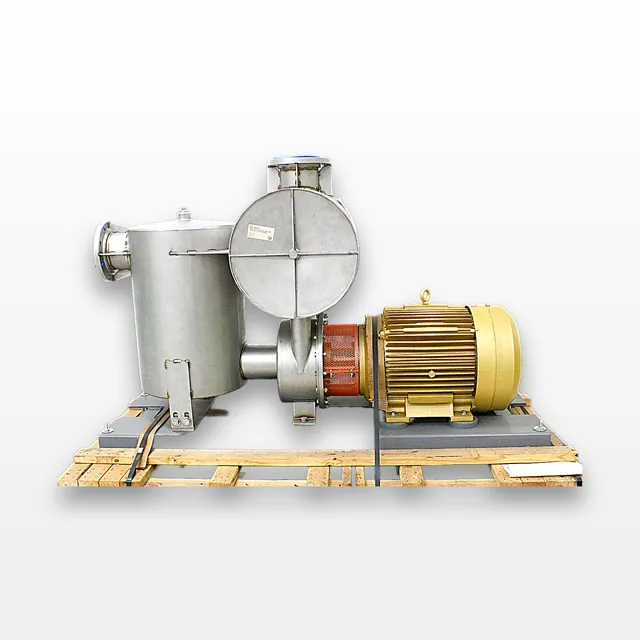

CorcoranPumps 6000D-SP Self Priming Centrifugal Pump 60HP TEFC Motor
CorcoranPumps
Details
-
CategoryPump
-
Dimension85.0in x 45.0in x 57.0in
-

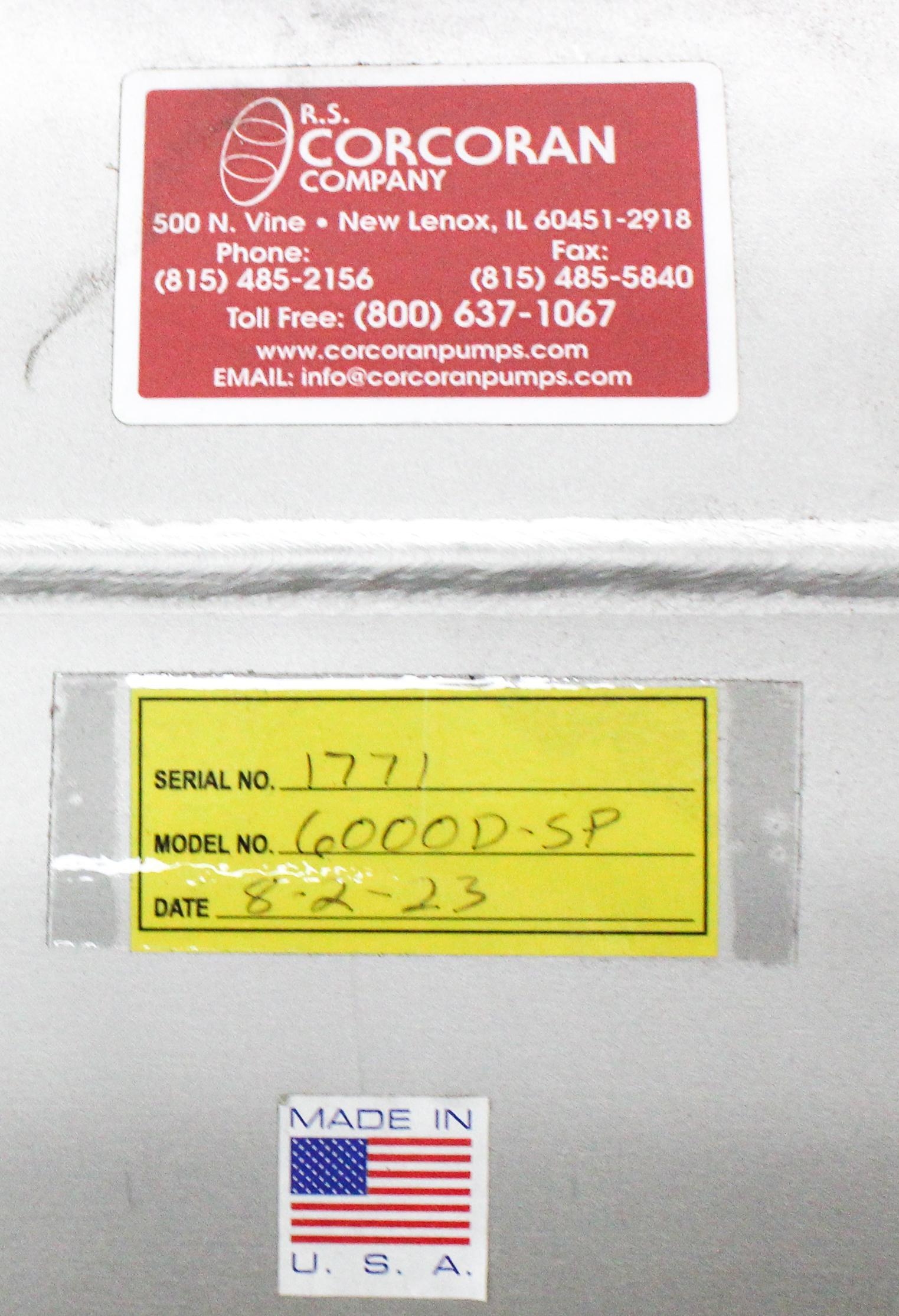

Serial1771
-
Shipping TypeFreight
-
Manufacturing2023-08-02
-
Voltage / Hertz230/460V / 60Hz US
Description

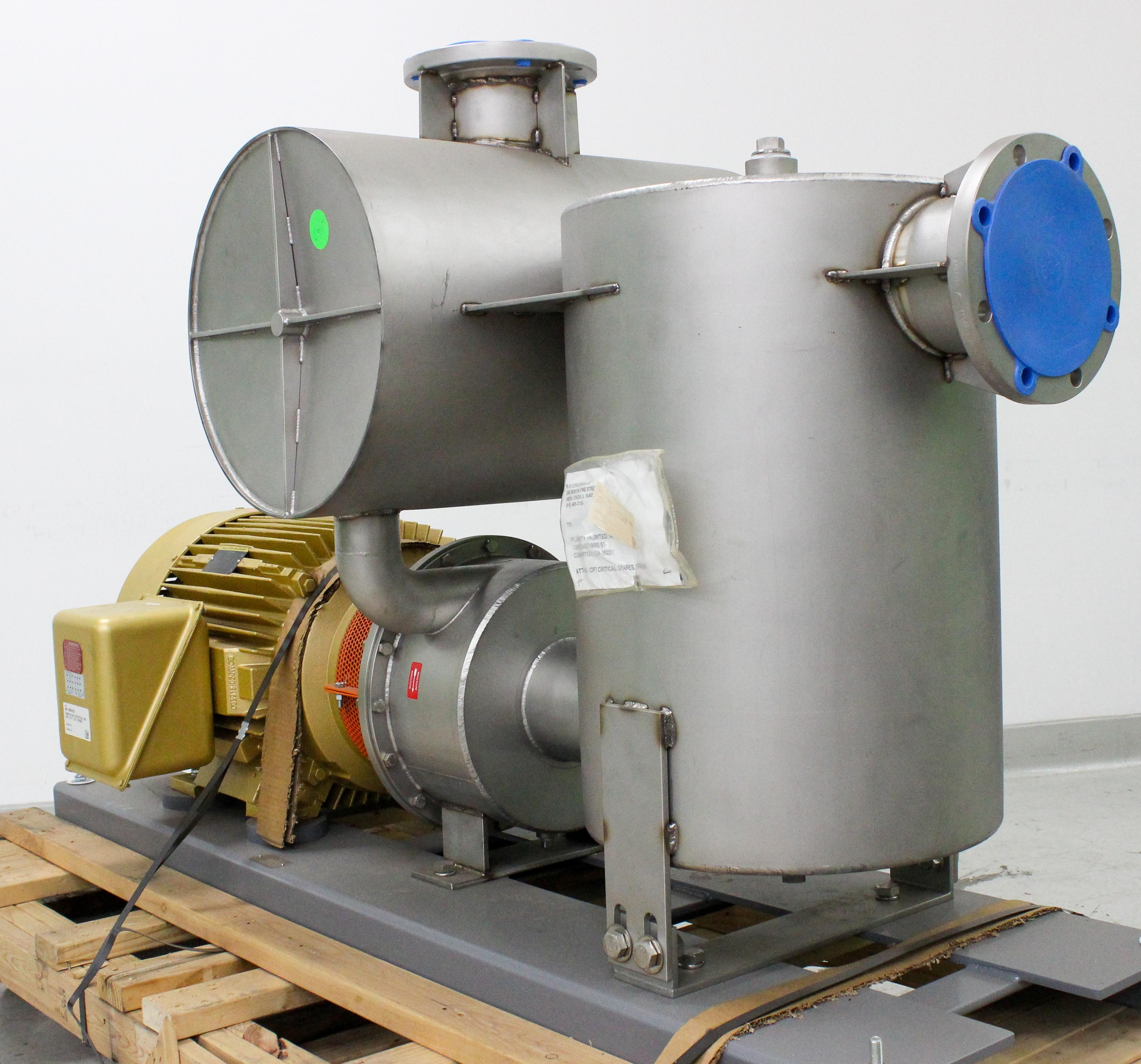

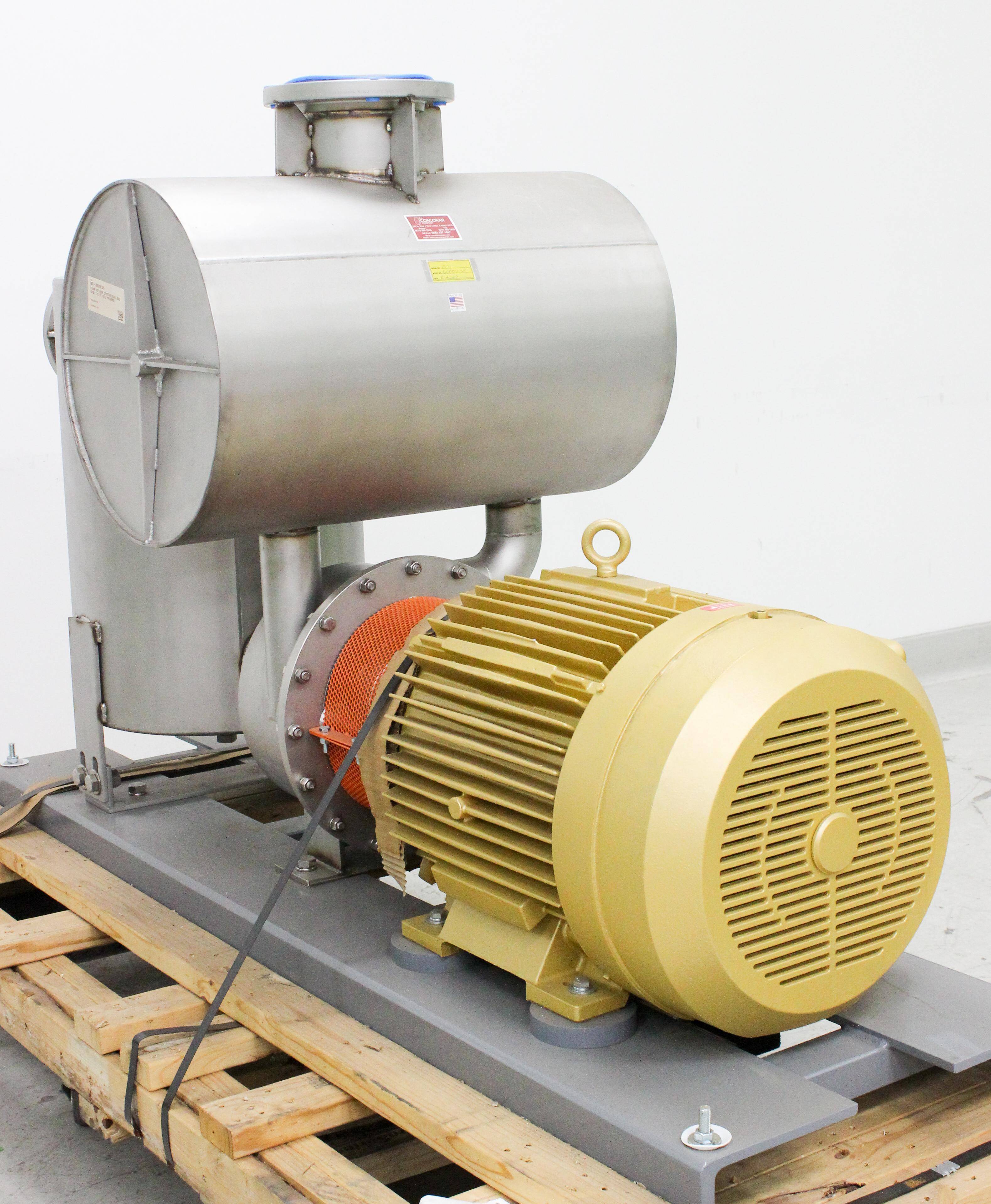

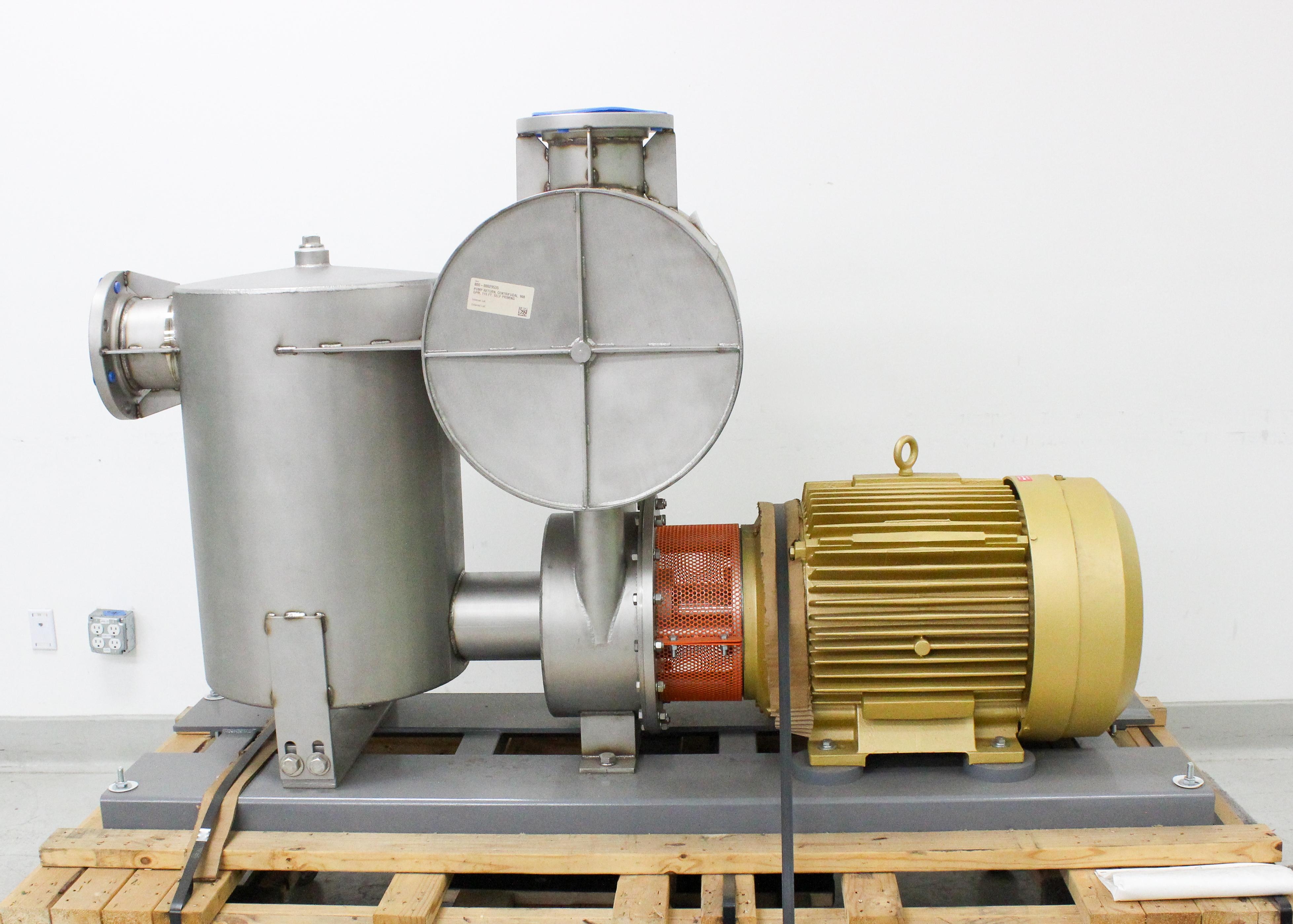

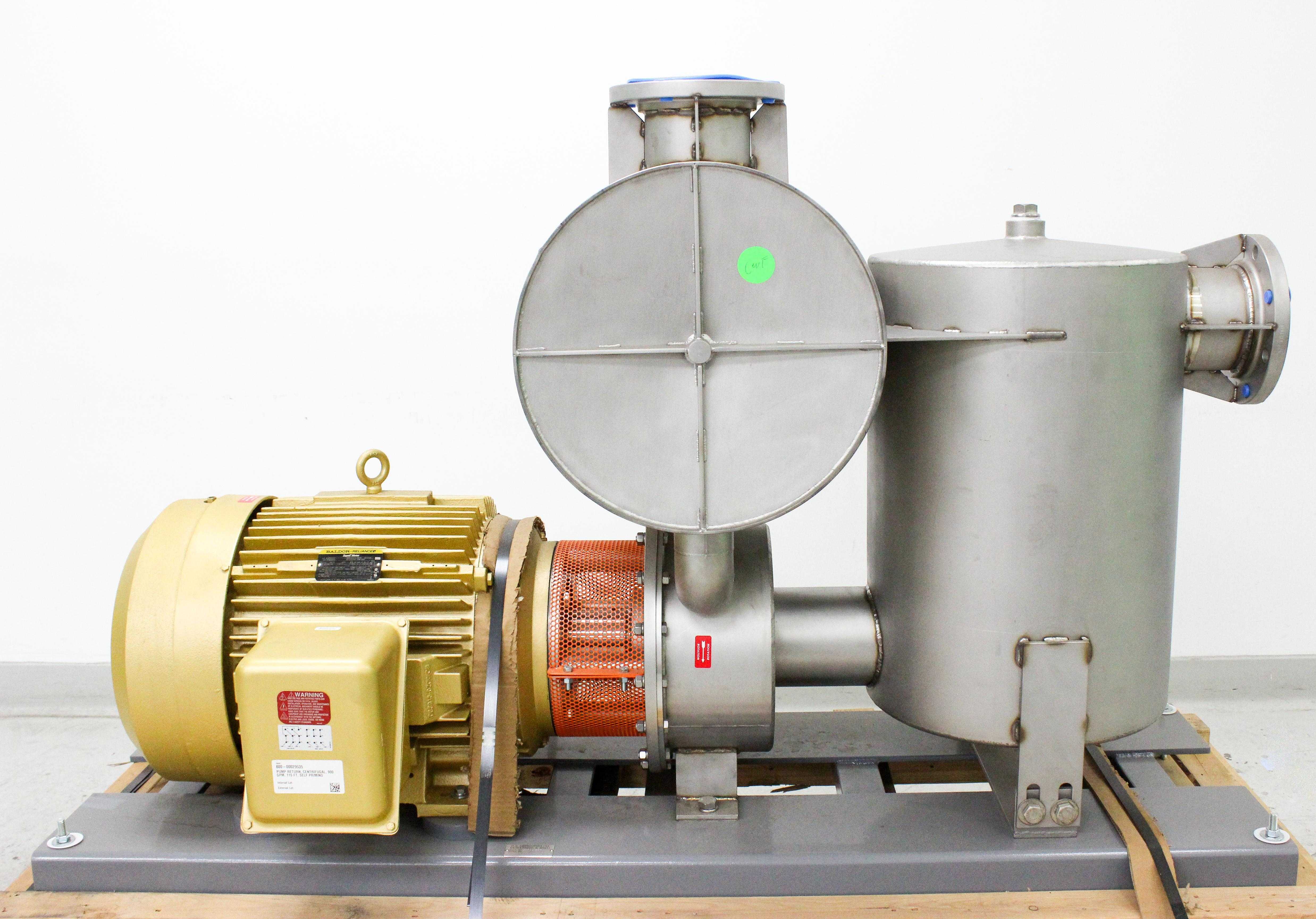

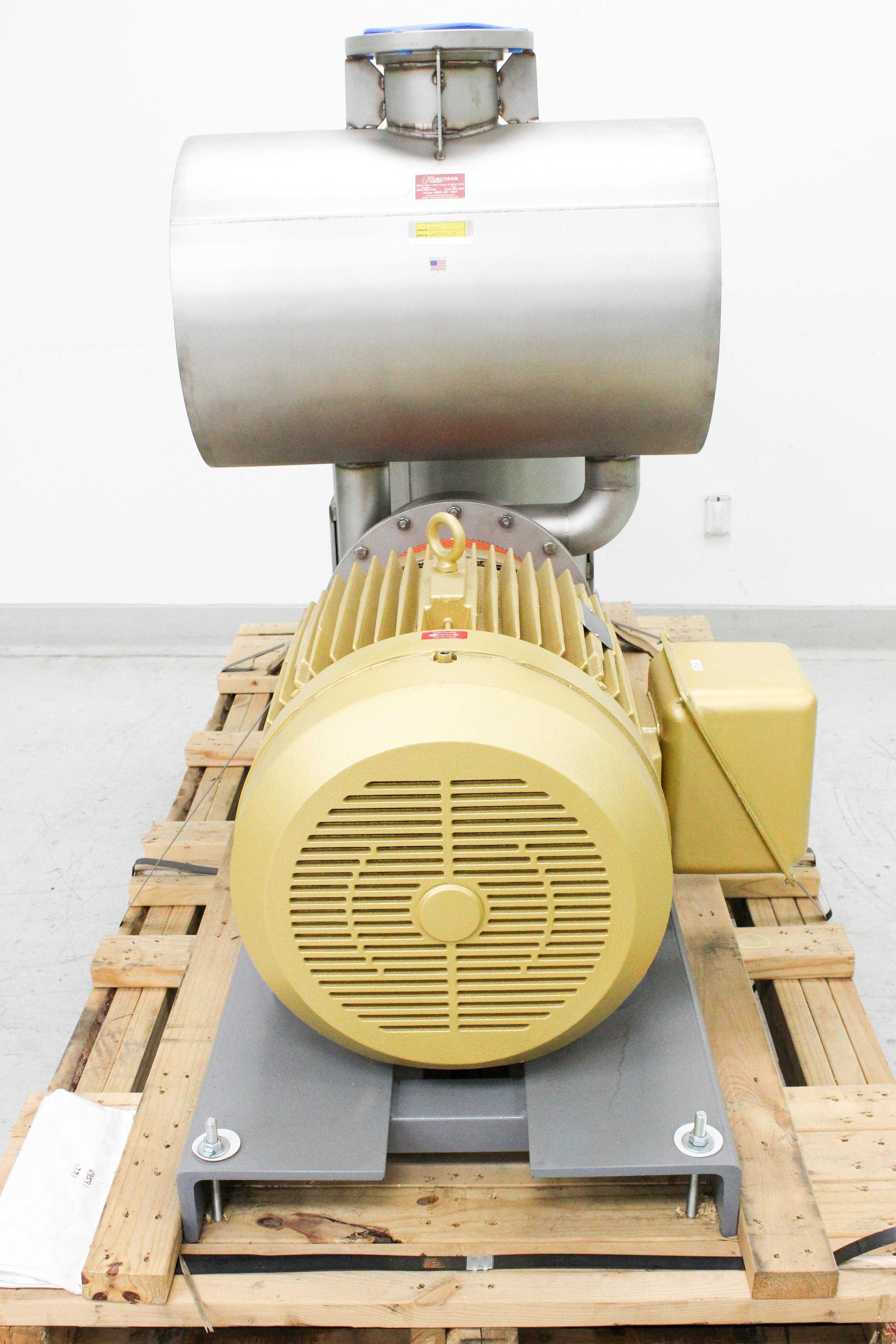

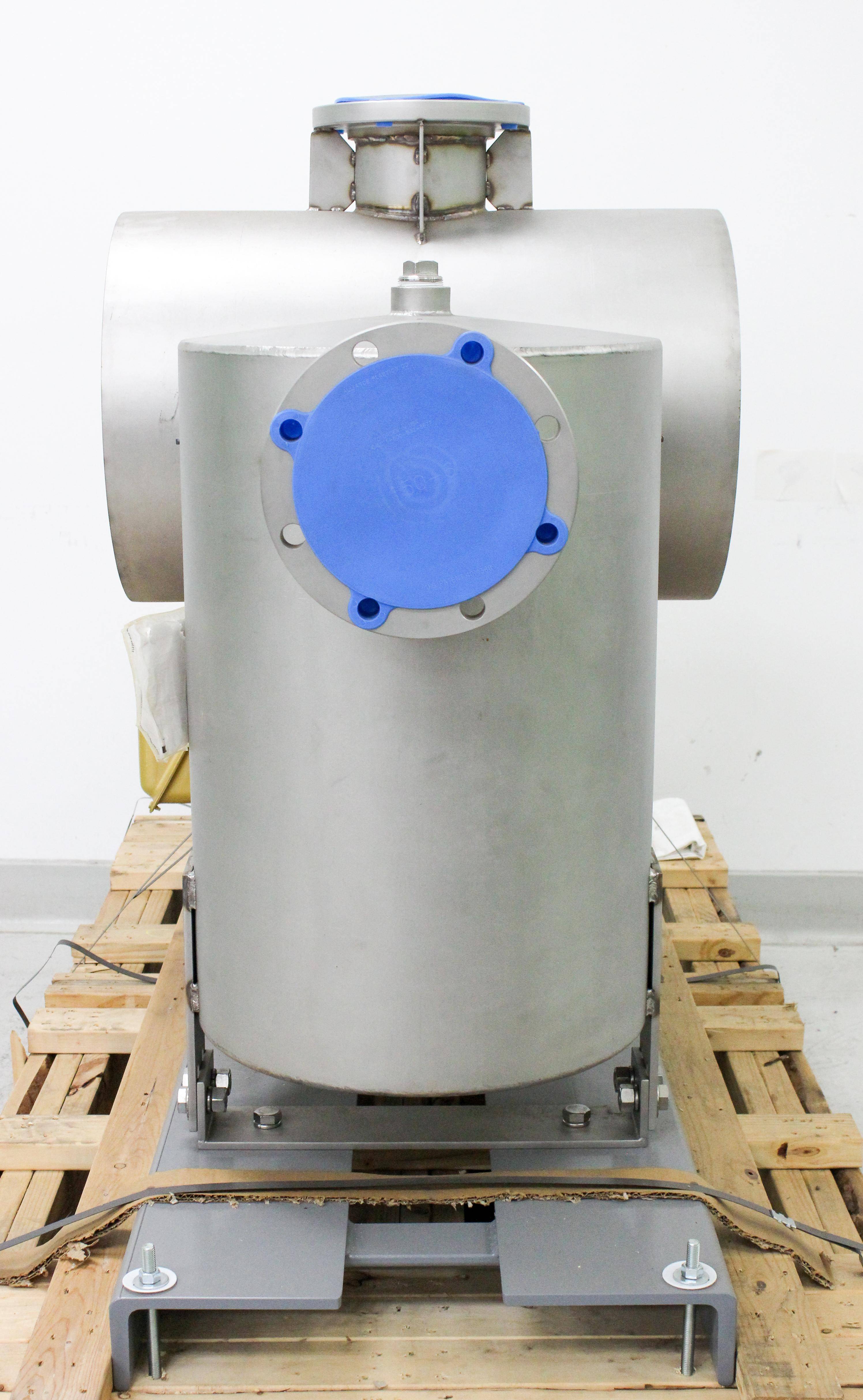

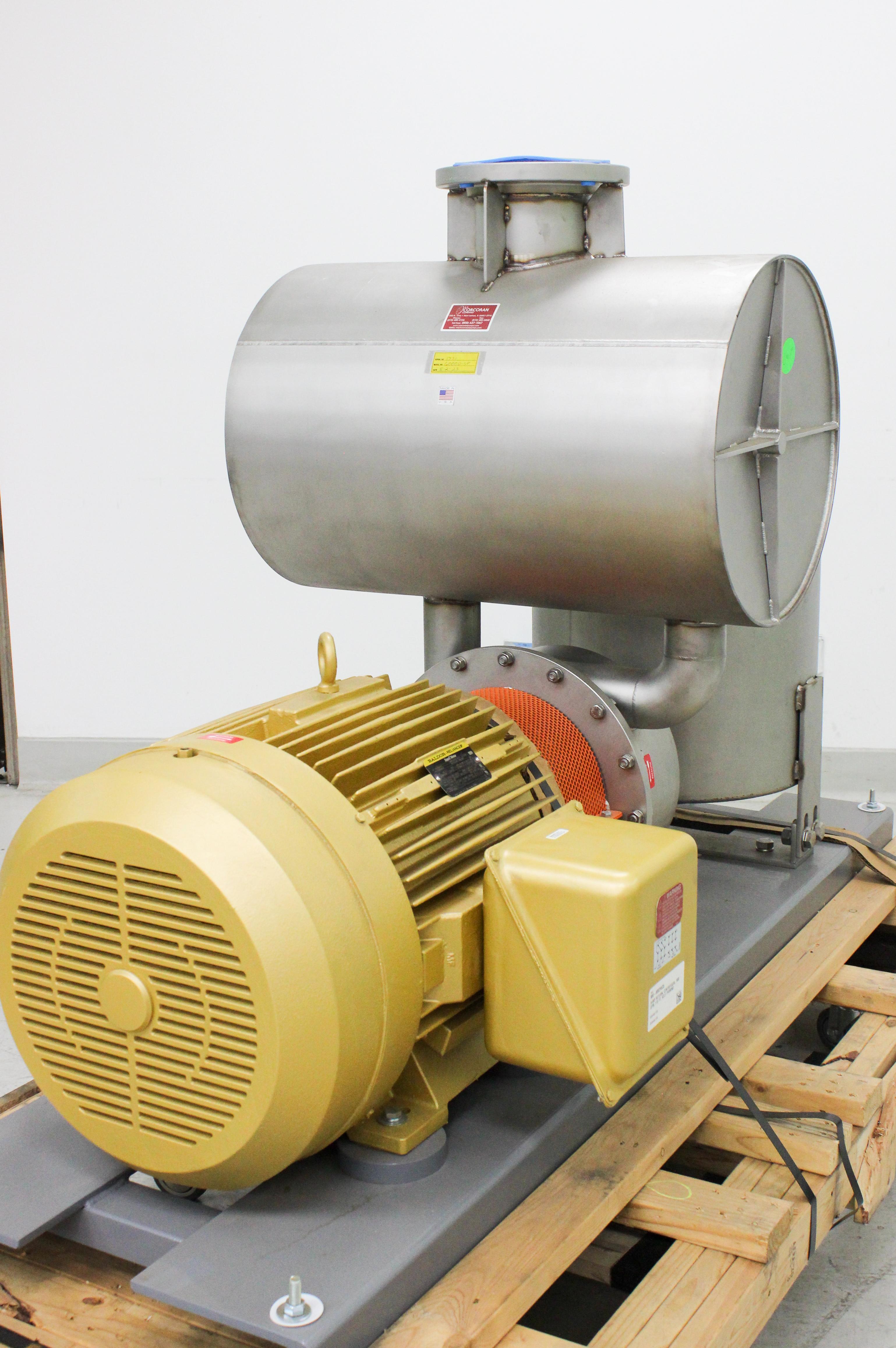

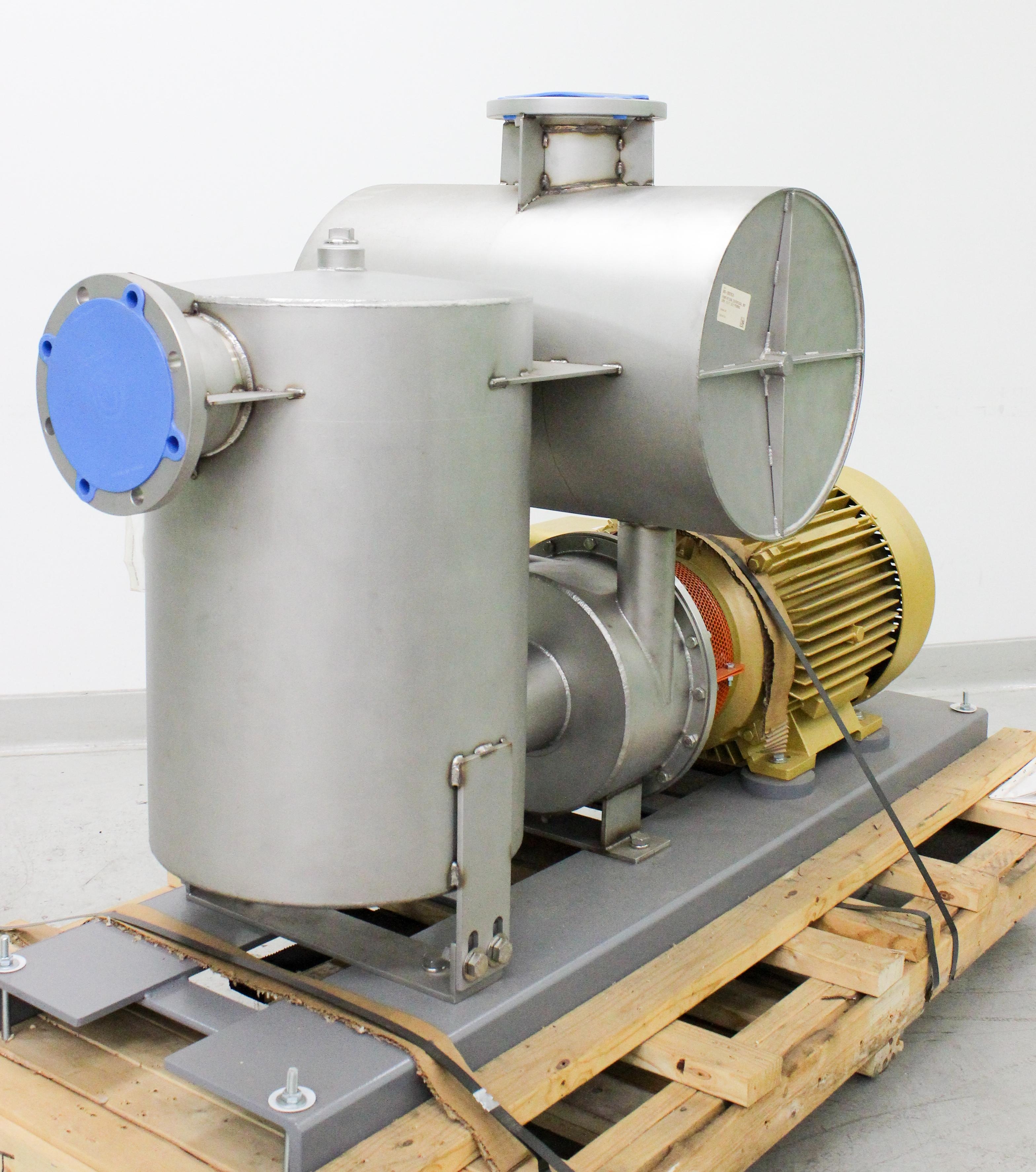

The CorcoranPumps Model 6000D-SP, manufactured in 2023, is a highly reliable centrifugal, close-coupled, end suction, self-priming pump designed for demanding fluid handling applications. Constructed with 316L stainless steel, it provides excellent corrosion resistance, making it suitable for pharmaceutical, food and beverage, biotech, and industrial environments. This pump is equipped with a sturdy steel channel base for durability and stability. Its self-priming design ensures efficient startup, eliminating the need for external priming systems. Driven by a Baldor Reliance Super-E Premium Efficiency Motor, the pump offers 60 HP power output, TEFC enclosure, and is highly energy efficient with a 95% nominal efficiency. The unit's robustness and functionality make it ideal for applications requiring consistent and dependable fluid transfer.
Technician comment
The Model 6000D-SP centrifugal, close-coupled, end suction self-priming pump with Baldor Reliance Super-E motor was inspected at our facility. No leaks or mechanical damage observed. Full flow testing was not performed. Unit is from a working facility and appears to be in excellent overall condition.
Key Features
- Model 6000D-SP centrifugal, close-coupled, end suction pump
- Self-priming capability for efficient startup
- Constructed with 316L stainless steel for excellent corrosion resistance
- Mounted on a steel channel base for enhanced stability

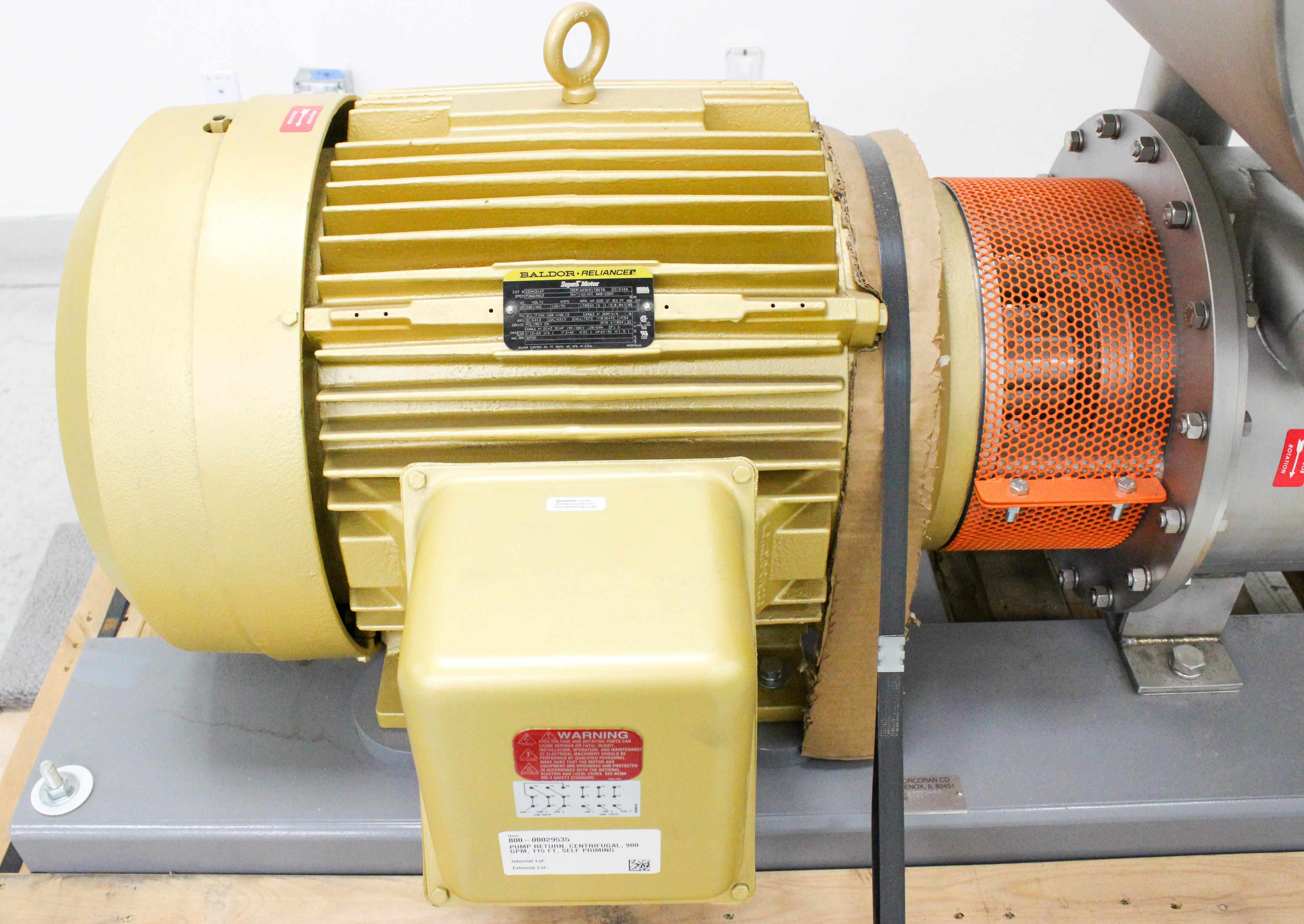

- Equipped with a Baldor Reliance Super-E Premium Efficiency 60 HP Motor
- TEFC enclosure for motor protection
- Suitable for pharmaceutical, food, biotech, and industrial applications

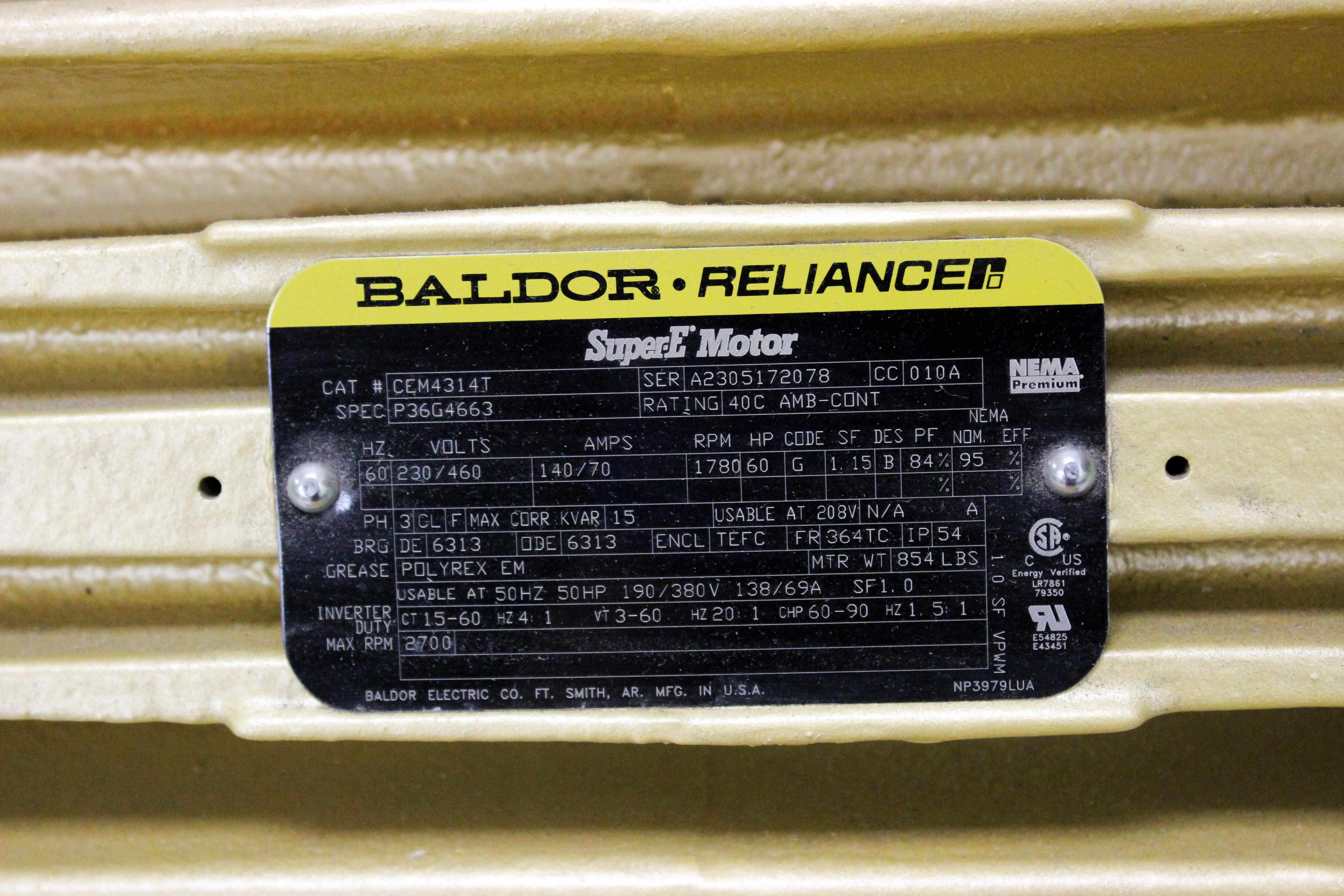

Specifications
- Horsepower: 60 HP
- RPM: 1780
- Voltage: 230/460 V, 60 Hz, 3 Phase
- Amps: 140/70 A
- Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Frame: 364TC
- Service Factor: 1.15
- NEMA Efficiency: 95% nominal
- Insulation Class: F
Weight
Imperial: 2520.0 Pounds
Metric: 1143.05 Kilograms
Shipping Dimensions
Imperial: 102.0 lb x 54.0 lb x 68.4 lb
Metric: 259.08 cm x 137.16 cm x 173.74 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Centrifugal pumps; for liquids, other than submersible type and fuel, lubricating or cooling medium pumps for internal combustion piston engines. This code is selected because the product is a centrifugal pump designed for a wide range of industrial liquid handling applications.
