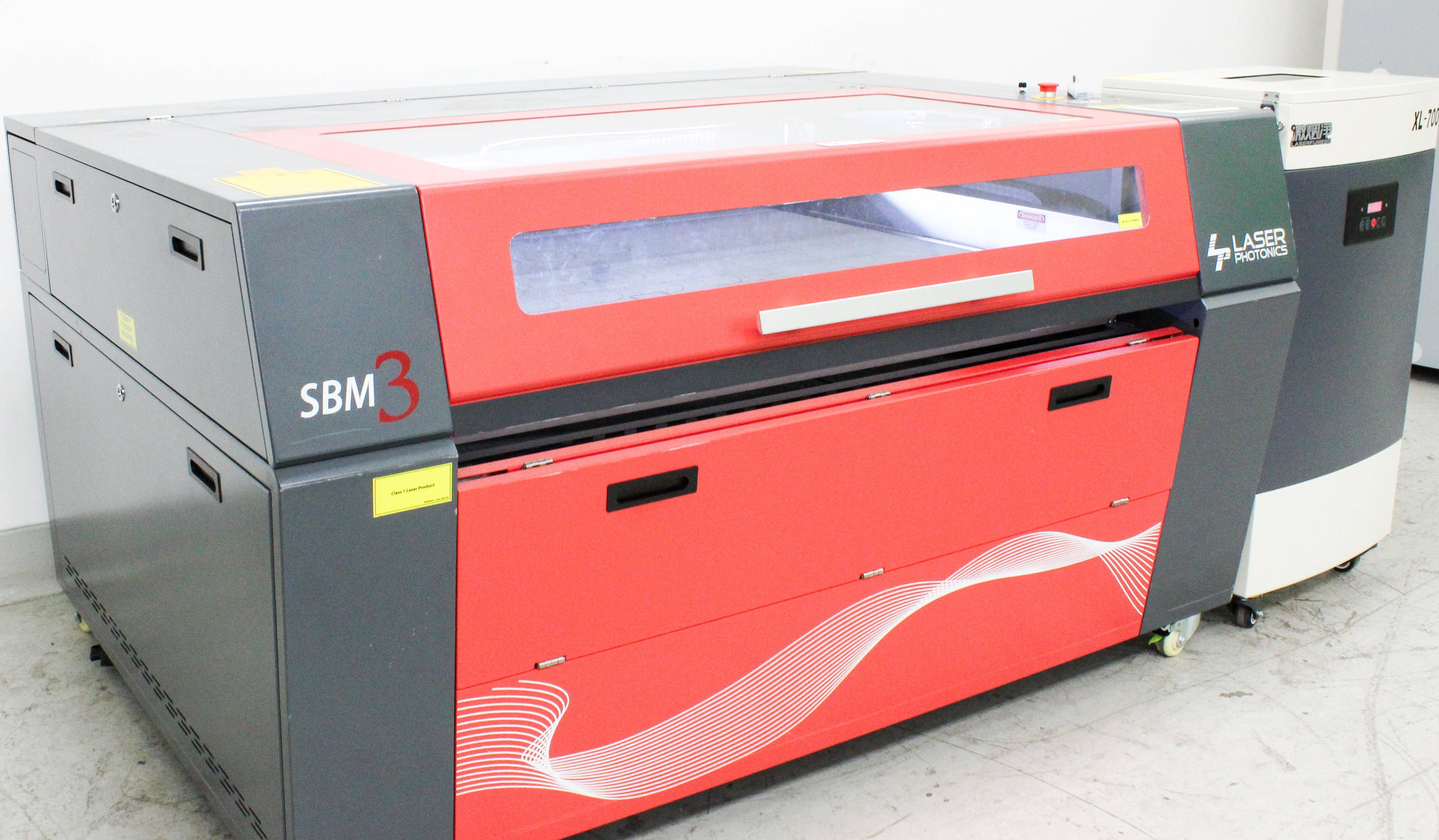

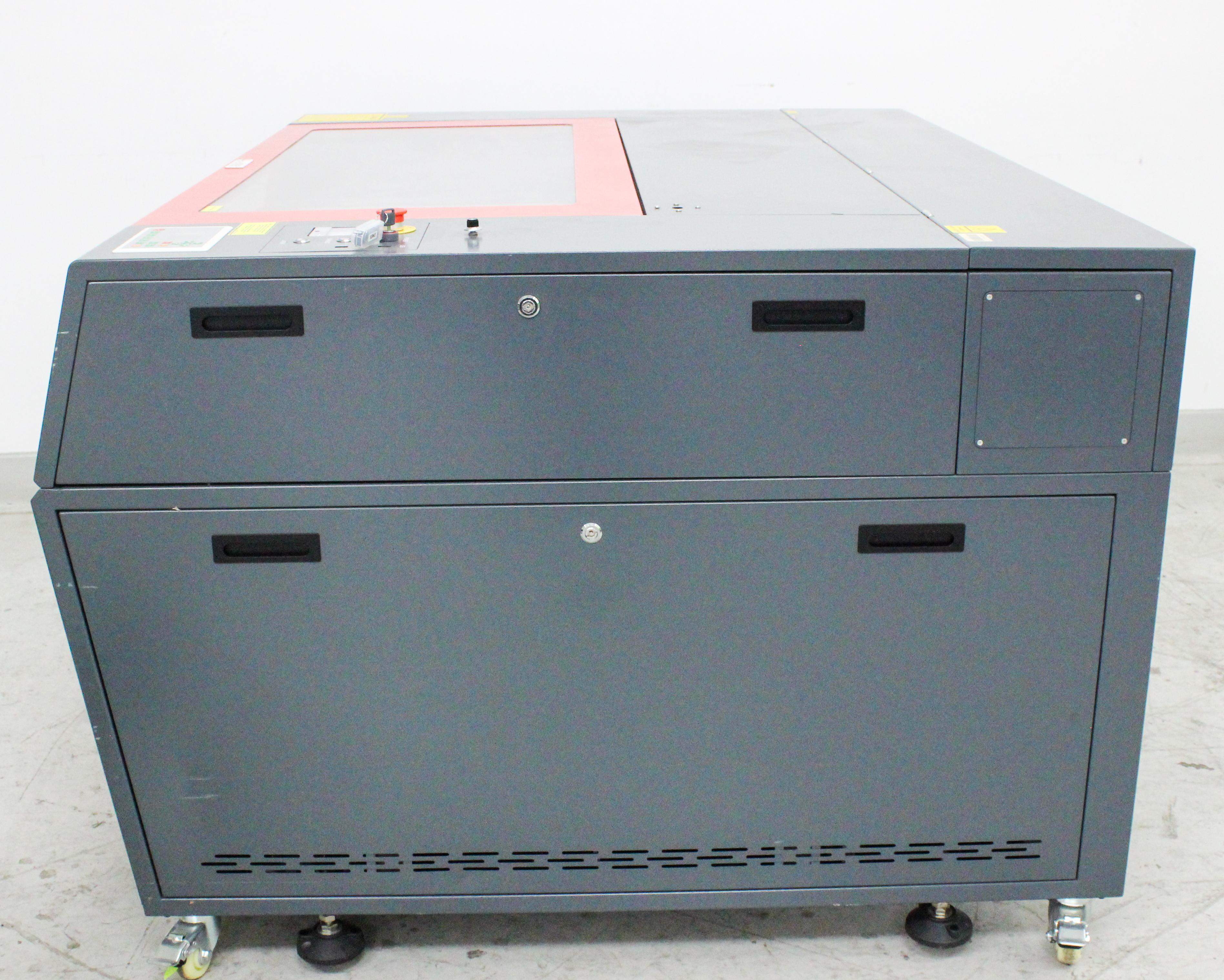

Laser Photonics SBM-3 Laser Cutting Engraving 70W CO2 Air-Cooling Includes XL-700
Laser Photonics
Details
-
CategoryLaser
-
Dimension58.0in x 96.0in x 42.0in
-
SerialSGD2104030
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

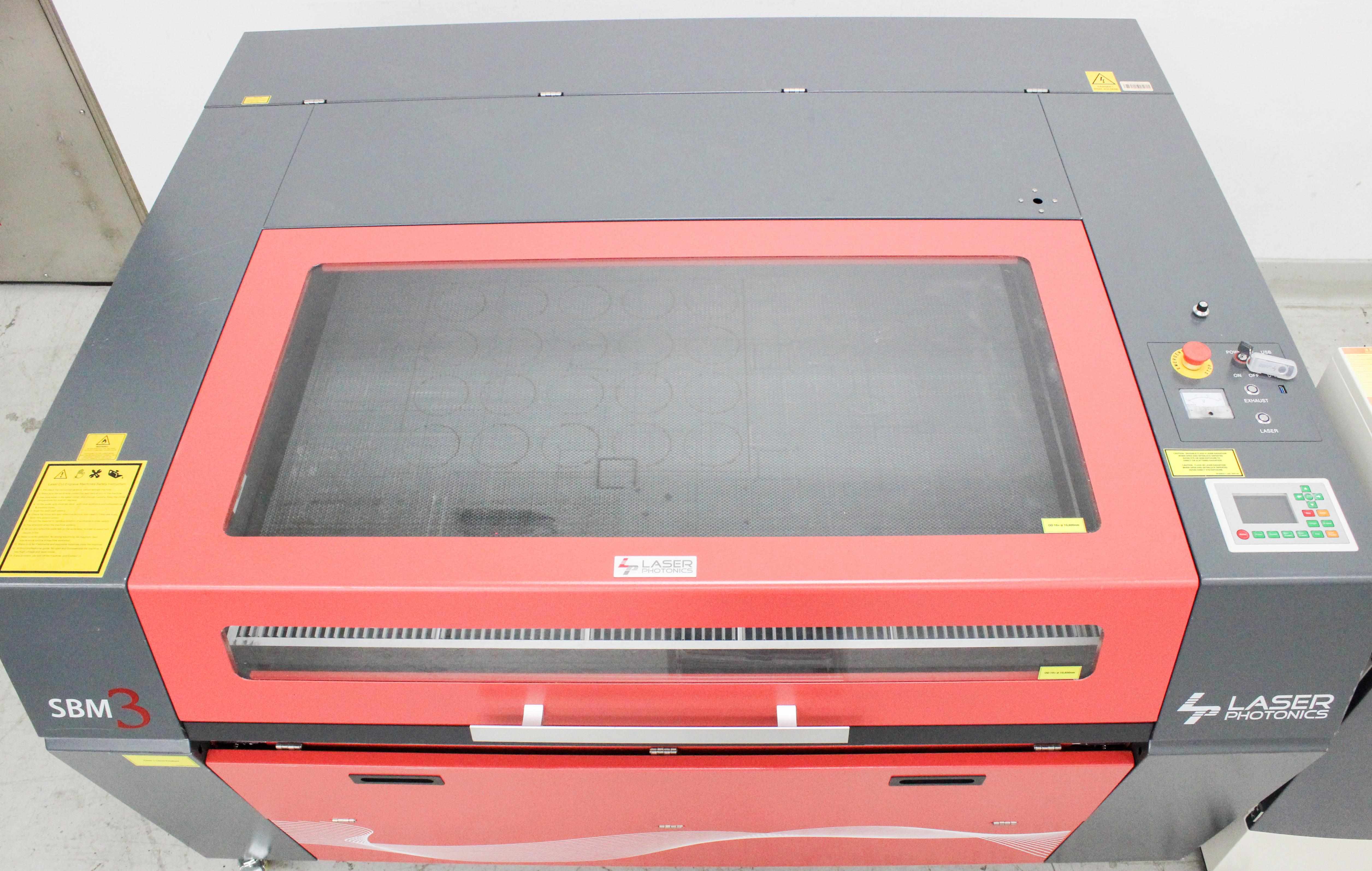

The Laser Photonics SBM-3 is a professional flatbed laser cutting and engraving system designed for diverse applications including signage, data plates, glass etching, plastic cutting, and wood engraving. This preowned machine powers on without errors and demonstrates responsive controls, though full functional testing cannot be completed due to the absence of application materials. Key features include a gas carbon dioxide (CO2) laser with 70W power, cutting speed up to 300mm/sec, and an engraving speed of 1000 mm/sec. Its cutting thickness ranges from 0 to 25mm with a resolution of up to 4000 dpi. The working area is 1000 x 600 mm, complemented by a robust air-cooled system. The included XL-700 Fume Extractor features a 700W power, achieving 99.97% filtration efficiency for multi-operator use. Designed for efficiency, it features quick filter replacement and intelligent digital display for seamless control.
Technician comment

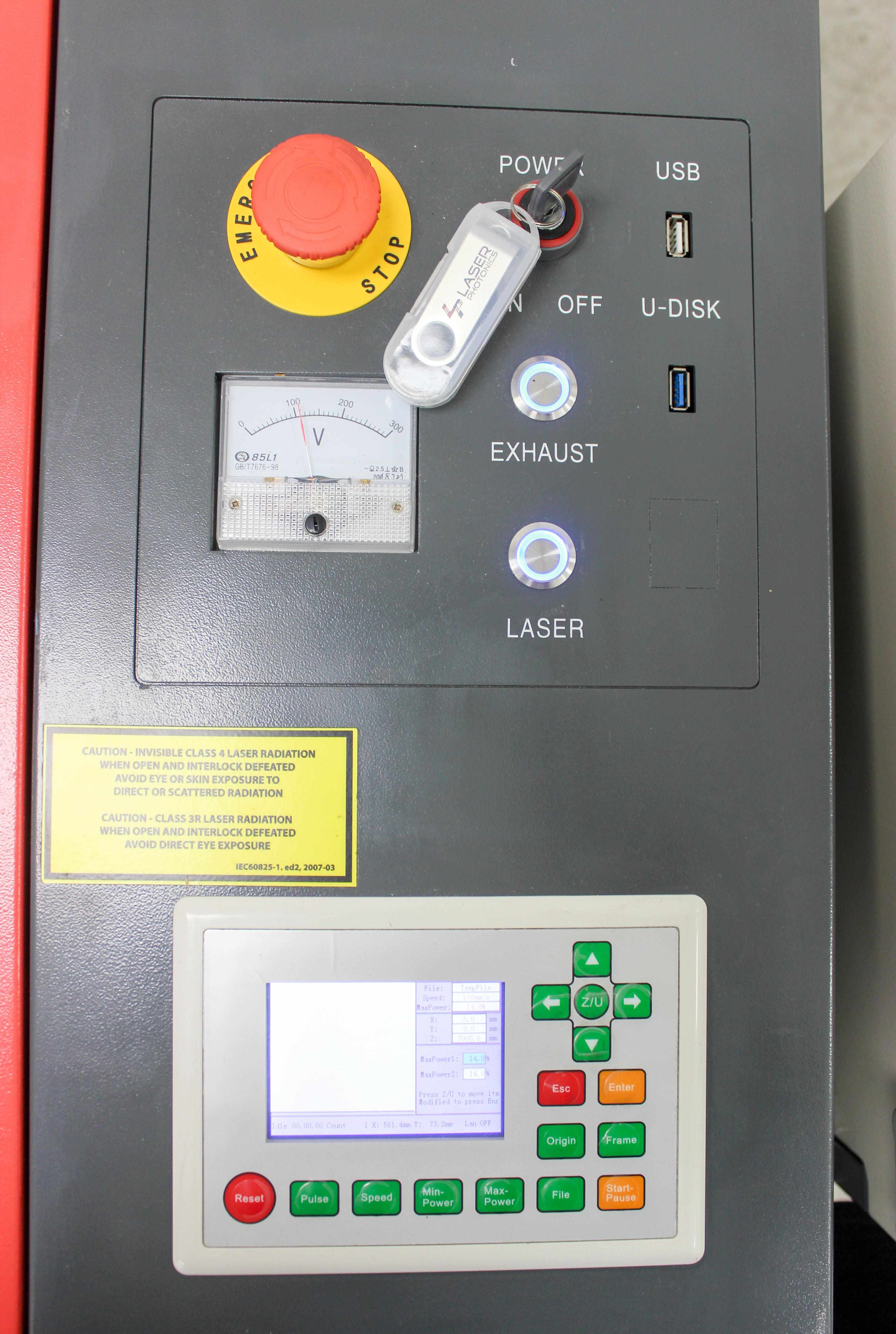

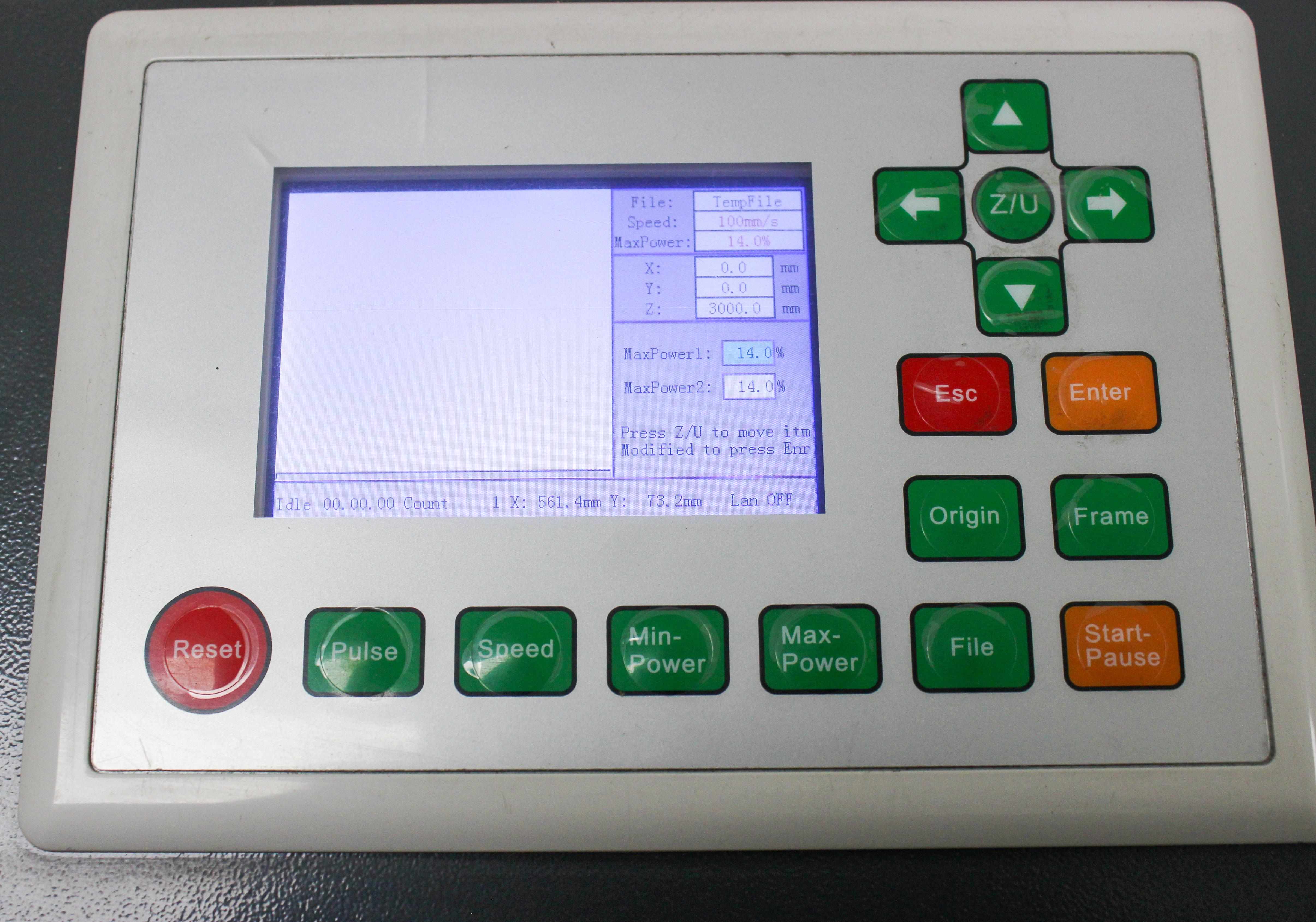

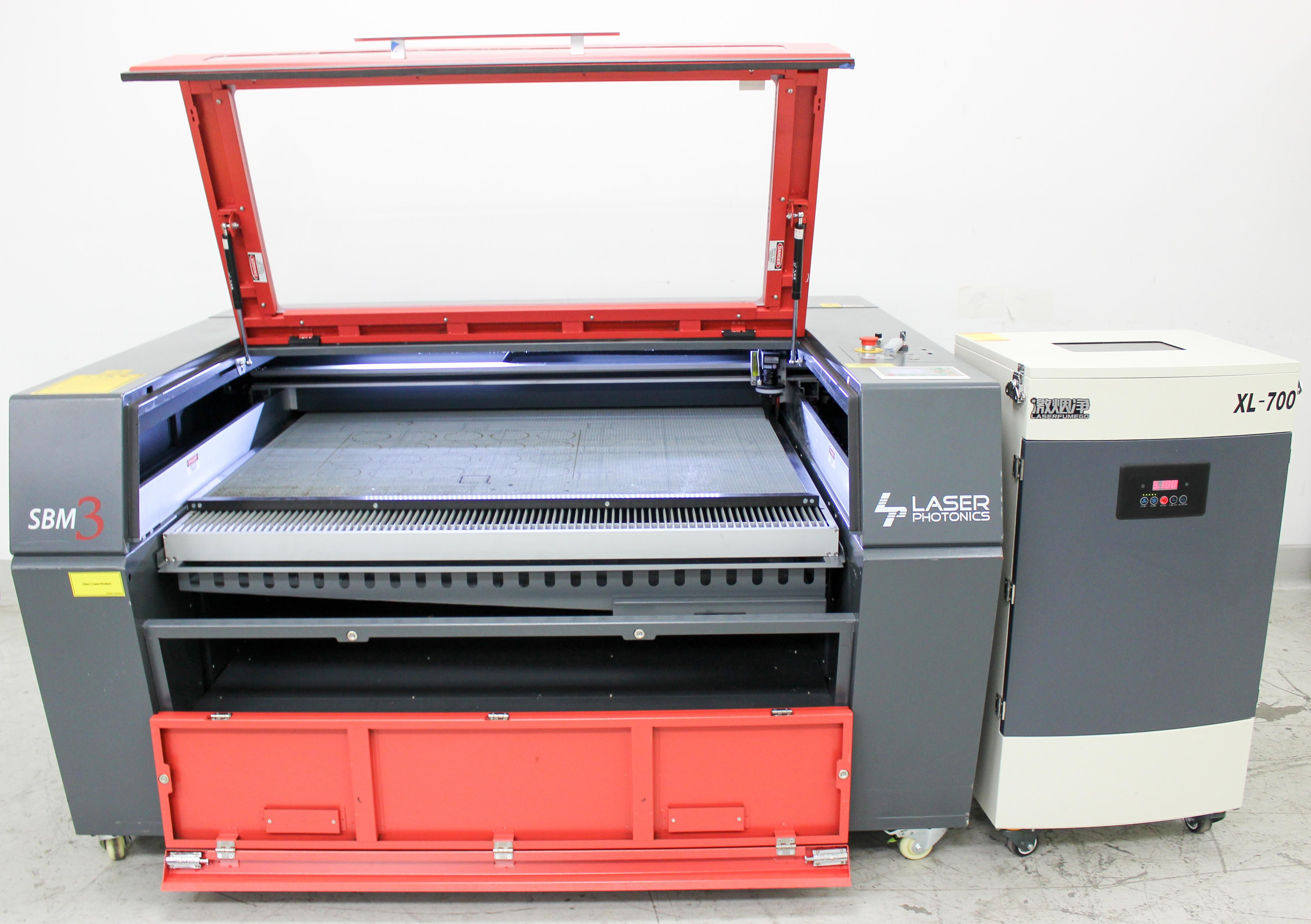

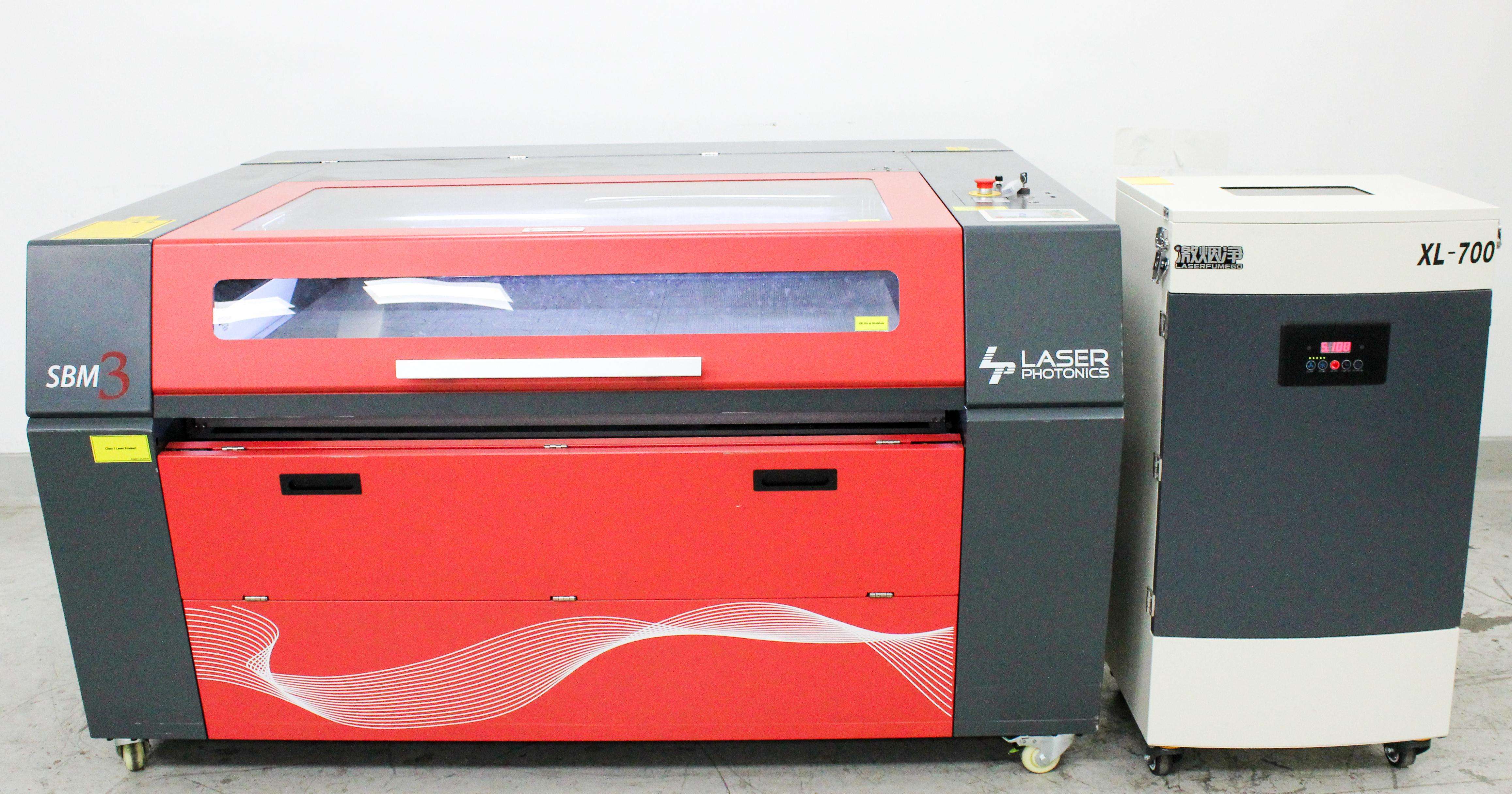

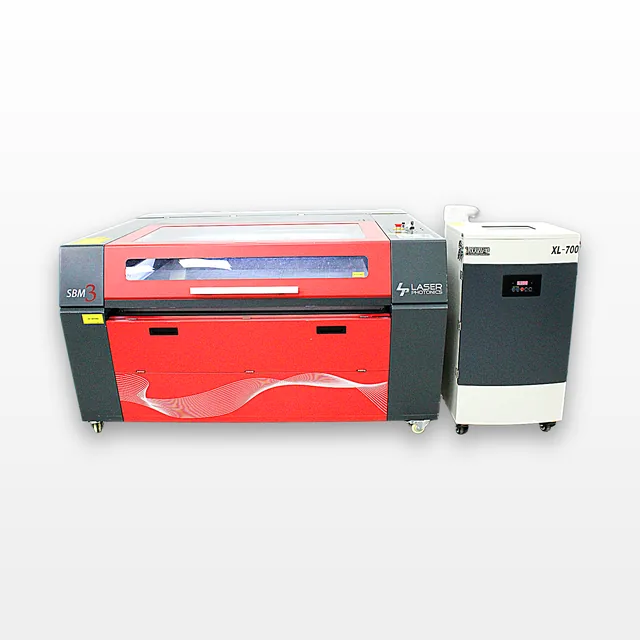

Unit powers on without errors. Control panel and display are responsive. Full functional testing not performed due to lack of application materials. The system is preowned and shows light cosmetic wear consistent with use in a working environment. Includes: SBM3 Flatbed Material Cutting Laser & XL-700 Fume Extractor
Key Features
- 70W CO2 laser power
- Versatile flatbed cutting and engraving
- 300mm/sec cutting speed
- 1000mm/sec engraving speed
- Max cutting thickness 25mm
- Up to 4000 dpi resolution
- 1000 x 600 mm working area
- Air-cooled system
- Includes XL-700 Fume Extractor
Specifications
- Laser Type: Gas carbon dioxide (CO2)
- Maximum Speed - Cutting: 300mm/sec (11.8 in./sec)
- Maximum Speed - Engraving: 1000 mm/sec (39.4 in./sec)
- Cutting Thickness: 0-25mm (0 - 1”)
- Laser Min. Line Width: 0.2 mm (0.01”)
- Resolution: Up to 4000 dpi

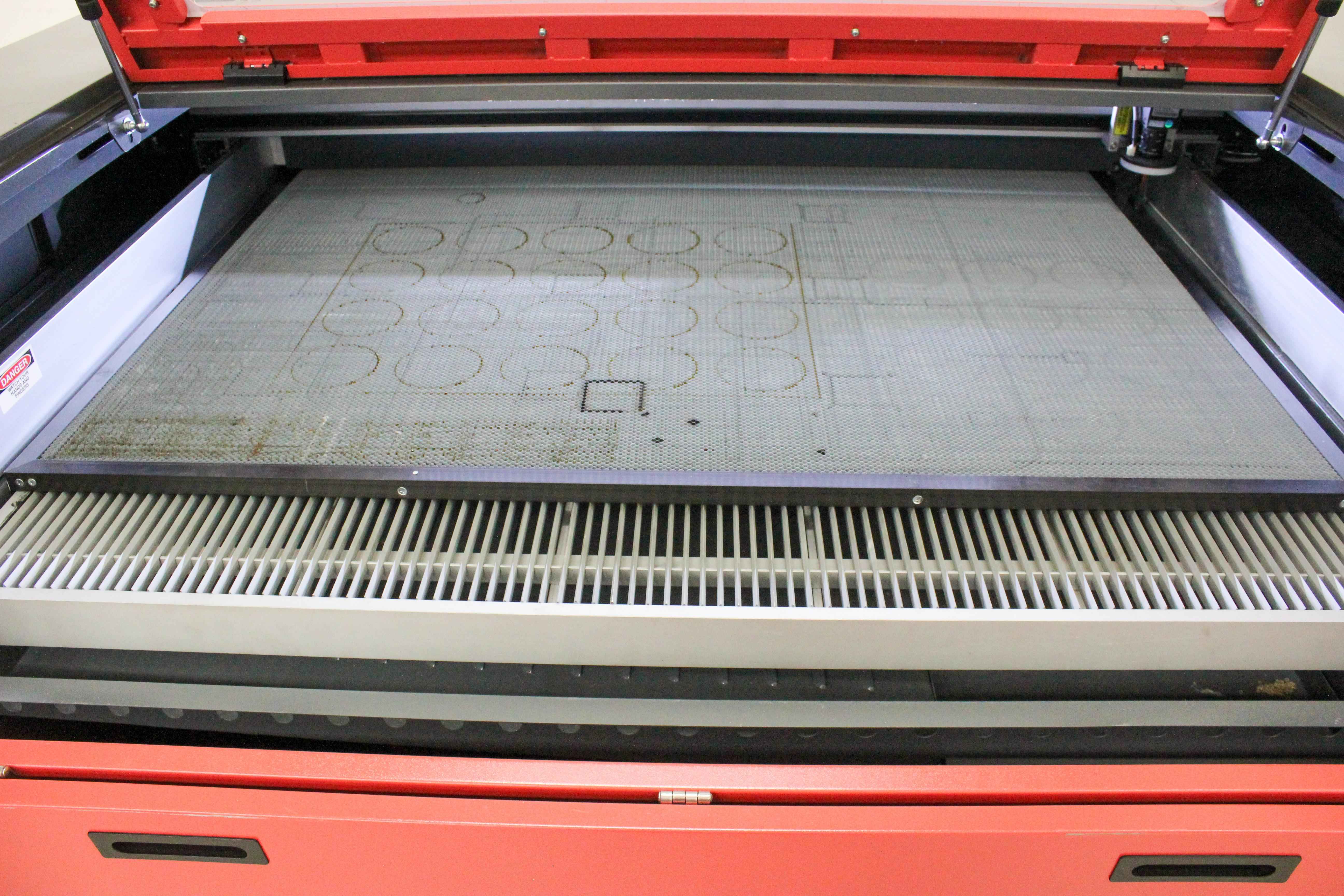

- Working Area: 1000 mm x 600 mm (39.37” x 23.62”)
- Z-axis Range: Adjustable up to 210 mm (8.3”)
- Memory Buffer: Standard 64MB, stores up to 99 files with all settings
- Computer Interface: Standard USB cable and printer driver
- Control Software: RD-V8
- Operating Modes: Cutting – vector; Engraving – raster graphic
- Power Requirements: 110VAC, 60 Hz / 20 Amp
- Cooling: Air cooled

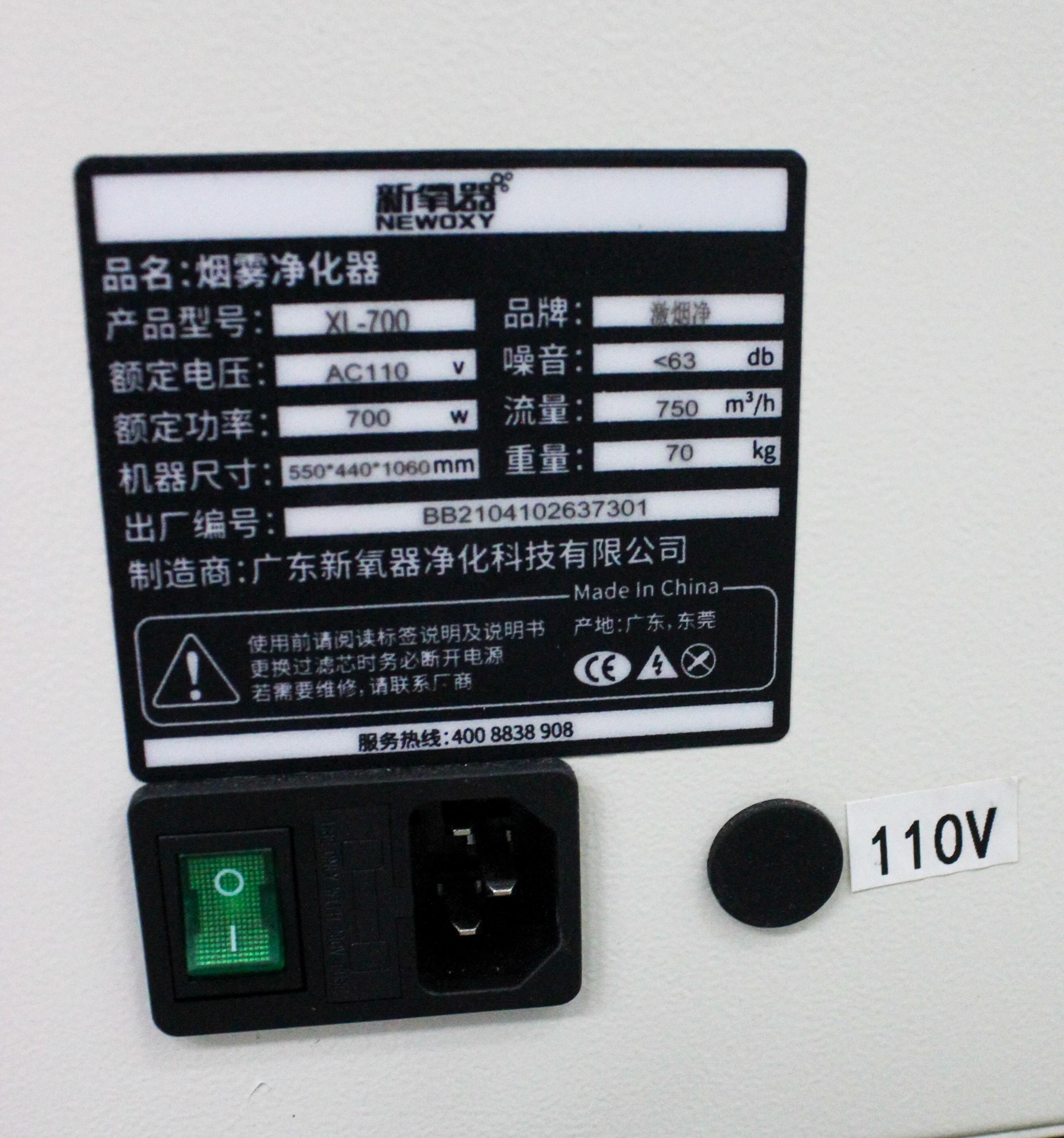

- Fume Extractor Power: 700W

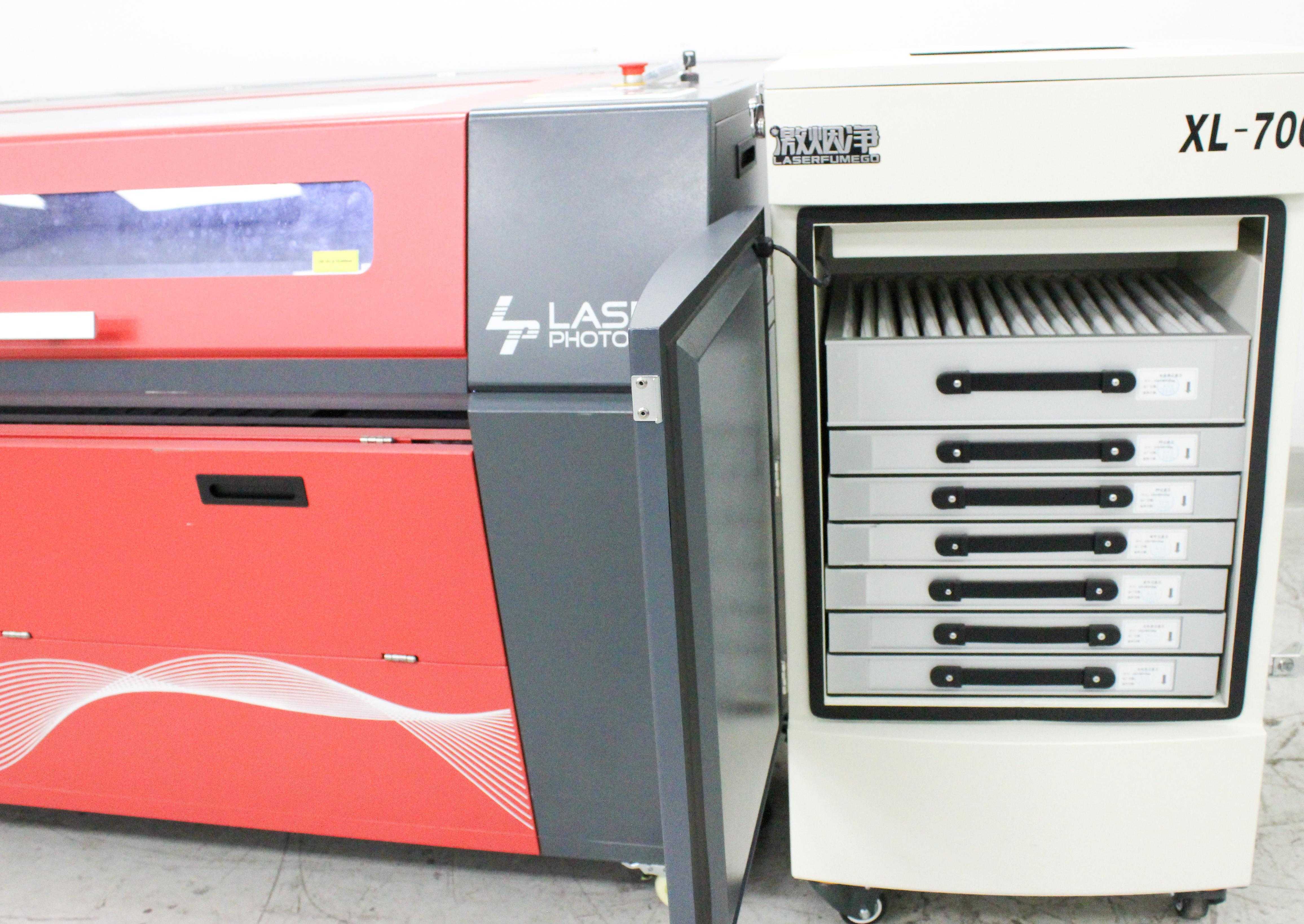

- Fume Extractor Filters: 7 Layers
- Systemic Flow: 570 m3/h
- Filtering Efficiency: 0.3um @ 99.97%
- Noise: < 75 dB
Weight
Imperial: 1200.0 Pounds
Metric: 544.31 Kilograms
Shipping Dimensions
Imperial: 69.6 lb x 115.2 lb x 50.4 lb
Metric: 176.78 cm x 292.61 cm x 128.02 cm
Harmonized Code
84561000
Harmonized Code Details
The code 84561000 covers machines for working hard materials, by laser or other light or photon beam processes. This code is applicable as the equipment involves a light-based laser processing machine used primarily for cutting and engraving materials.
