ABI 4470660 Real Time PCR Analyzer 96 Well IVD & TDM Modes High Sensitivity
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension26.0in x 19.0in x 28.0in
-

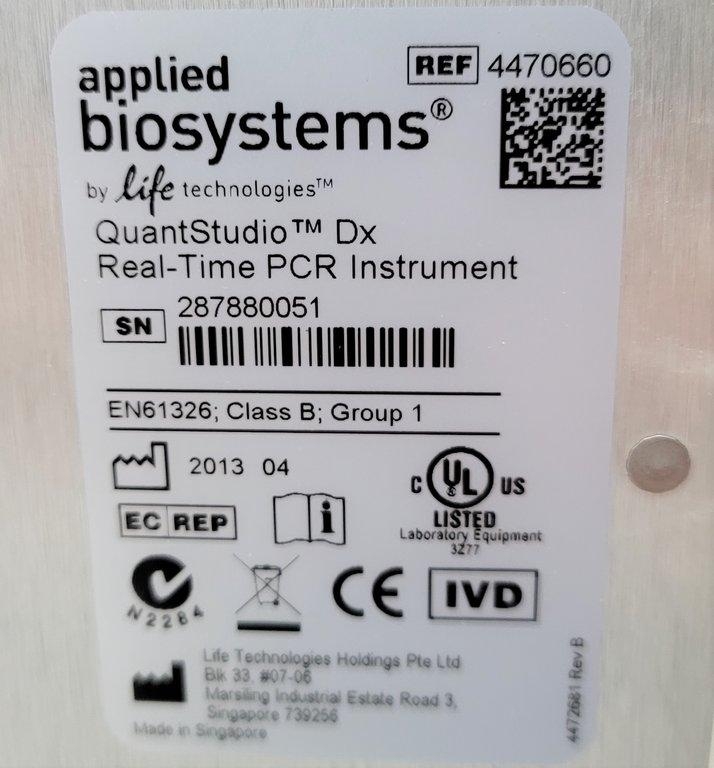

Serial287880051
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

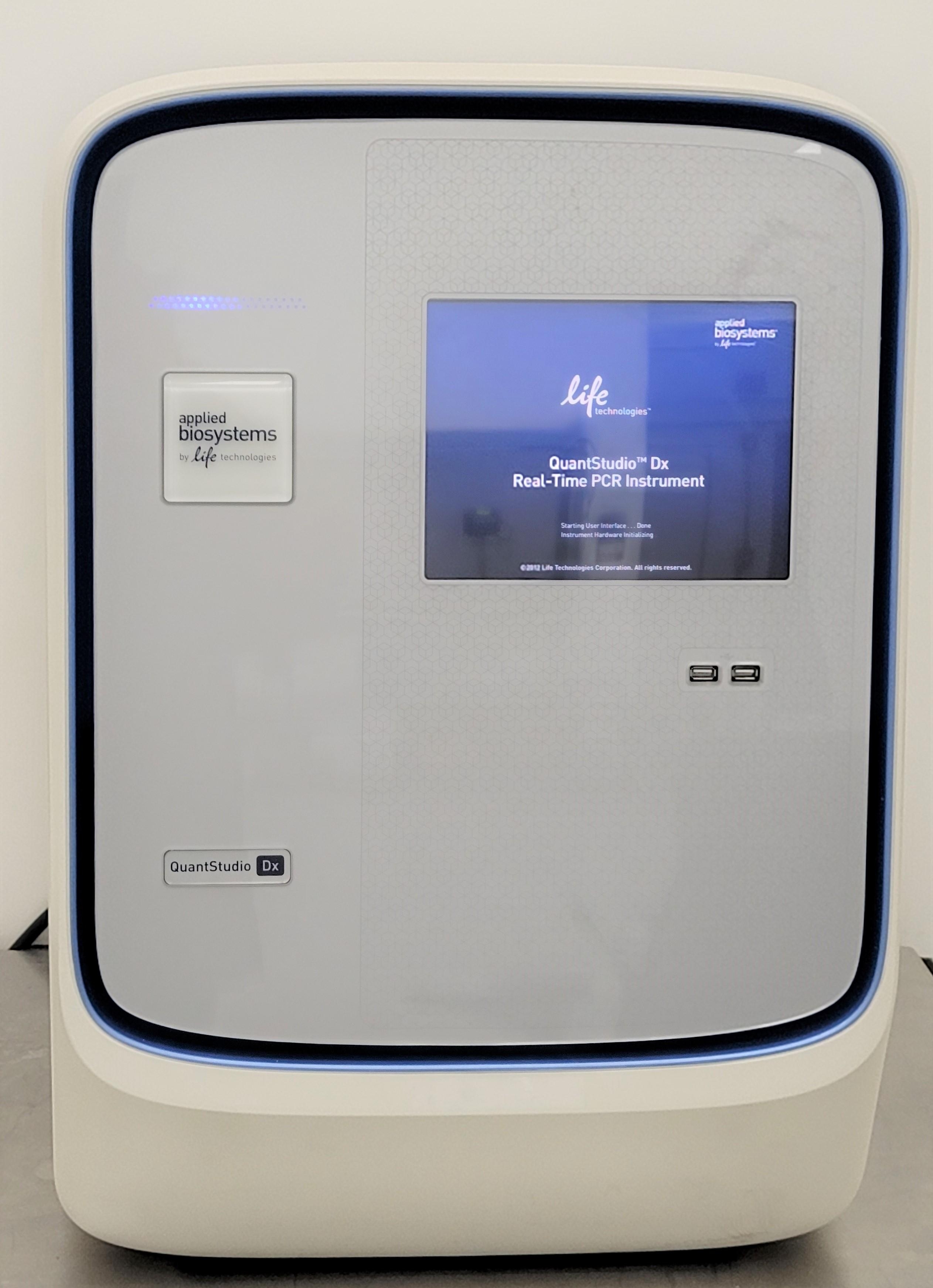

The Applied Biosystems QuantStudio Dx Real-Time PCR Instrument, model 4470660, is a versatile diagnostic platform trusted by clinical laboratories for its performance and adaptability. It operates in both IVD and Test Development modes, making it suitable for developing and executing a variety of assays. The system's block design allows for quick changes from the front without tools. It offers temperature uniformity within 0.5C and features various run times dependent on the assay type and format: approximately 35 minutes for a 384-well plate, 30 minutes for a 96-well 0.2mL, and under an hour for TaqMan Array Cards with TaqMan Fast Advanced Master Mix. The QuantStudio Dx demonstrates sensitivity down to a single copy, supporting applications in quantitative and qualitative assays such as gene expression, melt curves, and comparative Ct. It handles 96-well, Fast 96-well, 384-well, and qPCR microfluidic cards, with wavelengths from 450 to 720 nm, ensuring high precision in target detection for diagnostic purposes.
Key Features

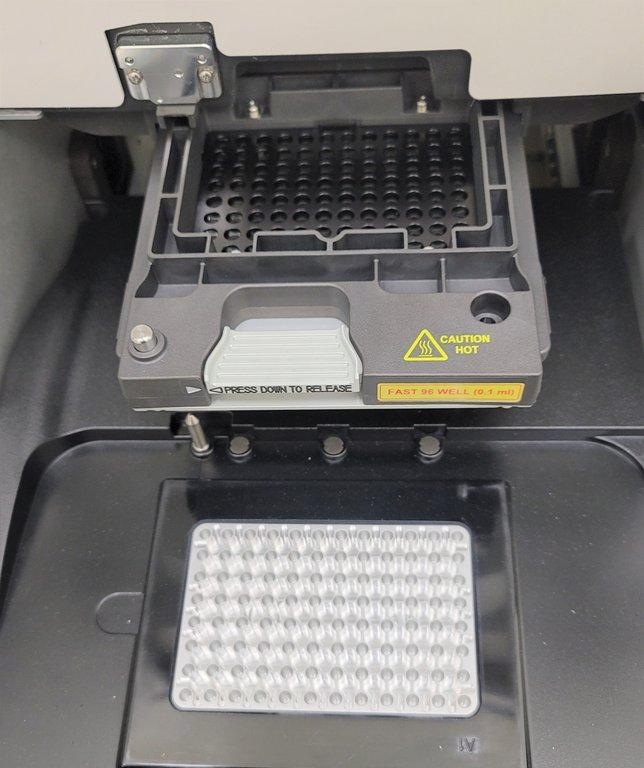

- 96-well 0.1-mL format
- Operates in IVD and Test Development modes
- Temperature uniformity 0.5C
- Run times vary by format: e.g., 30 min for 96-well
- Sensitivity down to 1 copy
- Supports multiple assay types
- Detect changes as small as 1.5-fold in target quantities
- Supports 96-well, Fast 96-well, 384-well, and qPCR microfluidic cards
- Wavelengths: 450-720nm
Specifications

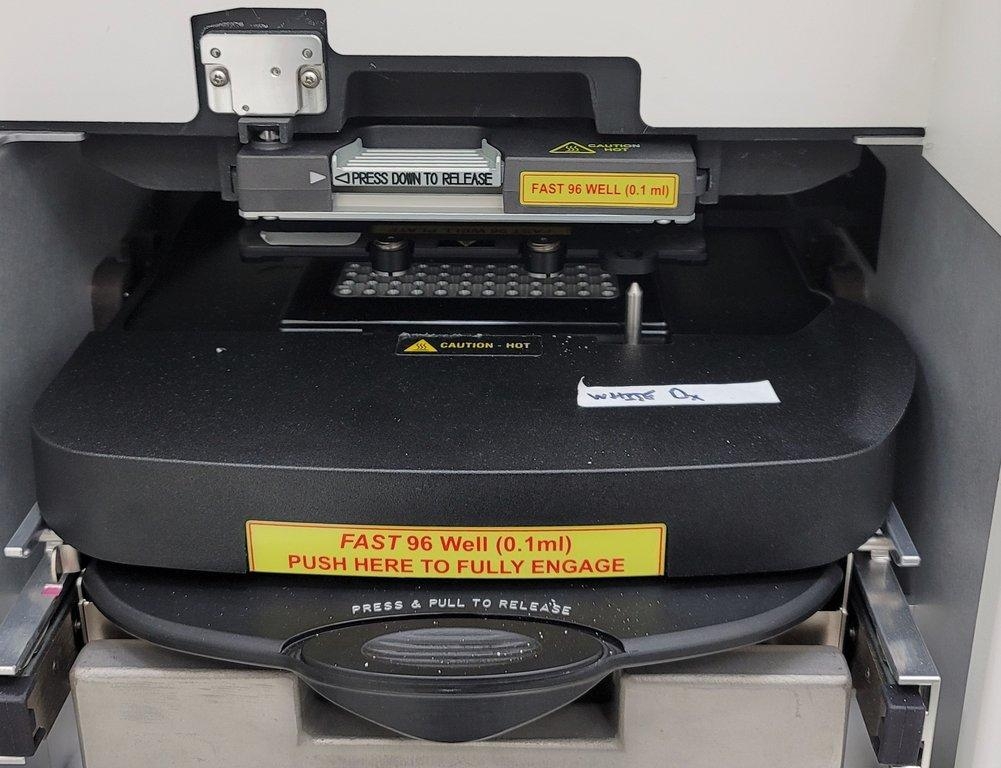

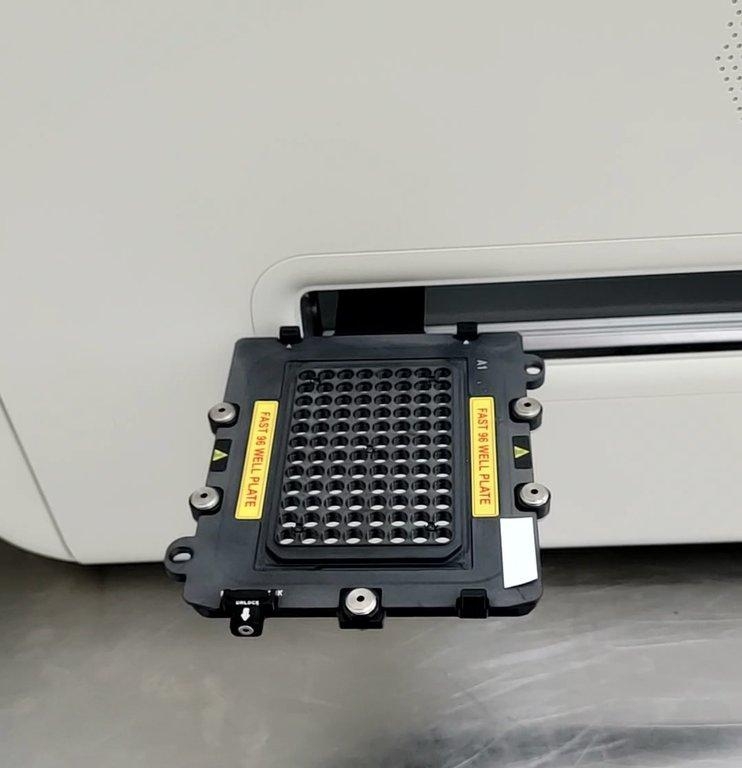

- Block change design allows front changes in under 1 minute, no tools required
- Run times: ~35 min for 384-well, ~30 min for Fast 96-well, <1 hr for TaqMan Array Cards
- Dynamic range up to 9 logs
- Temperature uniformity: 0.5C
- Supported applications: standard curve, comparative Ct genotyping, HRM, melt curve
- Resolution: 1.5-fold change in singleplex reactions
- Excitation/detection: 6 excitation (450-670nm), 6 emission (500-720nm)
- Designed to assist with 21 CFR Part 11 compliance
Weight
Imperial: 240.0 Pounds
Metric: 108.86 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 22.8 lb x 33.6 lb
Metric: 79.25 cm x 57.91 cm x 85.34 cm
Harmonized Code
902780
Harmonized Code Details
902780 - Instruments and apparatus for physical or chemical analysis. This code is appropriate for the QuantStudio Dx as it is a specialized PCR instrument used in laboratory settings for clinical and research analysis, fitting the description for devices under this code.
