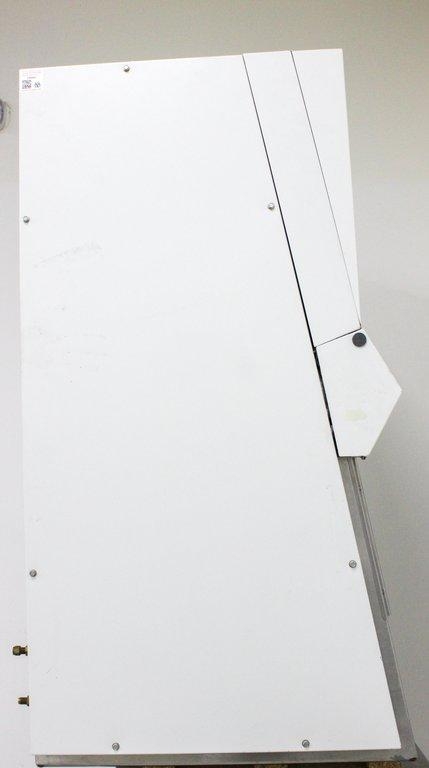

The Baker Company SG403 SterilGARD III Biosafety Cabinet with HEPA Filters
The Baker Company
Details
-
CategoryHood
-
Dimension31.0in x 53.0in x 58.0in
-
Serial75236
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

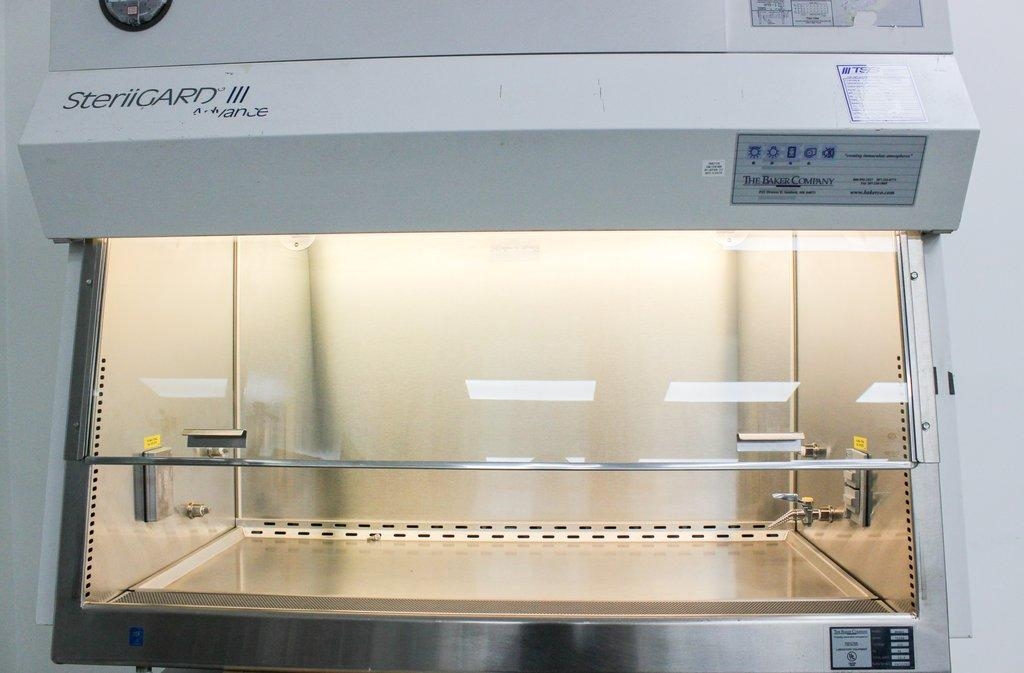

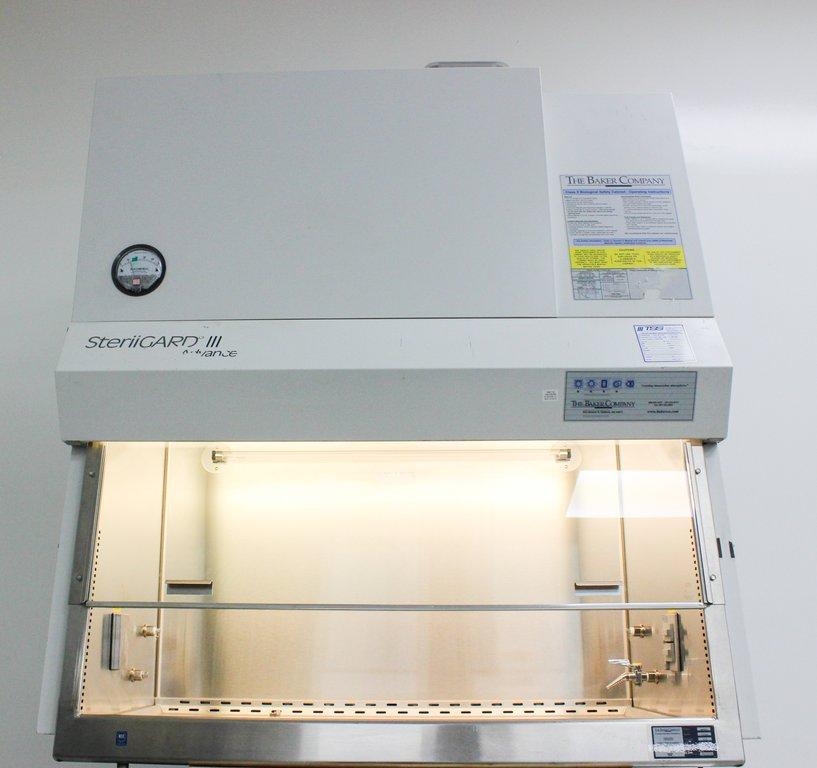

The Baker Company SterilGARD III Advance SG403 is a 4-foot Class II Type A/B3 biological safety cabinet, acclaimed for its high-performance air barrier and ergonomic design. Constructed for durability, this cabinet features vertical laminar airflow, high velocity air slots, and a robust airfoil design to ensure the safety of the user and environment. Equipped with The Baker Company's momentum air curtain and UniPressure Preflow plenums built entirely of metal, this cabinet ensures a strong and reliable structure. The corrosion-resistant 16-gauge type 304 stainless steel work surface is recessed to manage spills effortlessly. With tested HEPA filters accessible from the front, maintenance is convenient without the need to enter the work area. Its lighting system delivers 100-foot candles of illumination enhancing visibility at the surface. This unit has been thoroughly tested to confirm the functionality of lights, UV, and blower, ensuring it operates as intended. Please note that the base stand is not included.
Technician comment

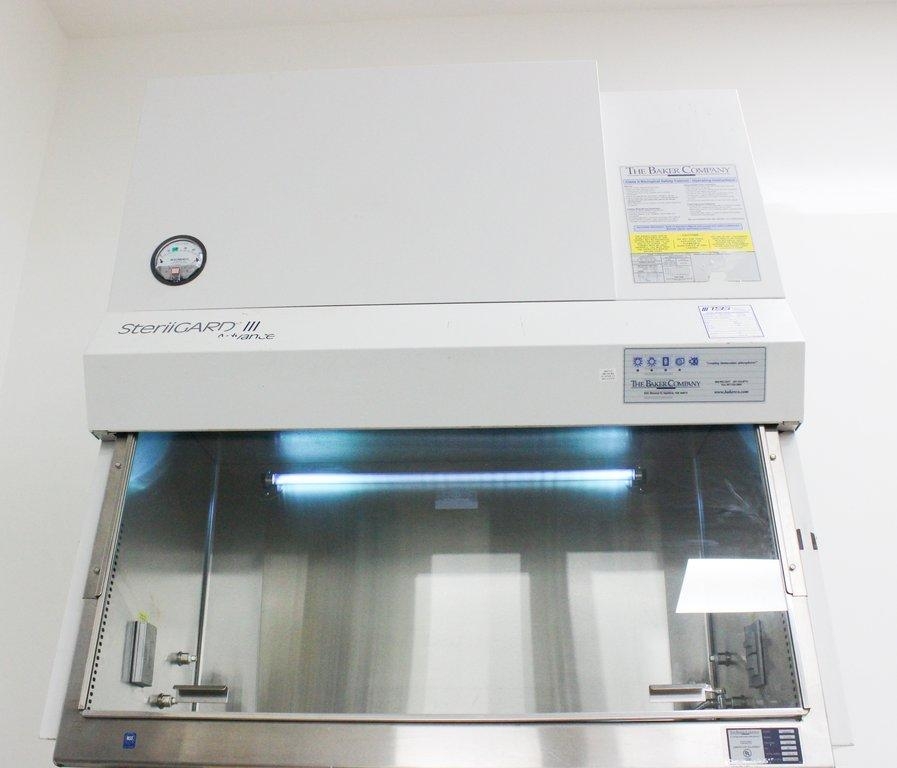

Unit was tested to specifications. Lights, UV, blower all working. Only what is pictured included. Does not include base stand.
Key Features
- 4-foot Model SG403
- Class II Type A/B3
- Vertical Laminar Airflow
- HEPA Filters for Airborne Contaminant Protection
- Momentum Air Curtain for Effective Air Barrier

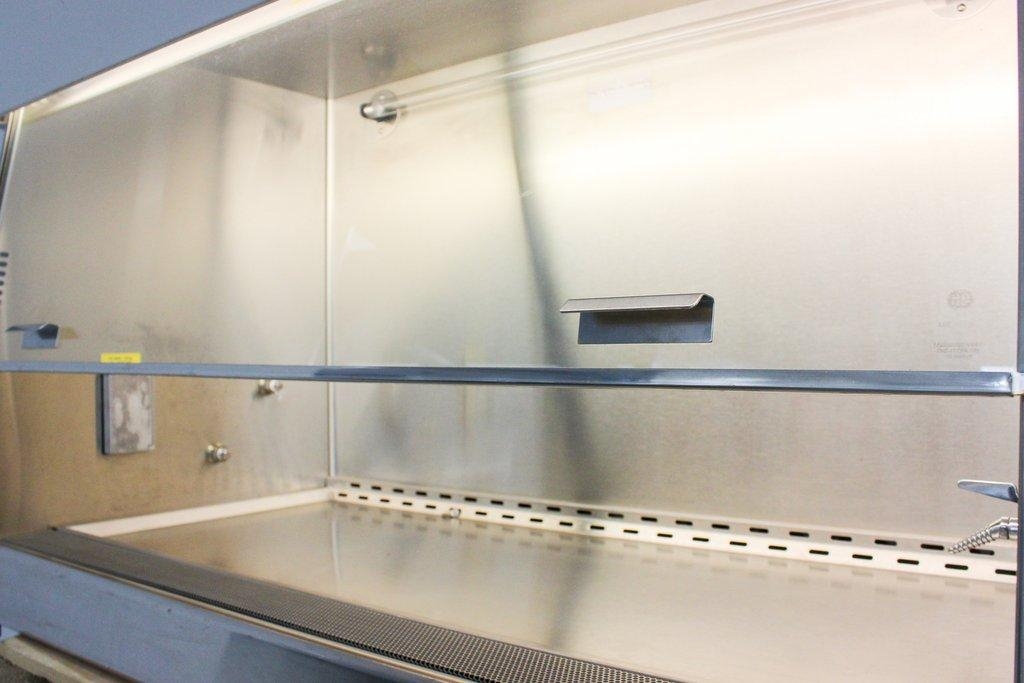

- Corrosion-resistant Stainless Steel Surface
- Convenient Maintenance with Front-Access Filters
- Ergonomic Design with 10-degree Sloped Front
Specifications

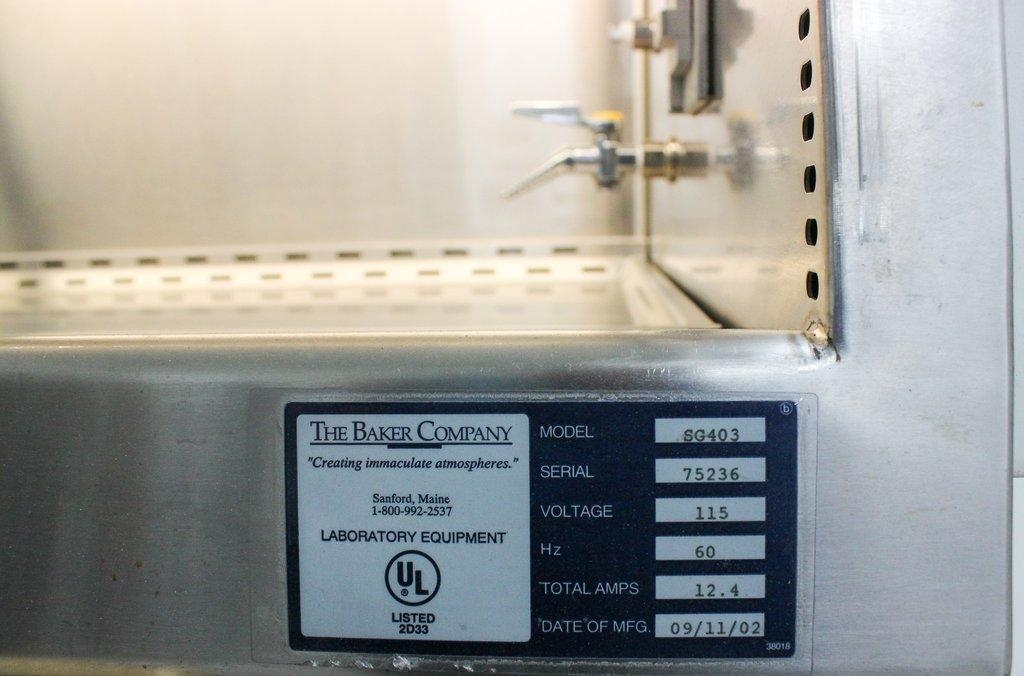

- Model: SG403
- Weight: 525 lbs
- Electrical Specifications: 115V AC, 1 Phase, 60 Hz
- Blower Motor: 6.6 amps
- Fluorescent Light (ballast): 0.8 amps
- Duplex Outlets (G.F.I.): 5.0 amps
- Total Running Load: 12.4 amps
- Environmental Conditions: Indoor use, Altitudes up to 2000 meters, Temperature range from 5°C to 40°C, Relative humidity up to 80%
- Main supply voltage fluctuations not to exceed ±10% of the nominal voltage
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 63.6 lb x 69.6 lb
Metric: 94.49 cm x 161.54 cm x 176.78 cm
Harmonized Code
84146000
Harmonized Code Details
HS Code 84146000 applies to 'Airsafety equipment; comprehensive for laboratory biosafety cabinets integrating filtration technology, applicable for units offering environmental safety and containment.' This code is used as it appropriately categorizes equipment providing environmental protection through structured air control.
