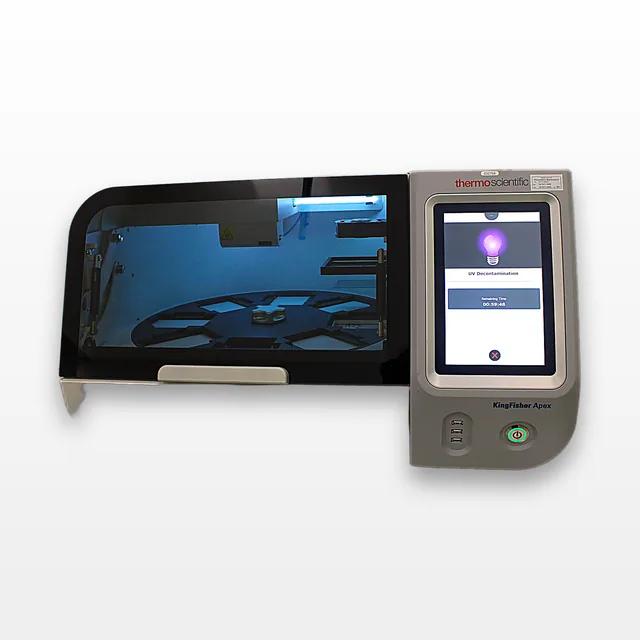

Thermo Scientific KingFisher Apex Automated System 24/96 Samples
Thermo Scientific
Details
-
CategoryLiquid Handling
-
Dimension31.0in x 23.0in x 18.0in
-
Serial714-800405
-
Shipping TypeFreight
-
Manufacturing2021-08-30
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Thermo Scientific KingFisher Apex Type: 714 is a pre-owned automated magnetic-particle purification and extraction system, manufactured in 2021. It is designed to handle 24 or 96 samples per run, with a 96-well deep-well volume range of 15–1,000 µL and a 24-well deep-well volume range of 30–5,000 µL. The system features a 10-inch touchscreen display, integrated 1D barcode reader, and supports heating up to 100°C and cooling down to 4°C. It includes two UV lamps with a maximum run time of 23 hours and 59 minutes. The unit is equipped with 4 interchangeable magnetic heads, though it currently displays an error code indicating a missing magnetic head. Connectivity options include USB, LAN/USB Wi-Fi adapter, and RS-232. The system is compatible with BindIx software. Buyers are advised to validate the system's fitness for their specific applications.
Technician comment
Unit powers on and touchscreen is functional. Instrument initializes and user interface is operational. UV decontamination function was tested and successfully initiated. Unit displays error code (43), “Magnetic head is missing.” \Not Included.Unable for fully test. See photos
Key Features
- Automated magnetic-particle purification/extraction
- Handles 24 or 96 samples per run
- Heating up to 100°C
- Cooling down to 4°C
- 10-inch touchscreen display
- Integrated 1D barcode reader
- 4 interchangeable magnetic heads
- USB, LAN/USB Wi-Fi adapter, RS-232 connectivity
Specifications
- Sample capacity: 24 or 96 samples per run
- 96-well Deep-Well volume: 15–1,000 µL
- 96-well Standard volume: 15–200 µL
- 96-well PCR volume: 10–80 µL
- 24-well Deep-Well volume: 30–5,000 µL
- Heating: Up to 100°C
- Cooling: Down to 4°C
- UV: 2 UV lamps; maximum run time 23 h 59 min
- Display: 10" touchscreen
- Memory: Approximately 30 GB
- Power: 100–240 VAC, 50/60 Hz
- Power consumption: 280 VA max.
- Dimensions (H × W × D): 18 × 31 × 23 in. (45 × 78 × 59 cm)
- Weight: 123 lb (56 kg)
- Connectivity: USB, LAN/USB Wi-Fi adapter, RS-232
- Software: BindIx compatible
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 37.2 in x 27.6 in x 21.6 in
Metric: 94.49 cm x 70.1 cm x 54.86 cm
Harmonized Code
9027.80
Harmonized Code Details
HS Code 9027.80: Instruments and apparatus for physical or chemical analysis. This code is applicable due to the system's function in automated purification and extraction processes.
