Pall SXPSC10W Filter Chassis Biopharmaceutical Filtration System 60C 3.5BAR 20K
Pall
Details
-
CategoryProcess / Scale-Up
-
Dimension46.0in x 32.0in x 73.0in
-
SerialM4301368R
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

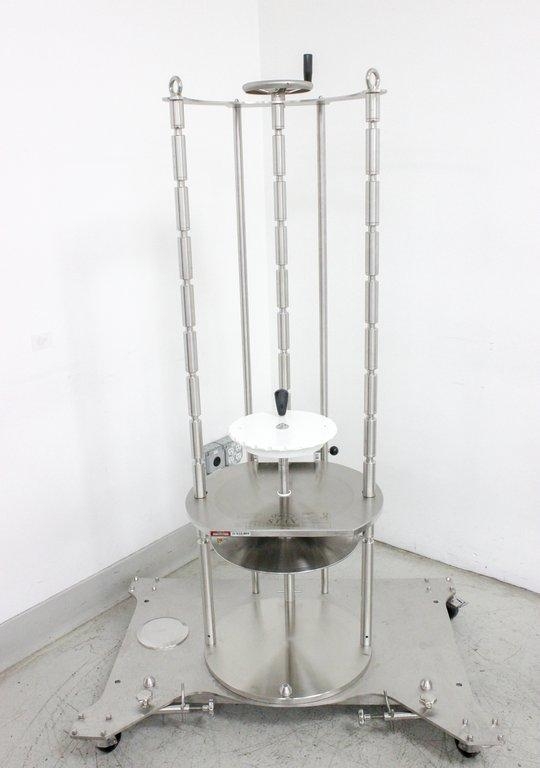

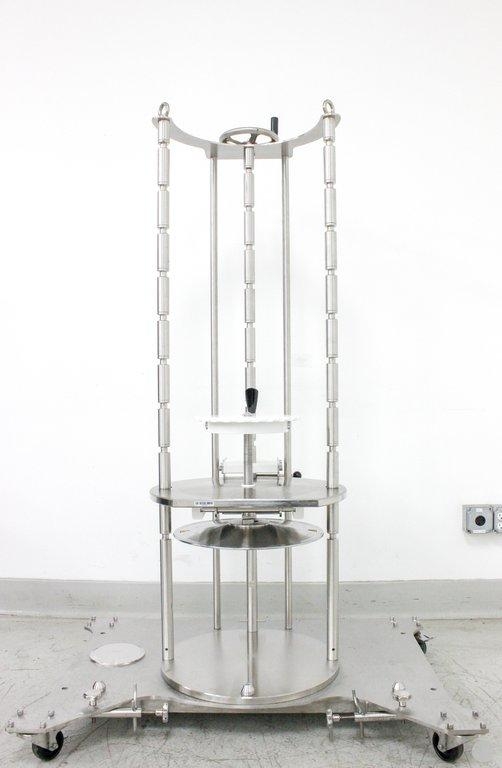

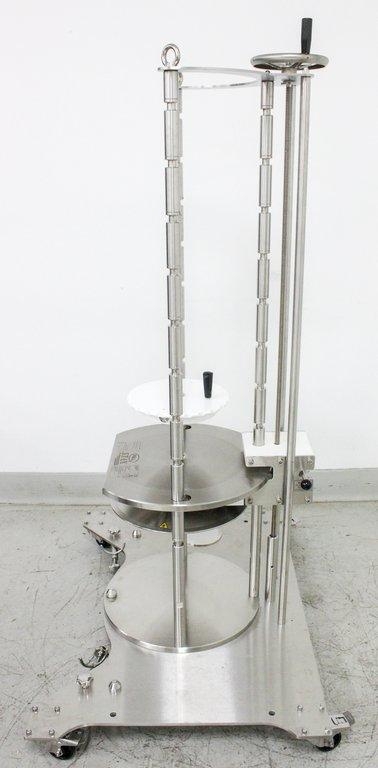

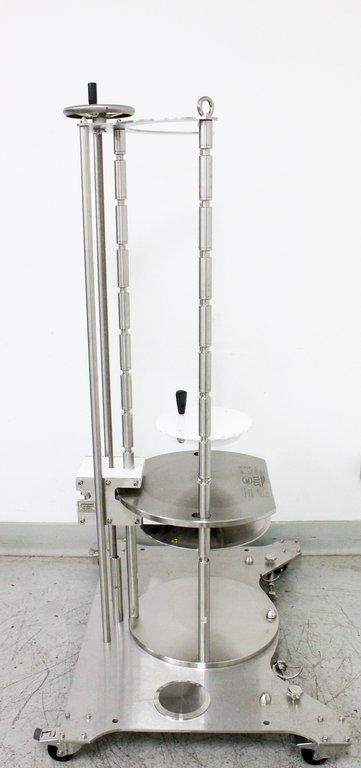

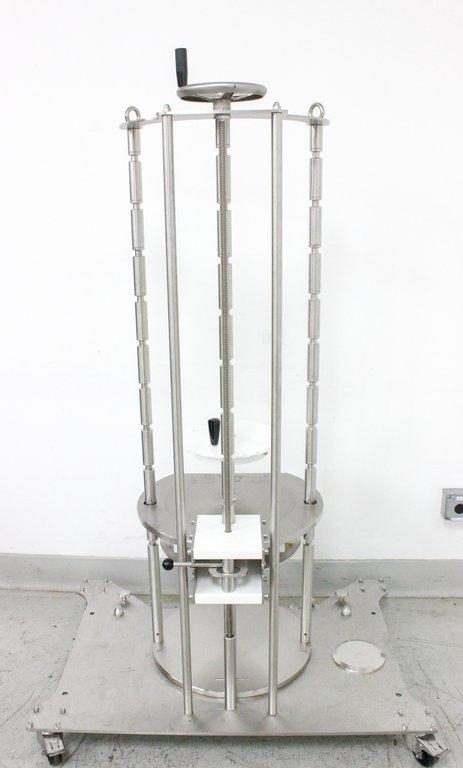

The Pall STAX Process Scale Chassis SXPSC10W is a top-performing stainless steel filtration system engineered for extensive biopharmaceutical applications, primarily in prefiltration and clarification processes. Accommodating Stax disposable depth filter capsules with Seitz high-performance media and Supradisc II design, this system provides a user-friendly platform enhancing efficiency and ensuring operational simplicity and safety. The chassis supports scalability catering to fluid volumes from under 1 liter up to 20,000 liters, adapting filtration needs through a robust modular setup. Its fully disposable design reduces cleaning and validation needs, minimizes cross-contamination risks, and promotes operator safety by lessening biohazard exposure. Designed for single-operator use, it features a convenient vertical orientation simplifying filter capsule operations, boosting error reduction, and process success. The chassis ensures efficient product recovery with lower rinse volumes post-use, optimizing overall process effectiveness in large-scale filtration complexes.
Key Features
- Stainless steel structure for durability in biopharmaceutical settings
- Supports volumes from less than 1 liter to 20,000 liters with seamless scalability
- Stax disposable depth filter capsules utilizing Seitz high-performance media
- Ergonomically designed for single-operator use with a vertical orientation
- Reduces cross-contamination risks with a full disposable design
- Optimized for lower hold-up volume to increase product recovery
- Designed to withstand up to 3.5 bar pressure and 60°C temperature
Specifications

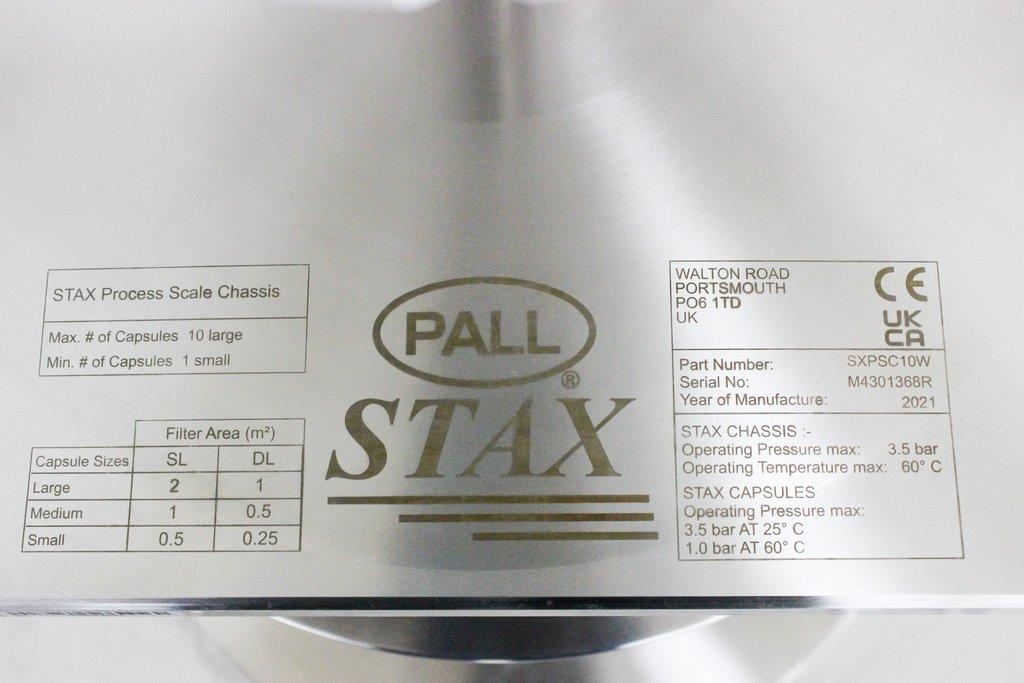

- Model Number: SXPSC10W
- Maximum Operating Pressure: 3.5 bar
- Maximum Operating Temperature: 60°C
- Weight: Approximately 195 lbs (88.45 kg)
- Size Compatibility: Accommodates Stax disposable depth filter capsules
Weight
Imperial: 420.0 Pounds
Metric: 190.51 Kilograms
Shipping Dimensions
Imperial: 55.2 lb x 38.4 lb x 87.6 lb
Metric: 140.21 cm x 97.54 cm x 222.5 cm
Harmonized Code
84212190
Harmonized Code Details
Filtration or purifying machinery and apparatus for liquids. Used due to the application of the chassis in large-scale biopharmaceutical filtration processes.
