Millipore Cogent M1 TFF System 10L Use Easy-Control Benchtop 2021 4-50C
Millipore
Details
-
CategorySmall Benchtop Equipment
-
Dimension37.0in x 60.0in x 50.0in
-

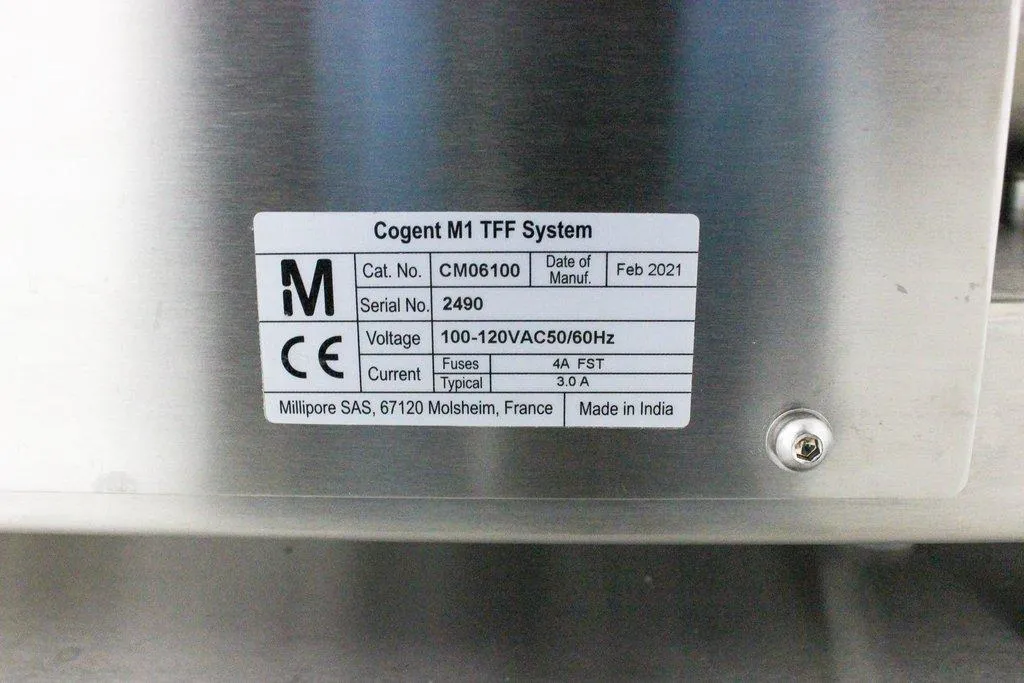

Serial2490
-
Shipping TypeFreight
-
Manufacturing2021-02-01
-
Voltage / Hertz120V / 50Hz/60Hz
Description

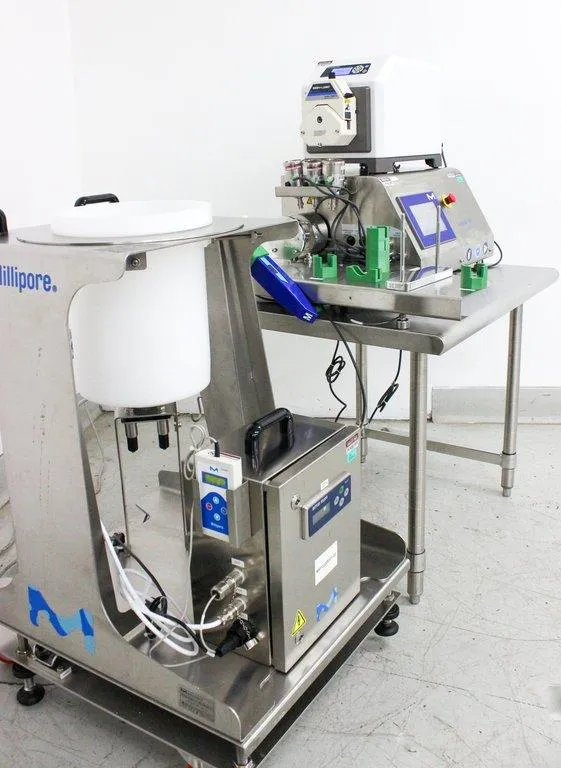

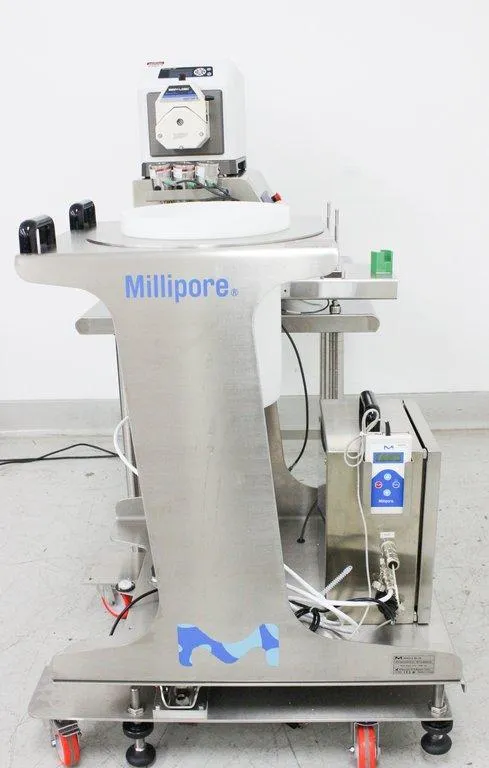

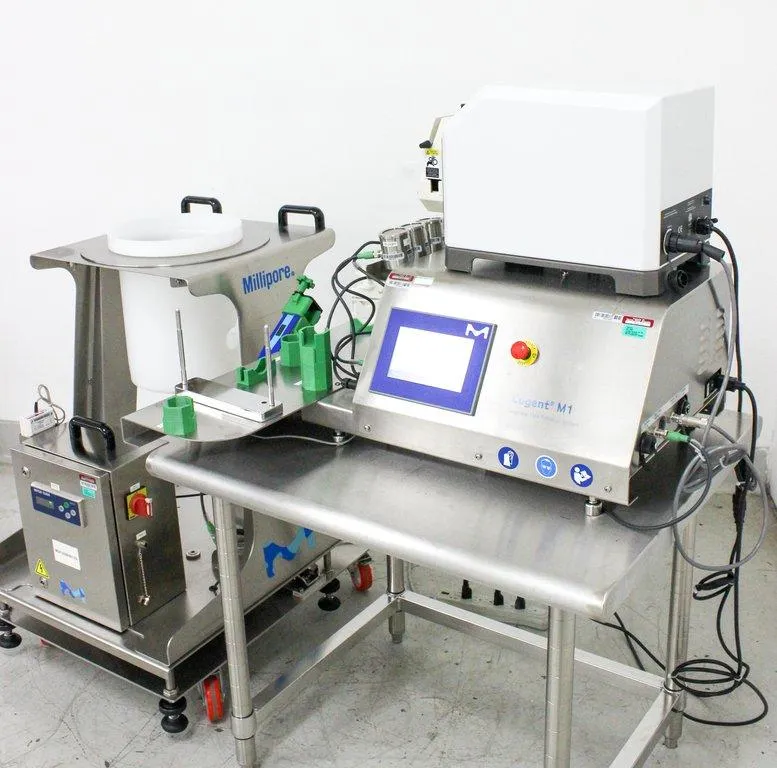

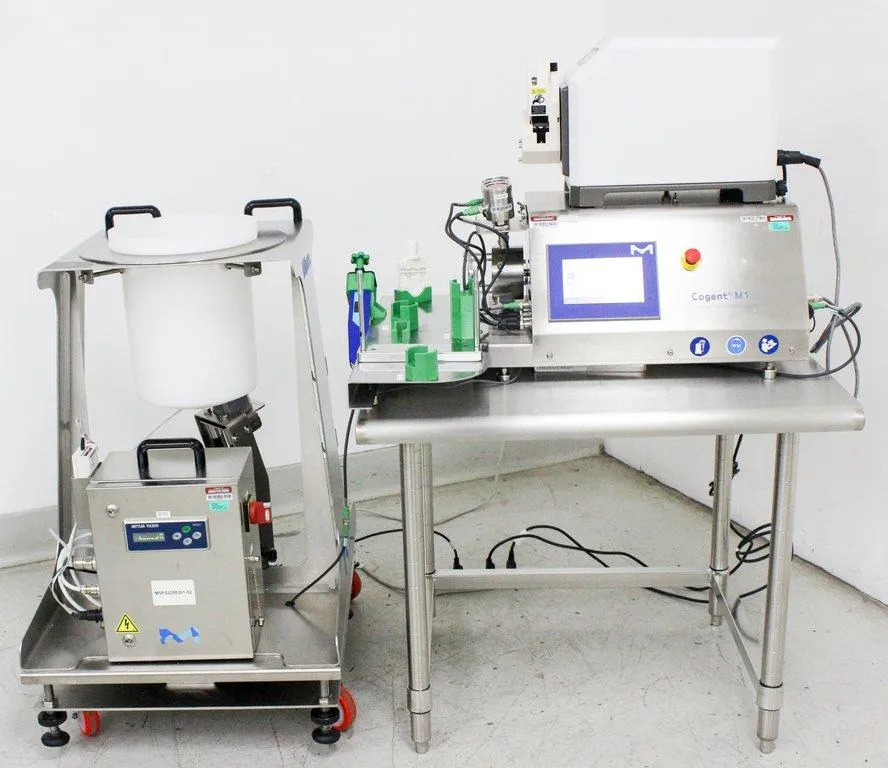

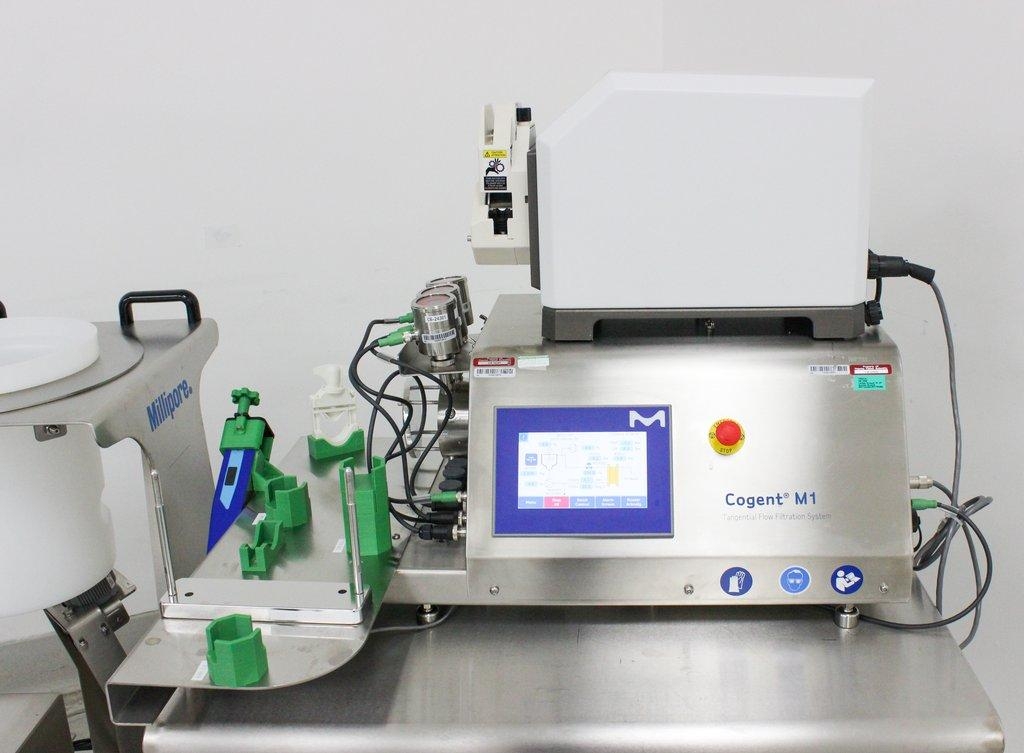

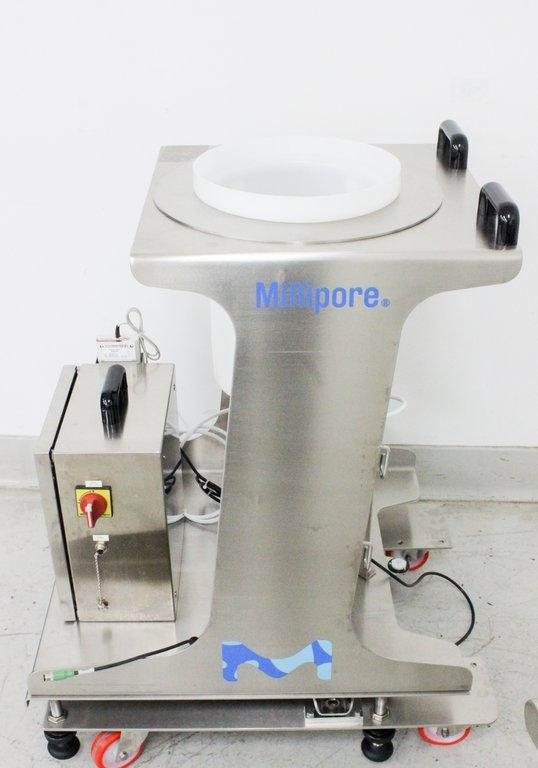

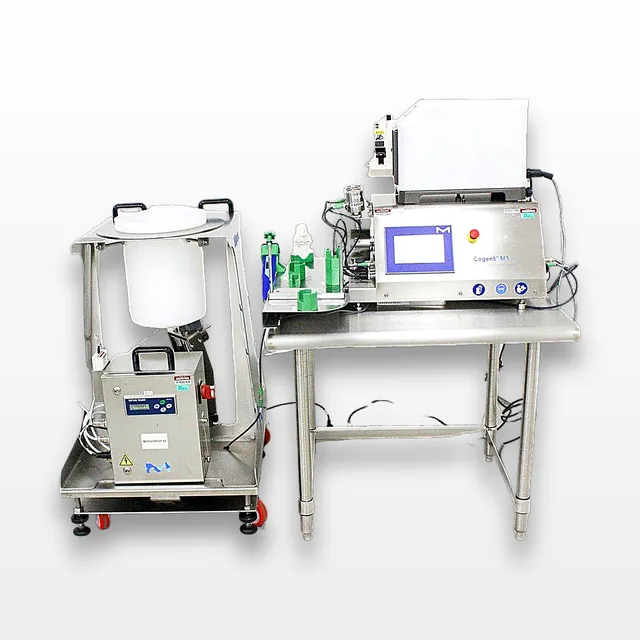

The Millipore Cogent M1 TFF System with Mobius Mix 10L Carrier, manufactured in February 2021, is an advanced benchtop system designed for process development and scaling studies. It is ideal for clinical trials and small-scale production with automatic TMP control. This versatile unit accommodates up to five Pellicon 2 mini or Pellicon 3 cassettes, ensuring maximum product recovery with extremely low hold-up volume. The system boasts user-friendly operation through a multilingual display and touch screen interface. Even though the system powers on and basic tests seem satisfactory, there is an alert: 'Feed Pressure HIHI PSH.' The unit's components include a diaphragm pump and 316L stainless steel fluid path, emulating production equipment design at a bench scale. With clean-in-place features and optional electromagnetic retentate flow measurement, this system supports applications such as monoclonal antibody production, plasmid purification, and cell harvesting.
Technician comment

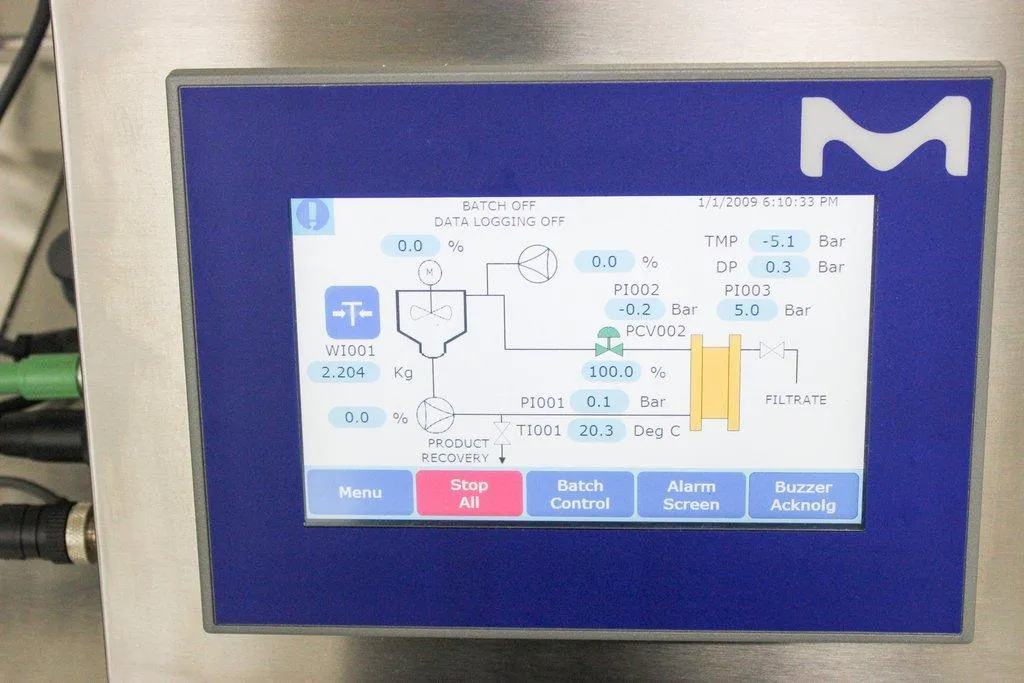

Unit powers on with alarm, "Feed Pressure HIHI PSH." See photos for details.
Key Features
- Automatic TMP control
- Process up to 100 liters
- Low hold-up volume for optimal recovery

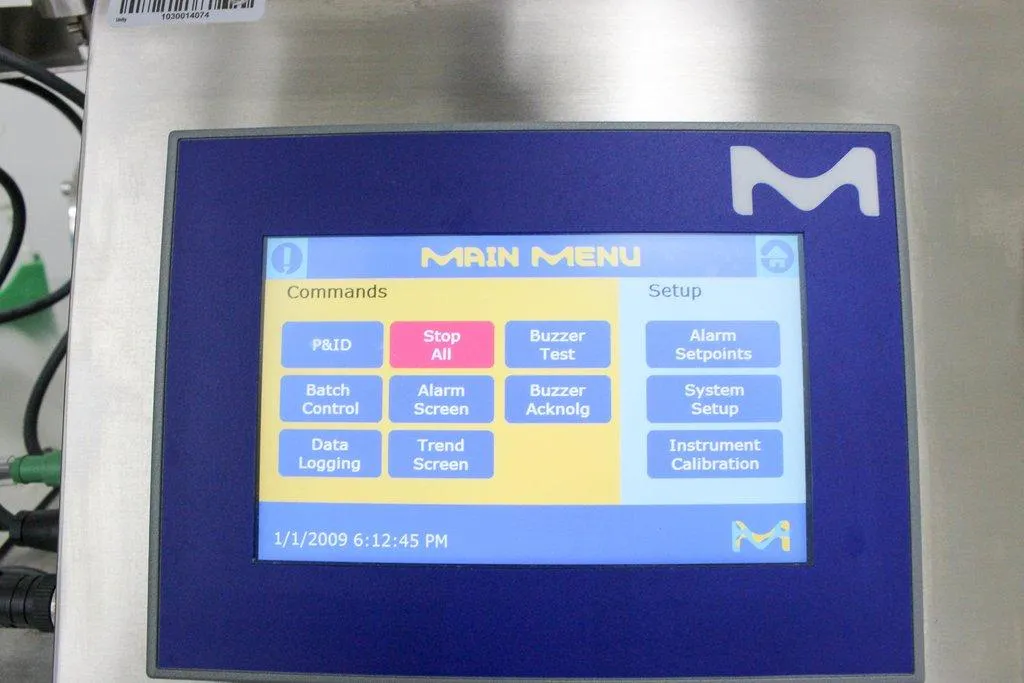

- Multilingual interactive display
- Supports five Pellicon 2 or 3 cassettes
- 316L stainless steel fluid path components
- Clean-in-place design
- Optional flow meter for precise measurements
Specifications
- Filtration Area: 0.1 m2 to 1.14 m2
- Minimum Working Volume: 300 mL at 20% feed pump speed
- Starting Volume: 10 liters tank capacity
- Hold up Volume: < 10 mL (excluding cassette)
- Process Temperature Range: 4 to 50°C
- Maximum Feed Flowrate: 4.5 L/min at 5 bar g
- Maximum Operating Pressure: 5 bar g
- Maximum System Pressure: 6 bar g
- Voltage: 120V
- Hertz: 50Hz/60Hz
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 72.0 lb x 60.0 lb
Metric: 112.78 cm x 182.88 cm x 152.4 cm
Harmonized Code
84148075
Harmonized Code Details
84148075 - Air or vacuum pumps, air or other gas compressors and fans; ventilating or recycling hoods incorporating a fan, whether or not fitted with filters: Compressors other than turbochargers. This code is chosen based on the system's main function, acting as a pump/compressor for filtration processes.
