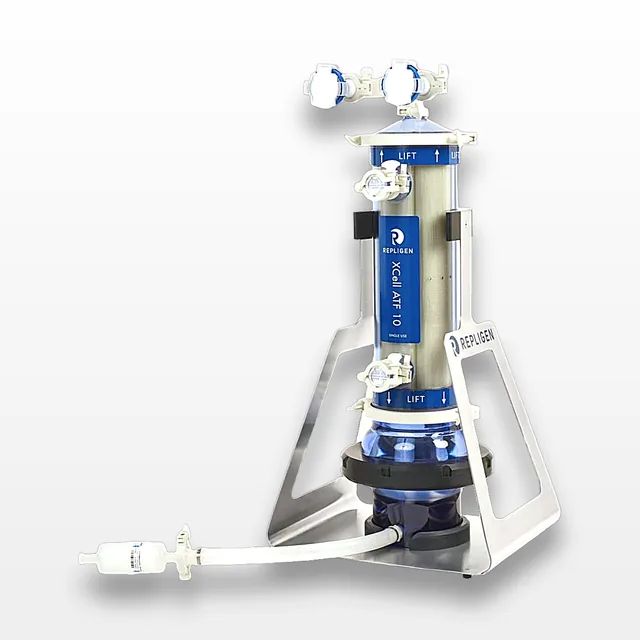

Repligen XCell ATF 10 Single-use Device for Cell Culture
Repligen
Details
-
CategoryBioprocessing
-
Dimension27.0in x 49.0in x 23.0in
-
Serial0002
-
Shipping TypeFedEx Ground
-
Manufacturing2019-02-01
Description
The Repligen XCell ATF 10 Single-use Device, manufactured in 2019, is an unused cell retention device designed to support high cell density and viability in cell culture operations. It facilitates linear scaling from XCell ATF 2 to XCell ATF 10, accommodating bioreactor sizes from 200 to 5000 liters. The device features a PES and PS chemistry with typical pore sizes of 0.2µ for SU and 0.2µ, 0.5µ, 50KDa for SS. It has an effective surface area of 11 m² and a filter height of 60 cm. The displacement volume is 6 liters, and the ATF flow range is 30 to 80 Lpm. The device is compatible with XCell C410 and XCell LS Controllers. Note that minor cosmetic blemishes from storage may be present.
Technician comment
NEW in unopened box.
Key Features
- Supports high cell density and viability
- Linear scaling from XCell ATF 2 to XCell ATF 10
- Compatible with XCell C410 and LS Controllers
- Effective surface area of 11 m²
- ATF flow range of 30 to 80 Lpm
Specifications
- Typical Bioreactor size: 200 - 5000 L
- Format: SU, SS
- Chemistry: PES, PS
- Typical pore size SU: 0.2µ
- Typical pore size SS: 0.2µ, 0.5µ, 50KDa
- Effective surface area: 11 m²
- Filter height: 60 cm
- Displacement volume: 6 L
- ATF flow range: 30 - 80 Lpm
- Typical scalable flow/fiber and filtrate rate: 12 mL/min/fiber and 4-6 LMH
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 32.4 in x 58.8 in x 27.6 in
Metric: 82.3 cm x 149.35 cm x 70.1 cm
Harmonized Code
841989
Harmonized Code Details
Machinery, plant or laboratory equipment for the treatment of materials by a process involving a change of temperature such as heating, cooking, roasting, distilling, rectifying, sterilizing, pasteurizing, steaming, drying, evaporating, vaporizing, condensing or cooling, other than machinery or plant of a kind used for domestic purposes; instantaneous or storage water heaters, non-electric; parts thereof. This code is applicable due to the device's role in bioprocessing and cell culture operations.
