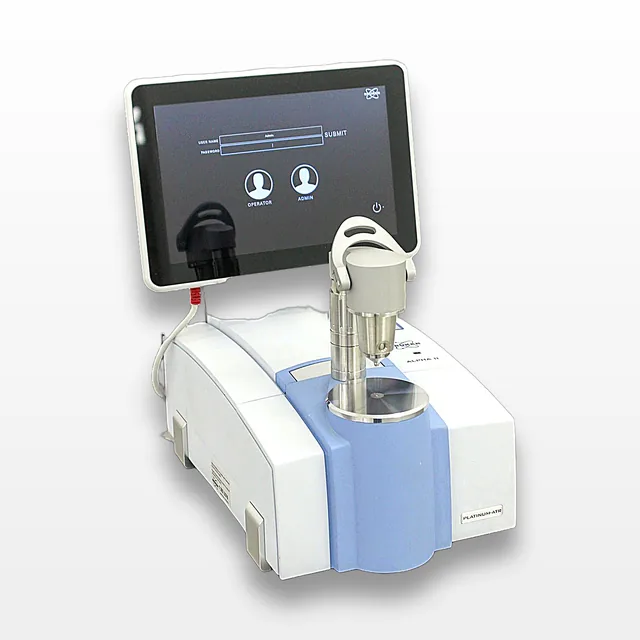

Bruker ALPHA II FT-IR Spectrometer 350-8000 cm-1 DLaTGS RockSolid cube-corner
Bruker
Details
-
CategoryAnalytical
-
Dimension16.0in x 11.0in x 14.0in
-
Serial210559
-
Shipping TypeFedEx Ground
-
Voltage / Hertz120V / 50Hz/60Hz
Description
Bruker ALPHA II FT-IR Spectrometer (Model: ALPHA II , Sub-Model: 12822376) is a Fourier Transform Infrared (FT-IR) system for chemical identification and material characterization. It uses a temperature-controlled DLaTGS detector and a RockSolid cube-corner interferometer, providing a spectral range of 350 to 8,000 cm-1 with typical signal-to-noise greater than 55,000:1 (1 minute measurement, 4 cm-1 resolution). The unit supports an optional high-humidity configuration (500 to 6,000 cm-1 with a ZnSe beamsplitter). Visual inspection shows excellent condition, and the display illuminates orange when powered. Functional testing is limited because required login credentials were not available, so full operational verification could not be completed. Condition Class F (Fair) indicates a minor defect or repair may be anticipated; buyers should plan for modest restoration work if needed.
Technician comment
Visual inspection indicates excellent condition. Unit powers on and the display illuminates orange. Functional testing is limited because the required login credentials are unavailable. Full operational functionality could not be verified.
Key Features
- Fourier Transform Infrared spectroscopy technology
- Temperature-controlled DLaTGS detector
- RockSolid cube-corner interferometer
- Spectral range 350 to 8000 cm-1
- Optional high-humidity configuration 500 to 6000 cm-1 with ZnSe beamsplitter
- Typical signal-to-noise greater than 55,000:1 for 1 minute measurement at 4 cm-1 resolution
- Resolution 2 cm-1; optional 0.8 cm-1 FWHM
Specifications
- Technology: Fourier Transform Infrared Spectroscopy
- Detector: Temperature-controlled DLaTGS
- Interferometer: RockSolid cube-corner interferometer
- Spectral Range: 350-8,000 cm-1
- High-Humidity Option: 500-6,000 cm-1 with ZnSe beamsplitter
- Typical S/N: >55,000:1 (1 min measurement, 4 cm-1 resolution)
- Resolution: 2 cm-1; optional 0.8 cm-1 FWHM
- Power: 100-240 VAC
- Frequency: 50-60 Hz
- Dimensions without Panel-PC: Approx. 208 x 330 x 260 mm
- Dimensions with Panel-PC: Approx. 267-287 x 340 x 340-360 mm
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 19.2 in x 13.2 in x 16.8 in
Metric: 48.77 cm x 33.53 cm x 42.67 cm
