Barmesa BSP15CCE3-T Self-Priming Pump Industrial Marine Use 3 inch 7.5 HP
Barmesa Pumps
Details
-
CategoryPump
-
Dimension15.0in x 27.0in x 17.0in
-

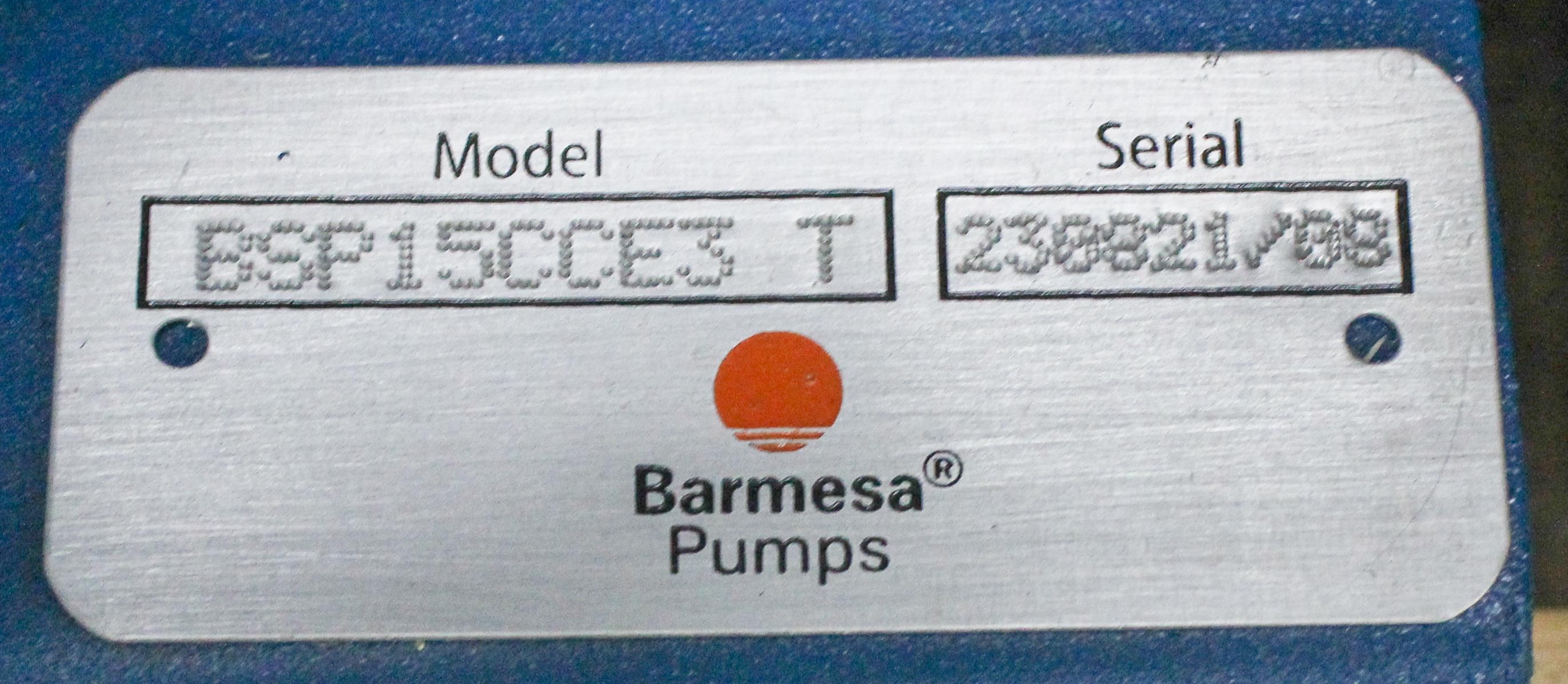

Serial230821/08
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230-460V / 50Hz/60Hz
Description

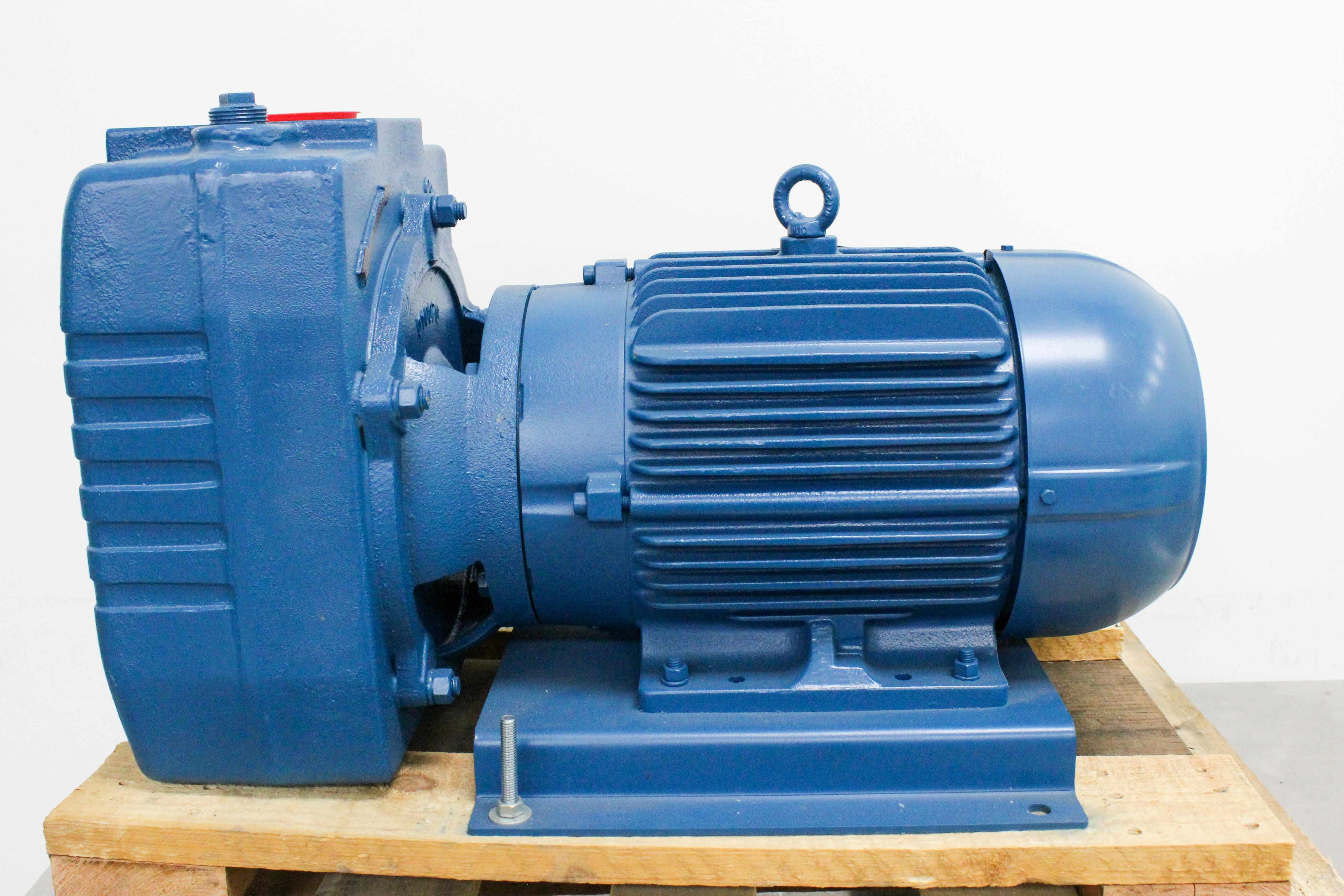

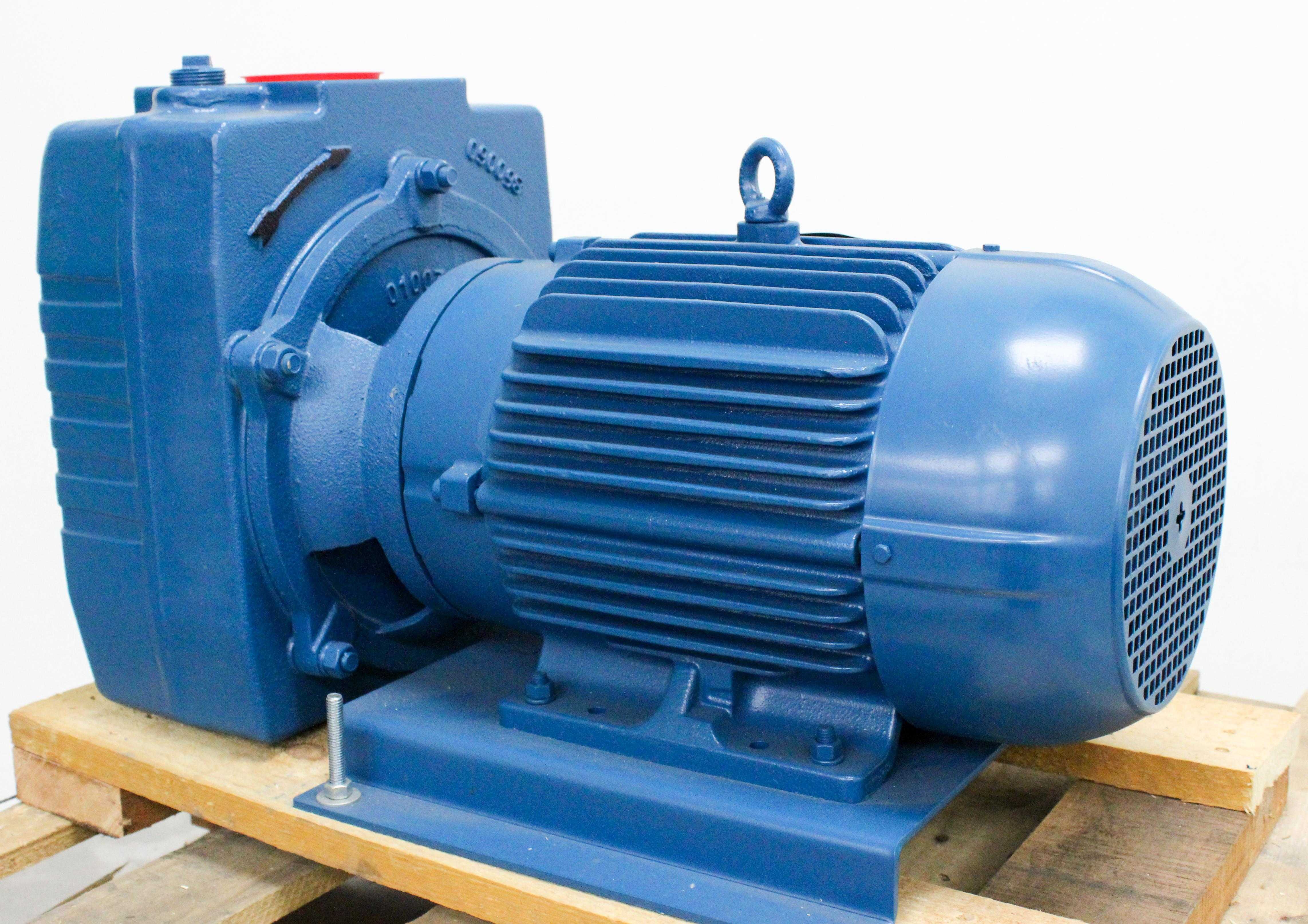

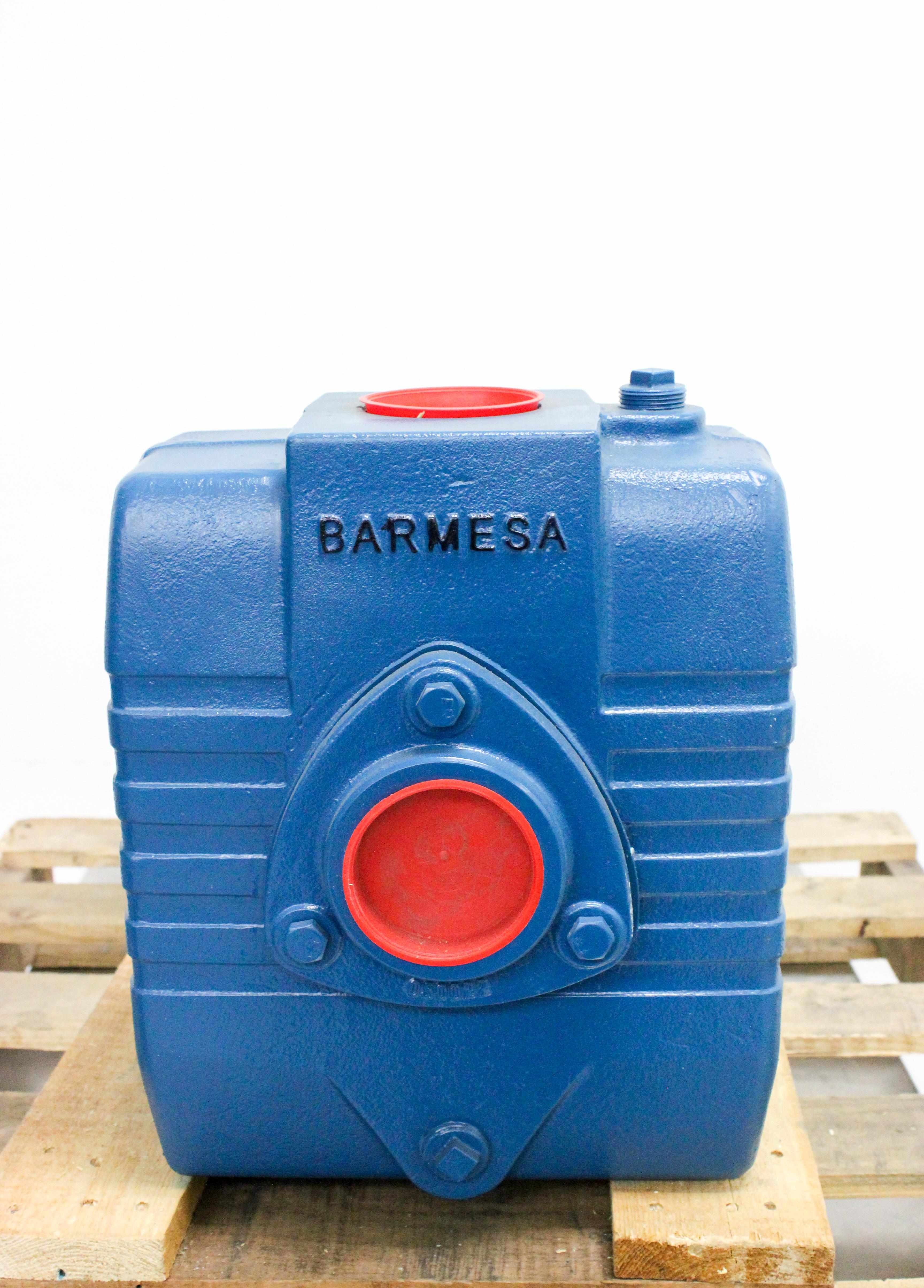

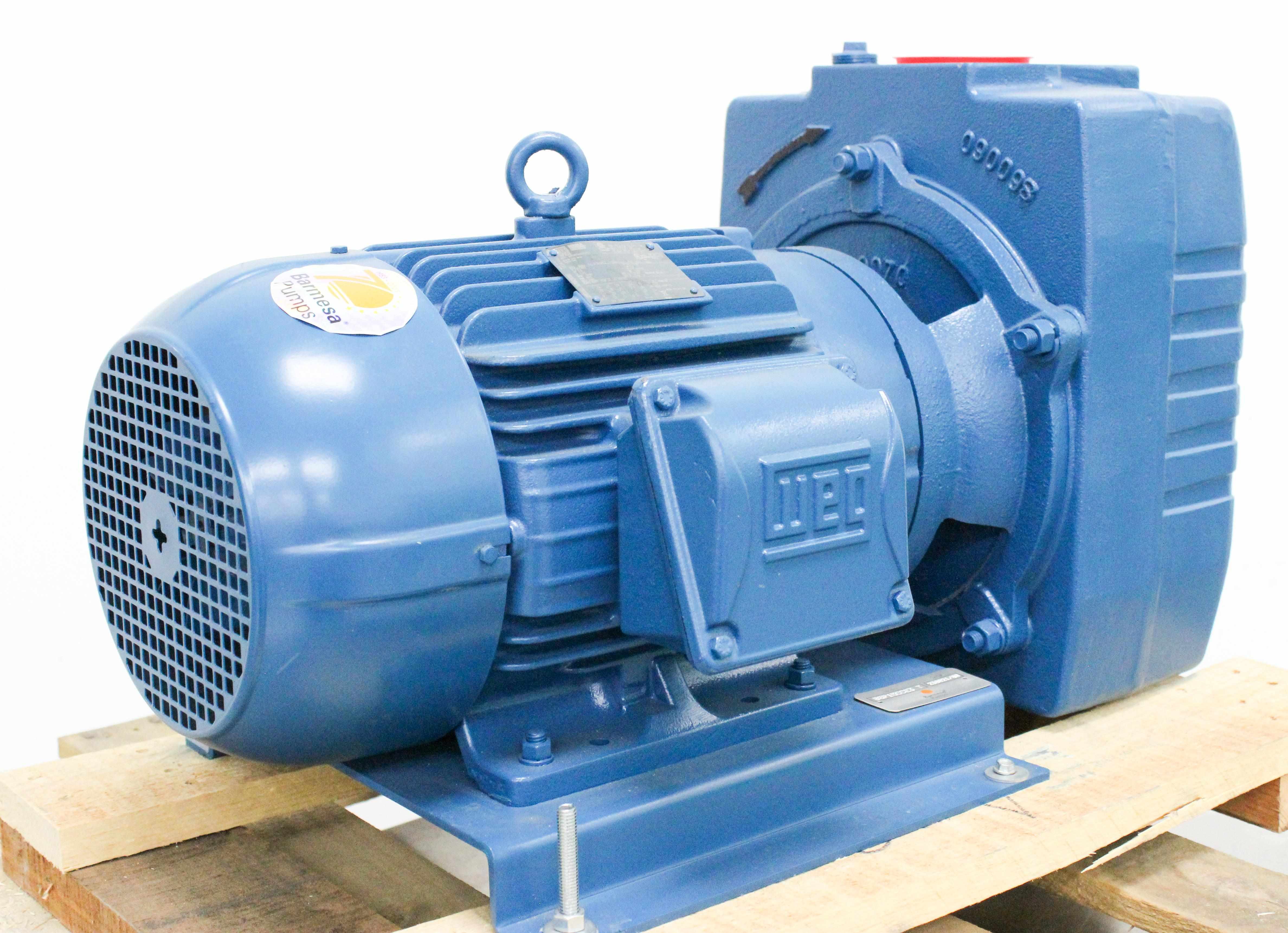

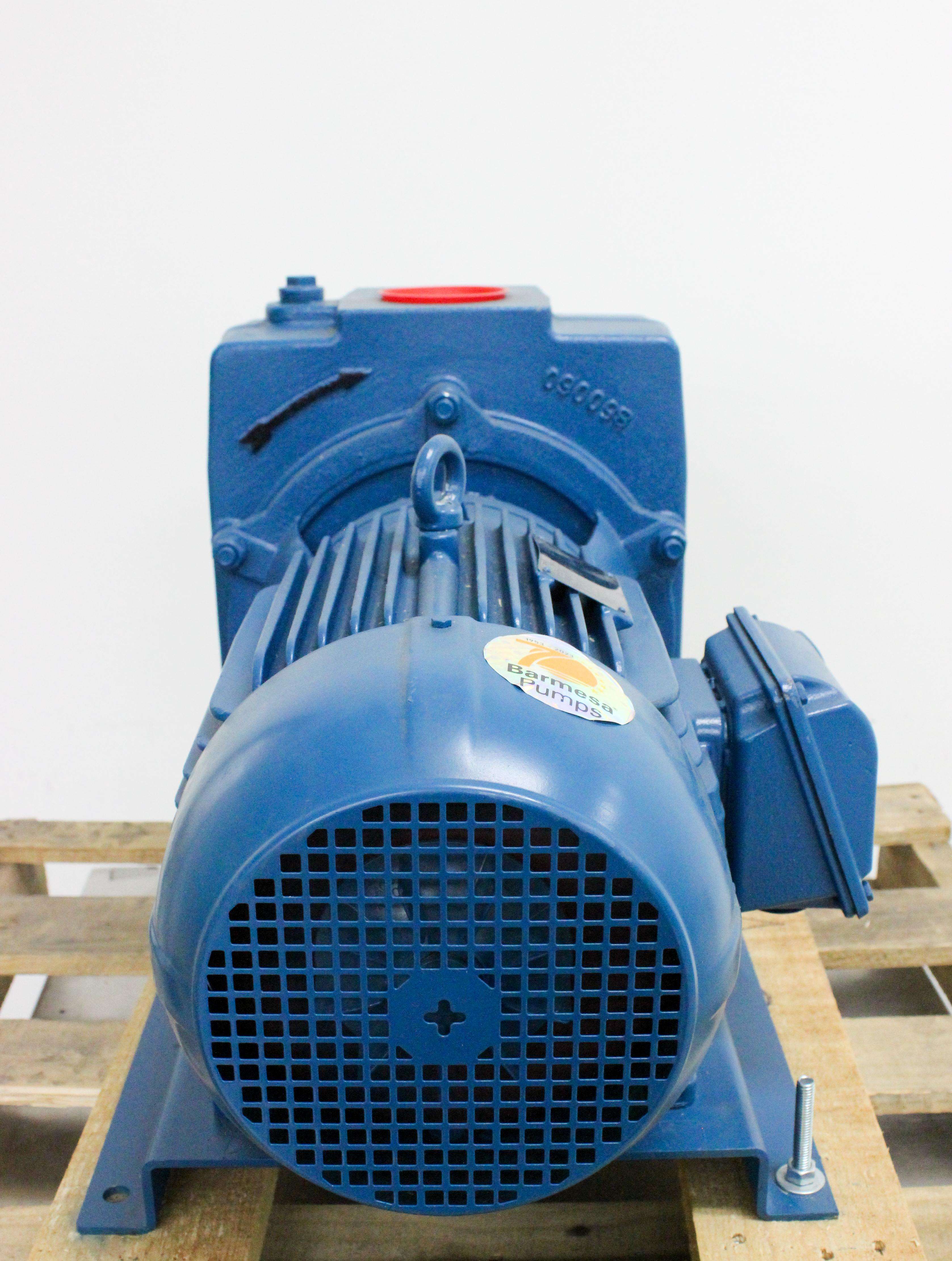

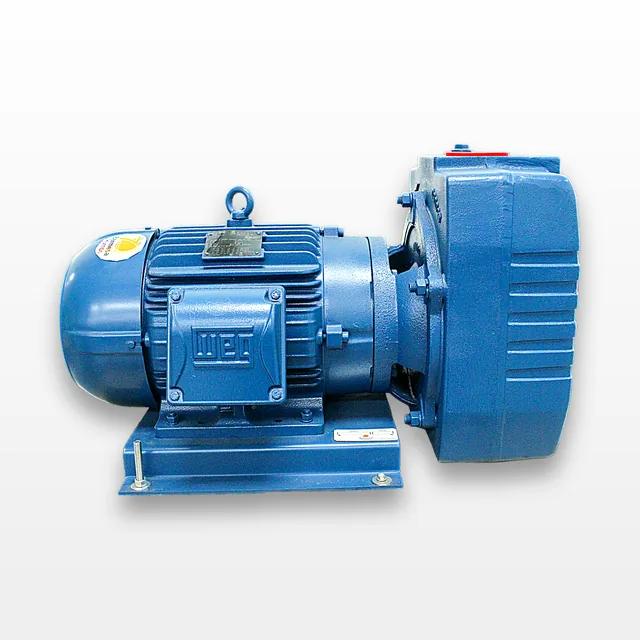

The Barmesa BSP15CCE3-T Self-Priming Close Coupled Pump is designed for versatile commercial and industrial applications. This 7.5 HP pump can handle spherical solids up to 3/4 inch and is approved for marine use. With a liquid temperature handling capacity of up to 160F, it is perfect for rigorous environments. Constructed from durable cast iron with a steel base, its open, dynamically balanced impeller ensures efficient operations. Featuring a three-phase motor with 230/460V, it performs at 3500 RPM. The pump boasts a mechanical self-lubricating seal and optional bronze fitted impeller for enhanced performance. Although preowned with minor cosmetic wear, it remains in good operational condition having been sourced from a working environment.
Technician comment
BSP15CCE3 pump is in excellent cosmetic condition with no visible damage to the housing or motor. Unit is preowned and comes from a working environment. Requires hardwiring to a 230/460 V power source for operation.
Key Features
- 7.5 HP motor for robust performance
- Handles spherical solids up to 3/4 inch
- Suitable for marine and industrial applications
- Constructed from durable cast iron
- 3-inch NPT suction and discharge
- Liquid temperature handling up to 160F
- Efficient open, dynamically balanced impeller
- Mechanical self-lubricating seals
- Three-phase motor: 230/460V, 3500 RPM
Specifications
- Power: 7.5 HP (Horse Power)
- Motor Type: Three-phase, Open Drip Proof or TEFC
- Voltage: 230-460V
- Frequency: 50Hz/60Hz
- Speed: 3500 RPM
- Suction/Discharge Size: 3 inch NPT
- Material: Cast Iron ASTM A-48 class 30
- Liquid Temperature Range: Up to 160F (71C)
- Impeller Type: Open, dynamically balanced
- Solids Handling: 3/4 inch spherical solids
- Base Material: Steel
- Shaft Material: 1035 cold rolled steel
- Seal Type: Mechanical, self-lubricating
Weight
Imperial: 301.2 Pounds
Metric: 136.62 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 32.4 lb x 20.4 lb
Metric: 45.72 cm x 82.3 cm x 51.82 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Centrifugal pumps, nes. This code is used for pumps that are designed for various industrial applications, which aligns with Barmesa's intended use.
