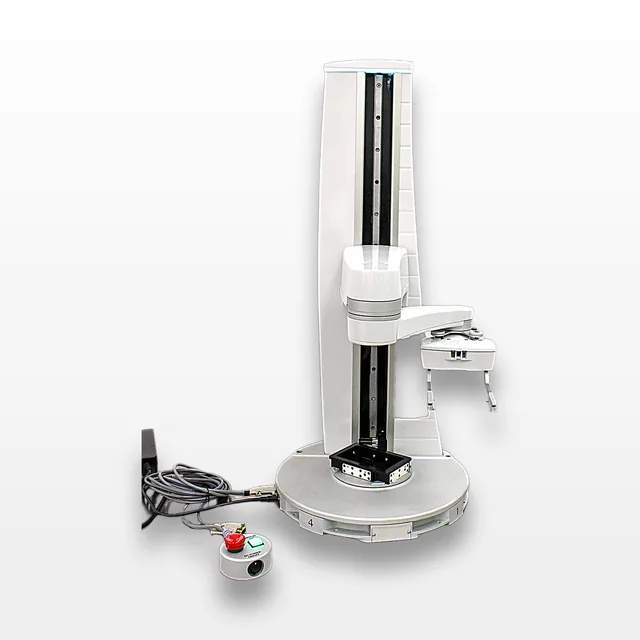

Thermo Scienitific F02360 Spinnaker3 Microplate Mover Automation
Thermo Scienitific
Details
-
CategoryRobotic / Automation
-
Dimension20.0in x 19.0in x 41.0in
-
SerialS3H2411072
-
Shipping TypeFreight
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Thermo Scientific F02360 Spinnaker3 Microplate Mover is a pre-owned robotic arm designed to enhance laboratory productivity through automation. Manufactured with patented auto-leveling capabilities, this microplate mover is ideal for various research fields such as synthetic biology, drug discovery, and biotechnology. The unit features a reach of 597 mm and a height of 800 mm, with a nominal payload capacity of 250 g, extendable to 320 g. It operates within a temperature range of 19 to 25 °C and maintains precision with a repeatability of ±0.25 mm. The equipment is in good cosmetic condition with minor signs of use, and although it powers on and initializes successfully, full testing was not conducted due to the absence of the required controller and software. Buyers are encouraged to validate its suitability for specific applications.
Technician comment
Unit powers on successfully. Indicator lights illuminate, and the robotic arm appears to initialize. Fully test unable due to the lack of the required controller/software and test setup. Cosmetic condition is excellent with minor signs of normal use. Please see photos for details.
Key Features
- Auto-leveling capabilities
- Vision-based position teaching
- Self-correcting precision
- User-friendly design
Specifications
- Reach: 597 mm
- Height: 800 mm
- Humidity: 20 to 80% Non-condensing
- Nominal Payload: 250 g, 320 g max.
- Repeatability: ±0.25 mm
- Operating Temperature: 19 to 25 °C
- Voltage: 120V
- Hertz: 50Hz/60Hz
Weight
Imperial: 150.0 Pounds
Metric: 68.04 Kilograms
Shipping Dimensions
Imperial: 24.0 in x 22.8 in x 49.2 in
Metric: 60.96 cm x 57.91 cm x 124.97 cm
