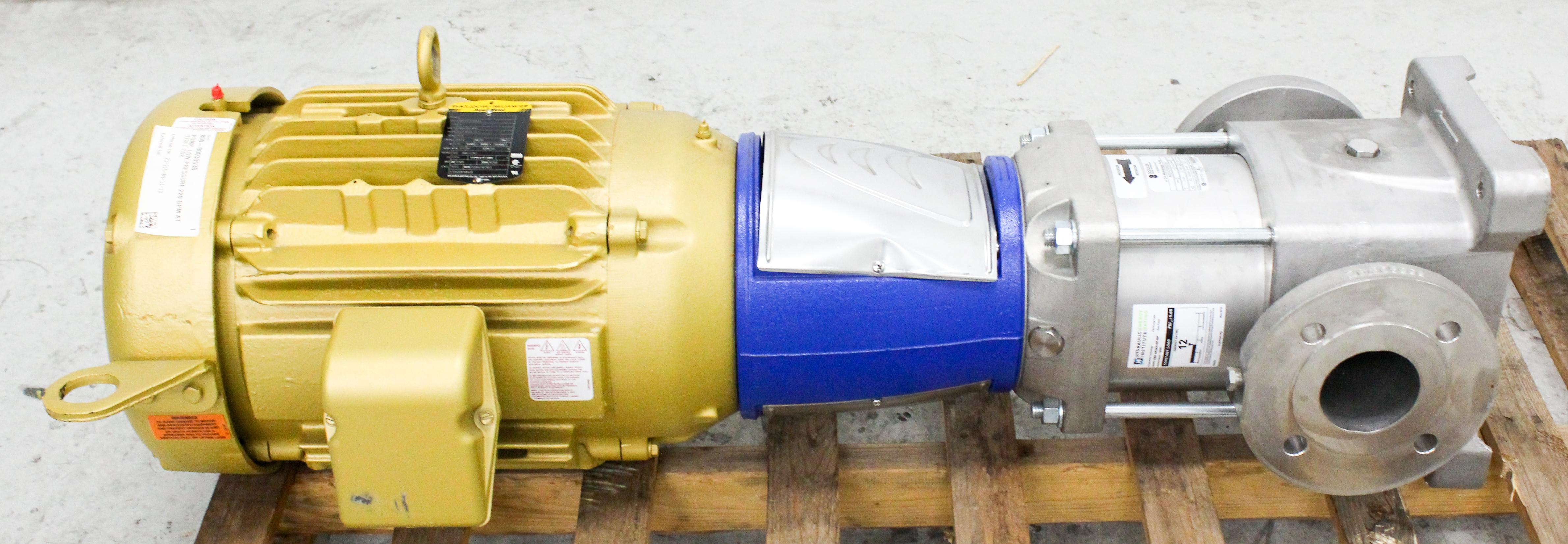

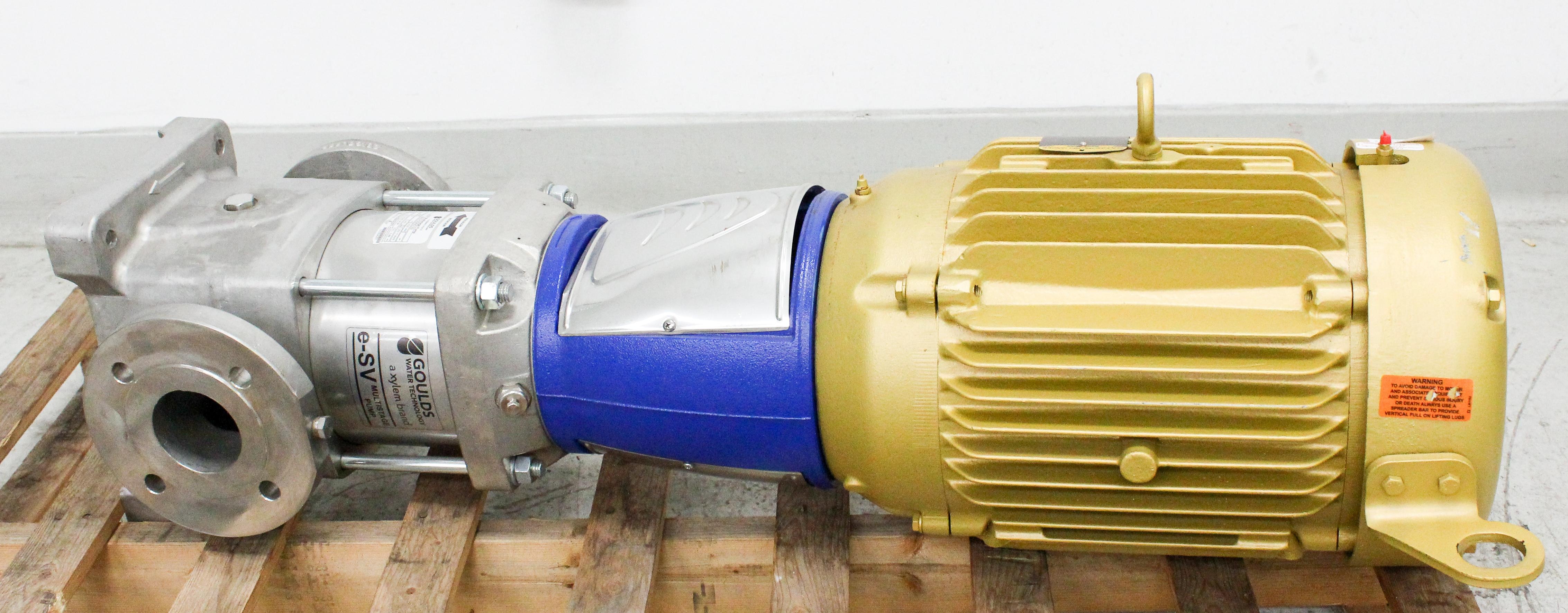

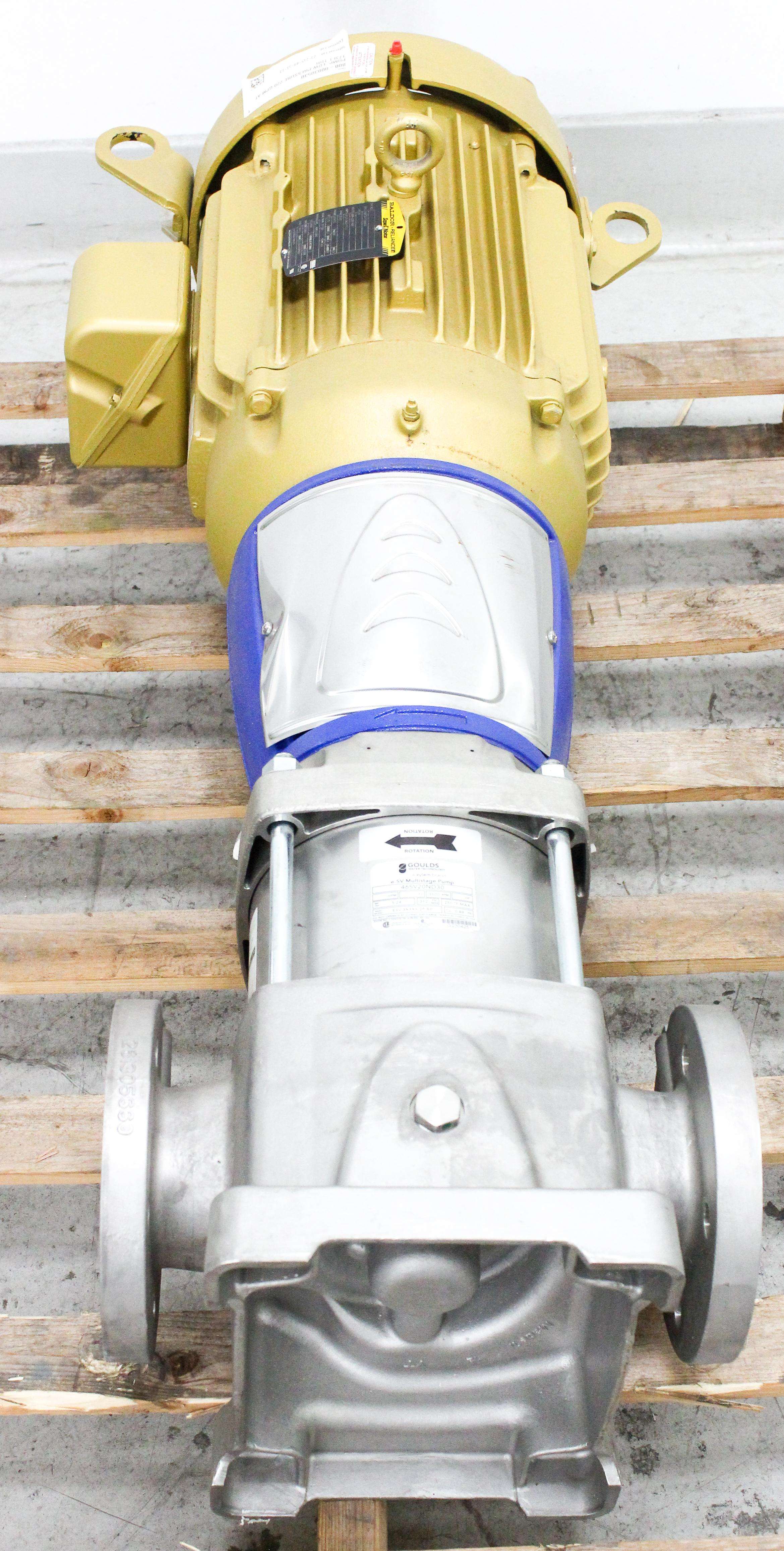

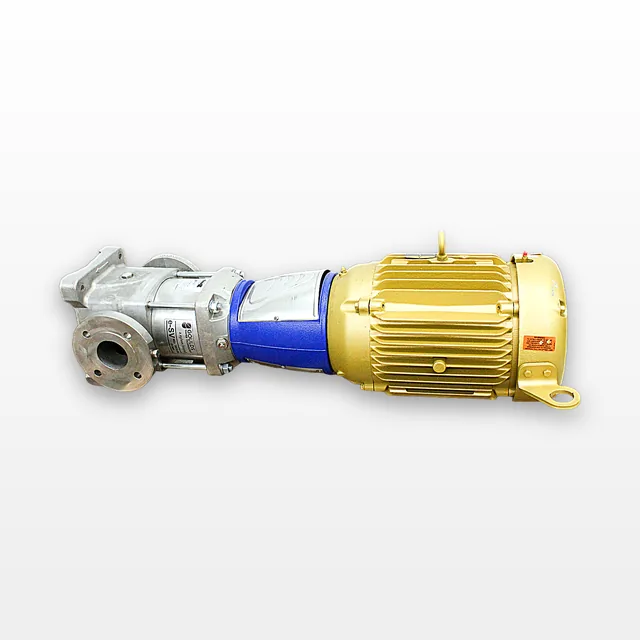

Goulds e-SV Multistage Pump 46SV20ND30 2-Stage 240 GPM Stainless Steel
Goulds Water Technology
Details
-
CategoryPump
-
Dimension20.0in x 46.0in x 16.0in
-
SerialG2304251
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230/460V / 60Hz US
Description
The Goulds e-SV Multistage Pump 46SV20ND30, manufactured in the United States by Goulds Water Technology, is an industrial-grade stainless steel vertical multistage pump designed for versatile applications across civil, agricultural, light industrial, and water treatment sectors. This liquid-end-only model features a 3-inch connection, running at 60 Hz with a 2-pole motor capable of 3500 RPM. The pump can handle nominal flow rates of 240 GPM and withstand operational temperatures between -20°F to 250°F. It incorporates Viton shaft seals, 250TC motor frame size, and silicon carbide stationary materials for durability, targeting uses such as pressure boosting, irrigation, and hot and cold water circulation in heating systems. This well-maintained, preowned item exhibits good structural integrity for consistent performance in its intended applications.
Technician comment
e-SV Multistage Pump is from a working environment. Unit is in excellent overall cosmetic condition. No signs of excessive wear or damage observed. Unit is preowned and pump appears structurally sound. Further testing may be required for application-specific performance verification.
Key Features
- Stainless steel construction for durability
- Vertical multistage design
- Handles flow rates up to 240 GPM
- Operational temperature range: -20°F to 250°F
- Viton shaft seal for enhanced reliability
- 60 Hz, 2-pole, 3500 RPM
- 250TC motor frame size
- 3-inch discharge connection
Specifications
- Brand: Goulds Water Technology
- Model: e-SV Multistage Pump 46SV20ND30
- Nominal Flow: 240 GPM
- Maximum Head: 1210 Feet
- Configuration: 316SS Round
- Connections: 3-inch Discharge
- Maximum Operating Temperature: -20°F to 250°F
- Material: Stainless Steel
- Motor Frame Size: 250TC
- Number of Stages: 2
- Voltage: 230/460V
- Hertz: 60Hz
- Max Operating Pressure: 362 PSIG
- Shaft Seal Material: Viton
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 55.2 lb x 19.2 lb
Metric: 60.96 cm x 140.21 cm x 48.77 cm
Harmonized Code
841370
Harmonized Code Details
841370 - Pumps; centrifugal, other than submersible, for liquids. This code is used based on the standard nature and application of centrifugal pumps, fitting the pump's specifications and intended usage in industrial applications.
