Eppendorf Mastercycler Nexus SX1 Thermal Cycler 96 Well Capacity 4-99C Range
Eppendorf
Details
-
CategoryMolecular Biology
-
Dimension15.0in x 9.0in x 12.0in
-
Serial6346CH803930
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-130V / 50Hz/60Hz
Description
The Eppendorf Mastercycler Nexus SX1 is a high-efficiency thermal cycler designed for precision PCR applications. Featuring a silver thermal block for optimal heat distribution, it accommodates 96x 0.2 mL PCR tubes or 77x 0.5 mL PCR tubes, or a single 96-well PCR plate. With a temperature control range from 4-99°C, this device ensures consistent, reliable results. The system uses peltier elements and triple circuit technology for fast heating (up to 5°C/s) and cooling (up to 3.5°C/s), along with Eppendorf’s ergonomic flex lid for flexible and safe use. Despite its sophisticated technology, it maintains low energy consumption, using only 540W during operation. Ideal for routine laboratory PCR procedures, the Nexus SX1 features USB, Ethernet, and CAN in/out interfaces for versatile connectivity.
Technician comment

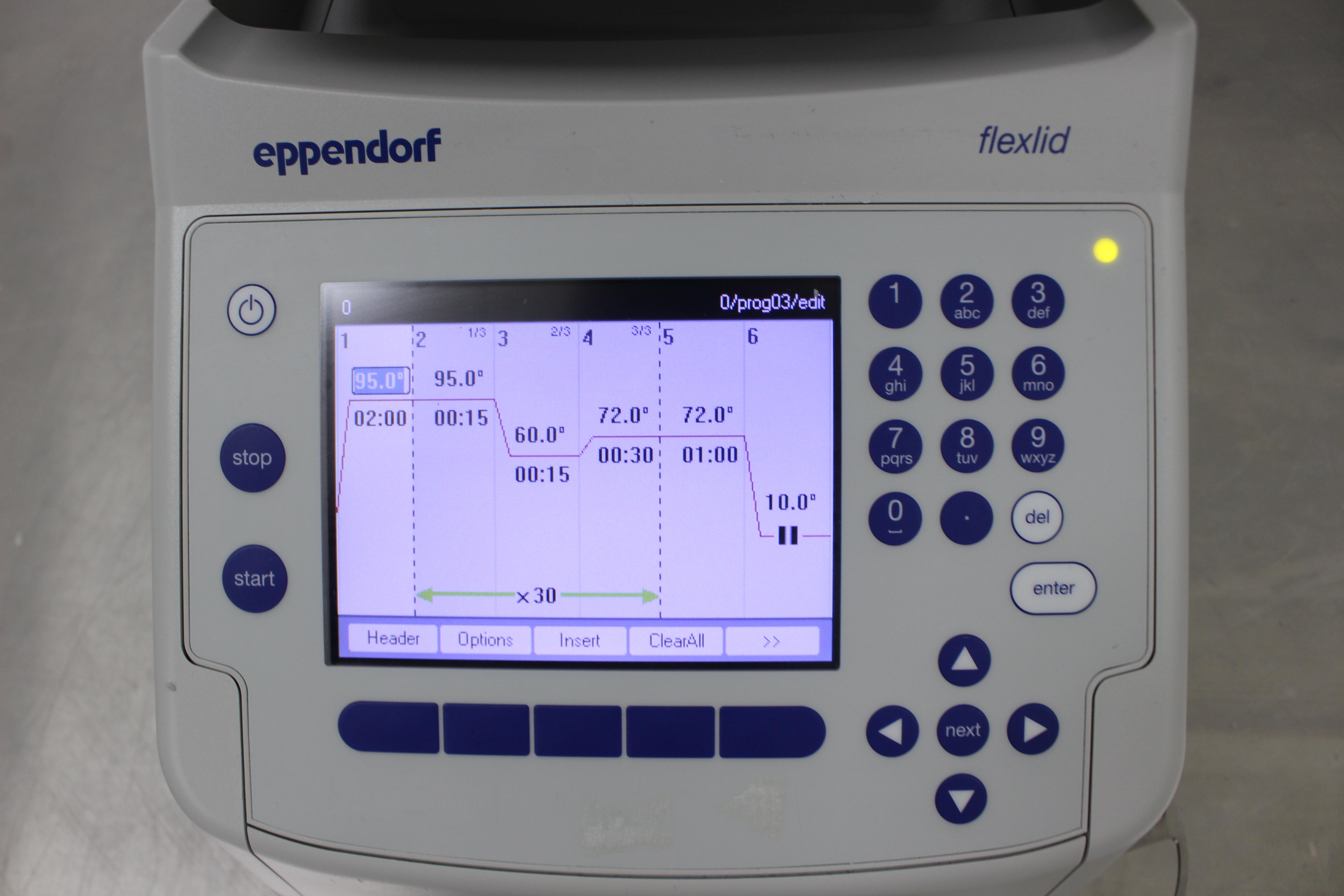

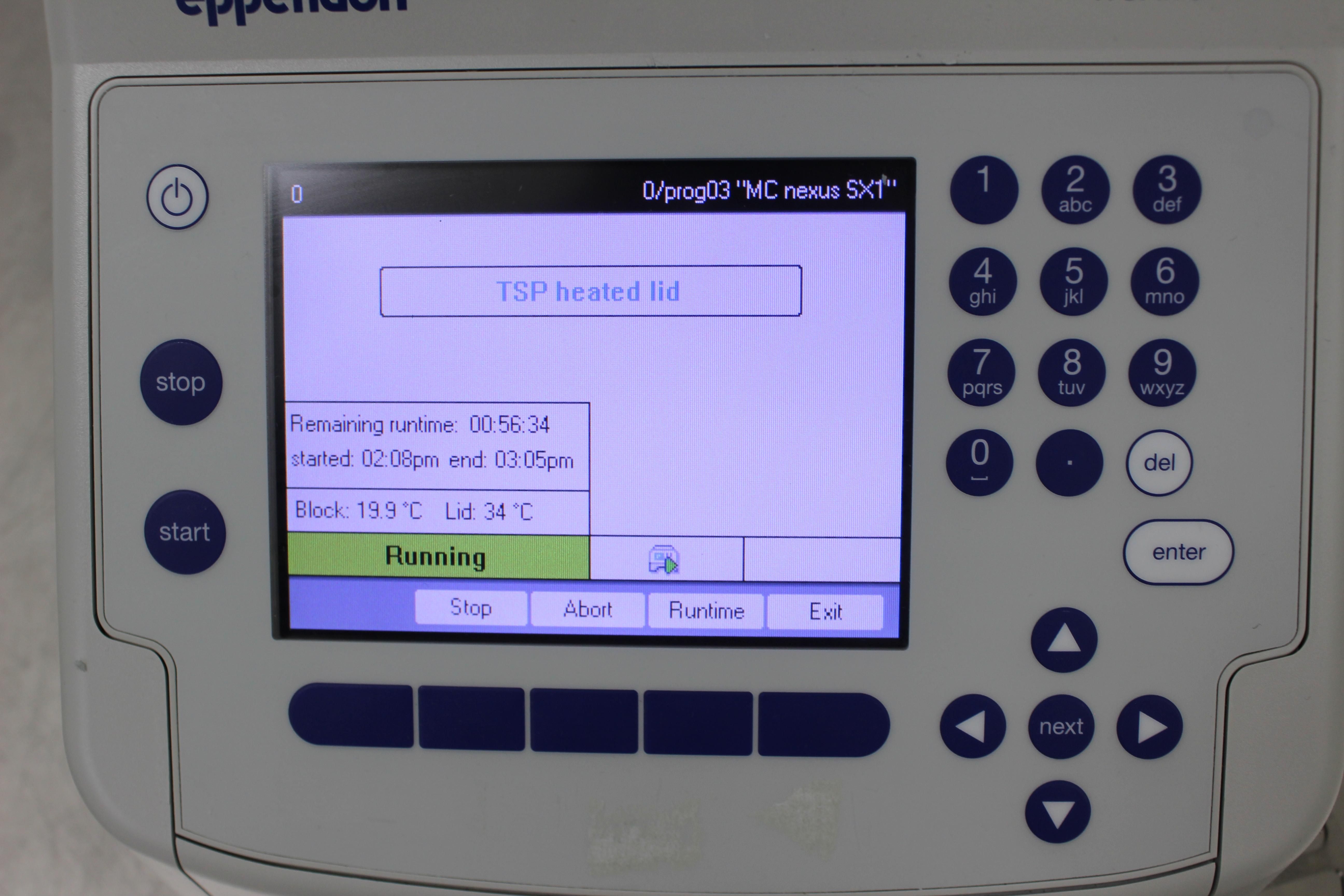

Unit powers on and performs all necessary duties. No pin code is required just press enter. Heating plate got to temp. System is running (see pic). Came from a working environment.
Key Features
- Silver thermal block for optimal heat distribution
- Capacity for 96x 0.2 ml or 77x 0.5 ml PCR tubes or 1x 96-well PCR plate
- Temperature range from 4°C to 99°C
- Fast heating rate of approx. 5°C/s and cooling rate of approx. 3.5°C/s
- Peltier elements and triple circuit technology
- Flex lid for ergonomic use
- Low energy consumption (540W during operation)
- Interfaces: USB, Ethernet, CAN in/out
Specifications
- Thermoblock: Silver
- Sample Capacity: 96x 0.2 mL PCR tubes or 77x 0.5 mL PCR tubes or 1x 96 well PCR plate
- Temperature Control Range: 4-99°C
- Heating Technology: Peltier Elements, Triple Circuit Technology
- Lid Temperature Range: 37-110°C
- Block Homogeneity: 20-72°C < ±0.3°C, 95°C < ±0.4°C
- Block Temperature Accuracy: ≤ ±0.2°C
- Interfaces: USB, Ethernet, CAN in/out
- Dimensions (W x D x H): 25 x 41.2 x 32.1 cm
- Weight: 24.7 lb / 11.2 kg
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 10.8 lb x 14.4 lb
Metric: 45.72 cm x 27.43 cm x 36.58 cm
Harmonized Code
902780
Harmonized Code Details
902780: Chemical analysis, etc. The Eppendorf Mastercycler fits this code due to its usage in laboratories for scientific chemical analysis during PCR processes.
