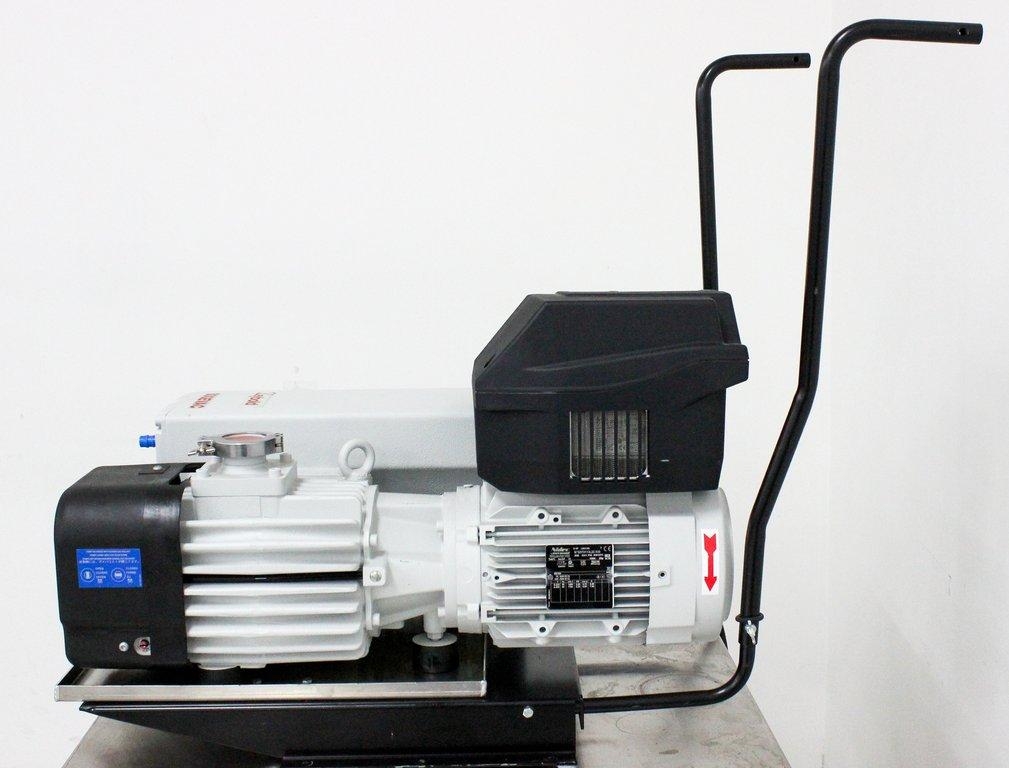

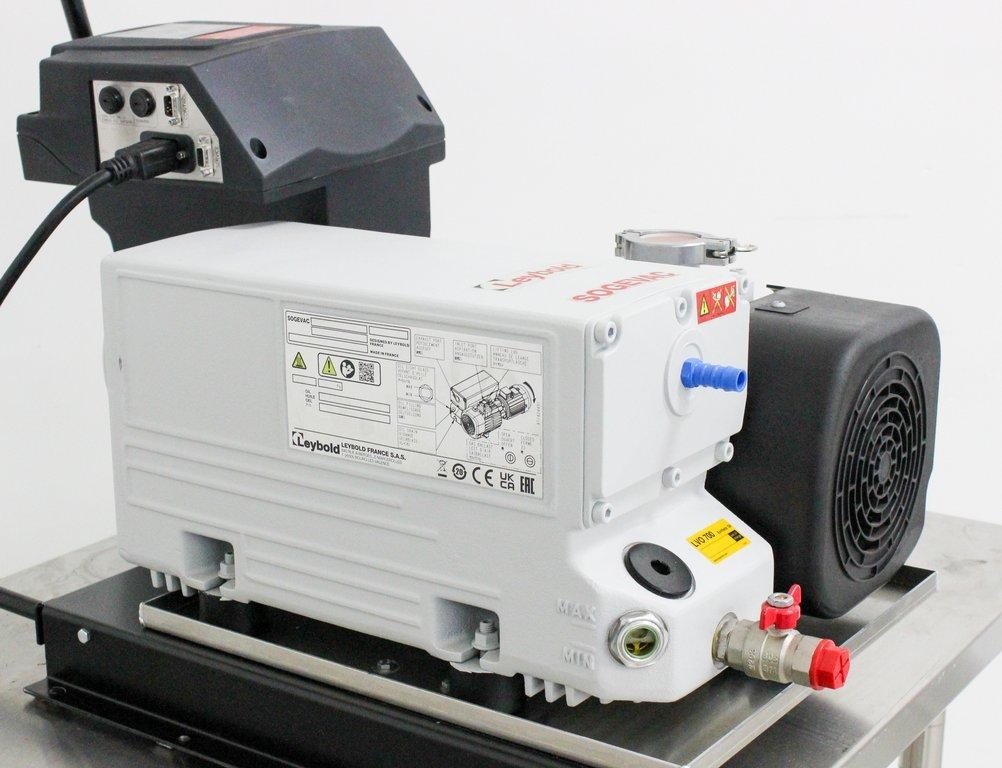

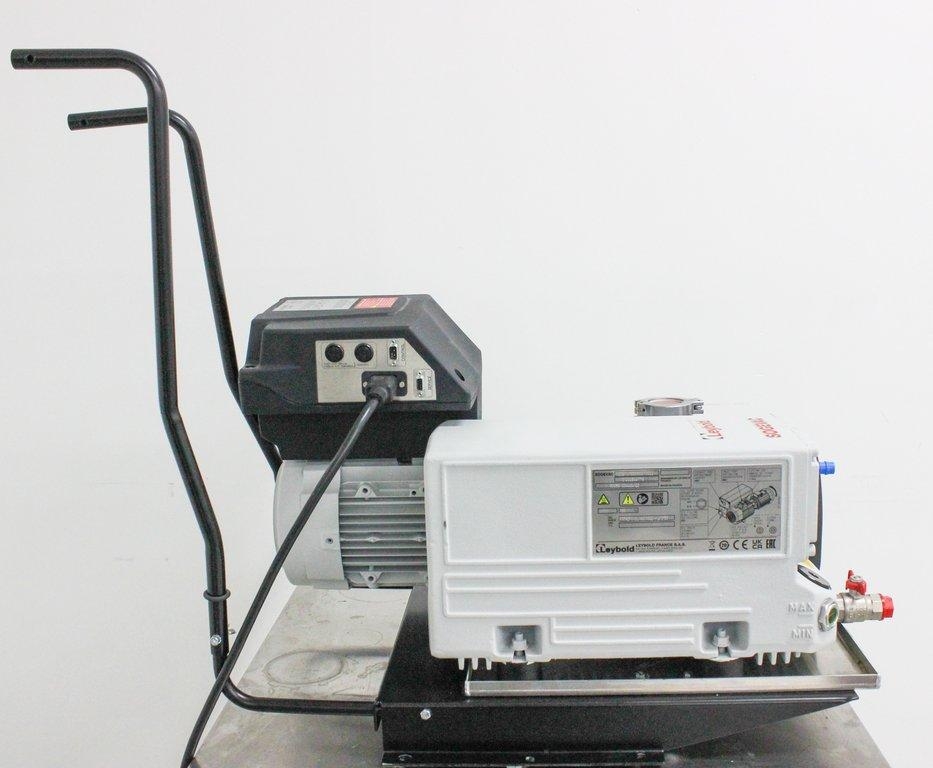

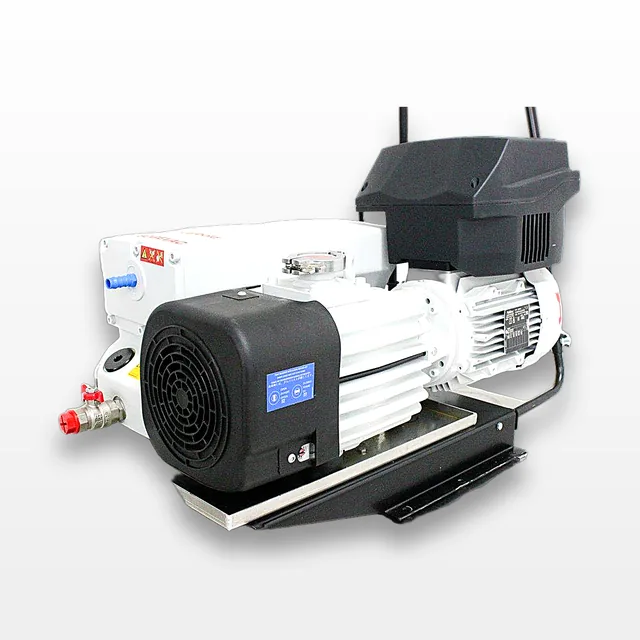

Leybold Sogevac SV 120 BIFC Vacuum Pump 147 m3h 200-240V 61 dB Noise
Leybold Sogevac
Details
-
CategoryPump
-
Dimension19.0in x 30.0in x 20.0in
-
Serial31002844779
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz200-240V / 50Hz/60Hz
Description
The Leybold Sogevac Model SV 120 BIFC is a high-performance rotary vane vacuum pump, ideal for applications involving inert gas pumping. Built with precision, this single-stage oil-sealed unit is efficient for operations in rough vacuum ranges between atmospheric pressure and the ultimate pressure of the pump. Designed with an eccentrically installed rotor, it ensures smooth sliding of vanes, creating three interior chambers to optimize gas compression and exhaust. The unit maintains lubrication and cooling with oil injection, separating excess oil via gravity and exhaust filters. Featuring a gas ballast valve for condensable vapors and an anti-suckback valve for oil flow management, the SV 120 BIFC achieves nominal pumping speeds over 147 m3/hr and operates at noise levels ≤ 61 dB. The built-in frequency converter ensures consistent pump speed and reduced power consumption. Tested to reach pressures of 0.067 mbar, this pump suits a range of industrial and laboratory applications. Made in the USA, its durable construction promises reliability.
Technician comment

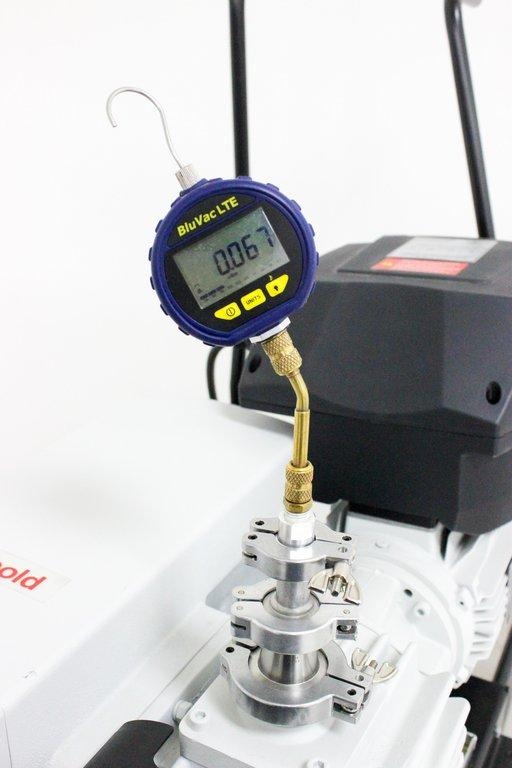

Unit was tested to specifications & able to reach .067 Mbar on our pressure gauge. See photos for details.
Key Features
- High-performance rotary vane vacuum pump
- Designed for pumping inert gases
- Nominal pumping speed ≥ 147 m3/hr
- Low noise operation at ≤ 61 dB
- Oil-sealed single-stage design
- Gas ballast valve for vapor handling
- Anti-suckback valve for oil management
- Includes power cord, no computer included
Specifications
- Nominal pumping speed: ≥ 147 m3/hr
- Pumping speed at 2 mbar (50 KF inlet): ≥ 100 m3/hr
- Pumping speed at 2 mbar (40 KF inlet): ≥ 90 m3/hr
- Ultimate pressure without gas ballast: ≤ 0.2 mbar
- Ultimate pressure with gas ballast: ≤ 1.0 mbar
- Operating noise level: ≤ 61 dB

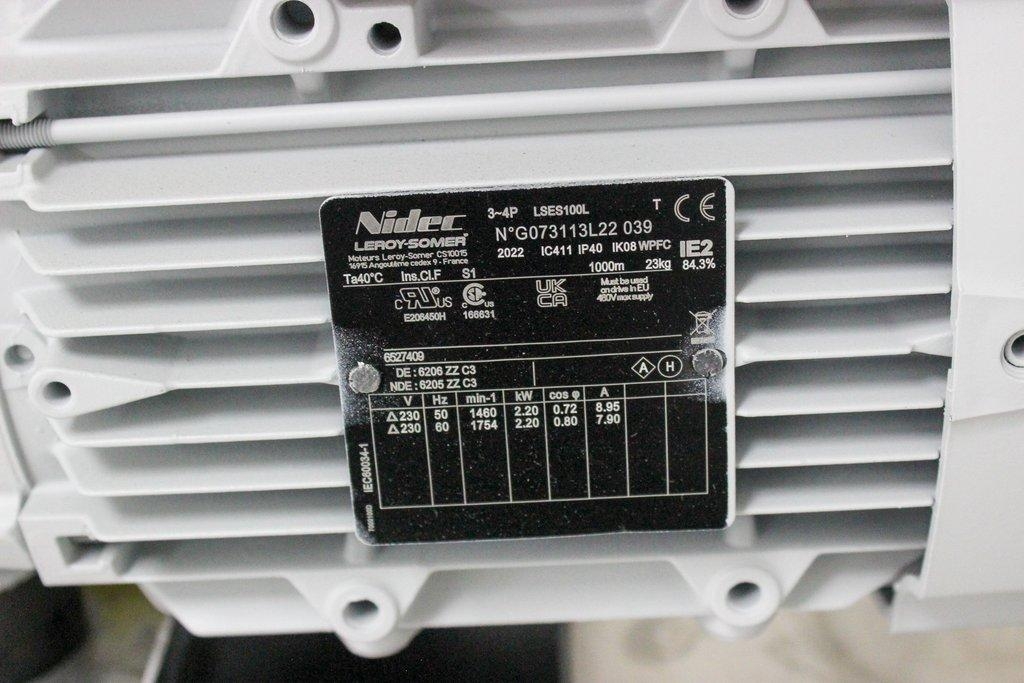

- Rated motor power: 2.2 kW at 1800 min-1
- Voltage: 200-240V, Frequency: 50/60 Hz
- IP protection: IP 20
- Ambient temperature range: 18 - 40°C
Weight
Imperial: 261.6 Pounds
Metric: 118.66 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 36.0 lb x 24.0 lb
Metric: 57.91 cm x 91.44 cm x 60.96 cm
Harmonized Code
841410
Harmonized Code Details
Harmonized code 841410 includes vacuum pumps. This code was chosen as the most applicable given the use and design of the Sogevac SV 120 BIFC.
