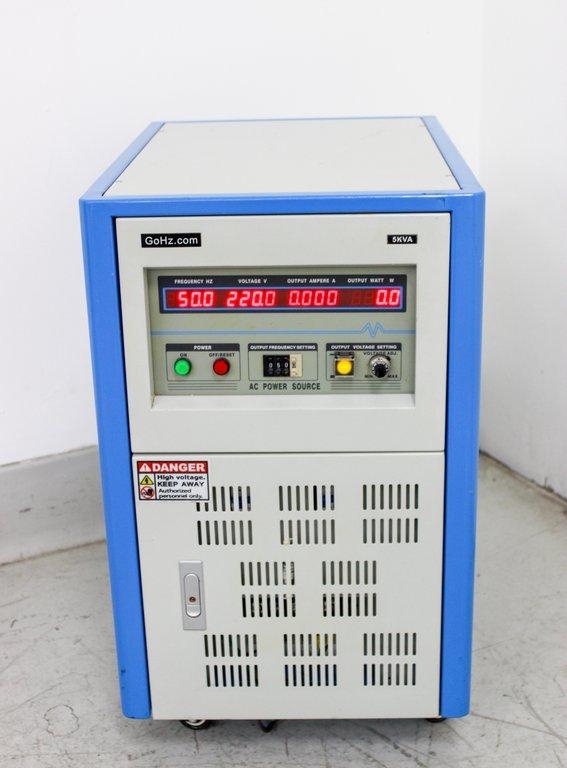

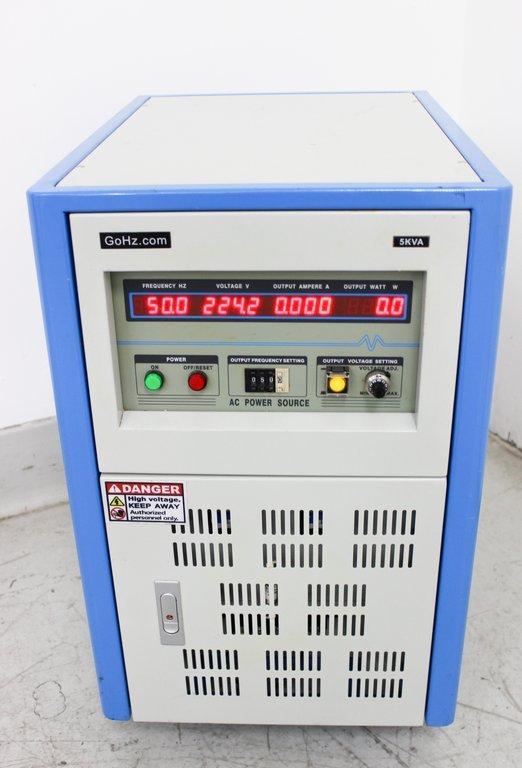

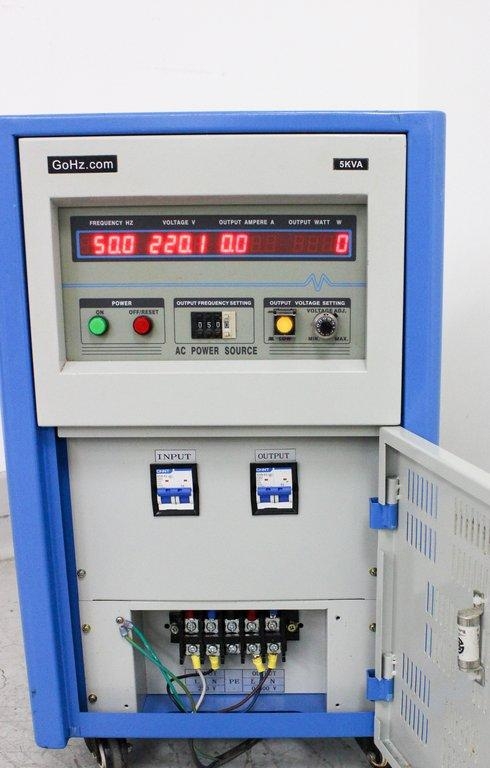

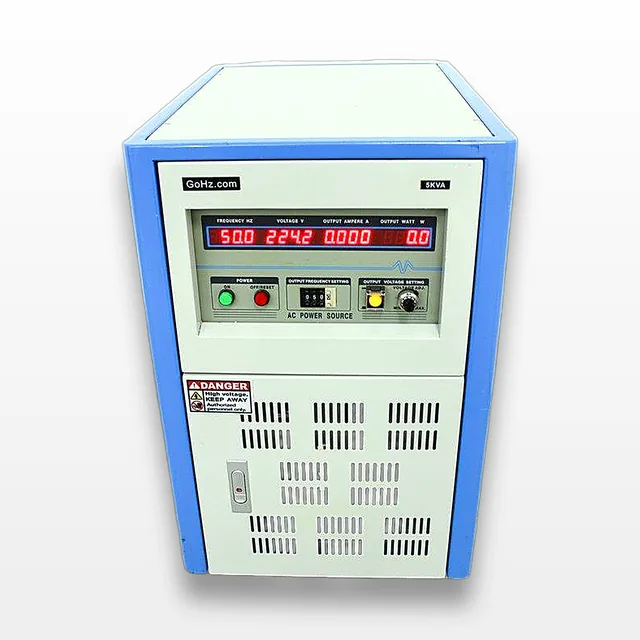

GoHz HZ-50-1105 Power Converter Transformer 5kVA 230V 50Hz to 110V 60Hz
GoHz
Details
-
CategoryMiscellaneous
-
Dimension22.0in x 16.0in x 27.0in
-
SerialGoHz-20171106520
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The GoHz HZ-50-1105 Frequency Converter is a reliable and efficient solution for converting single-phase power from 230V 50Hz to 110V 60Hz and vice versa. Designed for testing home appliances and lab equipment, it features a built-in step down/step up insulate transformer. With a capacity of 5 kVA, it allows for adjustable output Hertz and Volts to cater to various equipment specifications. It operates with pure sine wave technology, boasting a harmonic distortion of ≤2%. It is equipped with digital frequency, voltage, current, and watt meters with precise resolutions. Its protection mechanisms include overload, short circuit, and over-temperature safeguards. The compact unit is suitable for environments with temperatures ranging from 0 to 40°C and humidity up to 90%. The condition is rated as good, with basic tests passed and power functionality verified.
Key Features
- 5 kVA single phase static frequency converter
- Built-in step down/step up insulate transformer
- Adjustable output Hertz and Volts
- Pure sine wave technology
- Overload, short circuit, over temperature protection
Specifications
- Model: HZ-50-1105
- Capacity: 5 kVA
- Input Voltage: 110V/120V, 220V/230V/240V ± 10%
- Input Frequency: 50 Hz, 60 Hz, or 400 Hz ± 5%
- Output Voltage: 0-150V (41.6A) or 0-300V (20.8A)
- Frequency Stability: ≤±0.01%
- Harmonic Distortion: ≤2%
- Protection: Overload, short circuit, over temperature
Weight
Imperial: 198.0 Pounds
Metric: 89.81 Kilograms
Shipping Dimensions
Imperial: 26.4 lb x 19.2 lb x 32.4 lb
Metric: 67.06 cm x 48.77 cm x 82.3 cm
Harmonized Code
850440
Harmonized Code Details
Harmonized Code 850440 covers static converters. The GoHz HZ-50-1105 fits this category as it functions as a frequency converter adapting electrical currents and frequencies.
