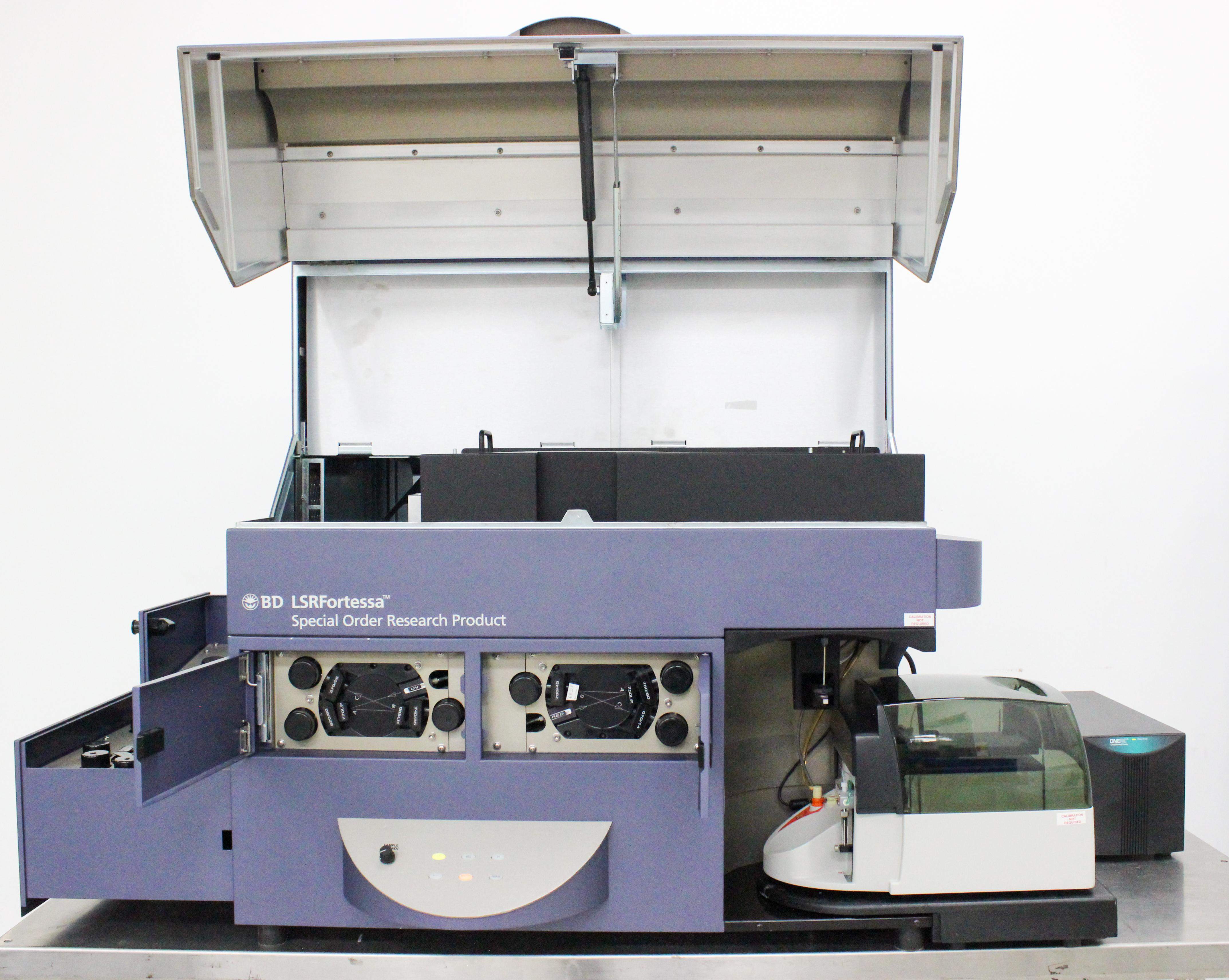

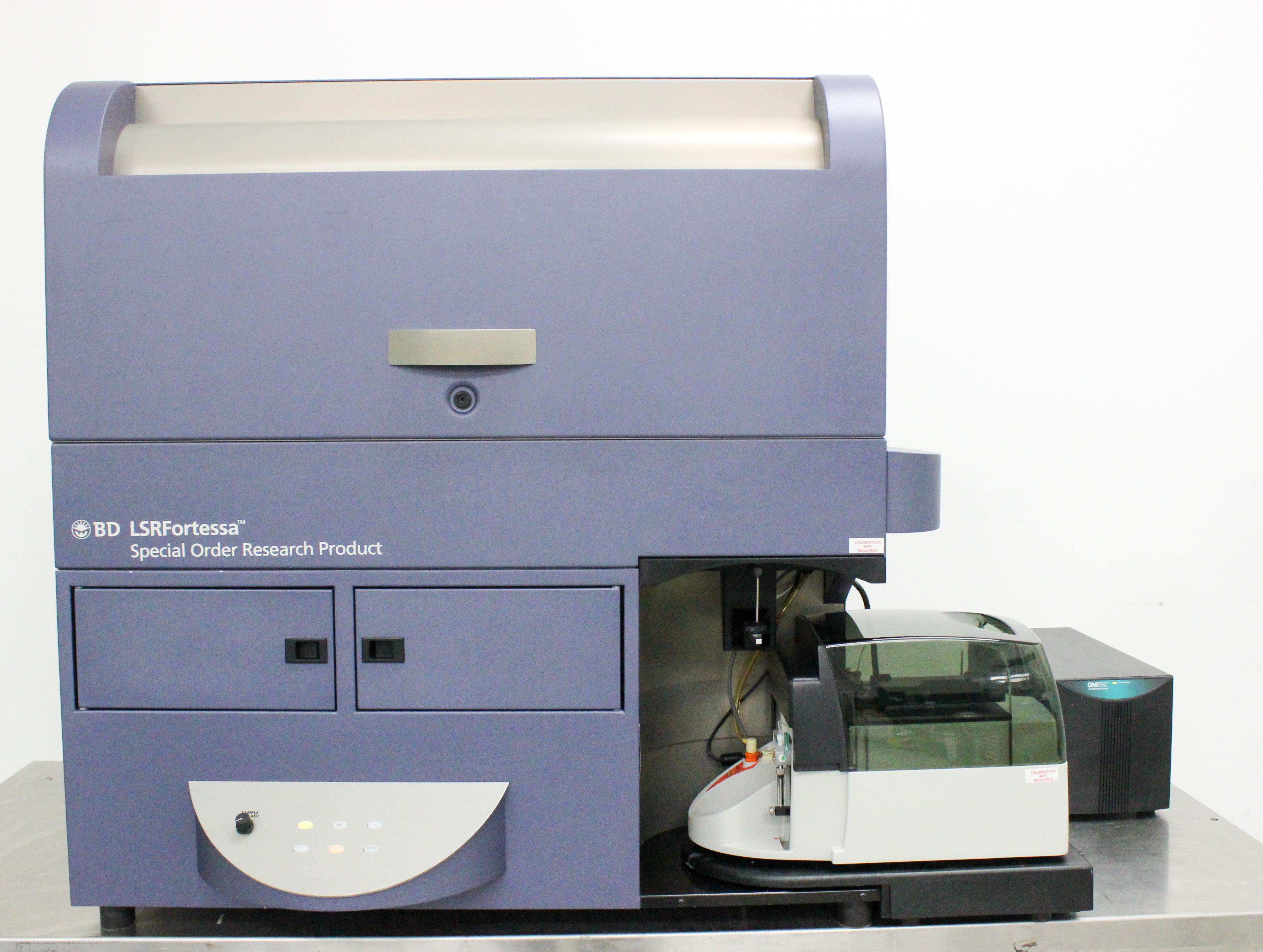

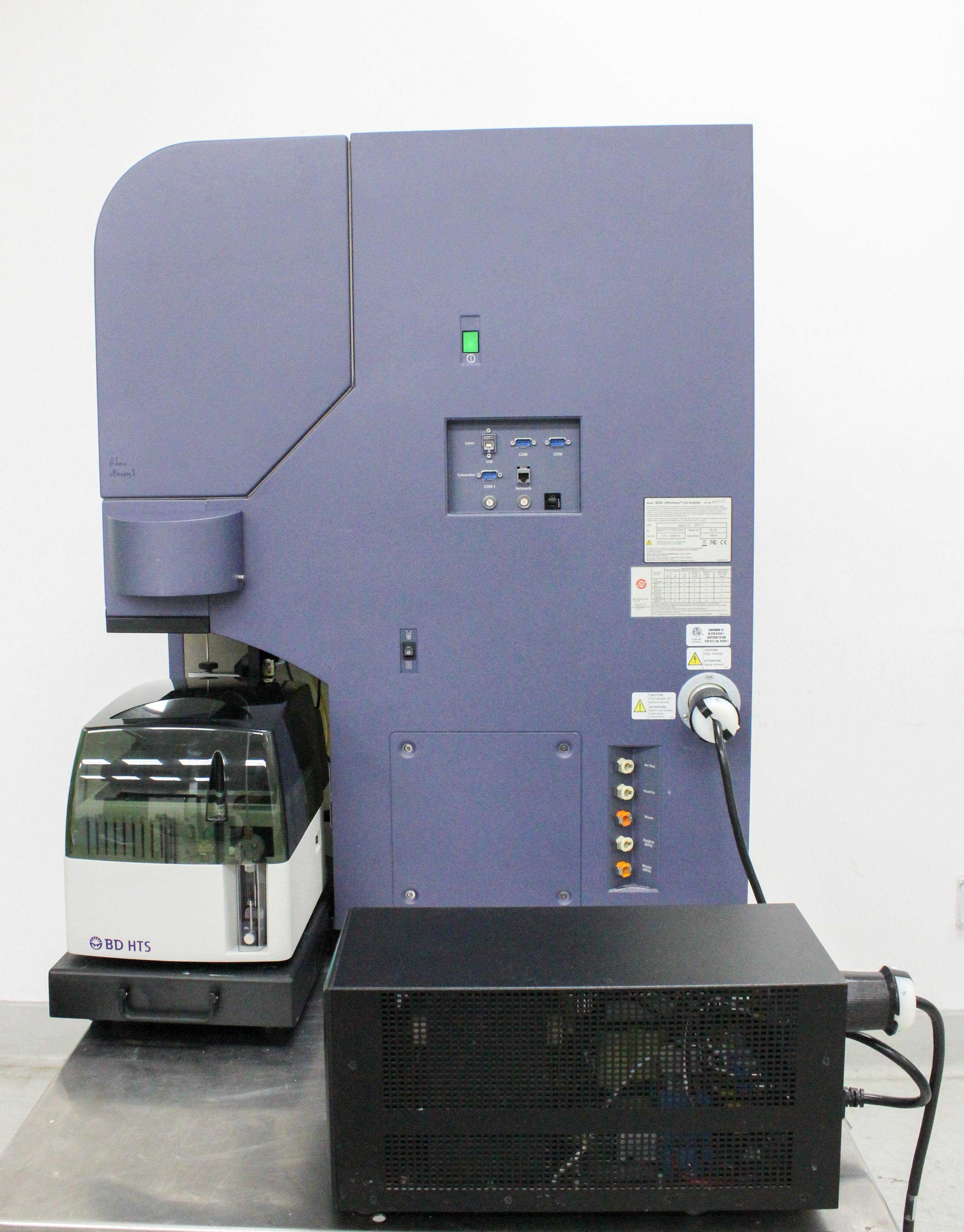

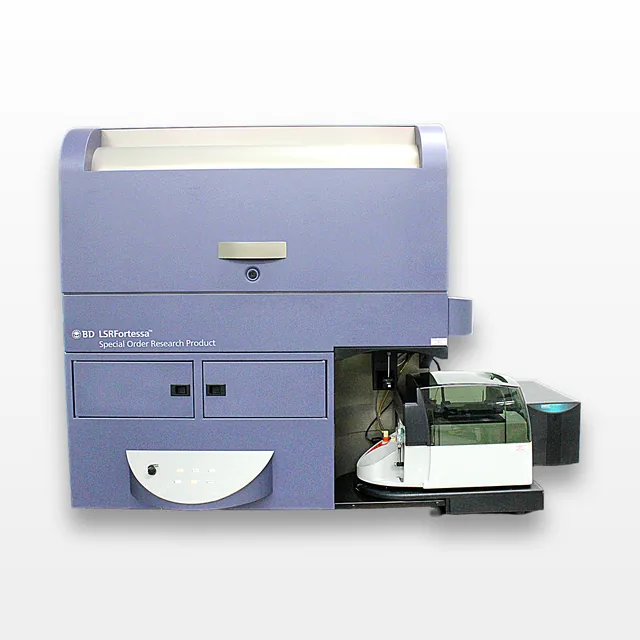

BD Biosciences LSRFortessa Cell Analyzer with HT Sampler, Up to 18 Colors
BD Biosciences
Details
-
CategoryCell Counting / Sorting
-
Dimension35.0in x 47.0in x 39.0in
-

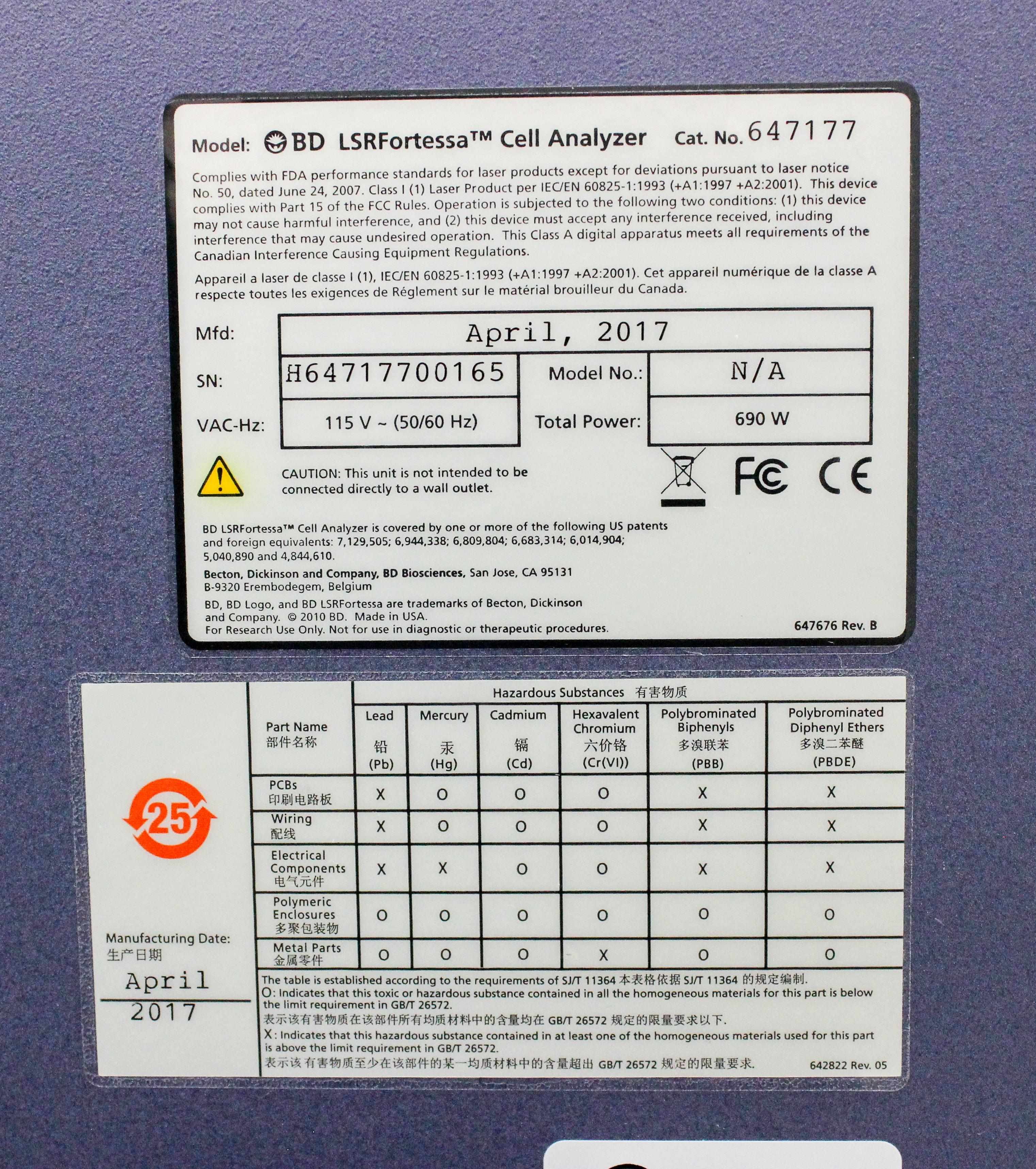

SerialH64717700165
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

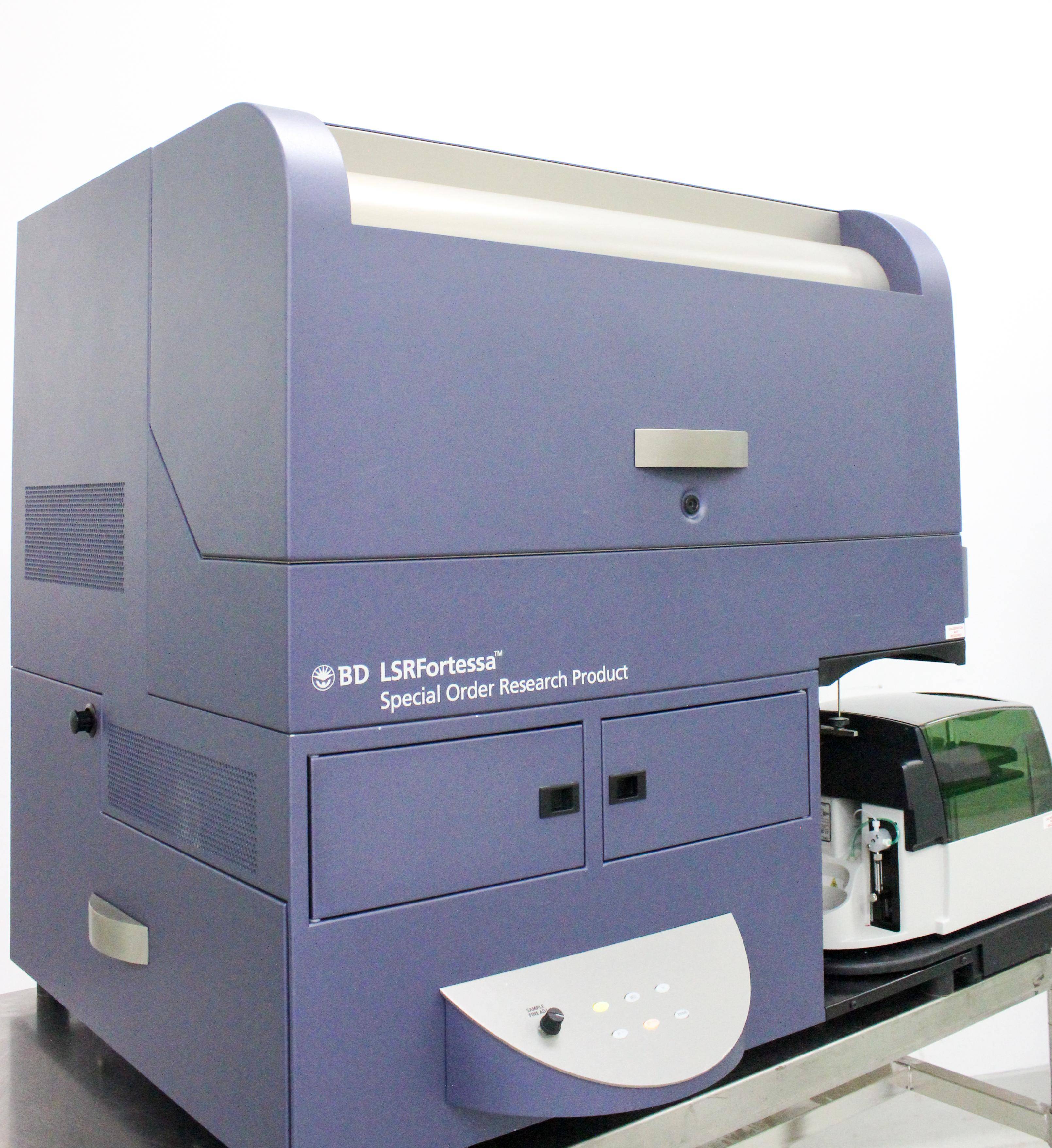

The BD Biosciences LSRFortessa Cell Analyzer with HT Sampler is an advanced flow cytometry instrument designed to fit within limited benchtop space while providing optimal sensitivity and resolution for multicolor applications. Capable of detecting up to 18 colors simultaneously, this cell analyzer supports up to four lasers, with options to upgrade to seven through BD's special order program. The HT Sampler enhances efficiency by enabling rapid, automated sample acquisition from microtiter plates. Although the unit wasn't fully tested, it powers on and passes basic tests successfully, and it comes in excellent cosmetic condition, previously used in a laboratory environment. The BD LSRFortessa is ideal for laboratories focused on advanced assay development, offering flexibility with its upgradeable laser system and compact design.
Technician comment
BD LSRFortessa Cell Analyzer with HT Sampler was inspected and powers on successfully. Unit requires external software and computer connection to perform full operational testing. Cosmetic condition is excellent. Unit was removed from a working laboratory environment.
Key Features
- Detects up to 18 colors simultaneously
- Supports 4 lasers (upgradeable to 7)
- Compact benchtop design

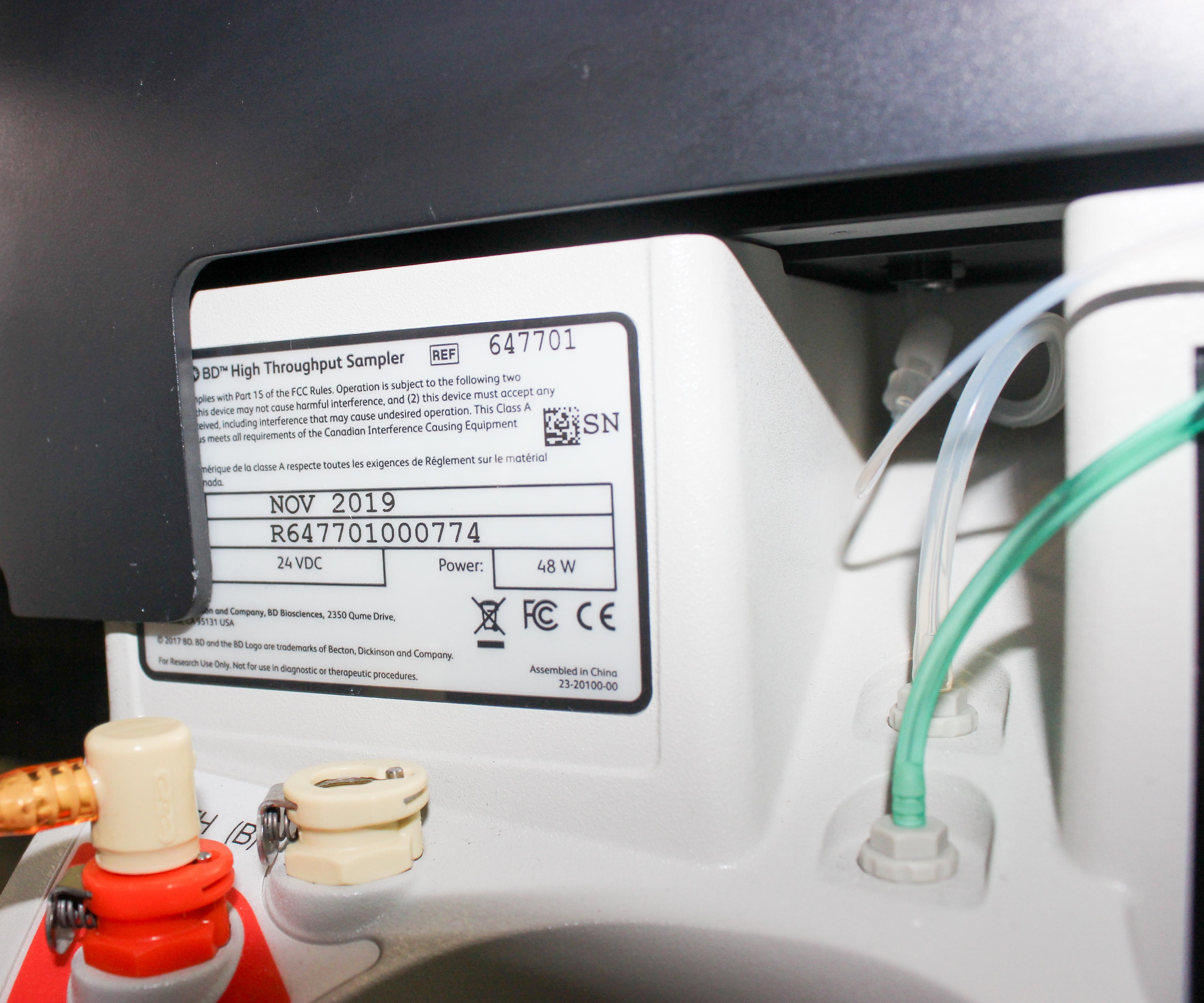

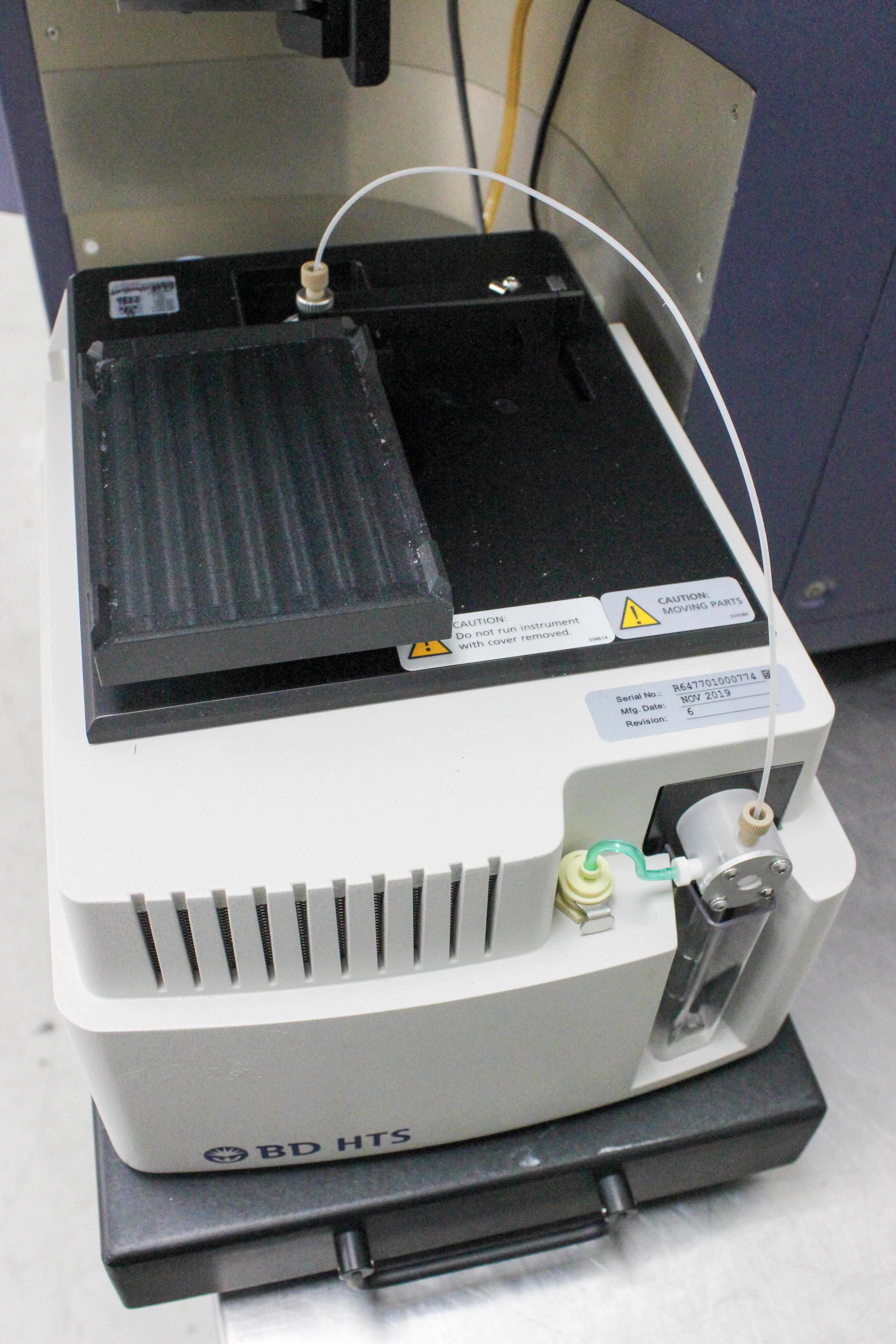

- Includes HT Sampler for rapid sample acquisition
- Optimized for multicolor assays
Specifications

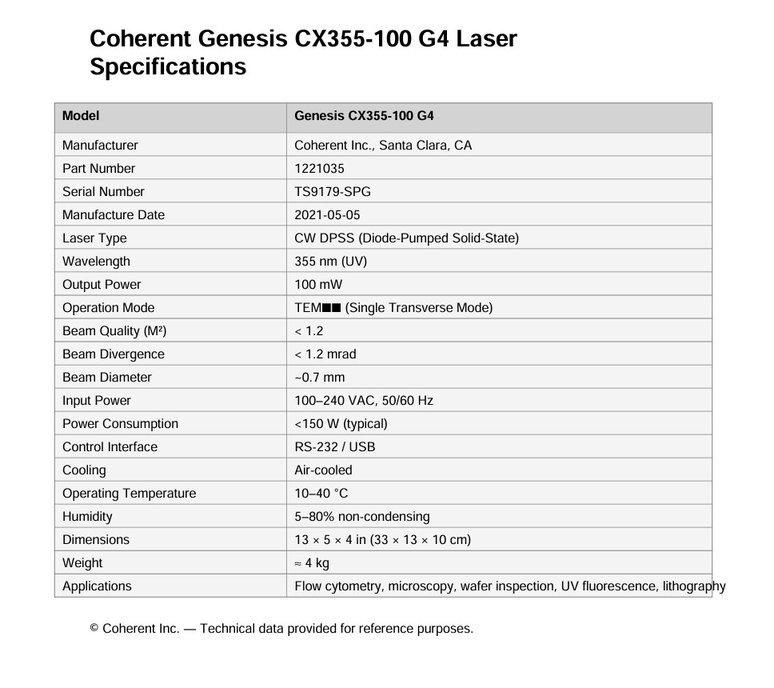

- Excitation Optics: Up to 4 lasers (355 nm, 405 nm, 488 nm, 640 nm)
- Emission Optics: Gel-coupled quartz cuvette for optimal fluorescence collection
- Flow Cell Design: Rectangular quartz, anti-reflective coated surfaces
- Fluorescence Sensitivity: FITC - 80 MESF-FITC, PE - 30 MESF-PE
- Forward Scatter Detector: Photodiode with 488/10 bandpass filter
- Data Acquisition Rate: 40,000 events/s with beads
- Power Requirements: 100/115/230 VAC, 50/60 Hz, Max 1,500 watts
- Operating Environment: 66–79ºF, 10% to 90% humidity
Weight
Imperial: 528.0 Pounds
Metric: 239.5 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 56.4 lb x 46.8 lb
Metric: 106.68 cm x 143.26 cm x 118.87 cm
Harmonized Code
90273000
Harmonized Code Details
90273000: Spectrometers, spectrophotometers and spectrographs using optical radiations (UV, visible, IR). This harmonized code is suitable given the cell analyzer's design for measuring properties of cells using various wavelengths of laser light, fitting within the category of optical radiation equipment.
