Edwards E2M30 Vacuum Pump with Rotary Vane and Vapor Handling
Edwards
Details
-
CategoryPump
-
Dimension7.0in x 24.0in x 11.0in
-
Serial169421606
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description

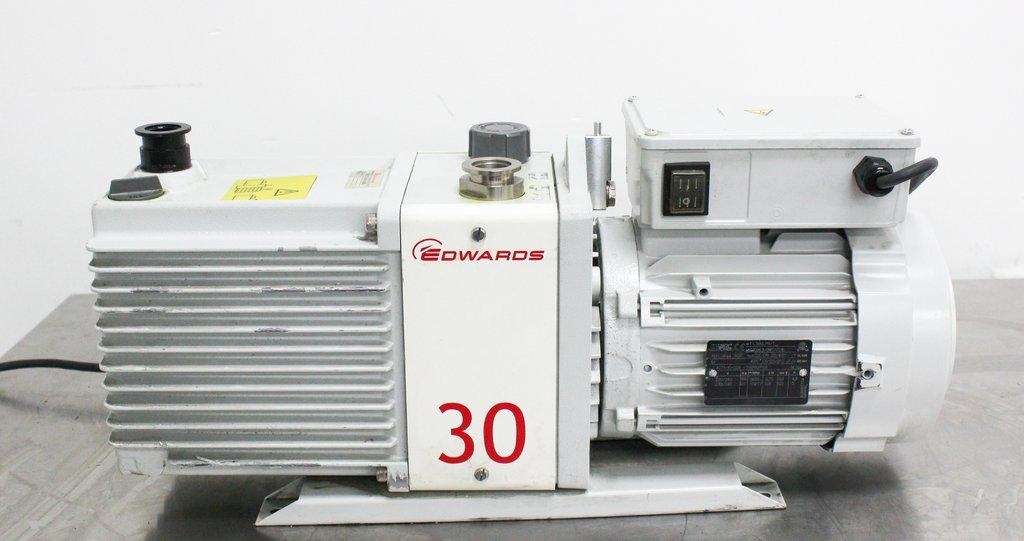

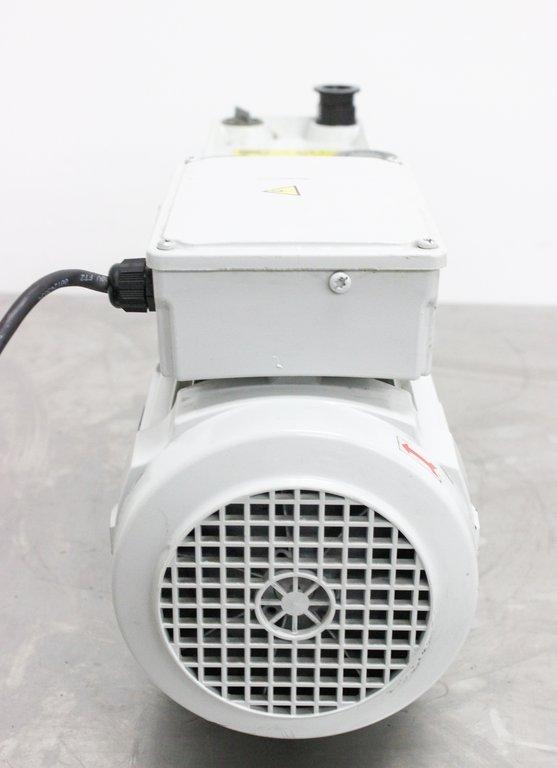

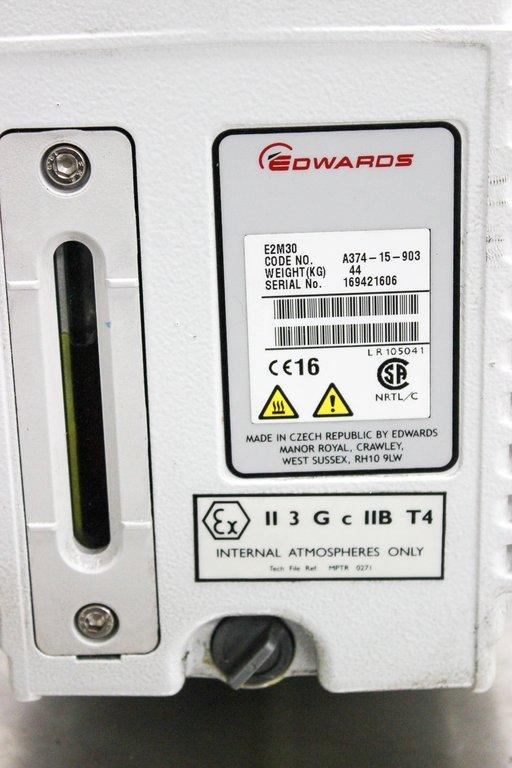

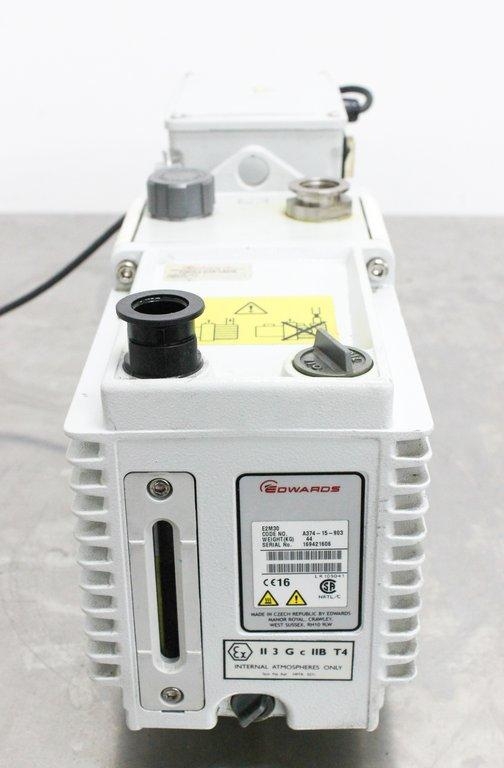

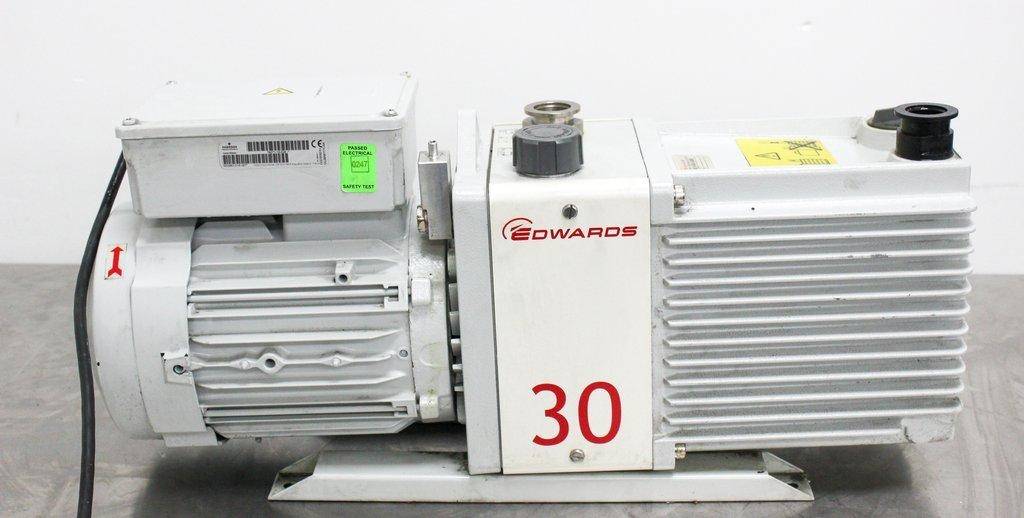

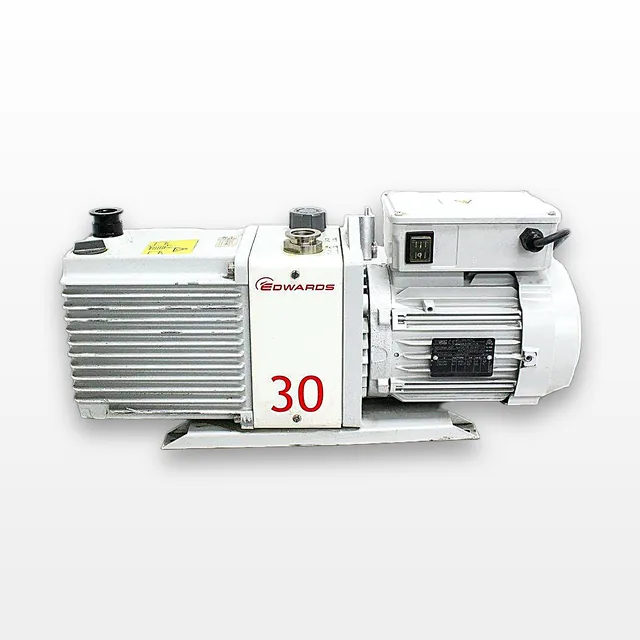

This is the Edwards E2M30 Rotary Vane Vacuum Pump, a reliable and versatile choice for various vacuum applications. Manufactured by Edwards, the E2M30 model provides a high ultimate vacuum pressure as low as 1.5 x 10-3 mbar. This pump is suitable for industries utilizing sterilization, mass spectrometry, lasers, space research, vacuum ovens, and more, offering a flow rate of 76 L/min and operating quietly at 48 dB(A). The E2M30 model is built with a fast-acting inlet valve to prevent oil and gas suck-back, NW25 inlet/outlet connections, and adjustable gas ballast controls. Powered at 220V and adaptable to 50/60 Hz power systems, this vacuum pump is in fair condition, displaying minor cosmetic wear. The vacuum pressure currently measures 0.495 mbar, indicating a minor functionality issue. The power cord is included, but no additional accessories or computer is provided.
Technician comment

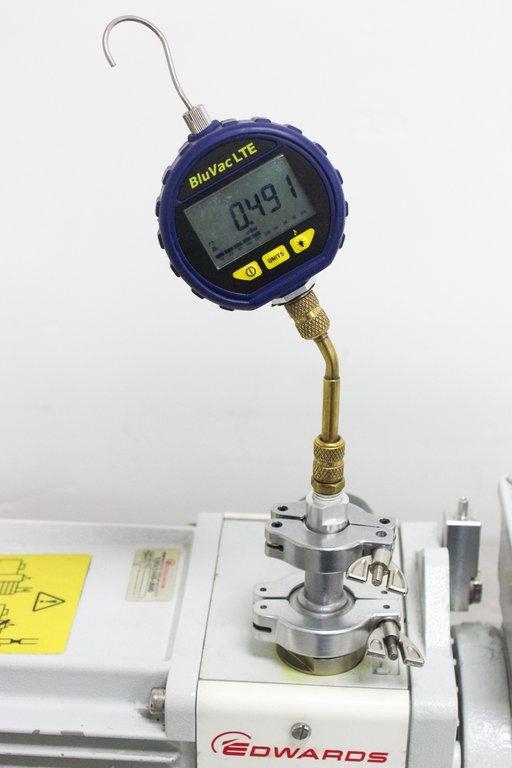

E2M30 for sale AS/IS due to low pressure. (Minor cosmetic wear around unit.) Vacuum pressure of 0.495 mbar.
Key Features
- Edwards E2M30 model
- Rotary vane technology
- Ultimate vacuum to 1.5 x 10-3 mbar
- 76 L/min flow rate
- Operates at 48 dB(A)
- NW25 inlet/outlet
- Adjustable gas ballast control
- Fast-acting inlet valve
Specifications
- Maximum Pressure: 1.5 x 10-3 mbar
- Horsepower: 0.5 hp
- Noise Level: 48 dB (A)
- Flow Rate: 76 L/min
- Operating Voltage: 220V
- Frequency: 50Hz/60Hz
- Current Vacuum Pressure: 0.495 mbar
- Dimensions: 7.0 x 24.0 x 11.0 inches
- Weight: 97.0 lb
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 28.8 lb x 13.2 lb
Metric: 21.34 cm x 73.15 cm x 33.53 cm
Harmonized Code
84141000
Harmonized Code Details
84141000: Vacuum pumps of all kinds. This code is appropriate as it covers various types of vacuum pumps, suitable for the Edwards E2M30 as a rotary vane vacuum pump.
