Neslab HX-750 Chiller Heated Cooler 5C-35C 15700W Cooling Capacity
Neslab
Details
-
CategoryChiller / Heater
-
Dimension30.0in x 46.0in x 65.0in
-
Serial86FML27320-1
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
The Neslab HX-750 chiller is a reliable solution for maintaining the desired temperature in industrial and laboratory settings. With an operational range from 5°C to 35°C, it offers flexibility for various applications requiring precise thermal management. Despite its fair condition, the HX-750 retains the rugged design and durability expected from Neslab products, featuring a stainless steel reservoir and adjustable temperature controls for efficient and long-lasting performance. It supports air/water cooling options and has sturdy pumps with an integrated flow control valve ensuring proper circulation and pressure. This model allows users to select between a simple or advanced controller per process requirements. Please note, this unit is for parts use only due to a damaged switch and inability to perform standard tests.
Technician comment

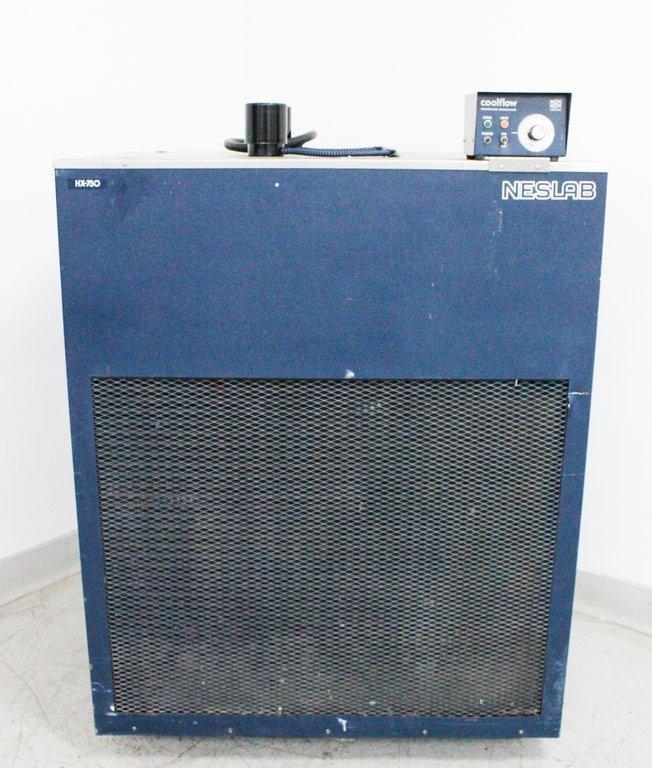

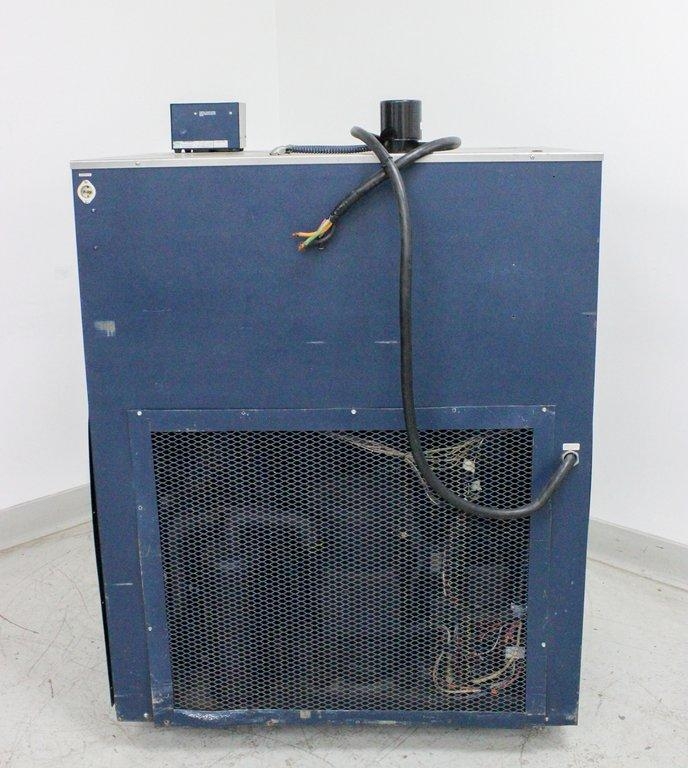

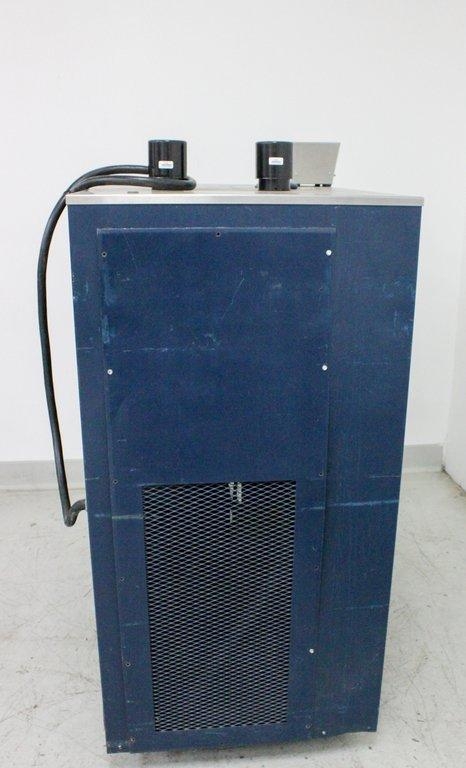

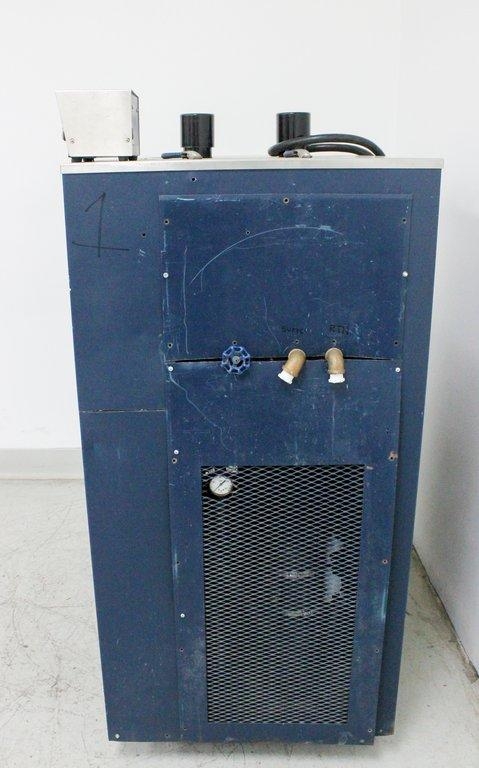

Unit for sale AS/IS for parts. Switch is damaged, unable to test or power on. Unit will need to be hardwired. Minor cosmetic damage around unit. See photos for details.
Key Features
- Temperature range: 5°C to 35°C
- Cooling capacity: 15700 Watts at 20°C
- Choice of air or water cooling
- Three-phase voltage compatibility
- User-adjustable safety settings
Specifications
- Temperature Range: 5°C to 35°C
- Flow Rate at 20°C / 50 PSI (TU9 Pump): 23 GPM
- Flow Rate at 20°C / 50 PSI (CP75 Pump): 19 GPM
- Cooling Capacity at 20°C: 15700 Watts
- Available Voltage: 200-230V/460 3 Ph
- Cooling Options: Air/Water
- Stainless Steel Reservoir
- Integrated Flow Control Valve
Weight
Imperial: 600.0 Pounds
Metric: 272.16 Kilograms
Shipping Dimensions
Imperial: 36.0 lb x 55.2 lb x 78.0 lb
Metric: 91.44 cm x 140.21 cm x 198.12 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigeration equipment; other, including heat pumps, other than the air conditioning machines of heading 8415. Selected this code because the Neslab HX-750 is a versatile chiller for cooling and heating applications, aligning with equipment used in laboratories and industrial processes.
