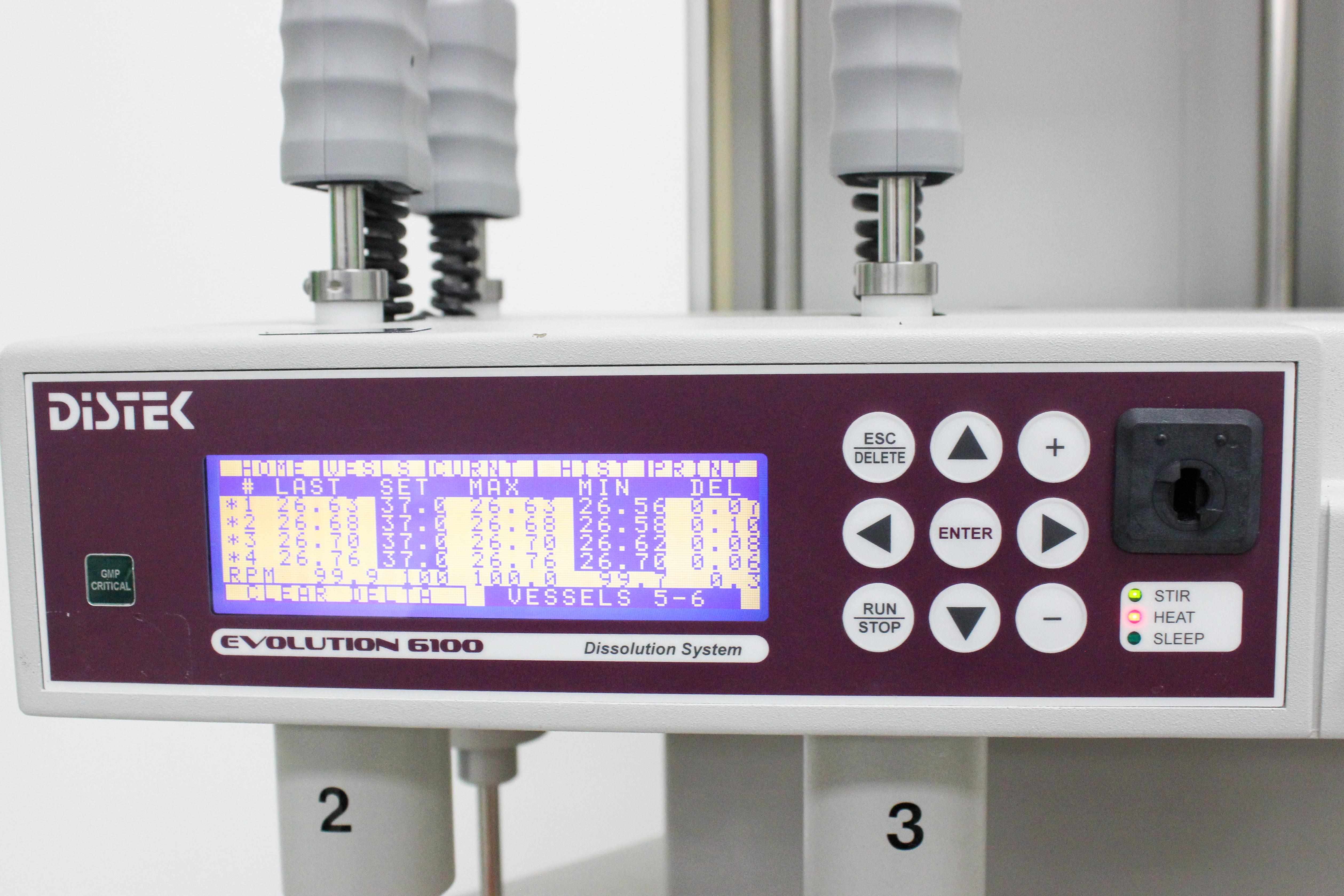

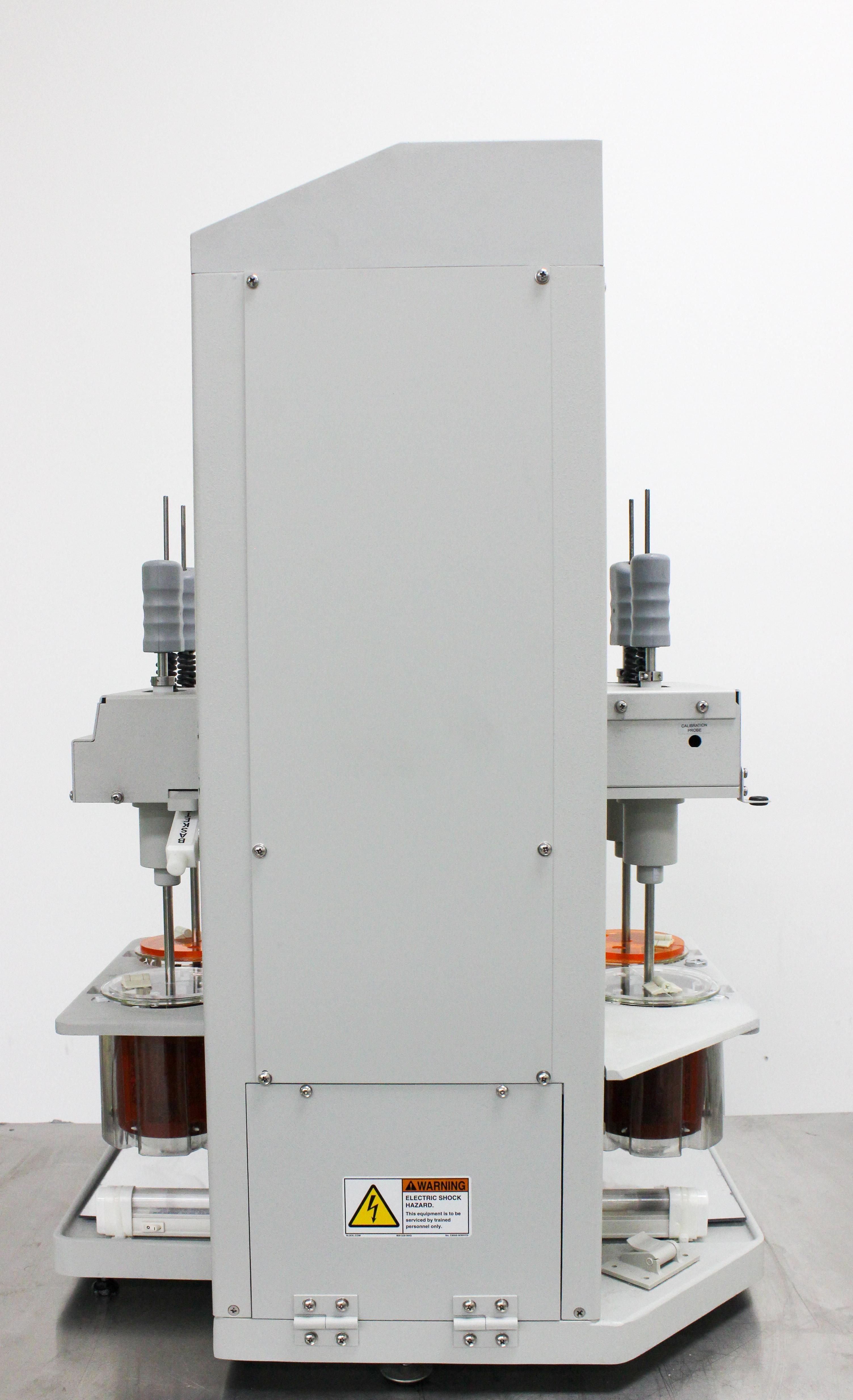

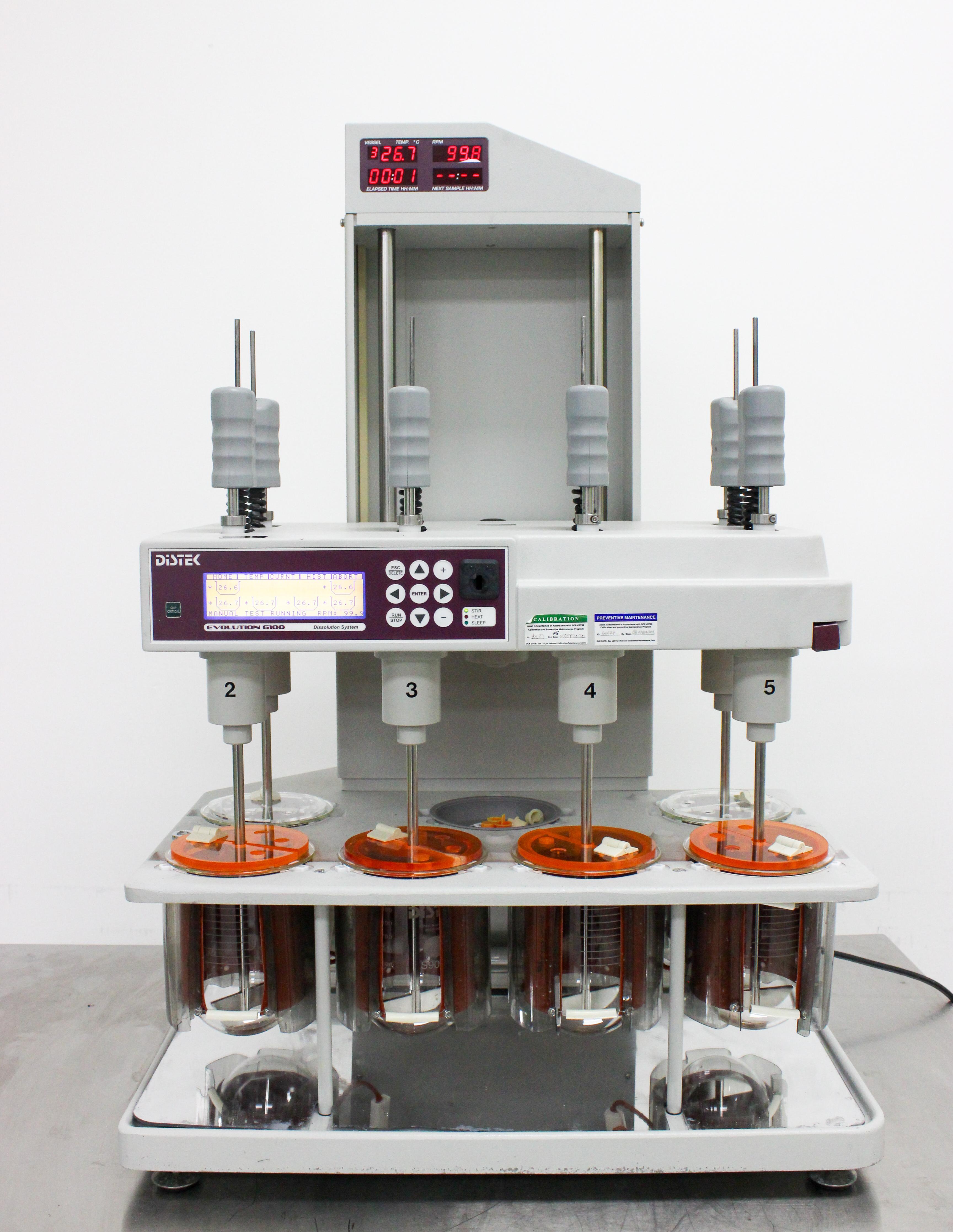

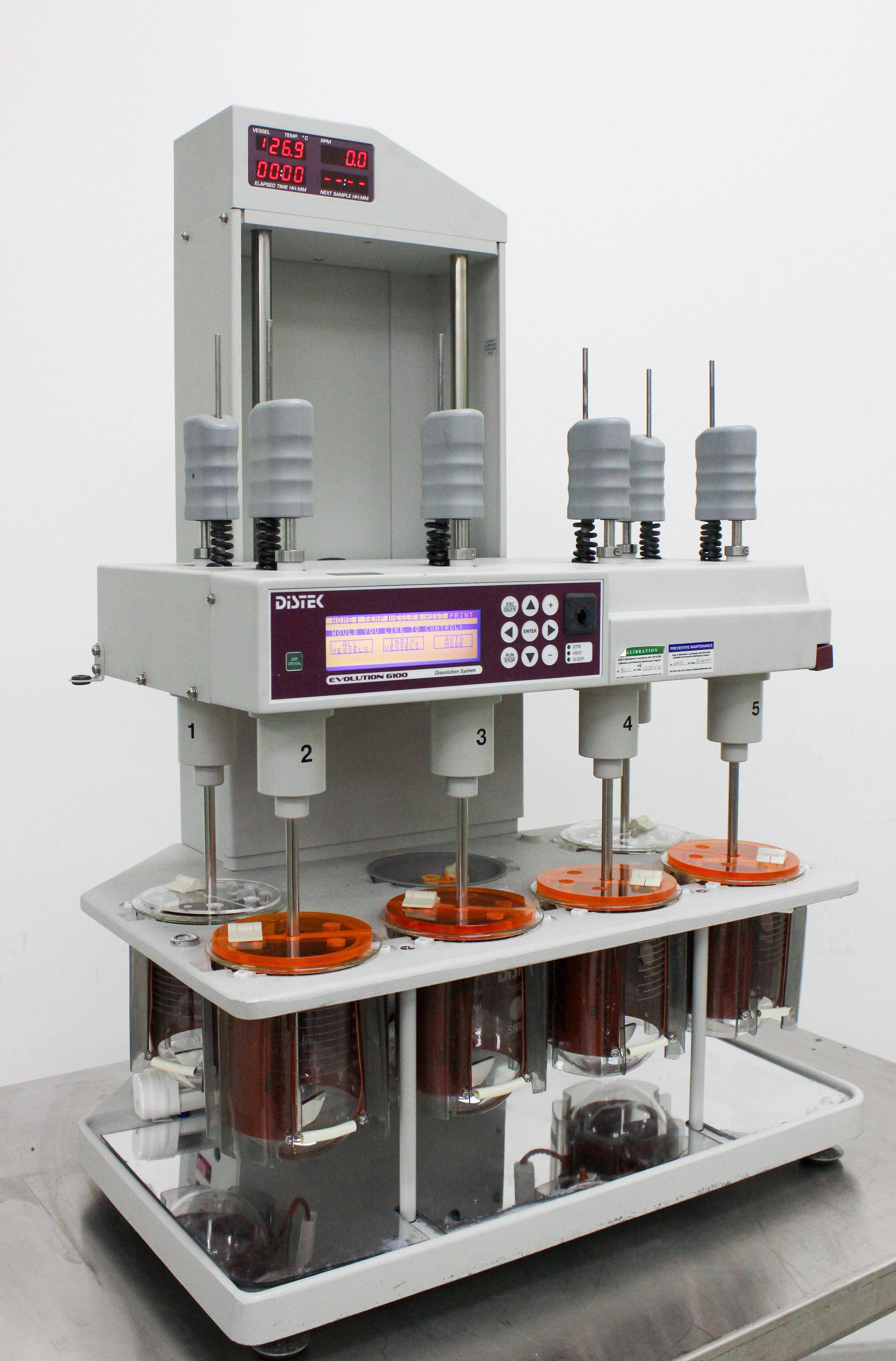

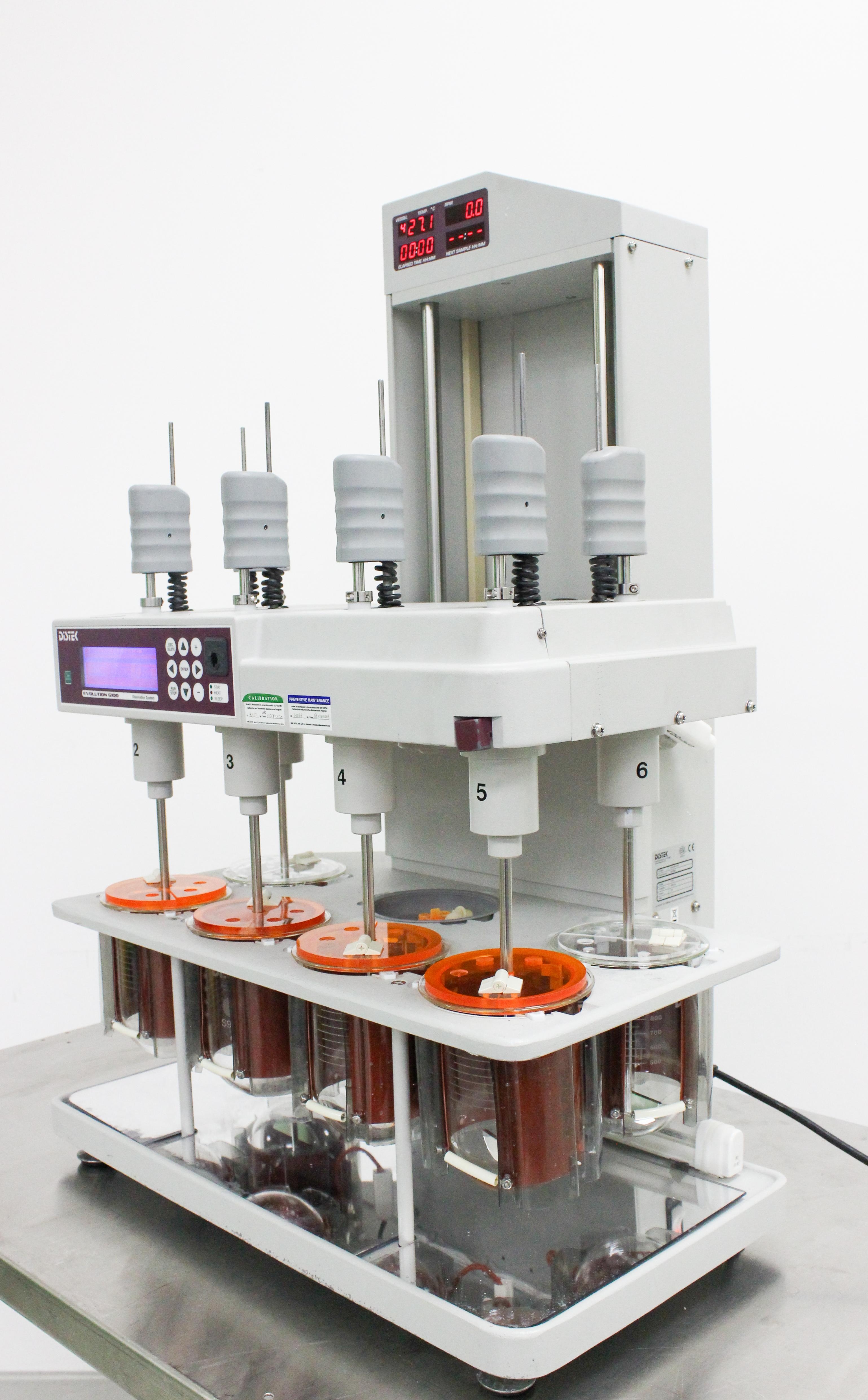

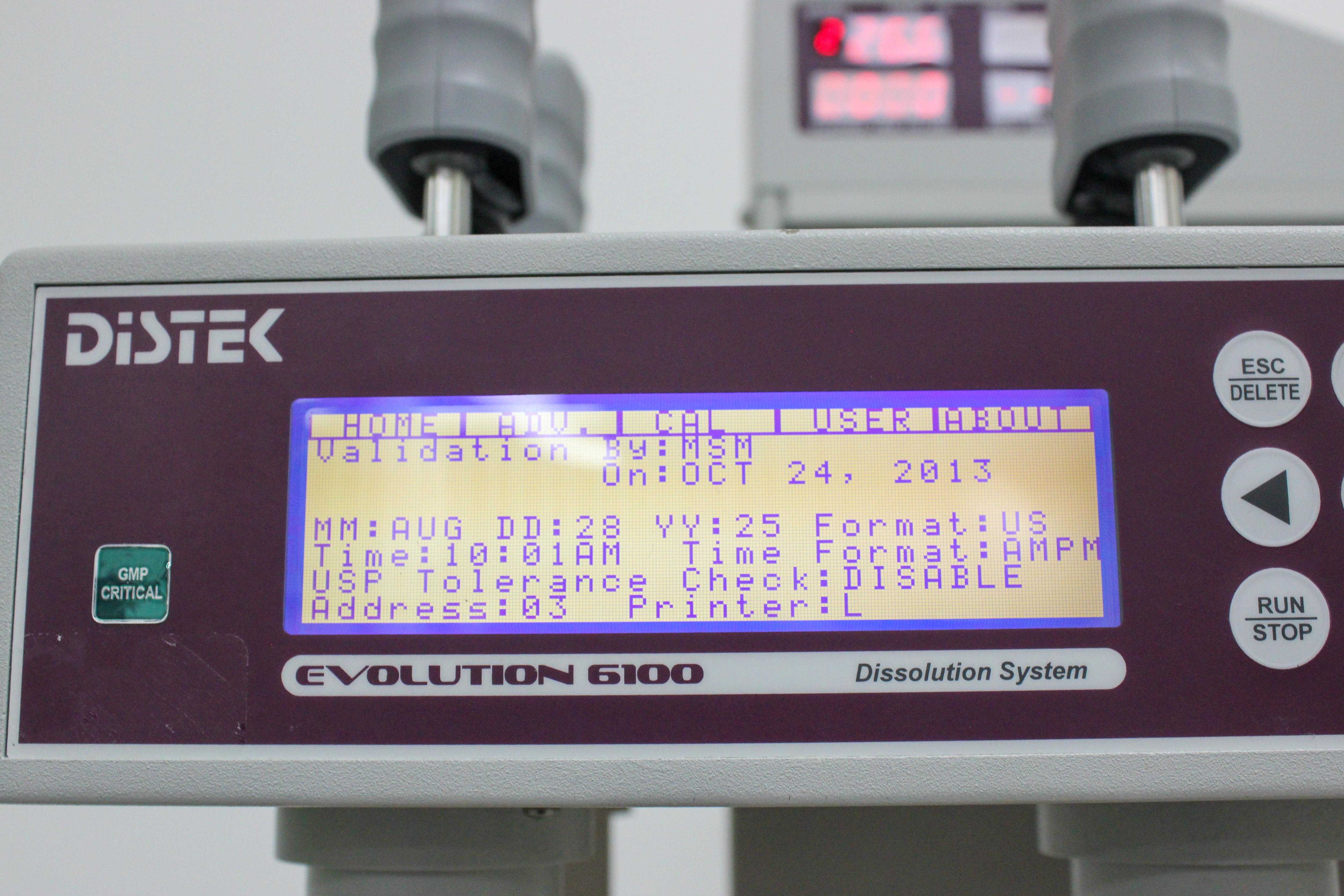

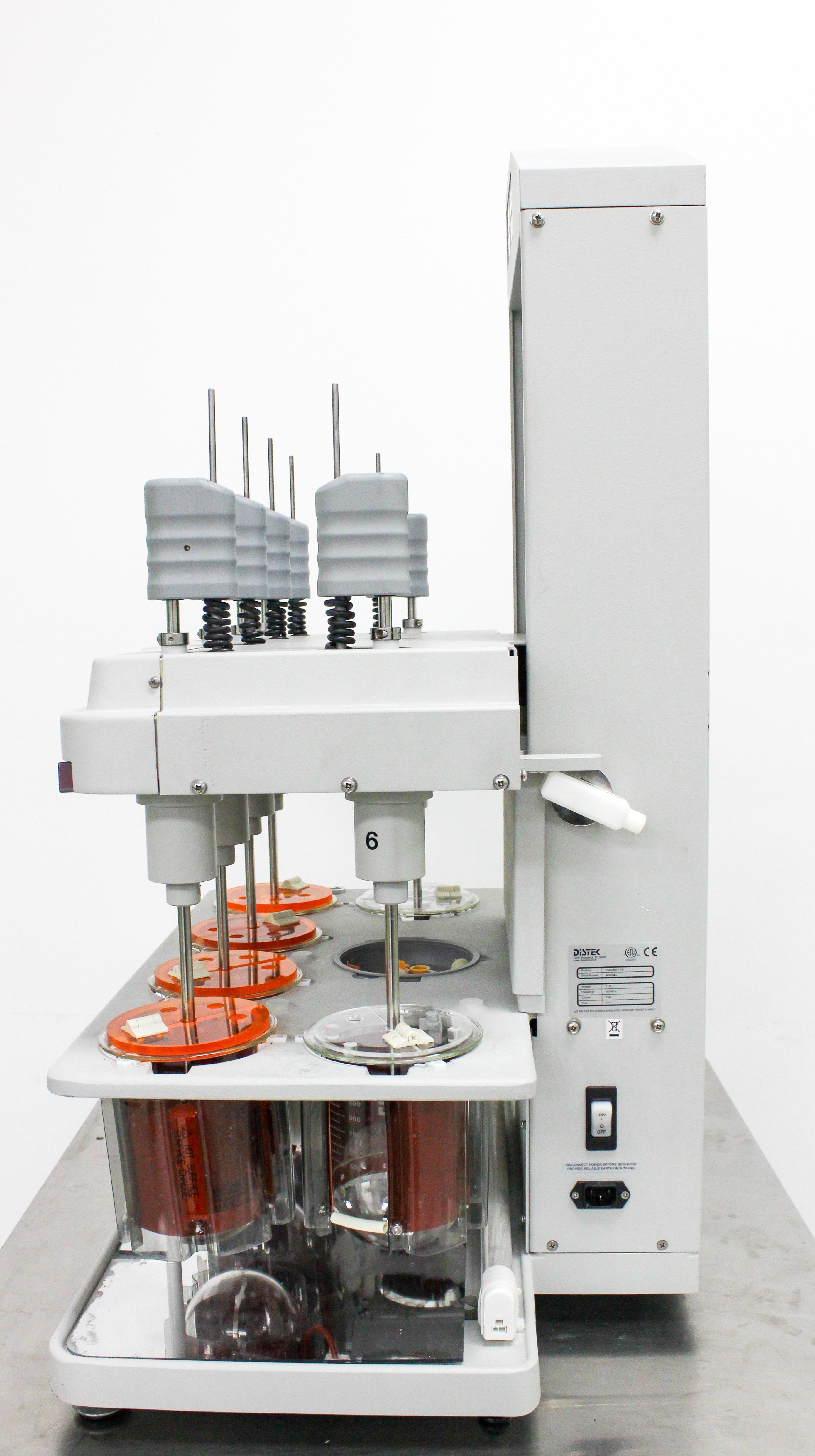

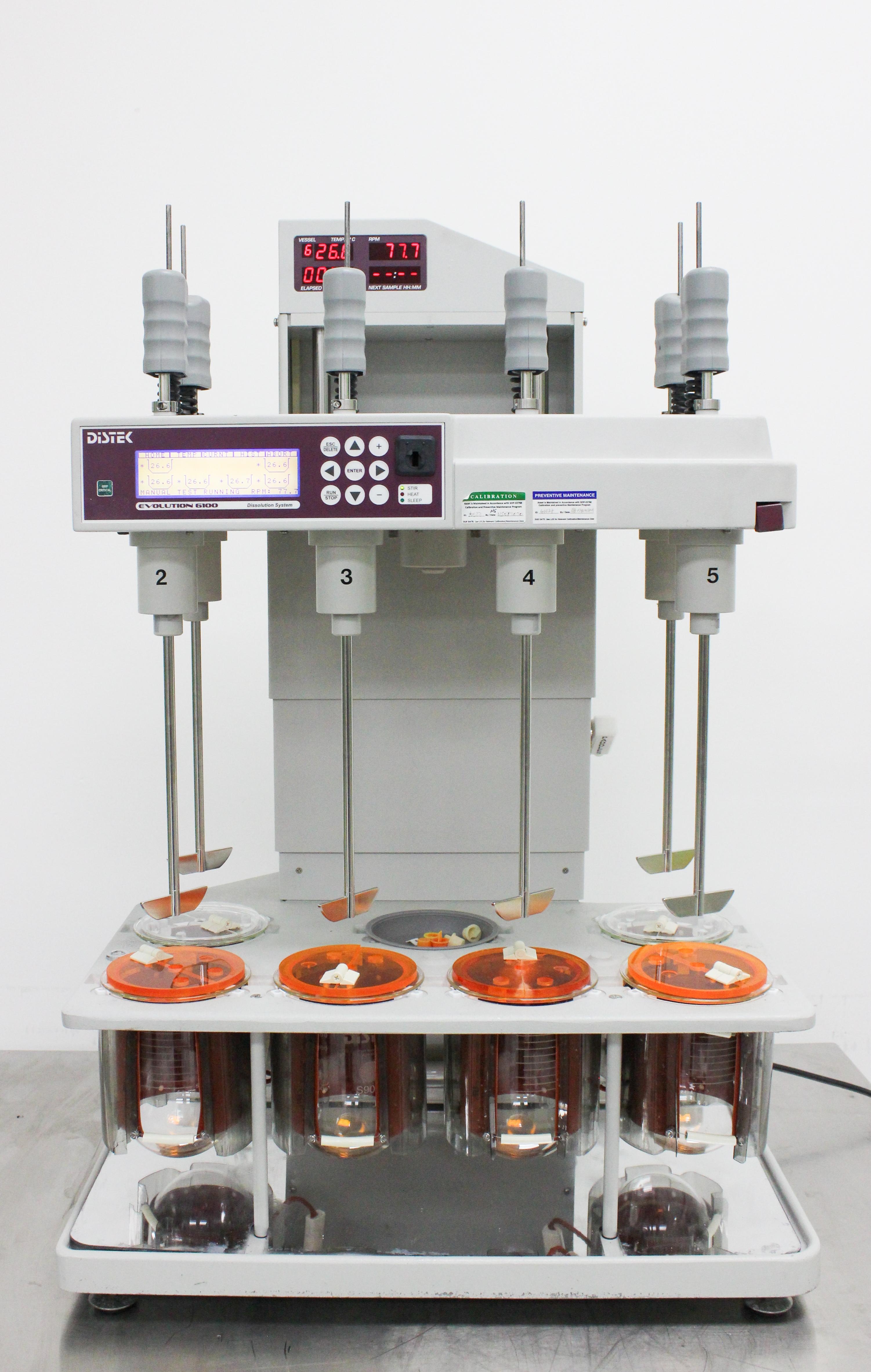

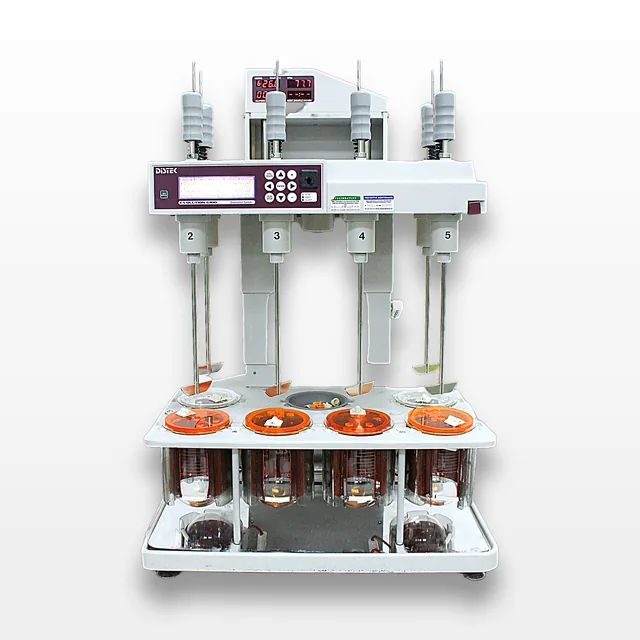

Distek Evolution 6100 Chemistry Dissolution System Bathless 7 Vessels 350 RPM
Distek
Details
-
CategoryChemistry
-
Dimension20.0in x 26.0in x 39.0in
-

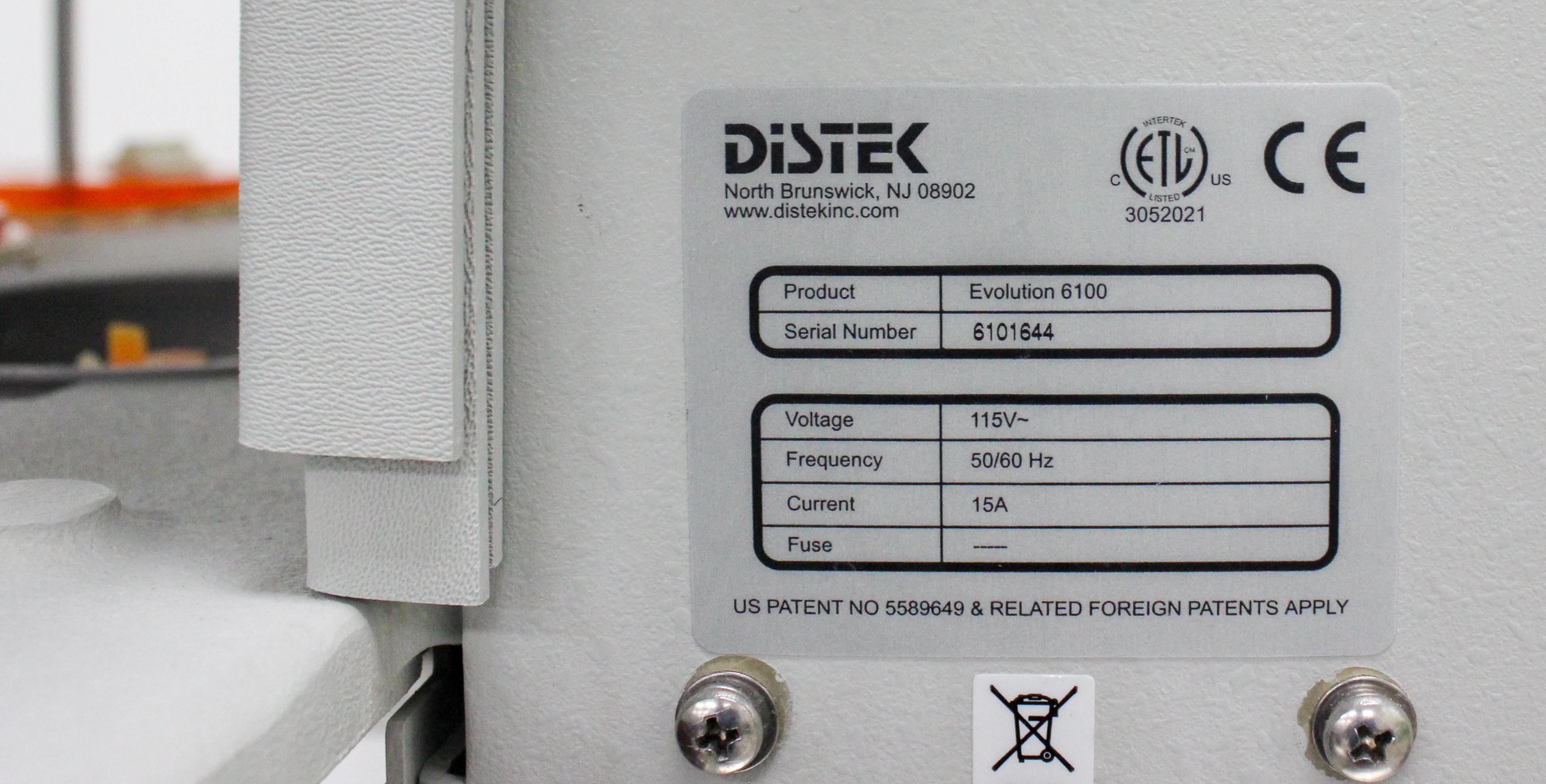

Serial6101644
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
Introducing the Distek Evolution 6100 bathless dissolution system, setting a new standard in the industry. The Evolution 6100 offers precise temperature control and rapid reporting, eliminating the traditional water bath to increase efficiency. Its advanced interface features menu-driven navigation, multiple user log-in levels, and storage for up to 100 methods and 40 test reports. The embedded temperature sensor in the stirring shaft and USP tolerance checking ensure test accuracy and compliance. Additional features include rapid media heating to 37C, password protection, and a unique visual enhancement system. Ideal for laboratory environments seeking innovative solutions for dissolution testing. Preowned in very good condition, this unit has been verified for all core functions.
Technician comment
Distek Evolution 6100 bathless dissolution system powers on and was tested to specifications. All core functions, including temperature control, RPM settings, and display/interface responsiveness, were verified and found to be working properly. (Lightbulb fixture needs a power cord, bulb will need to be replaced.) Unit is preowned from a working laboratory environment. User: Distek PW: Distek
Key Features
- Patented Bathless Technology eliminates water bath and maintenance
- Embedded Temperature Sensor in Stirring Shaft for continuous monitoring
- USP Tolerance Checking for parameter compliance
- Rapid Media Heating to 37C in less than 15 minutes
- Configurable Security and Password Protection
- Method Storage with Audit Trail capability
- VisiChek Visual Perspective Enhancement System
- Printer Sharing Capability for up to four systems
Specifications

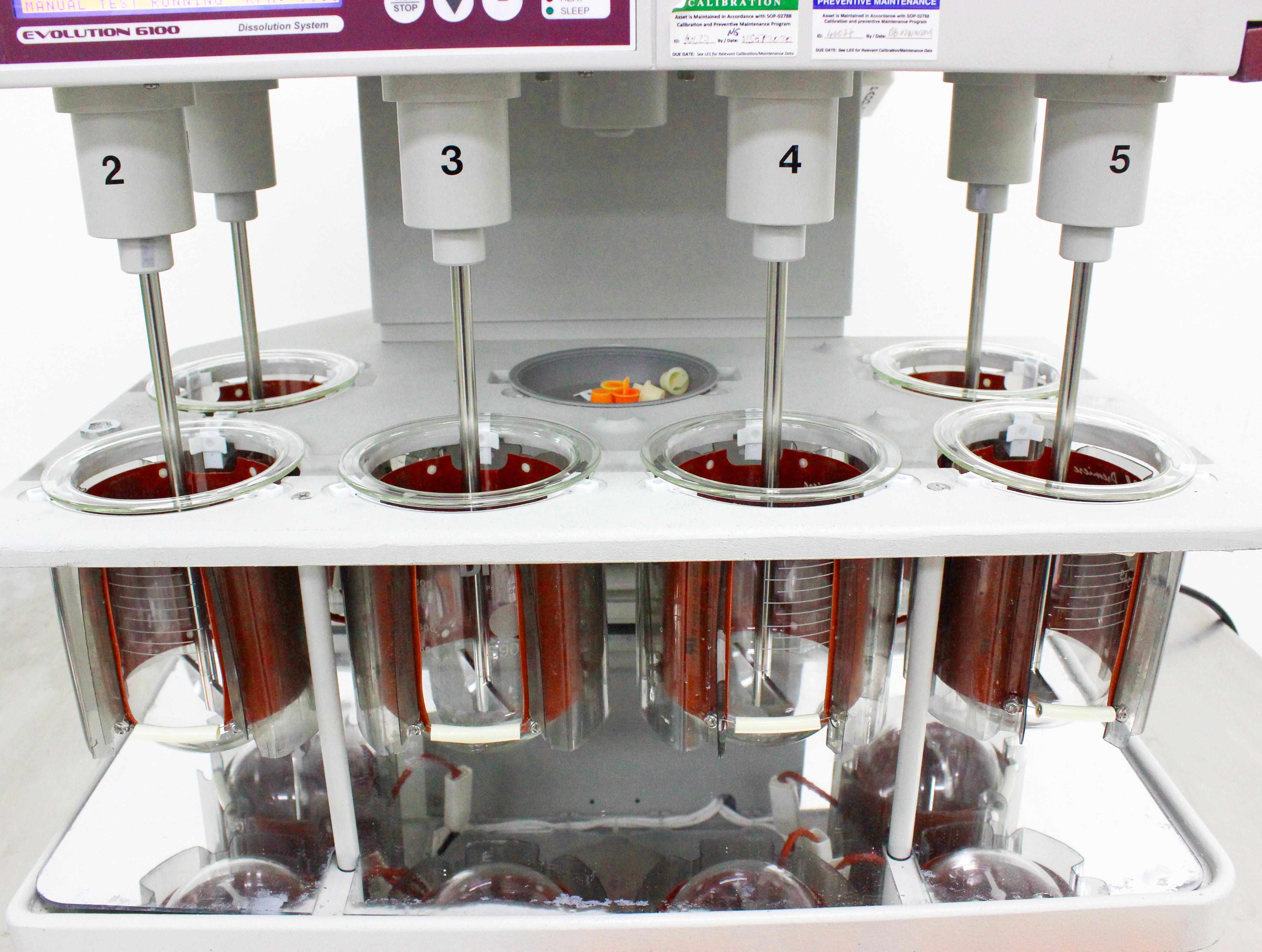

- Dissolution Vessels: Up to Seven Vessels
- Volume: 500 mL – 1000 mL Programmable
- Vessel Heating Rate: 2C per Minute
- RPM Control Range: 25 – 350 RPM, Digitally Controlled, Closed Loop
- Resolution: 0.1 RPM
- Accuracy: ± 0.2 RPM
- Motor: High Torque, Permanent Magnet
- Vessel Temperature Control: Independently Controlled Two-Zone Heater Jackets
- Display Resolution: 0.01C
- Accuracy: ±0.25C
- Calibration: Built-in Calibration Probe
- Shaft Wobble: Less than 0.010” Total Indicator Runout
- Interface Ports: RS-232 (2), RS-485 (1), Parallel Printer (1)
- Construction Materials: Cast Aluminum, Stainless Steel, Acid Resistant Solid State Heating Elements, Engineered Plastics
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 31.2 lb x 46.8 lb
Metric: 60.96 cm x 79.25 cm x 118.87 cm
Harmonized Code
9027.30.45
Harmonized Code Details
9027.30.45 - Devices for measuring or checking viscosity, porosity, expansion, surface tension or the like. This code fits the discretion due to the dissolution system's role in measuring these parameters during testing processes.
