Baker SG604 Class II A2 Biosafety Cabinet Everyone UV, Airflow, 120V 2015
The Baker Company
Details
-
CategoryHood
-
Dimension31.0in x 78.0in x 92.0in
-
Serial114857
-
Shipping TypeFreight
-
Manufacturing2015-05-13
-
Voltage / Hertz120V / 60Hz US
Description

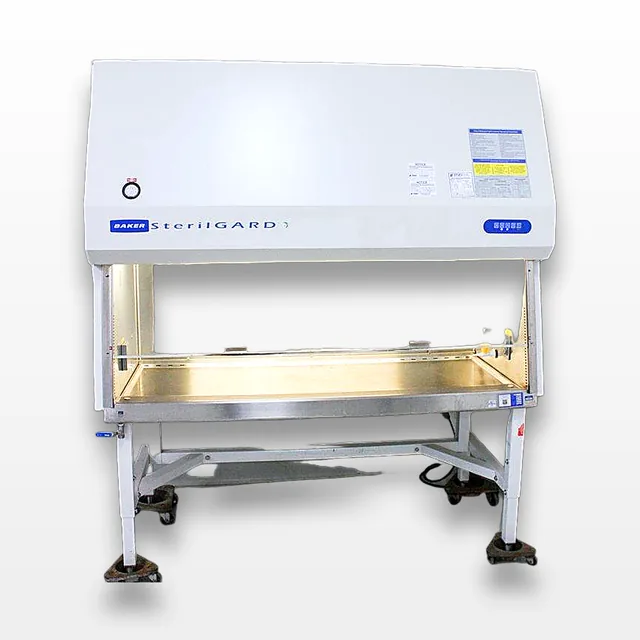

The Baker Company SterilGard SG604 Class II Type A2 Biological Safety Cabinet (manufactured in 2015) is a trusted option for laboratories requiring high-quality containment solutions. It features internal dimensions of 70" W x 24.56" D x 27.44" H, supporting a nominal size of 1.83 meters with a usable workspace measuring 1726 x 499 mm. The cabinet, with a weight of 350 kg, offers an Opening Max of 508 mm and a standard working access opening height of 203 mm that can be adjusted to 254 or 305 mm as needed. Despite slight wear from normal use and minor stains, the unit powers on and completes basic tests successfully. With UV lights and a blower in working order, the SG604 ensures contamination control throughout various applications in research or clinical labs. Operating at 7.7 to 10.0 Amps in normal mode, and 2.1 Amps in ReadySAFE Mode, the cabinet runs efficiently on a 120V/60Hz electrical requirement, generating noise levels from 65 to 67 dBa, suitable for sensitive environments.
Technician comment
UV, lights, blower all working. Unit is preowned with slight wear from normal use, (minor stains around unit.) See photos for details.
Key Features
- Class II Type A2 Biosafety Cabinet
- Internal dimensions: 70" W x 24.56" D x 27.44" H
- Nominal size: 1.83 m
- UV lights and blower functioning
- Operating Amperage: 7.7/10.0/8.8 Amps
- ReadySAFE Mode Amperage: 2.1 Amps
- 120V, 60Hz electrical requirements
- Noise: 65/67/67 dBa
Specifications
- Baker Company Model SG604
- Class II Type A2
- Manufacture Date: 2015
- Usable Workspace: 1726 x 499 mm
- Cabinet Weight: 350 kg
- Shipping Weight: 463 kg
- Maximum Opening: 508 mm
- Working Access Opening Height: 203/254/305 mm
- Power Consumption-Normal: 770/1000/880 Watts
- Power Consumption-ReadySAFE Mode: 242 Watts
- Heat Generation-Normal: 2629/3414/3004 BTU/hr
- Heat Generation-ReadySAFE Mode: 826 BTU/hr
- 100V AC, 20 A, 50/60 Hz
- Noise Level: 65/67/67 dBa
Weight
Imperial: 1020.0 Pounds
Metric: 462.66 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 93.6 lb x 110.4 lb
Metric: 94.49 cm x 237.74 cm x 280.42 cm
Harmonized Code
841460
Harmonized Code Details
Harmonized code 841460 pertains to air pump or gas compressors, often including equipment with fan or blower elements like biosafety cabinets. It is chosen based on the SG604 model's primary function of facilitating controlled airflow.
