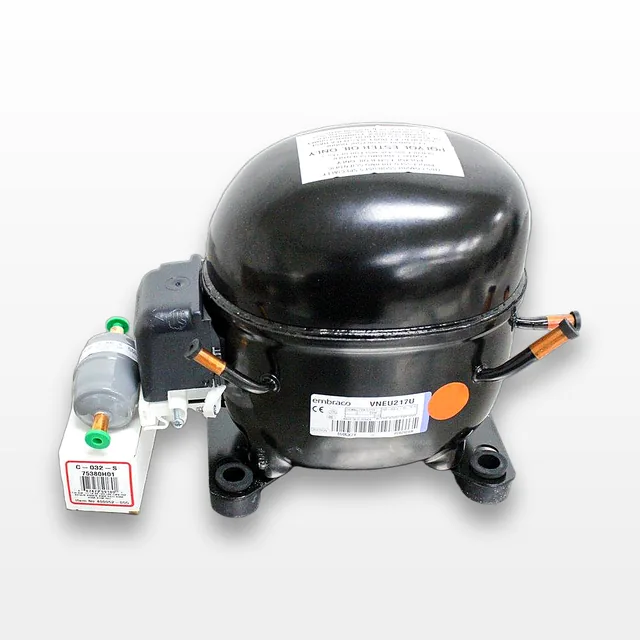

Thermo/Embraco VNEU217U Compressor for LBP Applications with R290 Refrigerant
Thermo/Embraco
Details
-
CategoryCold Storage
-
Dimension12.0in x 14.0in x 19.0in
-
Shipping TypeFedEx Ground
Description
This Thermo/Embraco VNEU217U is a Service Assembly Compressor, ideal for Low Back Pressure (LBP) applications in refrigeration systems. It uses R290 refrigerant and supports an evaporating temperature range from -40°C to -10°C, making it suitable for various cold storage needs. The unit features a fan cooling system with air flow of 520 m3/h and incorporates hermetic reciprocating technology. Although the compressor is in good condition with visible cosmetic wear, it powers on and performs basic tests successfully. It cannot be fully tested, but shows no indication of non-functionality. Technical specifications include a displacement of 16.8 cm3, oil charge of 500ml with ±15ml, and ISO22 polyolester oil type configuration. The compressor's mechanical structure boasts a bore of 31.19 mm and a stroke of 22 mm.
Key Features
- Hermetic reciprocating technology
- R290 refrigerant
- Evaporating temp. range: -40°C to -10°C
- Fan cooling system with 520 m3/h air flow
- Displacement: 16.8 cm3
- Polyolester oil type configuration
Specifications
- Application: LBP
- Refrigerant: R290
- Evaporating Temperature Range: -40°C to -10°C
- Compressor Cooling: Fan
- Fan Air Flow: 520 m3/h
- Type: Hermetic reciprocating
- Technology Type: VCC
- Expansion Device: Capillary Tube or Expansion Valve
- Displacement: 16.8 cm3
- Bore: 31.19 mm
- Stroke: 22 mm
- Oil Charge: 500ml +/-15ml
- Free Internal Volume: 2.1 cm3
- Maximum Recommended Refrigerant Charge: 150 g
- Oil Type: Polyolester, Viscosity: ISO22
- Weight: 14.1 kg
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 16.8 lb x 22.8 lb
Metric: 36.58 cm x 42.67 cm x 57.91 cm
Harmonized Code
841430
Harmonized Code Details
841430 - Compressors used in refrigerating equipment; classified due to its refrigerant compatibility and application in systems requiring cooling within specified temperature ranges.
