Eppendorf Mastercycler SX1 PCR Thermal Cycler with Flex Lid 4-99°C Capacity
Eppendorf
Details
-
CategoryMolecular Biology
-
Dimension15.0in x 9.0in x 12.0in
-
Serial6346CM705071
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-130V / 50Hz/60Hz
Description
The Eppendorf Mastercycler Nexus SX1 is a non-gradient thermal cycler offering reliable performance for PCR applications. Manufactured by Eppendorf, it features a versatile silver thermal block accommodating up to 96x 0.2 mL PCR tubes, 77x 0.5 mL PCR tubes, or 1x 96 well PCR plate. The thermal cycler also boasts a comprehensive temperature control range from 4-99°C, utilizing Peltier elements and triple circuit technology for efficient heating and cooling (approx. 5°C/s heating and 3.5°C/s cooling rates). With a lid temperature range of 37-110°C, the unit incorporates Eppendorf's ergonomic flex lid technology for ease of use. Designed for energy efficiency, it consumes only 540W during operation with interfaces such as USB, Ethernet, and CAN in/out, ideal for routine laboratory PCR operations. This unit is in very good condition, maintaining full functionality with minimal cosmetic wear.
Technician comment

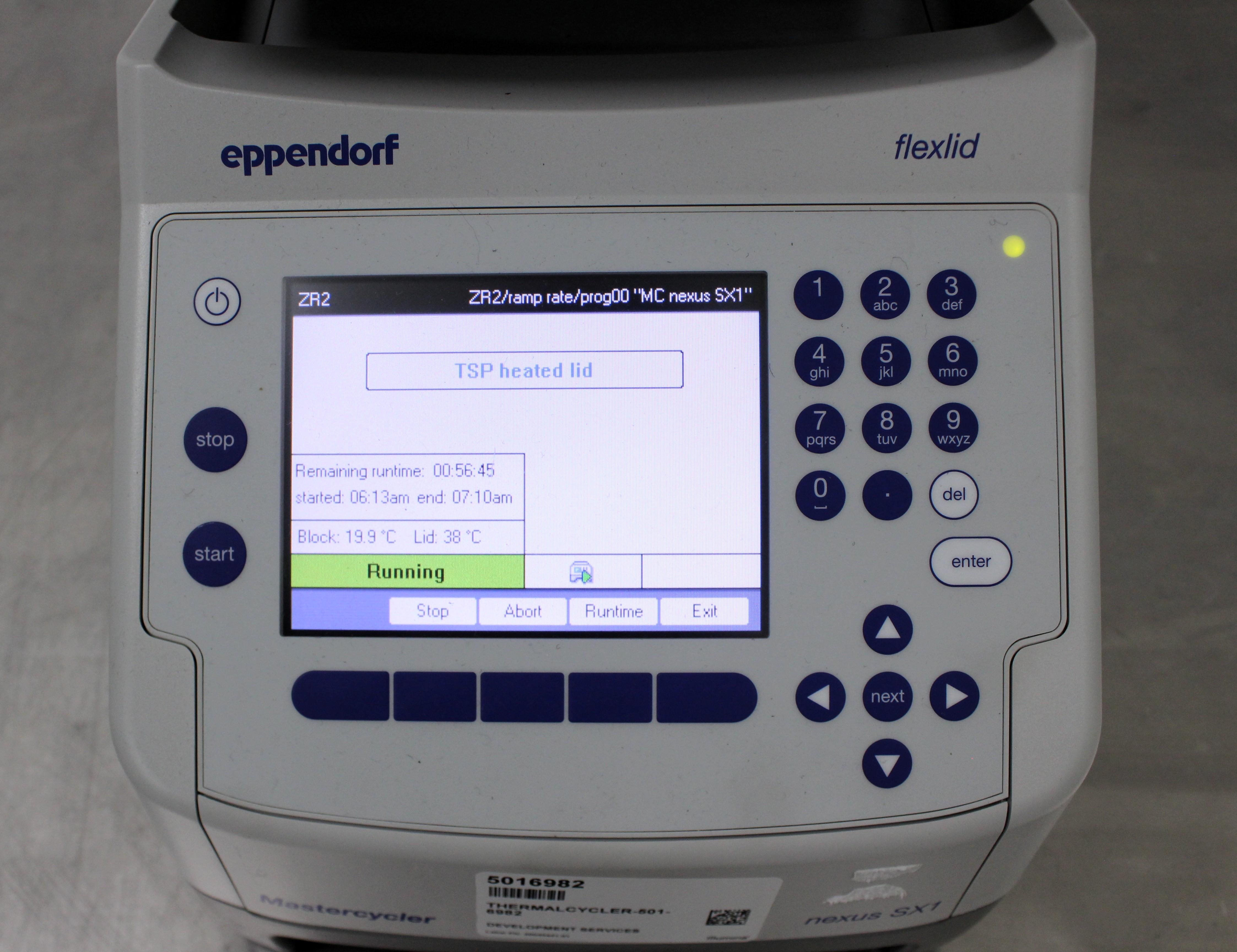

Unit powers on and performs all necessary duties. No pin code is required just press enter. Heating plate got to temp. System is running (see pic). Came from a working environment.
Key Features
- Non-gradient thermal cycler
- Silver thermal block for effective temperature uniformity
- Accommodates 96x 0.2 mL PCR tubes or 1x 96 well PCR plate
- Temperature control from 4-99°C for versatile applications
- Efficient Peltier elements and triple circuit technology
- Flexlid technology for ergonomic lid operation
- High energy efficiency with low power consumption
Specifications
- Thermoblock: Silver
- Sample capacity: 96x 0.2 mL PCR tubes, 77x 0.5 mL-PCR tubes, or 1x 96 well PCR plate
- Temperature control range: 4-99°C
- Lid temperature range: 37-110°C
- Block homogeneity: 20-72°C < ±0.3°C, 95°C < ±0.4°C
- Block temperature accuracy: ≤ ±0.2°C
- Heating rate: Approximately 5°C/s
- Cooling rate: Approximately 3.5°C/s
- Interfaces: USB, Ethernet, CAN in/out
- Power consumption: 540W
- Operating voltage and frequency: 100-130V, 50Hz/60Hz
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 10.8 lb x 14.4 lb
Metric: 45.72 cm x 27.43 cm x 36.58 cm
Harmonized Code
9027.50
Harmonized Code Details
9027.50 - Instruments and apparatus for physical or chemical analysis - Specifically for thermal cycling instruments like PCR machines widely used in laboratories for molecular biology experiments.
