Thermo DIONEX-ICS-6000 DC-6 Detector Chromatography HPIC System 5000psi
Thermo Scientific
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension16.0in x 9.0in x 22.0in
-

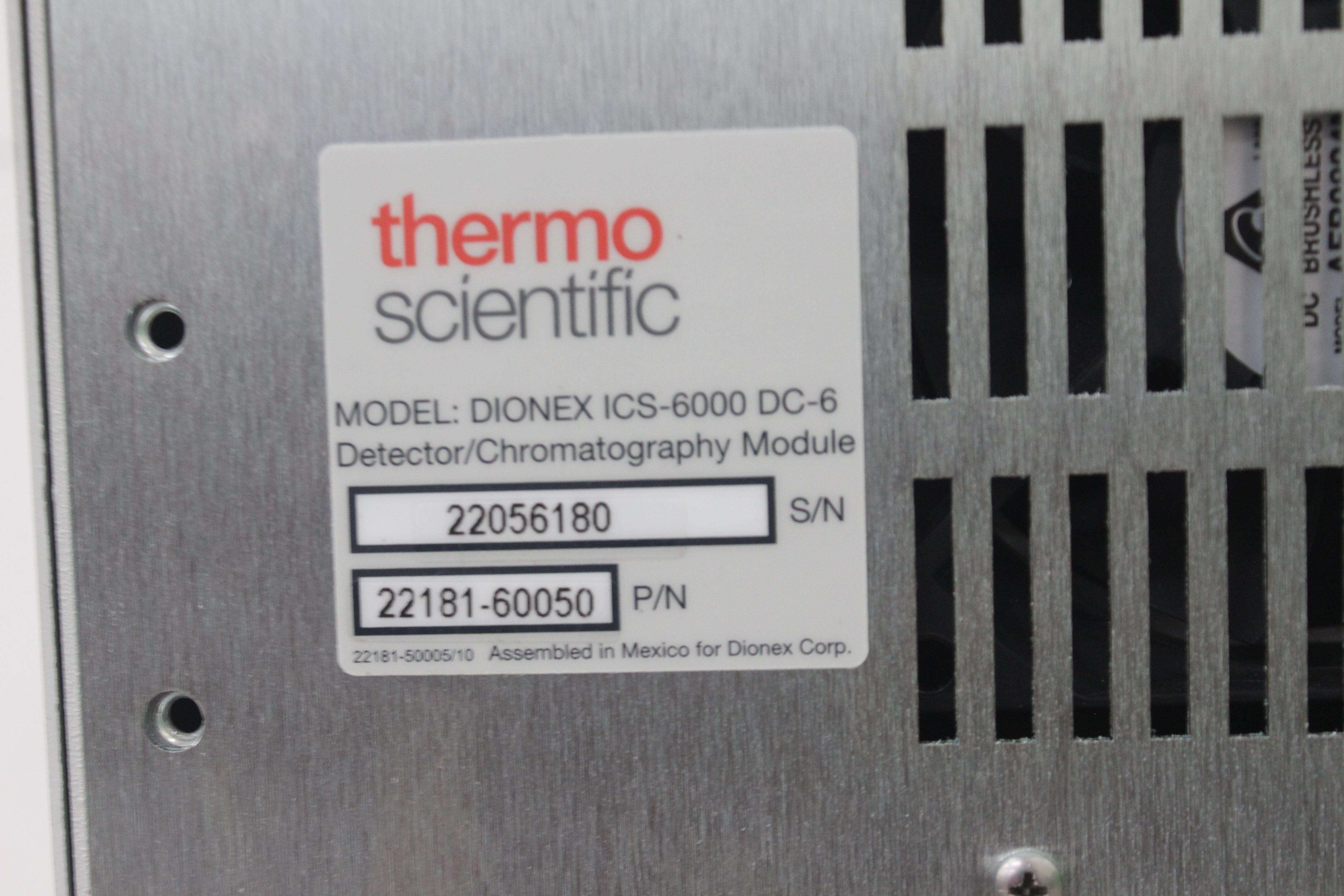

Serial22056180
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Thermo Scientific Dionex ICS-6000 DC-6 HPIC system, originating from the United States, embodies robust and versatile ion chromatography performance. Highly configurable, it allows for single or dual-channel operation, accommodating diverse IC applications from trace-level analysis to HPAE-PAD for carbohydrate analysis. Compatible with various detectors including suppressed conductivity and mass spectrometry, it supports comprehensive analytical tasks. The system operates at pressures up to 5000 psi, ensuring reliable results. CDS Software enhances operational ease, while automated eluent generation ensures method accuracy. Note: Computer is not included with this unit.
Technician comment
Item powers on although CD temperature not able to be controlled by system 1. Confirmed issue is not with the CDs or the backplane board. Swapped the cell cable connectors on the main board and temperature control defect moved to system 2 indicating it is an issue with the cable or the connection at the cell bay.
Key Features
- High-pressure ion chromatography up to 5000 psi
- Supports single or dual-channel operation
- Compatible with suppressed conductivity, electrochemical, UV-Vis, ICP-MS, and MS detectors
- Handles a full range of IC applications
- Ready for mass spectrometry integration
- Automated eluent generation
- Includes Chromeleon CDS software
Specifications
- Pump Type: Dual-piston (in series), microprocessor-controlled
- Pressure Range: 0–5000 psi
- Flow Rate Range: Analytical: 0.000–10.000 mL/min, optional upto 22.4 mL/min
- Flow Rate Precision: < 0.1%
- Pressure Ripple: < 1% at 1.0 mL/min
- Gradient Formation: Quaternary low pressure or electrolytic eluent generation at high pressure
- Analytical RFIC-EG gradients: 0.1–100 mM
- Eluent Generation: Optional
- Software: Chromeleon 7.2 CDS software, supports Microsoft Windows 7
- System Smart Startup and Shutdown: Standard feature
- GLP Compliance: Optional
- Weight: 55 lb (24.9 kg)
- Dimensions: 16 × 8.75 × 21.5 in (41 × 23 × 54.5 cm)
Weight
Imperial: 66.0 Pounds
Metric: 29.94 Kilograms
Shipping Dimensions
Imperial: 19.2 lb x 10.8 lb x 26.4 lb
Metric: 48.77 cm x 27.43 cm x 67.06 cm
Harmonized Code
90272050
Harmonized Code Details
90272050: Instruments and apparatus for physical or chemical analysis. This code is selected due to the Dionex ICS-6000 being an analytical instrument used in chromatography.
