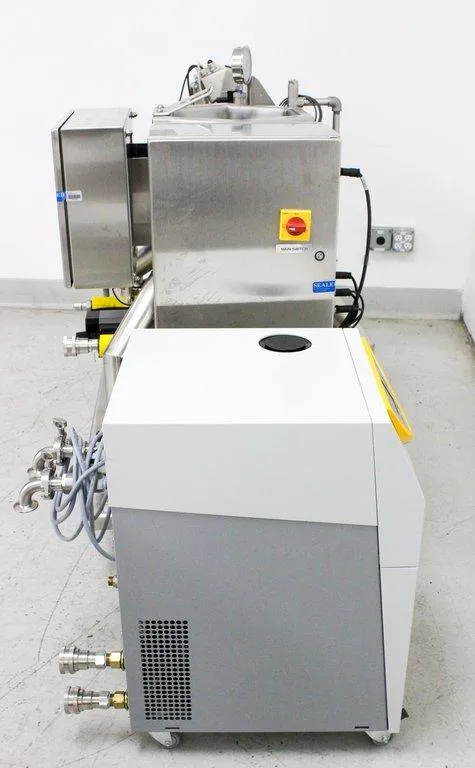

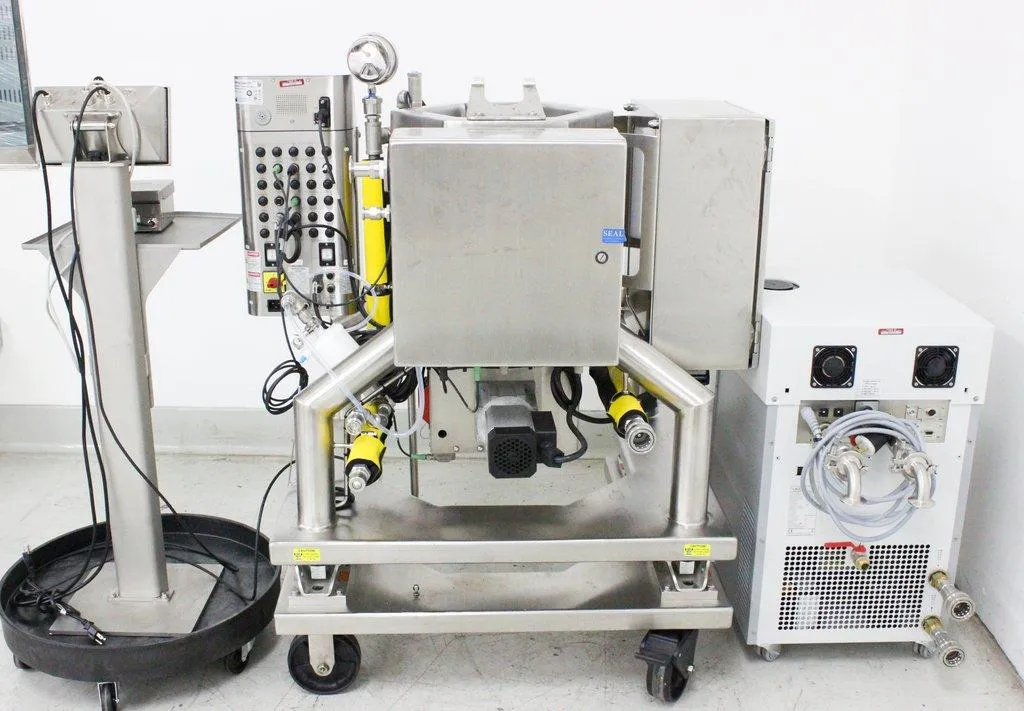

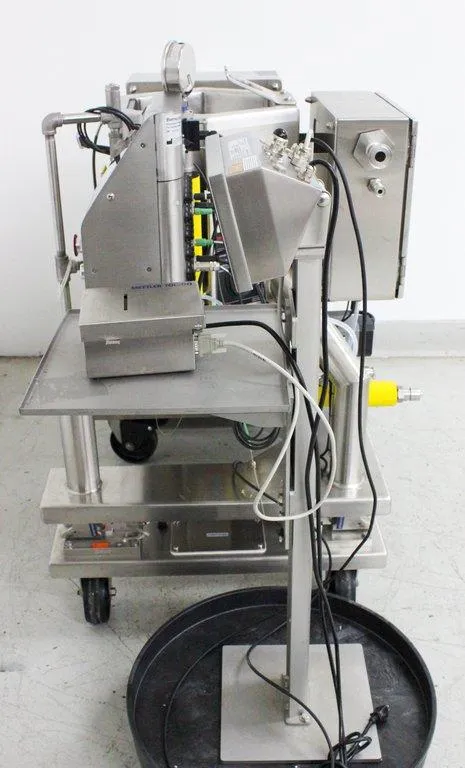

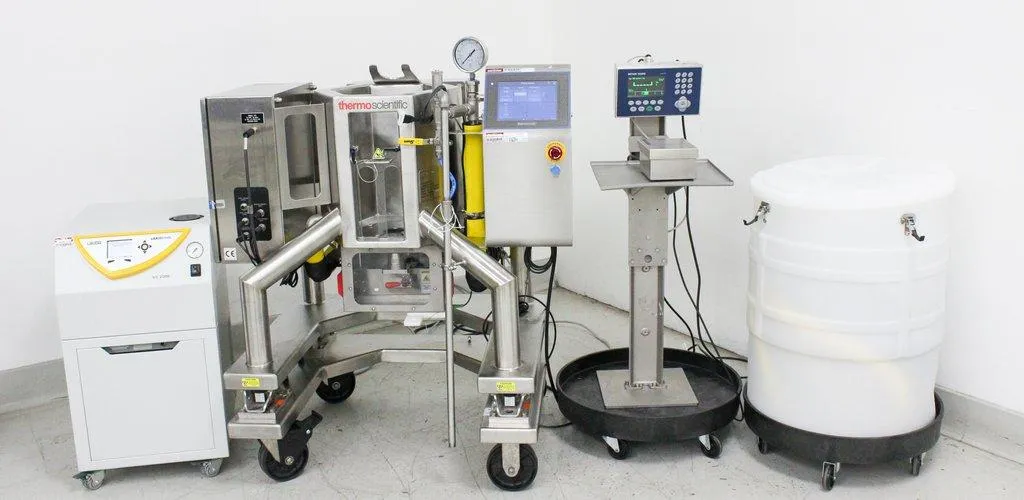

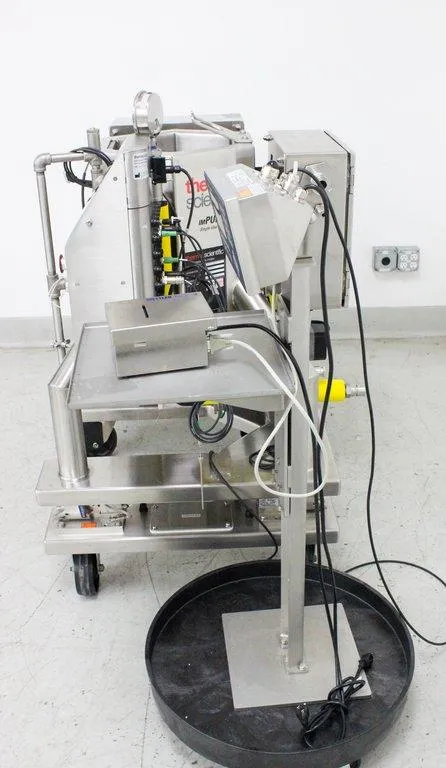

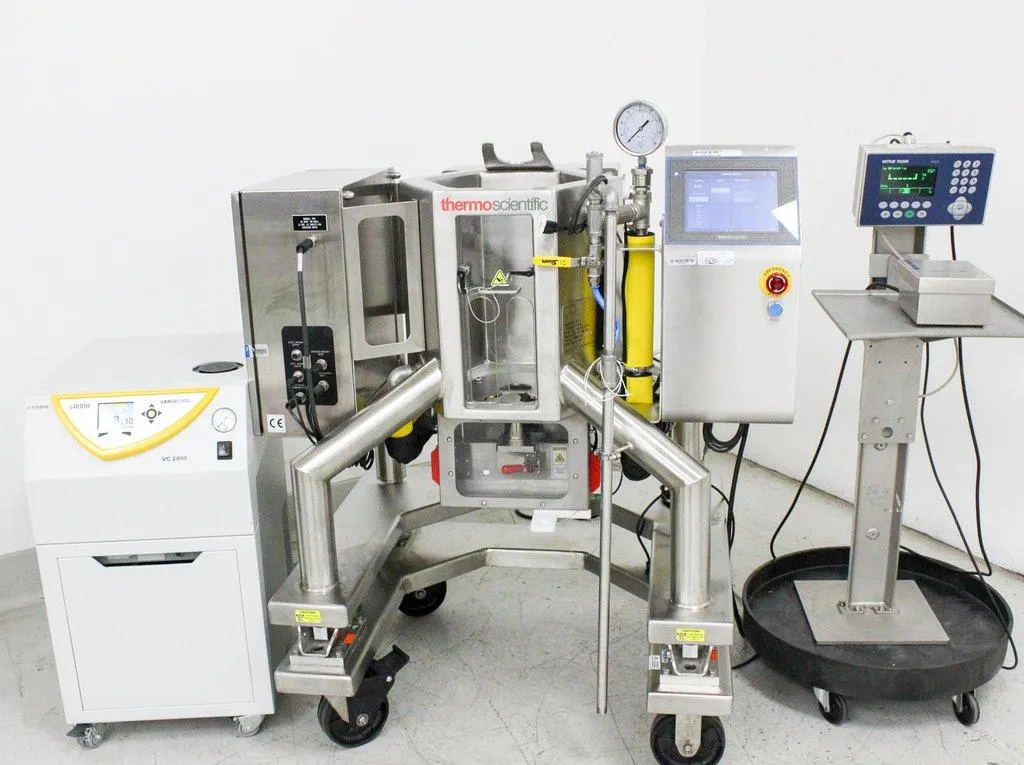

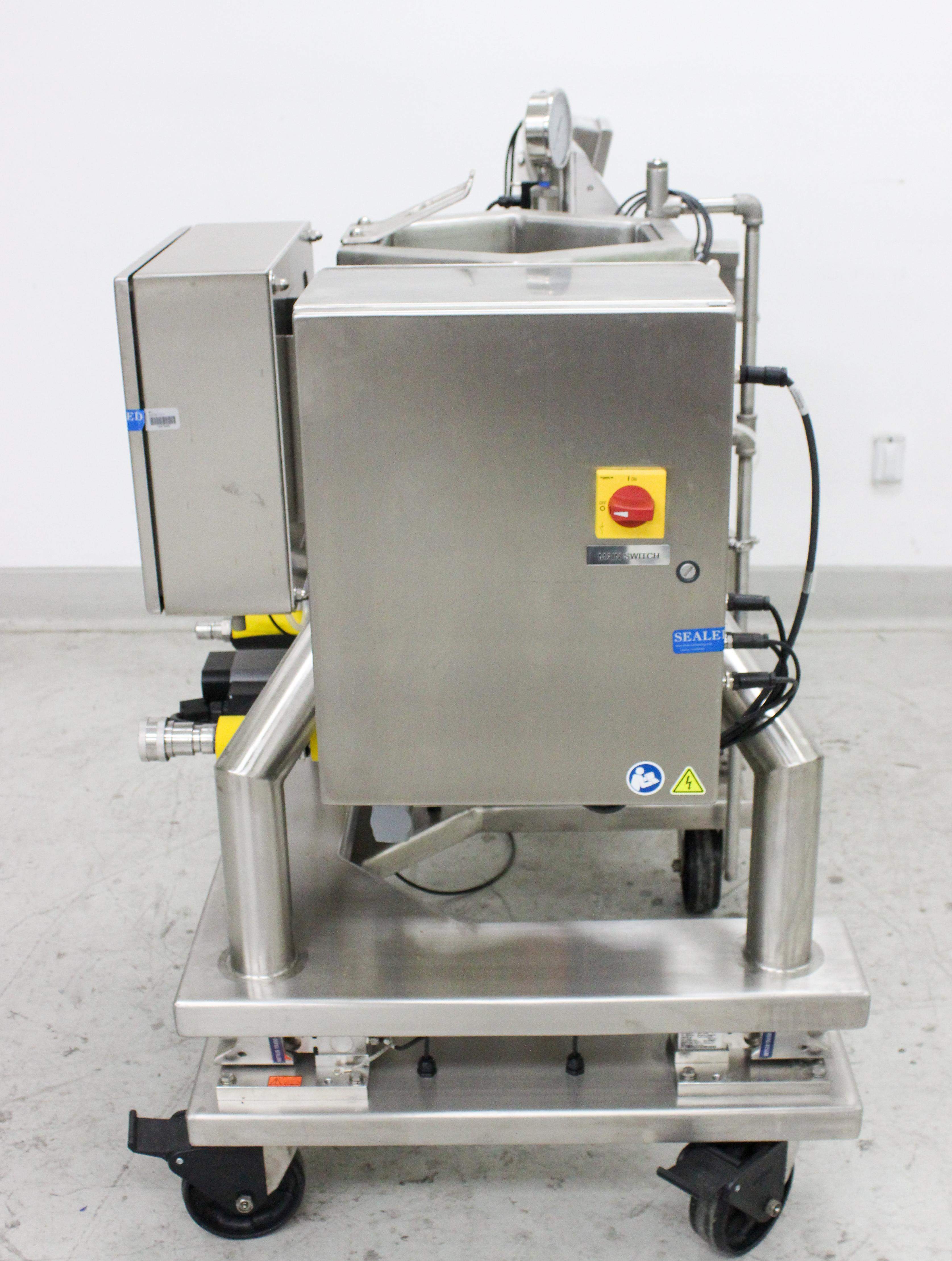

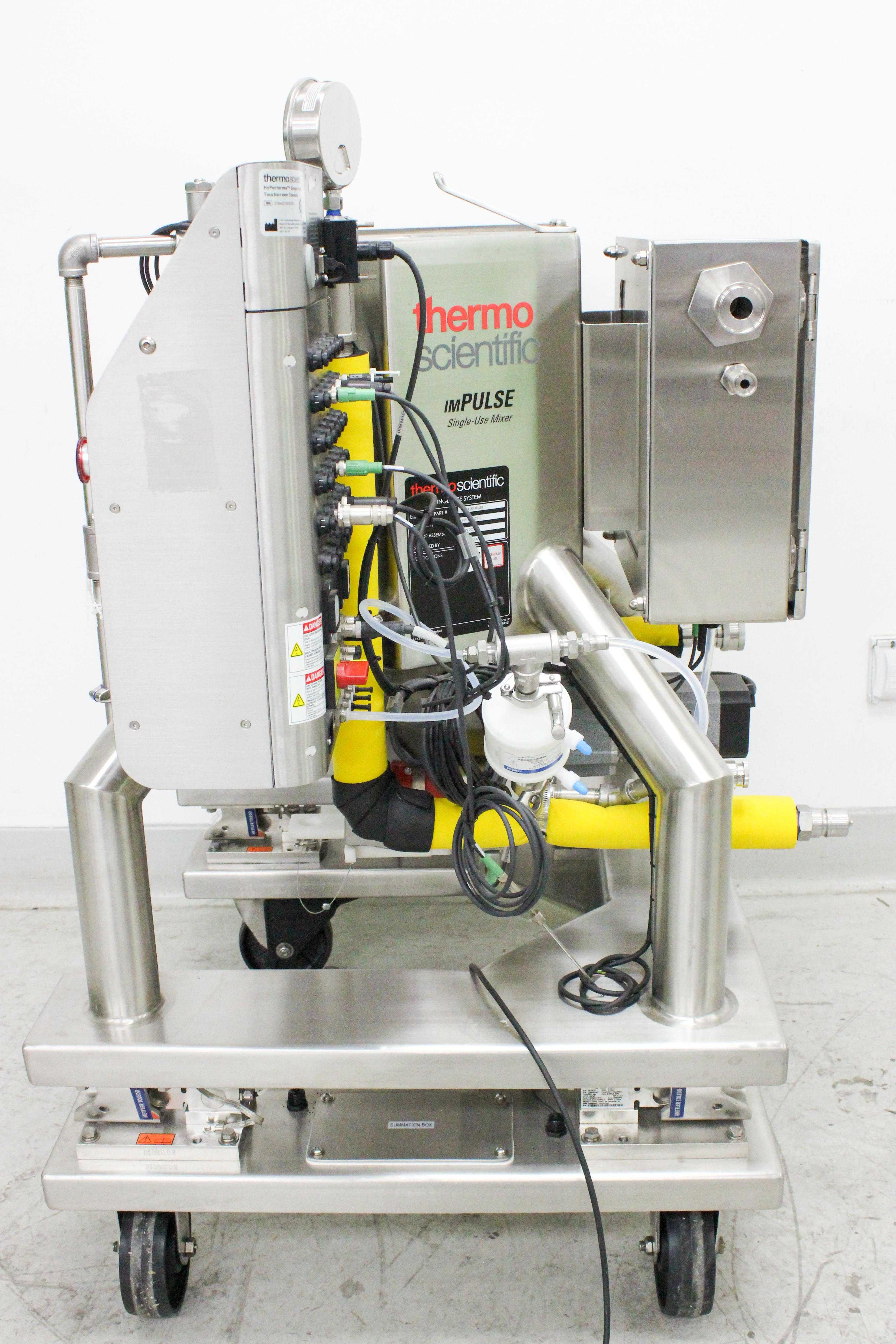

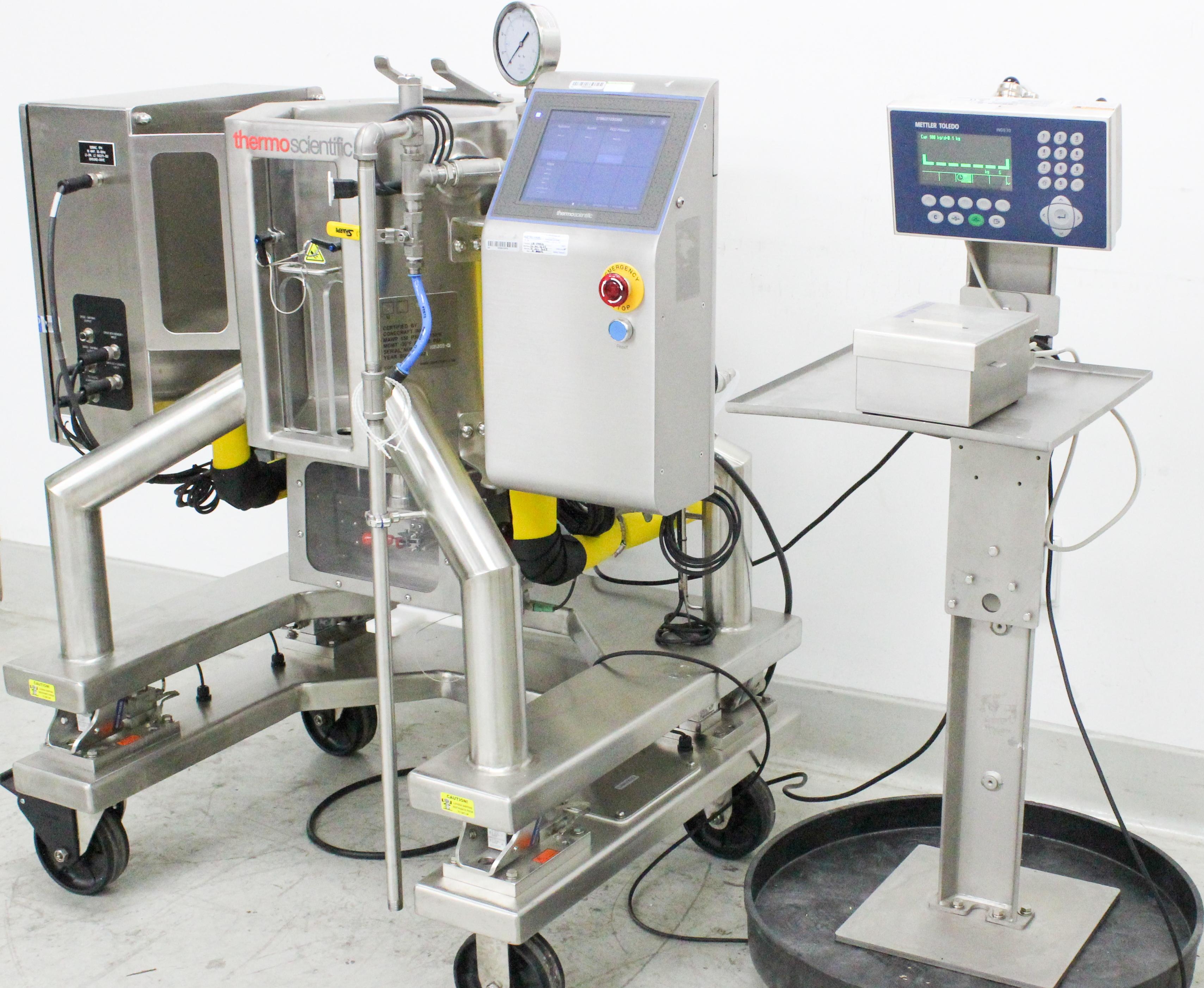

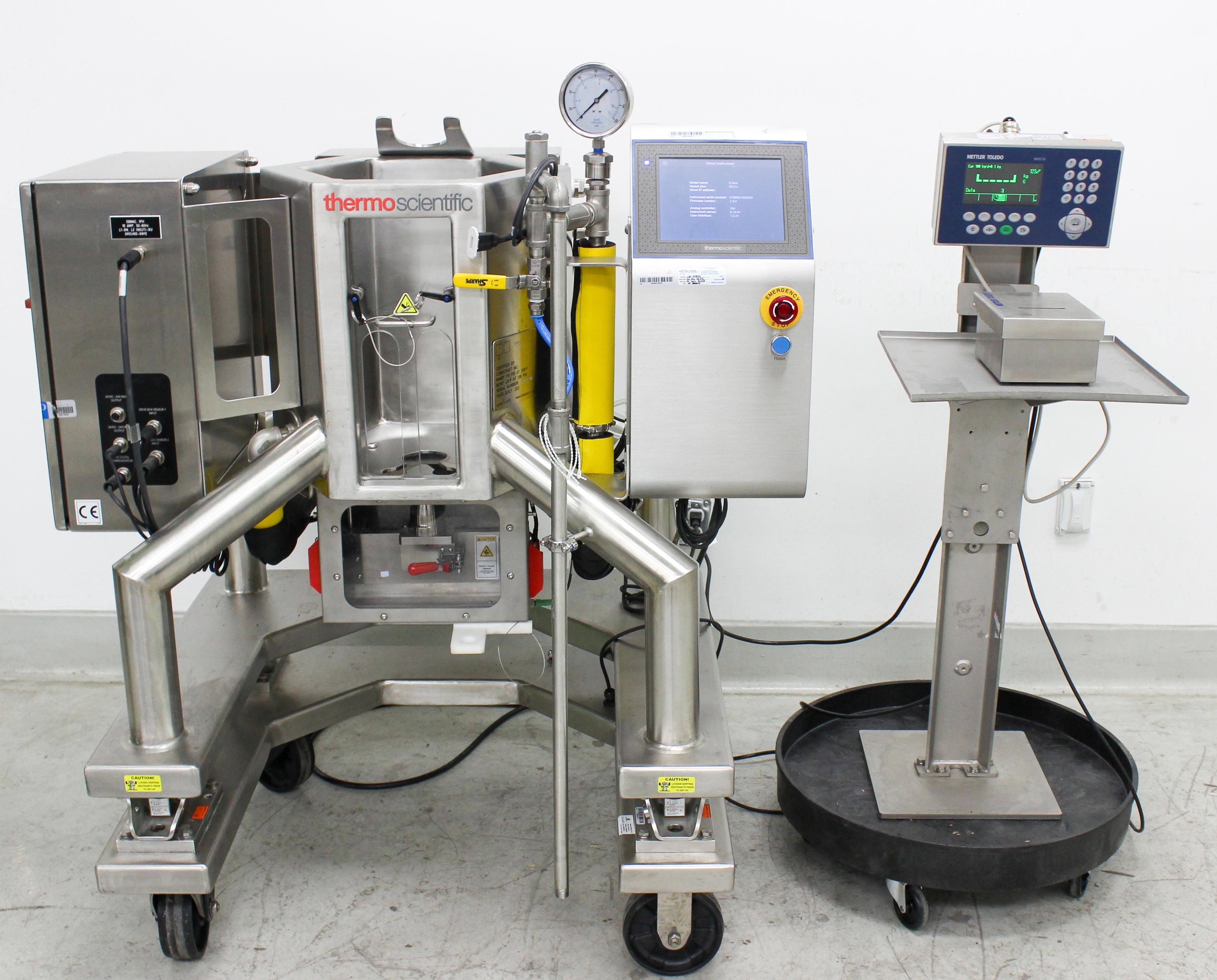

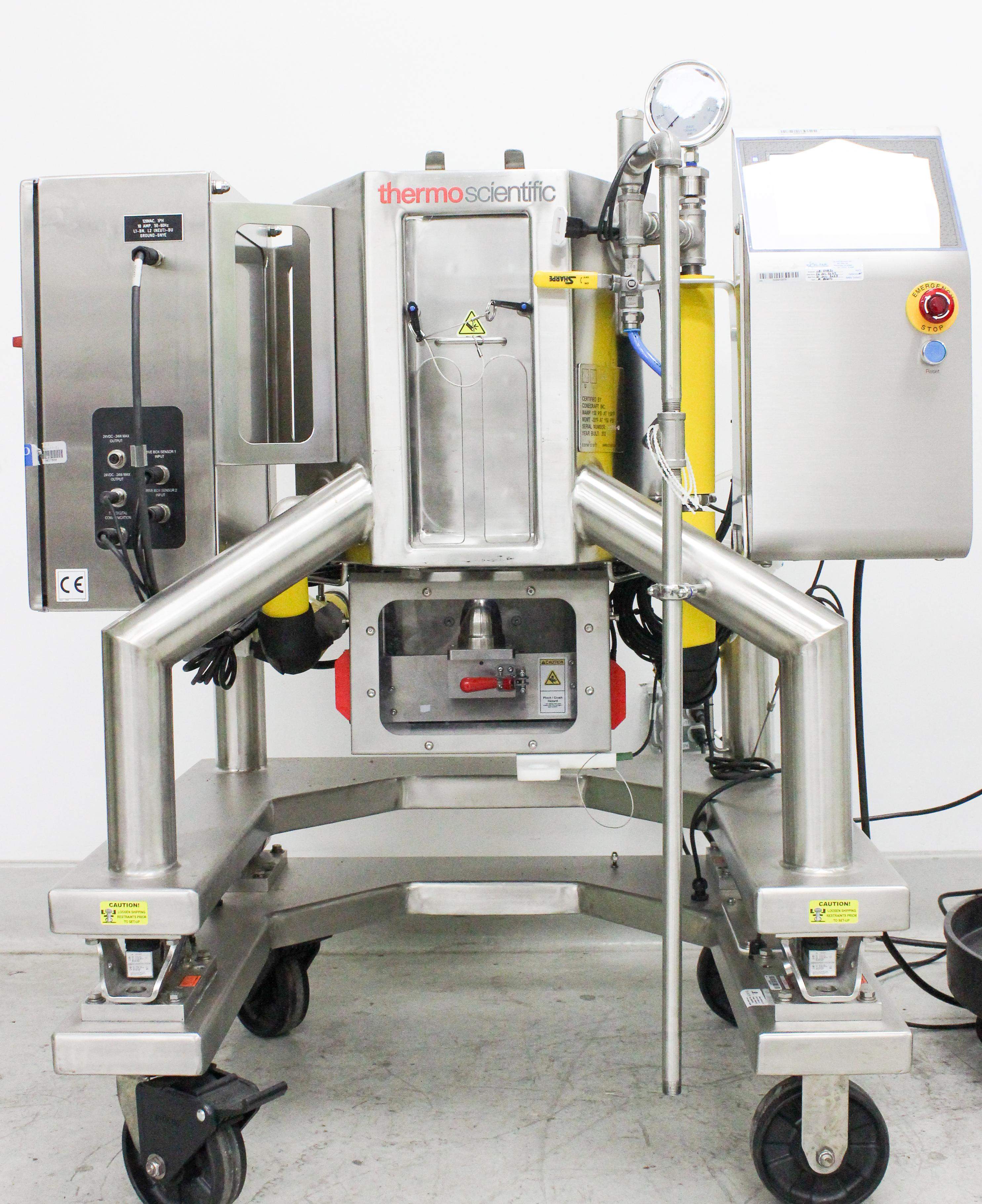

Thermo Scientific imPULSE S.U.M. 30L Mixer with Touchscreen Console
Thermo Scientific
Details
-
CategoryBioprocessing
-
Dimension33.0in x 70.0in x 53.0in
-

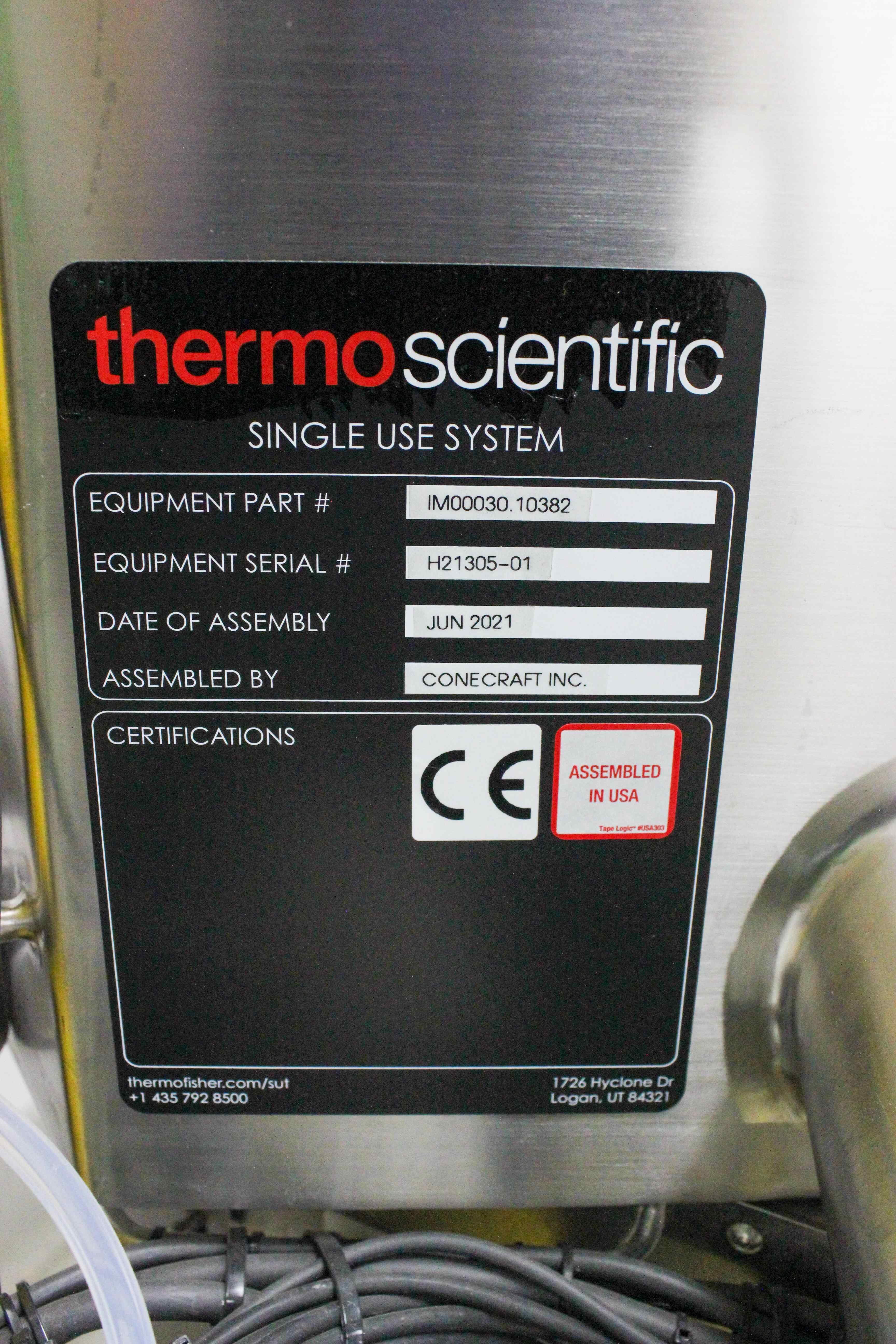

SerialH21305-01
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

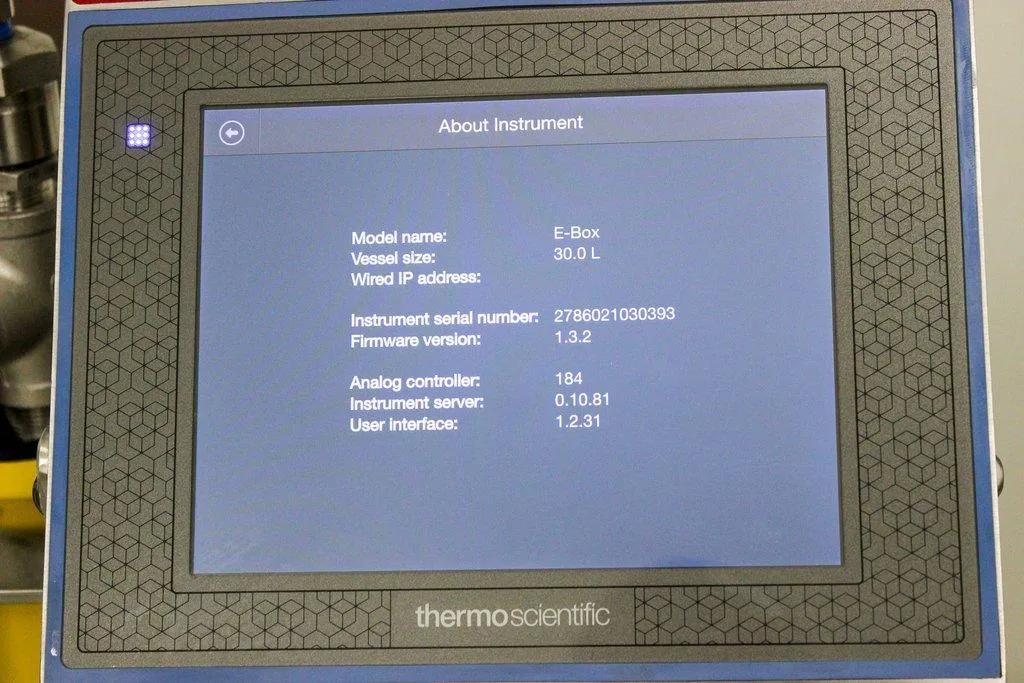

The Thermo Scientific imPULSE Single Use Mixer S.U.M. 30L, featuring a touchscreen console, is a versatile asset for bioprocess mixing applications. With a nominal working volume of 30L, this mixer can effectively handle tasks that require superior and uniform mixing enabled by innovative disc mixing technology. Though not fully tested, it powers on and performs basic functions without visible indications of malfunction, despite cosmetic wear. The touchscreen console integrates sensor monitoring and pump control for operations like pH titration and automatic filling or harvesting. Hardware elements include a sliding window, load cells, and configurable controls. It supports standard BioProcess Containers (BPCs) with advanced connectivity for easy process adjustments. Ideal for laboratories needing customizable, high-end controls for precise bioprocess tasks.
Technician comment

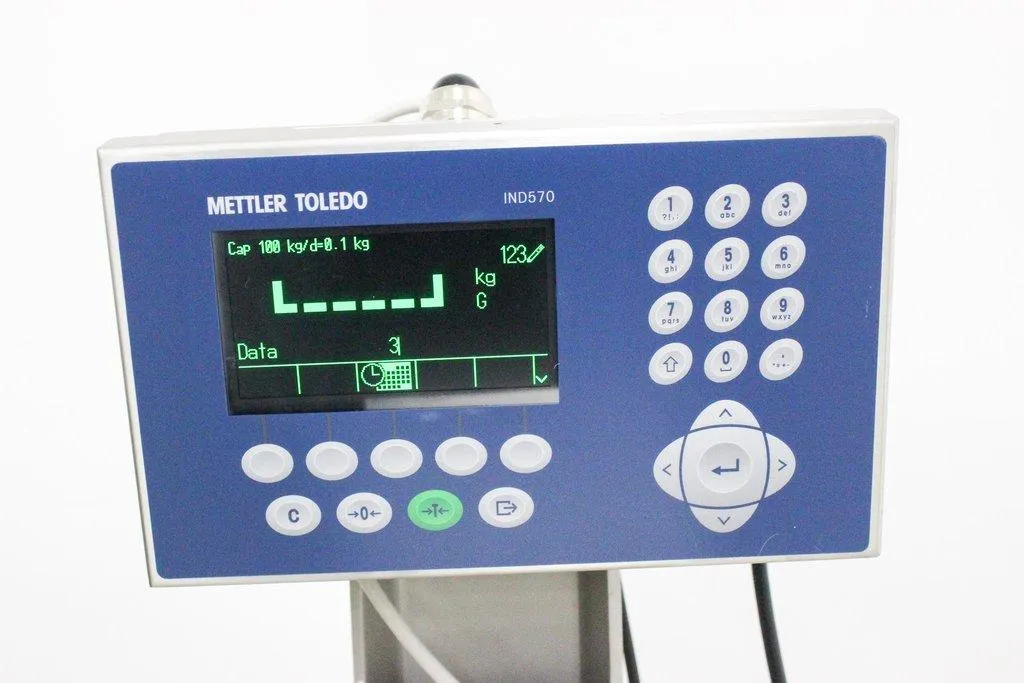

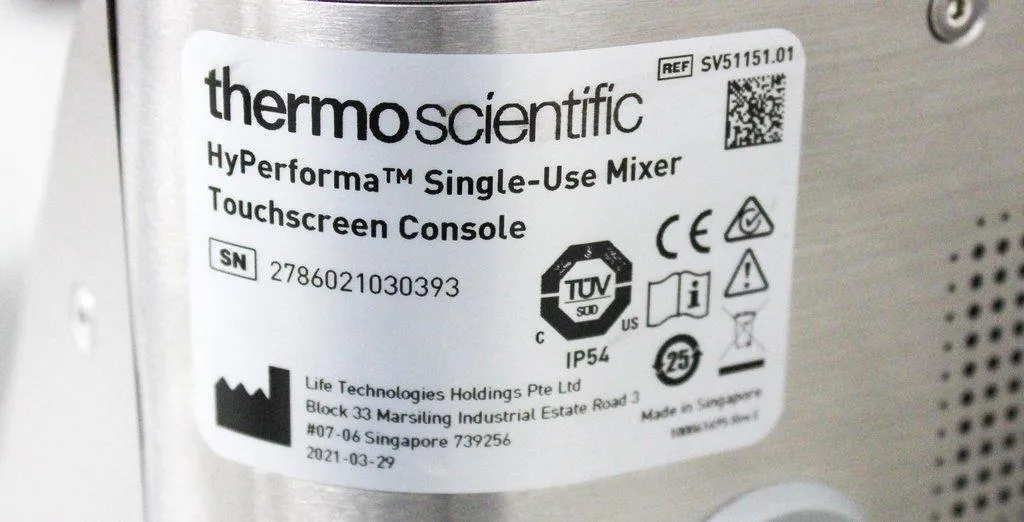

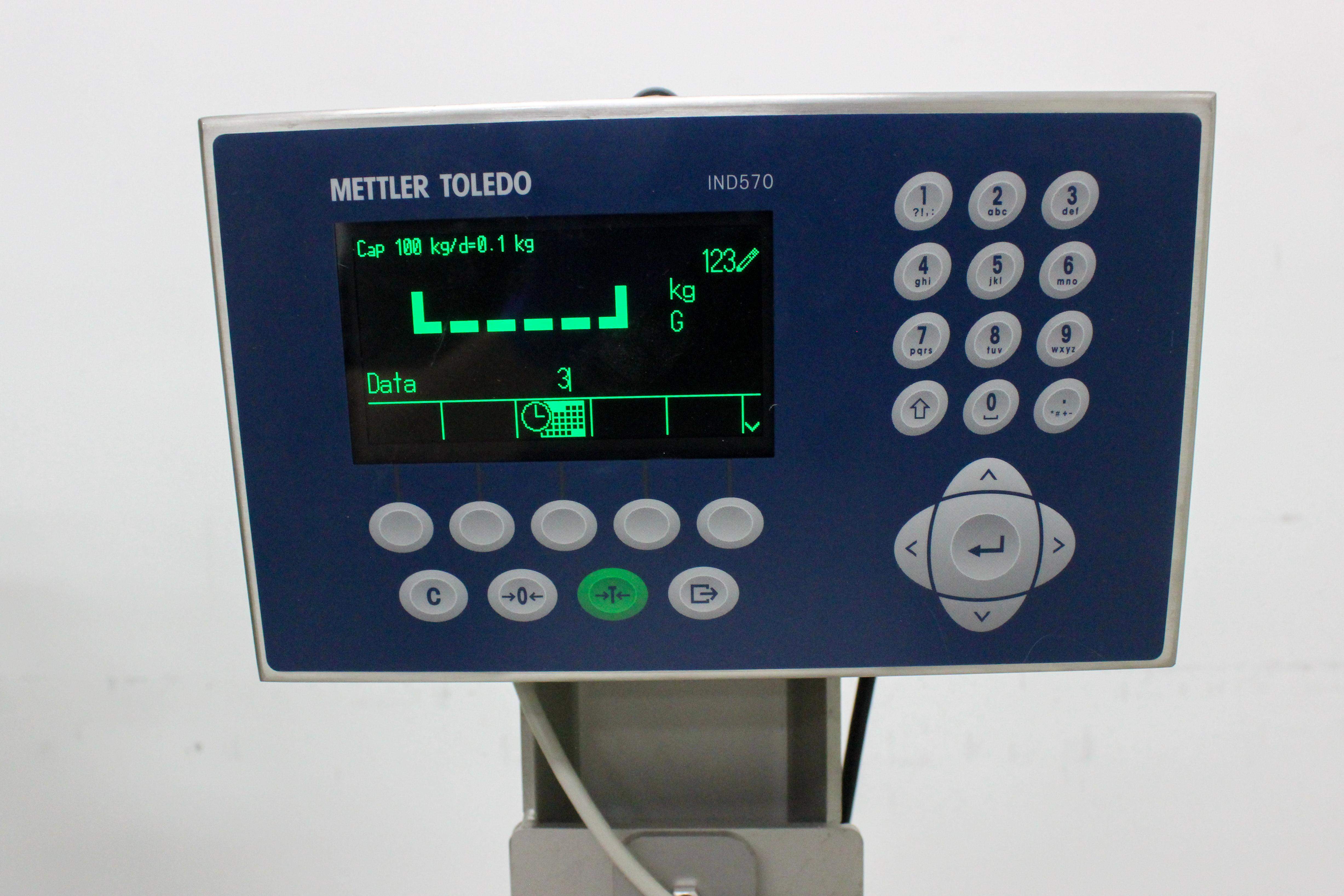

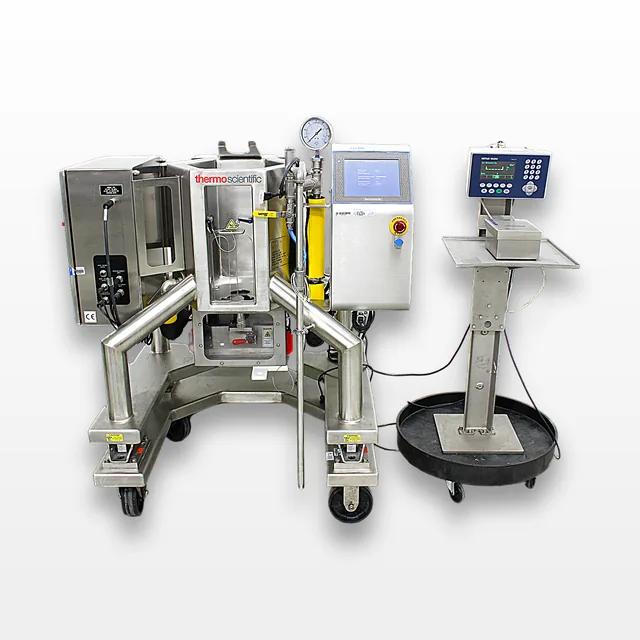

imPULSE Single Use Mixer S.U.M. 30L with Touchscreen Console & Weight Module

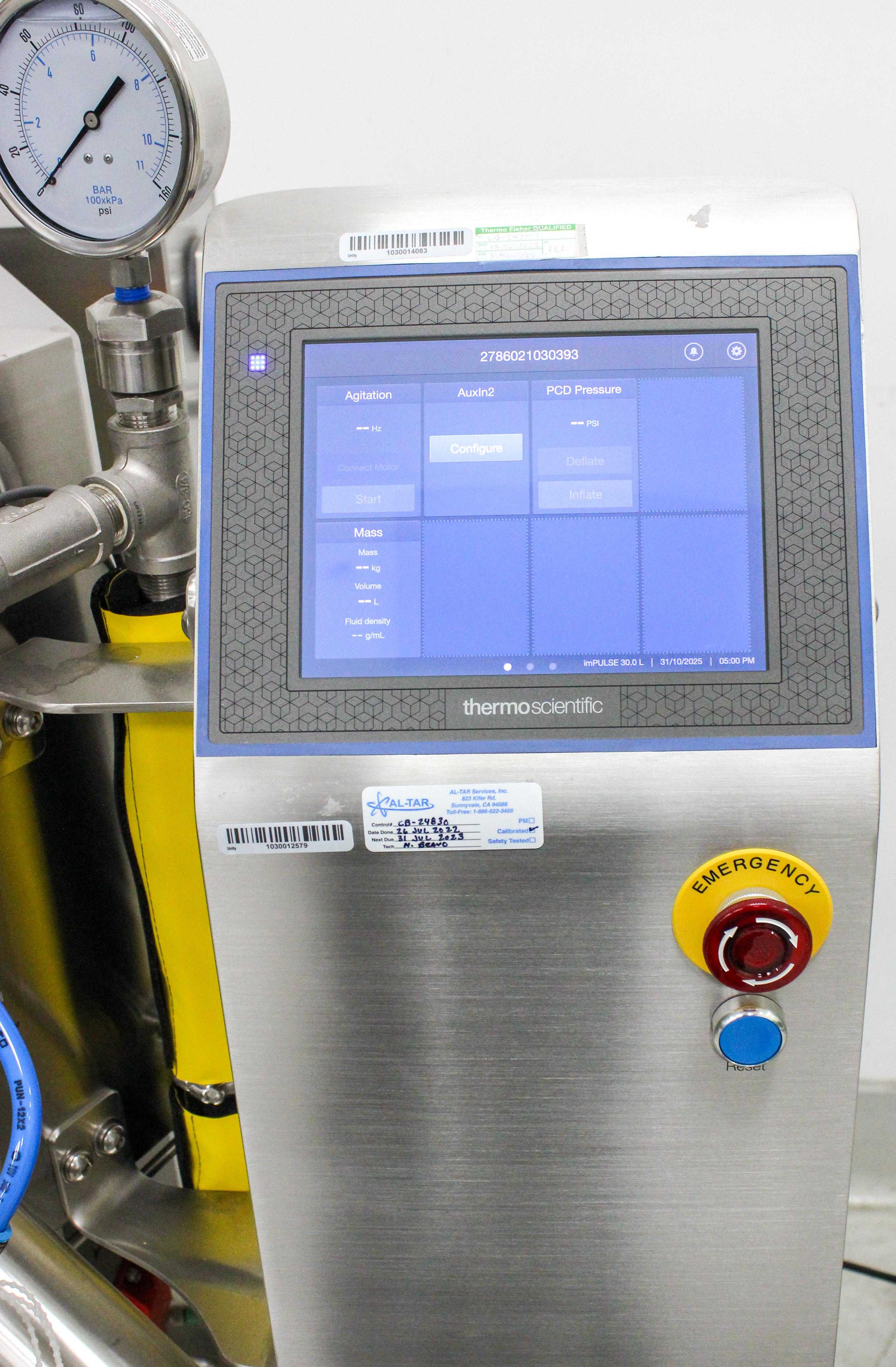

Key Features

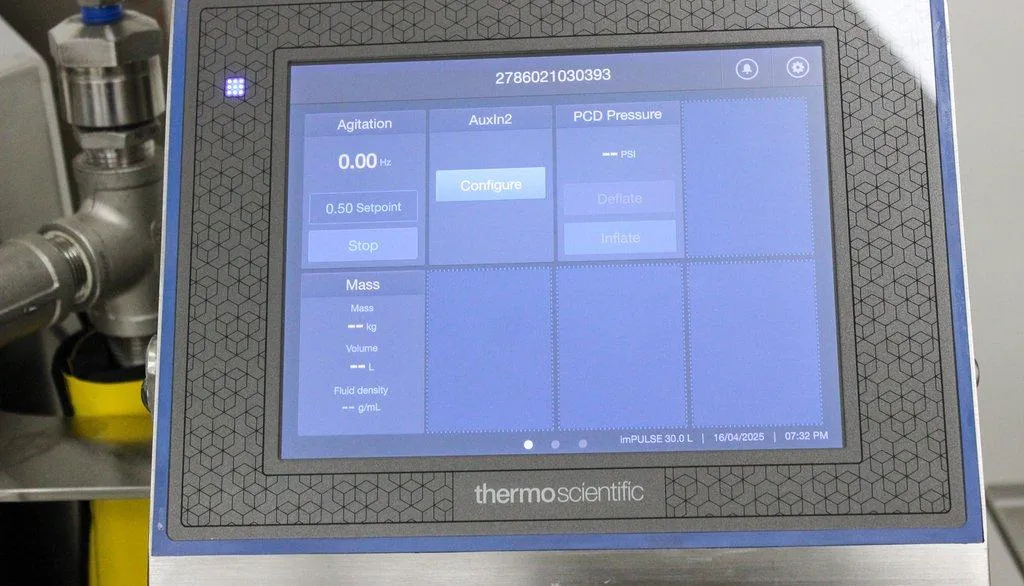

- Touchscreen Console for integrated monitoring
- 30L nominal working volume
- Disc mixing technology for uniform mixing
- Adjustable powder ports
- Supports bioprocess applications
- Stainless steel vessel construction
- Integrated rolling diaphragm for smooth operation
Specifications
- Nominal working volume: 30L
- Maximum working volume: 35L
- Minimum startup volume: 10%
- Dry unit weight: 245.9 kg (542.25 lb)
- Maximum noise level: <78 dB at 1 m
- Motor speed: 0.5–2 Hz
- Inflation air pressure: Max 80 psi
- Compatible sensors: pH, Conductivity
- Touchscreen Console dimensions: 25.0 x 52.0 x 23.4 cm
- Pumps: Supports various with 4–20 mA signal control
Weight
Imperial: 720.0 Pounds
Metric: 326.59 Kilograms
Shipping Dimensions
Imperial: 39.6 lb x 84.0 lb x 63.6 lb
Metric: 100.58 cm x 213.36 cm x 161.54 cm
Harmonized Code
84798200
Harmonized Code Details
84798200: Machines and mechanical appliances for mixing. Given the equipment’s primary function as a mixer in bioprocessing, this category is the most fitting.
