Thermo Embraco VNEU217U Service Assembly Compressor for LBP Applications
Thermo/Embraco
Details
-
CategoryCold Storage
-
Dimension12.0in x 14.0in x 19.0in
-
Shipping TypeFedEx Ground
Description

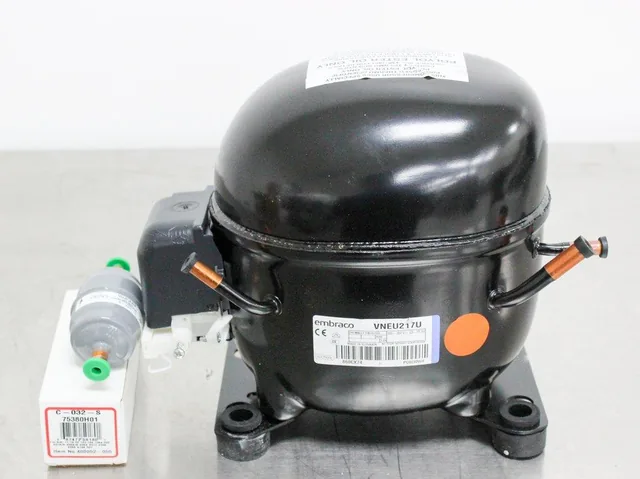

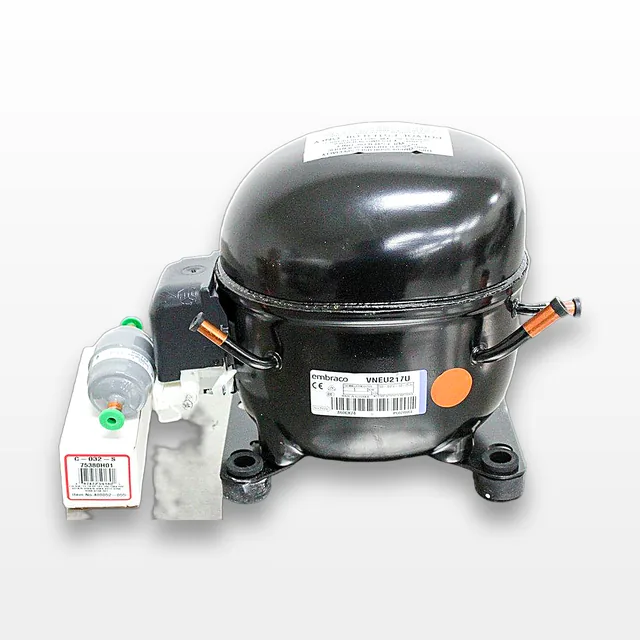

The Thermo Embraco VNEU217U Service Assembly Compressor, Sub-Model 303255G49, is designed for Low Back Pressure (LBP) applications. It uses R290 refrigerant with an evaporating temperature range from -40°C to -10°C, making it ideal for various cooling systems. The hermetic reciprocating compressor features VCC technology and is equipped with a fan for efficient cooling, providing an air flow of 520 m3/h. It includes a capillary tube or expansion valve as an expansion device. With a weight of 14.1 kg, it has a displacement of 16.8 cm3 and uses ISO22 Polyolester oil. The equipment was tested to power on and perform basic operations, indicative of good condition, despite some cosmetic wear from prior use. Components like power cords, software, or service records are not included.
Key Features
- Application: Low Back Pressure (LBP)
- Refrigerant: R290
- Evaporating Temperature: -40°C to -10°C
- Fan cooling with 520 m3/h air flow
- Hermetic reciprocating compressor
- VCC technology with capillary tube or expansion valve
- Oil Type: Polyolester, Viscosity: ISO22
Specifications
- Application: LBP
- Refrigerant: R290
- Evaporating Temperature Range: -40°C to -10°C
- Compressor Cooling: Fan
- Fan Air Flow: 520 m3/h
- Type: Hermetic reciprocating
- Technology: VCC
- Expansion Device: Capillary Tube or Expansion Valve
- Displacement: 16.8 cm3
- Bore: 31.19 mm
- Stroke: 22 mm
- Oil Charge: 500ml +/-15ml
- Maximum Recommended Refrigerant Charge: 150 g
- Oil Type: Polyolester
- Oil Viscosity: ISO22
- Weight: 14.1 kg
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 16.8 lb x 22.8 lb
Metric: 36.58 cm x 42.67 cm x 57.91 cm
Harmonized Code
841430
Harmonized Code Details
841430 - Compressors for refrigerating equipment. Chosen due to its specification as a compressor for refrigerating systems using refrigerant R290.
