Exide D3E-12-850B Battery Charger Industrial Depth Lead-Acid 850AH 24V Fair
Exide
Details
-
CategoryFacility
-
Dimension20.0in x 27.0in x 29.0in
-
SerialS61661-2-11
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

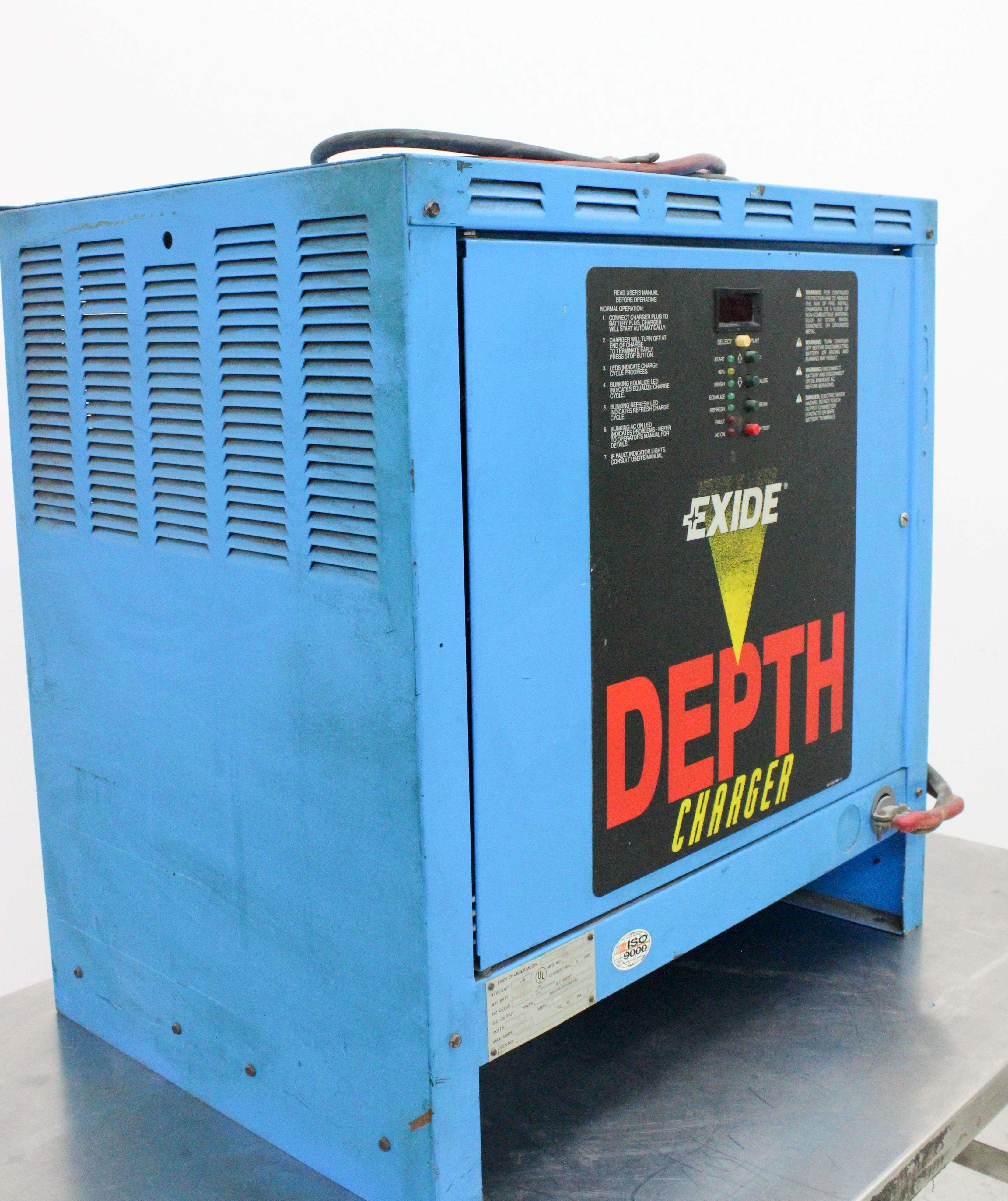

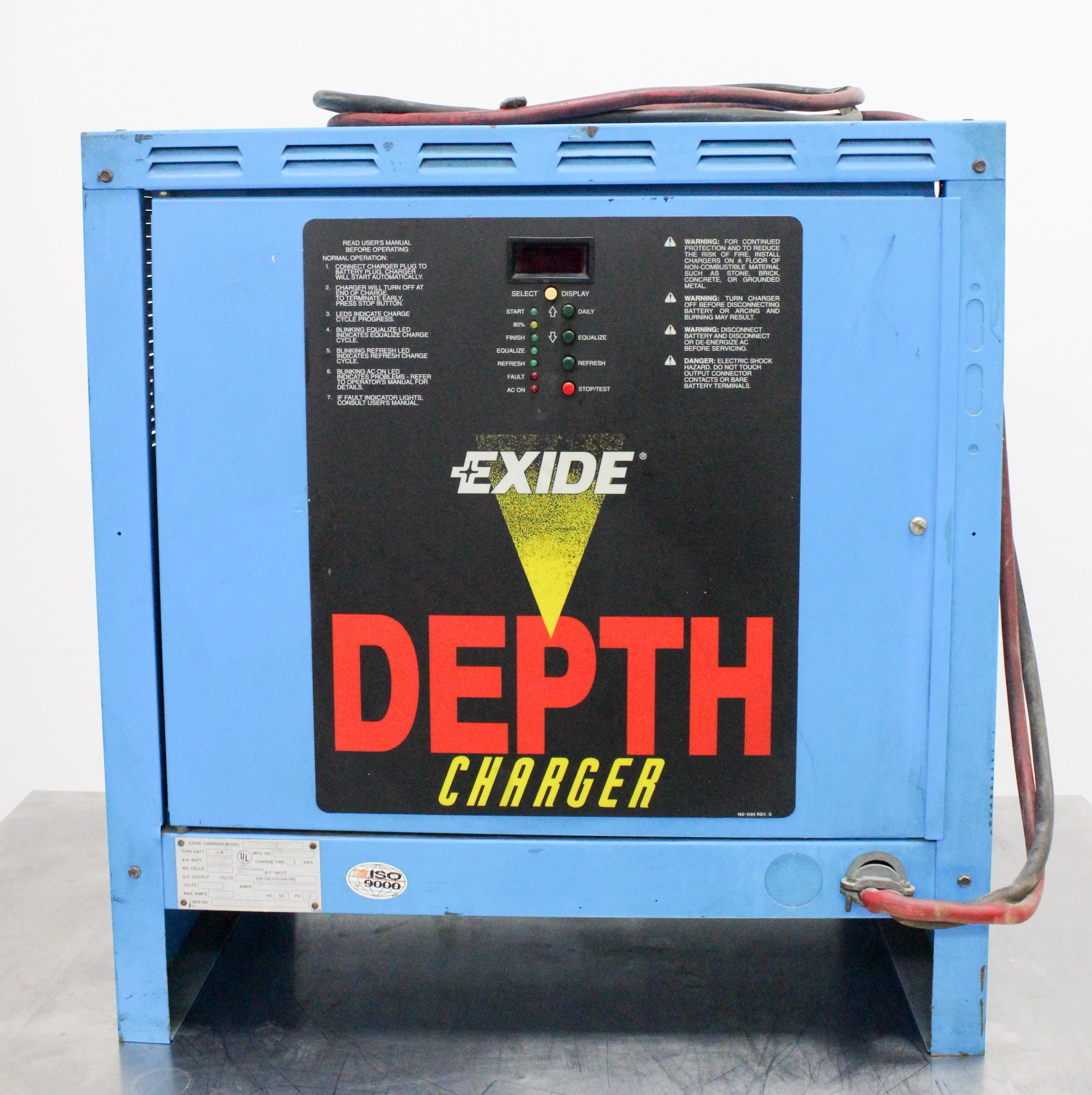

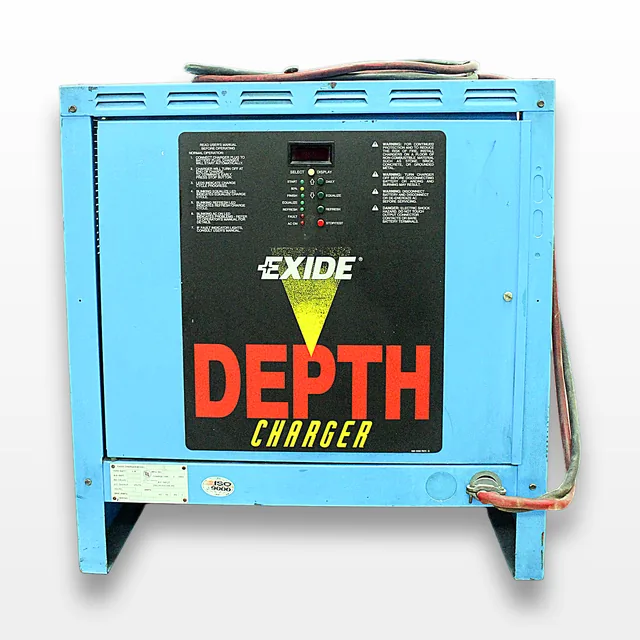

The Exide Depth Charger D3E-12-850B is a robust industrial battery charger specially designed for 12-cell, 24V lead-acid batteries, often used in forklifts, pallet jacks, and other industrial vehicles. This charger supports an 850 AH capacity with automatic multi-stage charging that ensures precision in charge cycles, prolonging battery life and optimizing performance in busy warehouses and manufacturing settings. Despite its fair condition, which involves minor errors requiring uncomplicated repairs such as damaged terminals, this unit remains reliable for high-demand operations. With LED indicators for charge status and fault alerts, coupled with a ventilated steel enclosure for effective thermal management, the D3E-12-850B can be customized with multi-voltage AC input options for flexible facility integration. Adhering to UL certifications and ISO standards, it is perfect for continuous daily use in various large-scale operations.
Technician comment

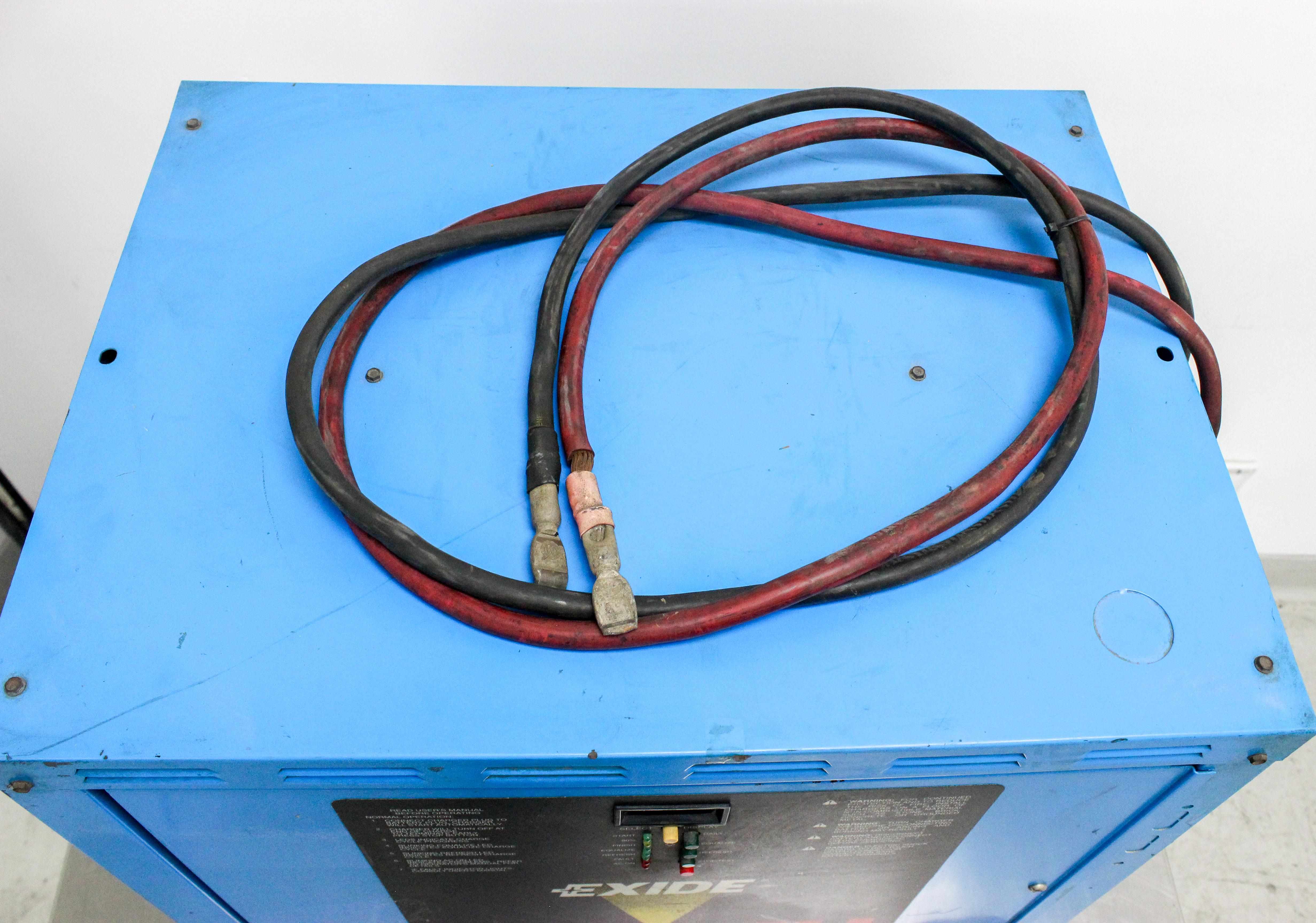

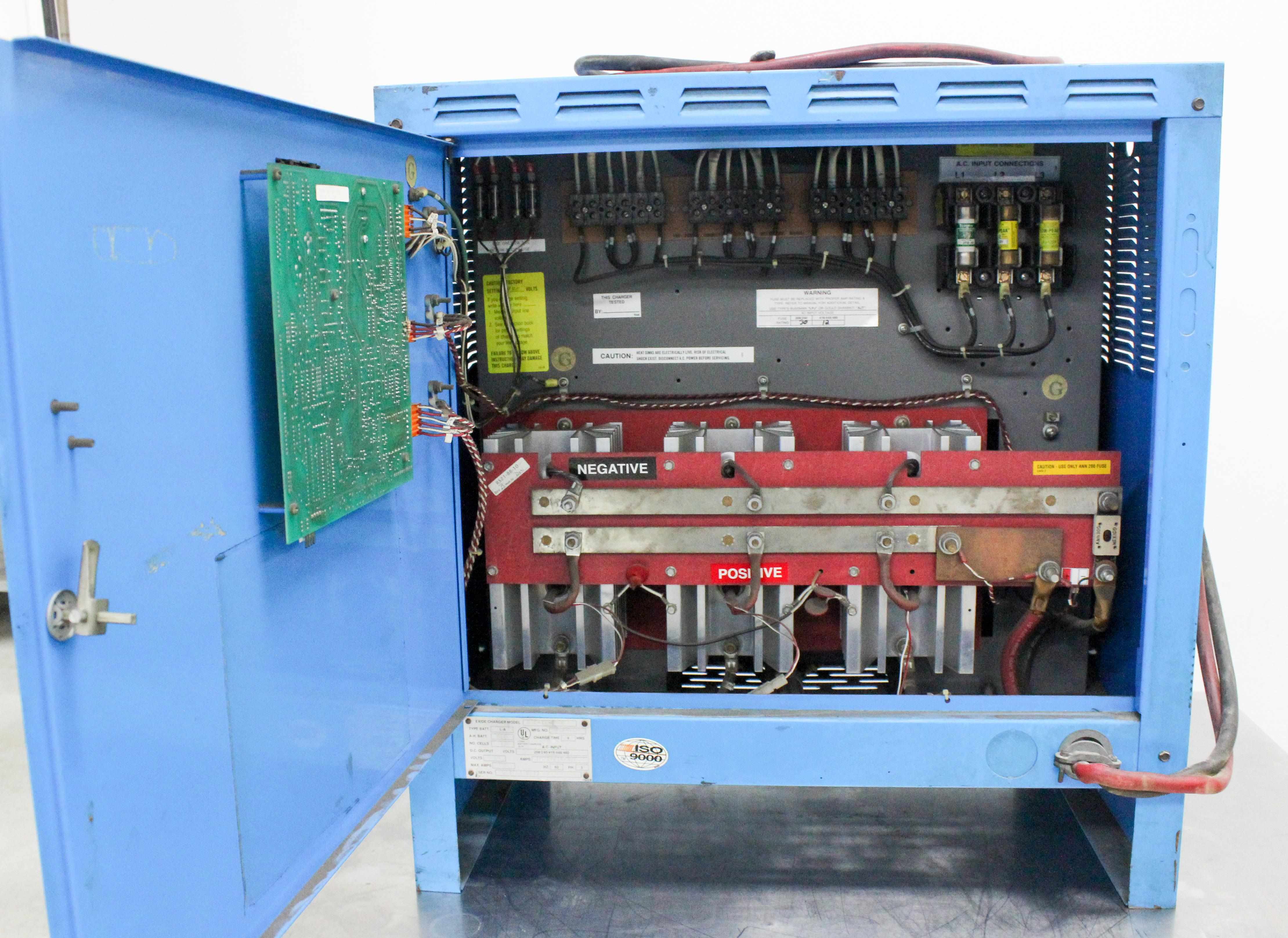

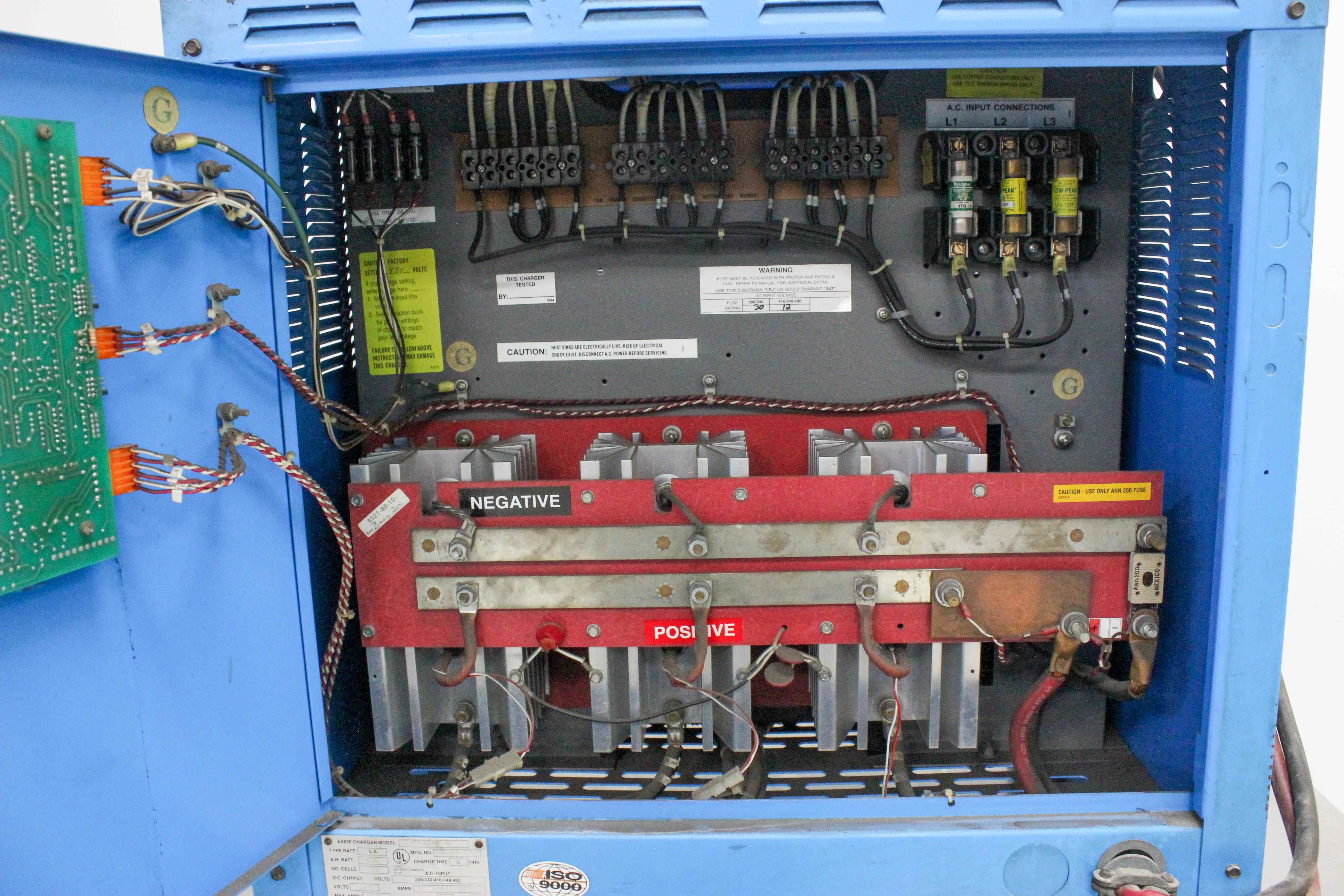

Preowned Exide Depth Charger will need to be hardwired to power on or test. Charger terminals are damaged & will need to be replaced. See photos for details.
Key Features
- Designed for 12-cell (24V) lead-acid batteries
- Supports up to 850 AH battery capacity
- Automatic multi-stage charging for optimized battery life

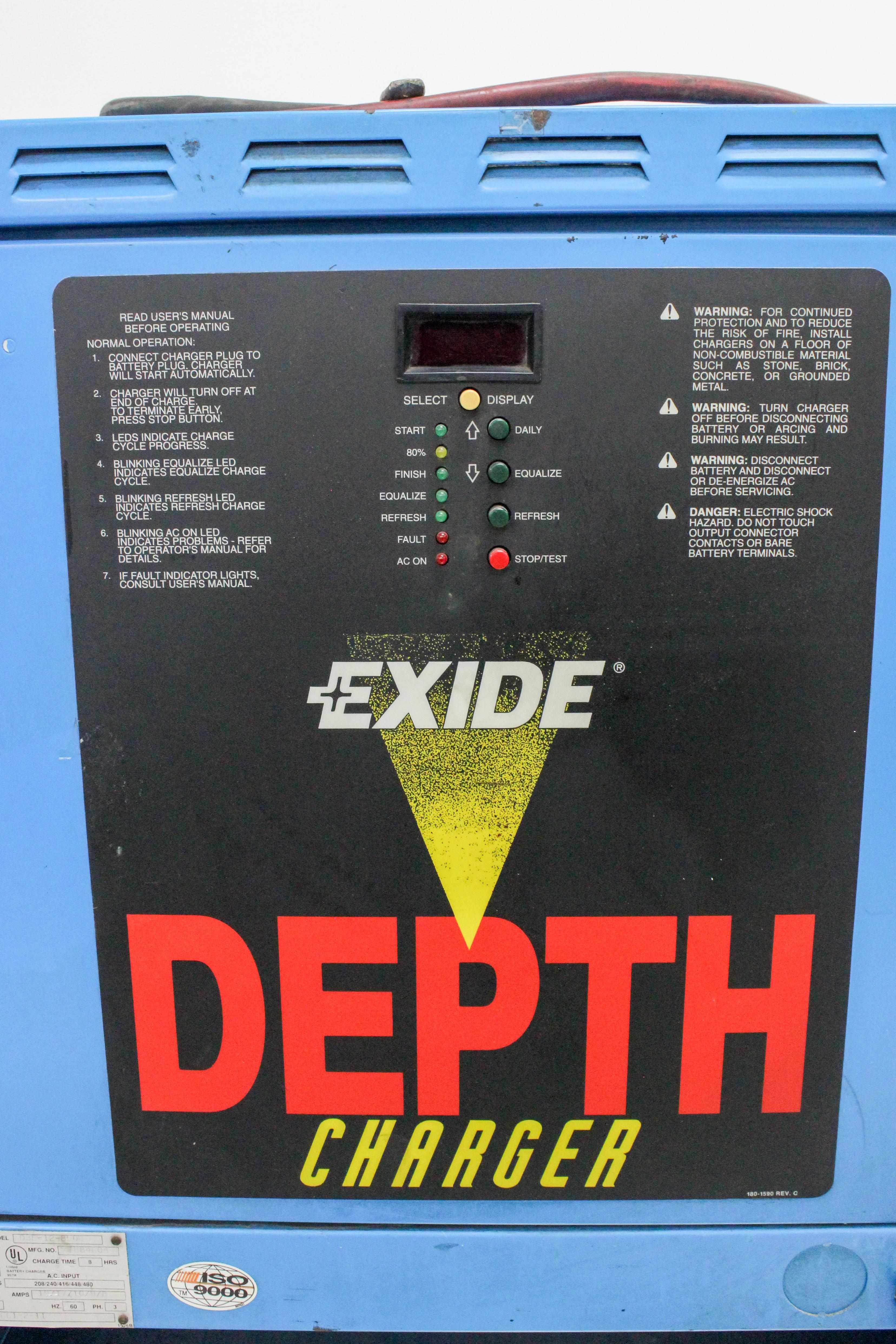

- LED status indicators for charge, equalize, and fault alerts

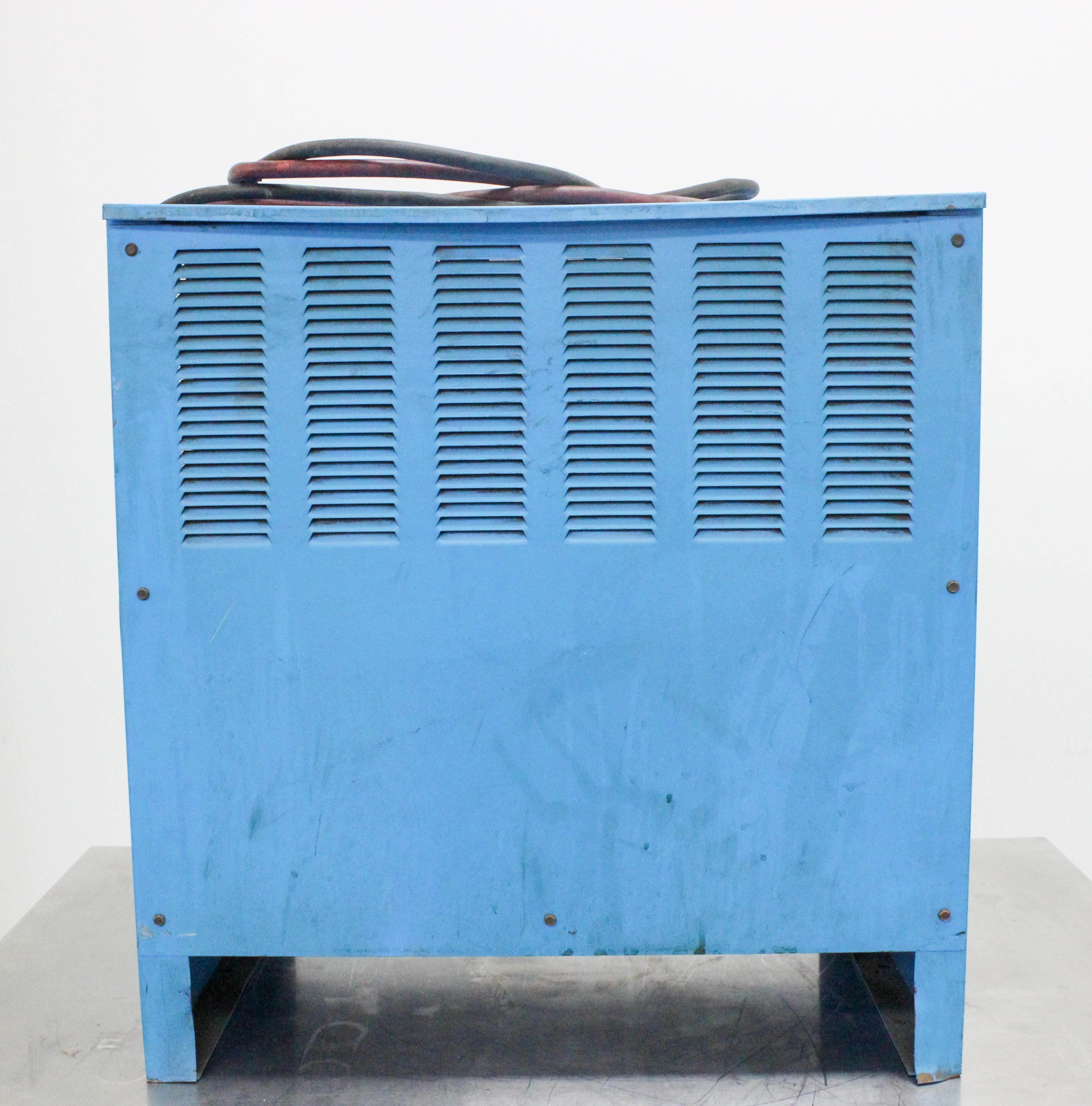

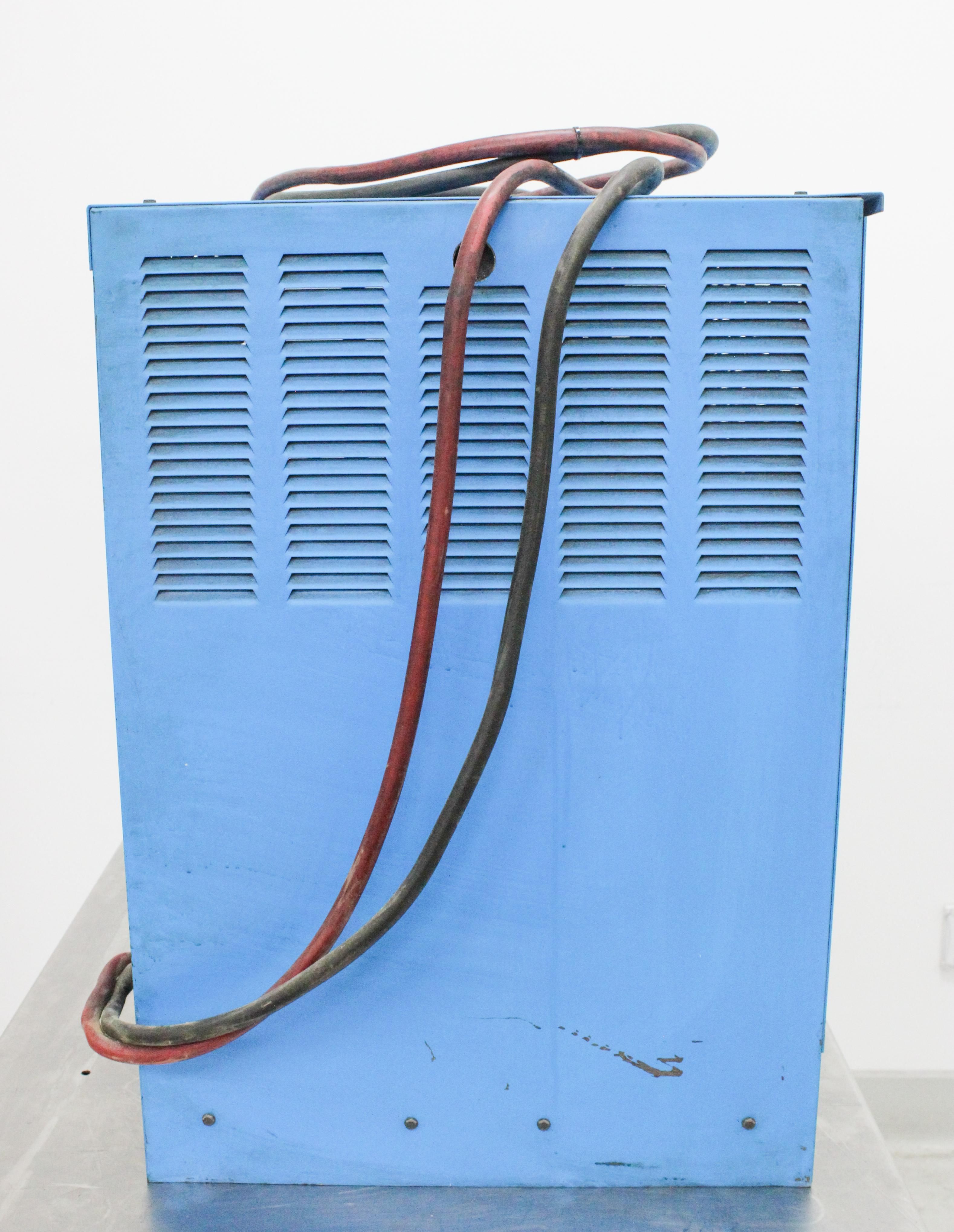

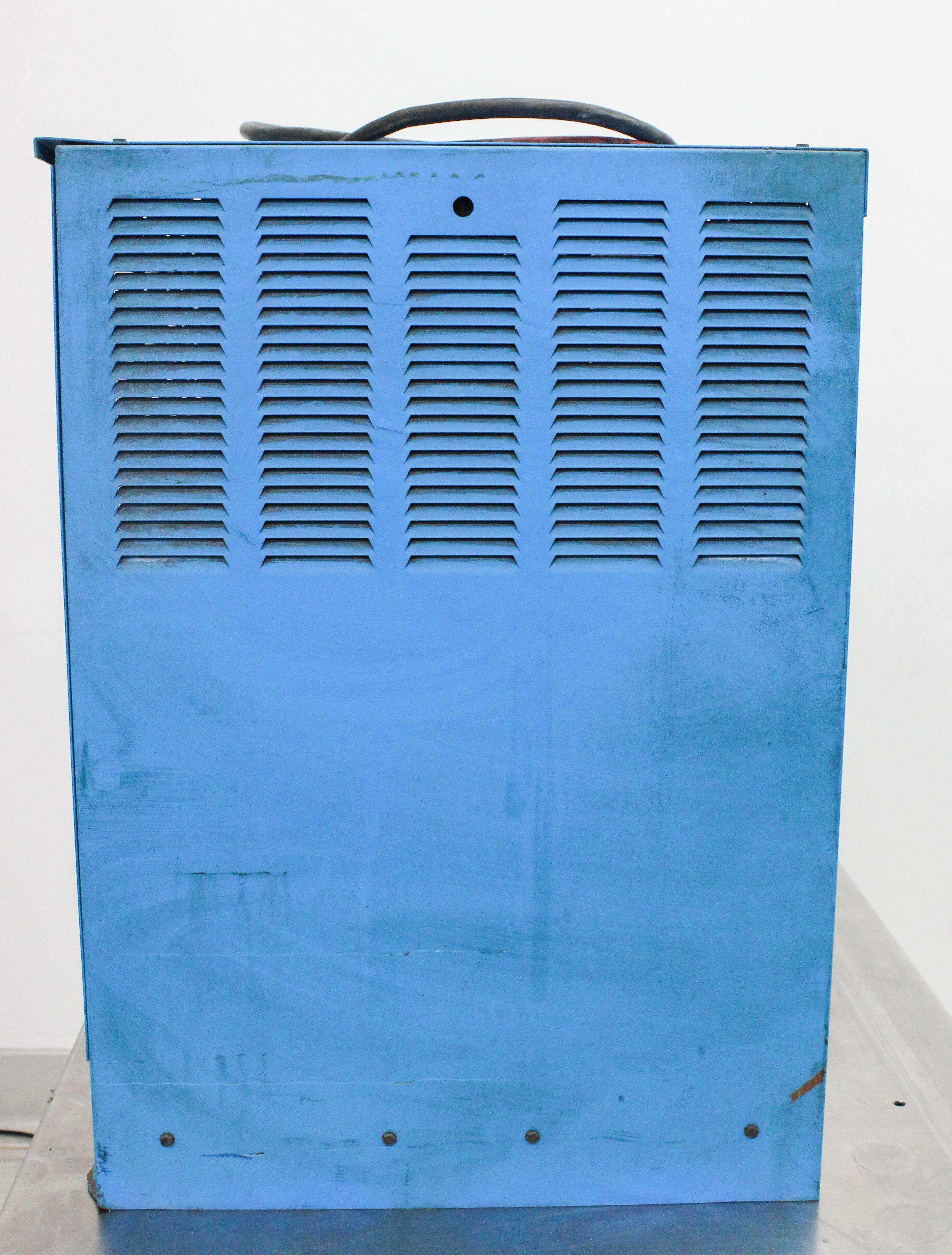

- Durable, heavy-duty steel construction with ventilation
- Multi-voltage AC input for versatile installation
- UL listed, ISO 9000 certified for quality and safety

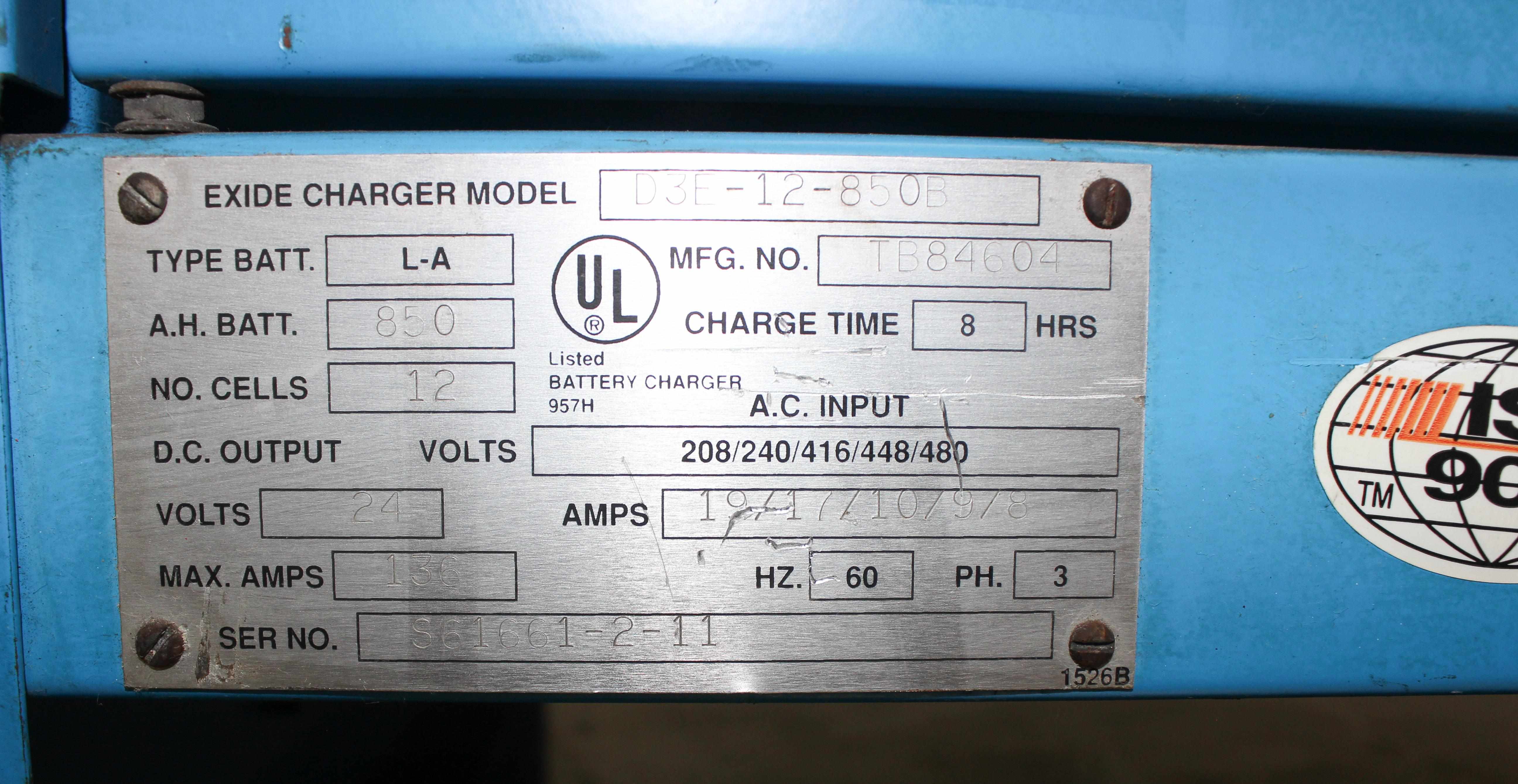

Specifications
- Battery Type: Lead-Acid
- Battery Capacity: 850 Ah
- Number of Cells: 12
- DC Output Voltage: 24V
- DC Output Max Current: 136 Amps
- Charge Time: Approximately 8 hours
- AC Input Voltage Options: 208 / 240 / 416 / 448 / 480 VAC
- AC Input Current: 19 / 17 / 10 / 9 / 8 Amps
- Frequency: 60 Hz
- Phase: 3-Phase
- Condition: Fair with minor issues, requires terminal replacements
Weight
Imperial: 372.0 Pounds
Metric: 168.74 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 32.4 lb x 34.8 lb
Metric: 60.96 cm x 82.3 cm x 88.39 cm
Harmonized Code
850440
Harmonized Code Details
850440 - Electric transformers, static converters (e.g., rectifiers) and inductors; parts thereof. This classification is appropriate as the product is a static converter designed for industrial battery charging applications.
