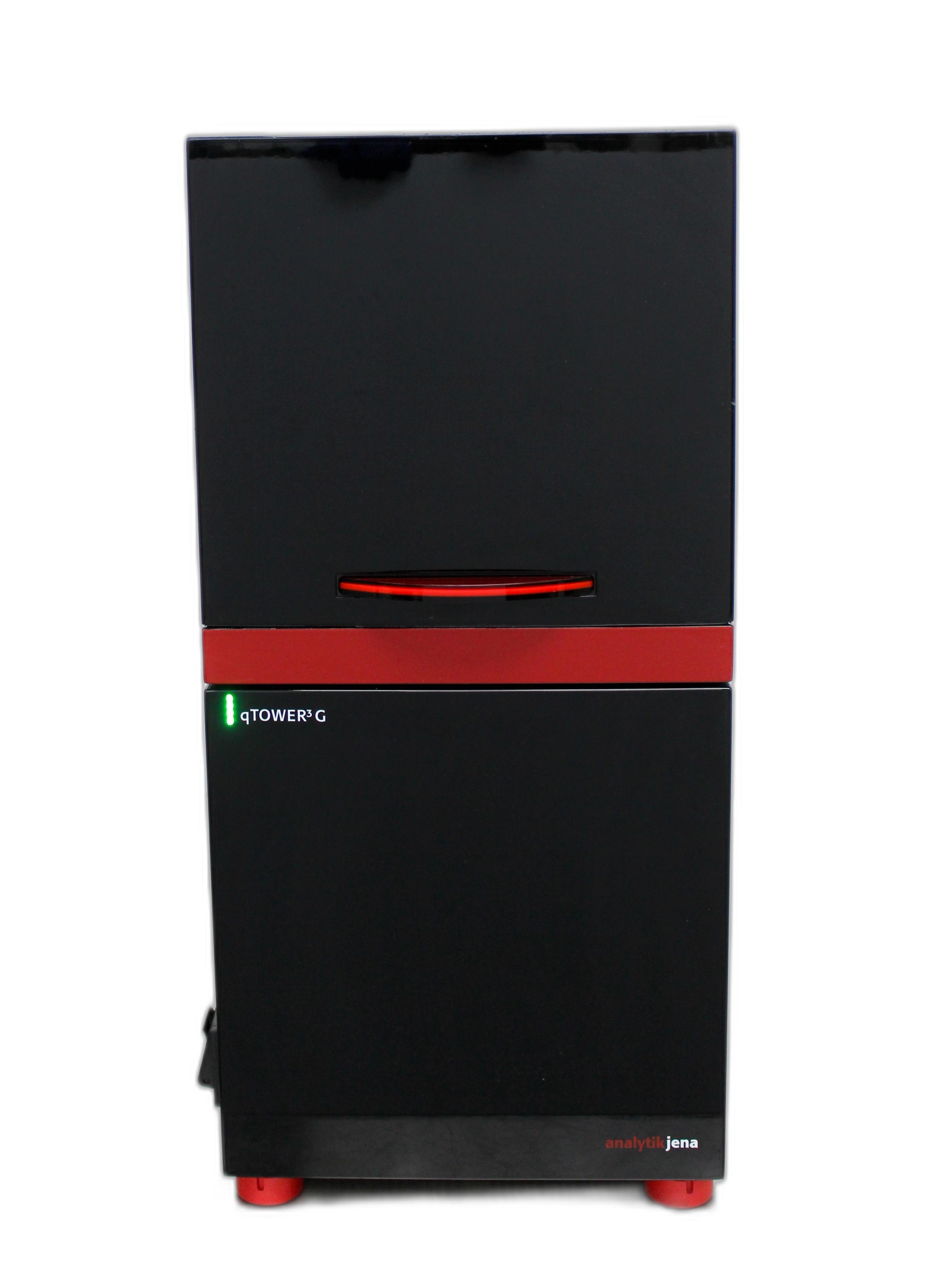

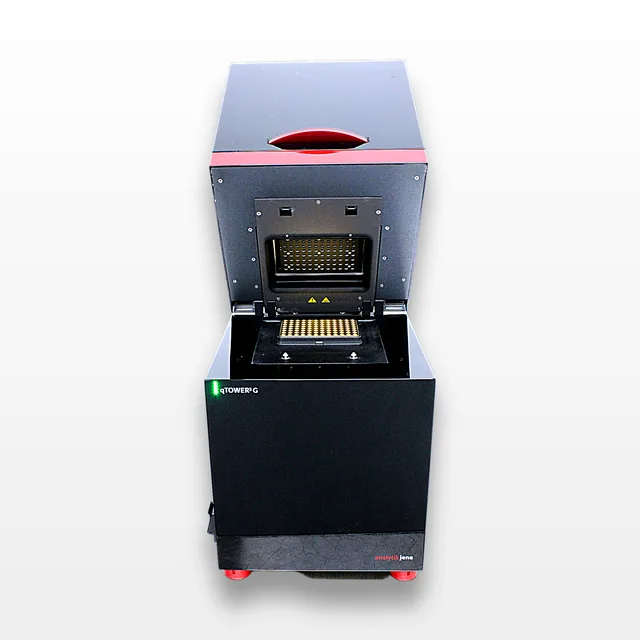

Analytik Jena qTOWER3G Real Time PCR Thermal Cycler 96-well Capacity
Analytik Jena
Details
-
CategoryMolecular Biology
-
Dimension11.0in x 11.0in x 23.0in
-

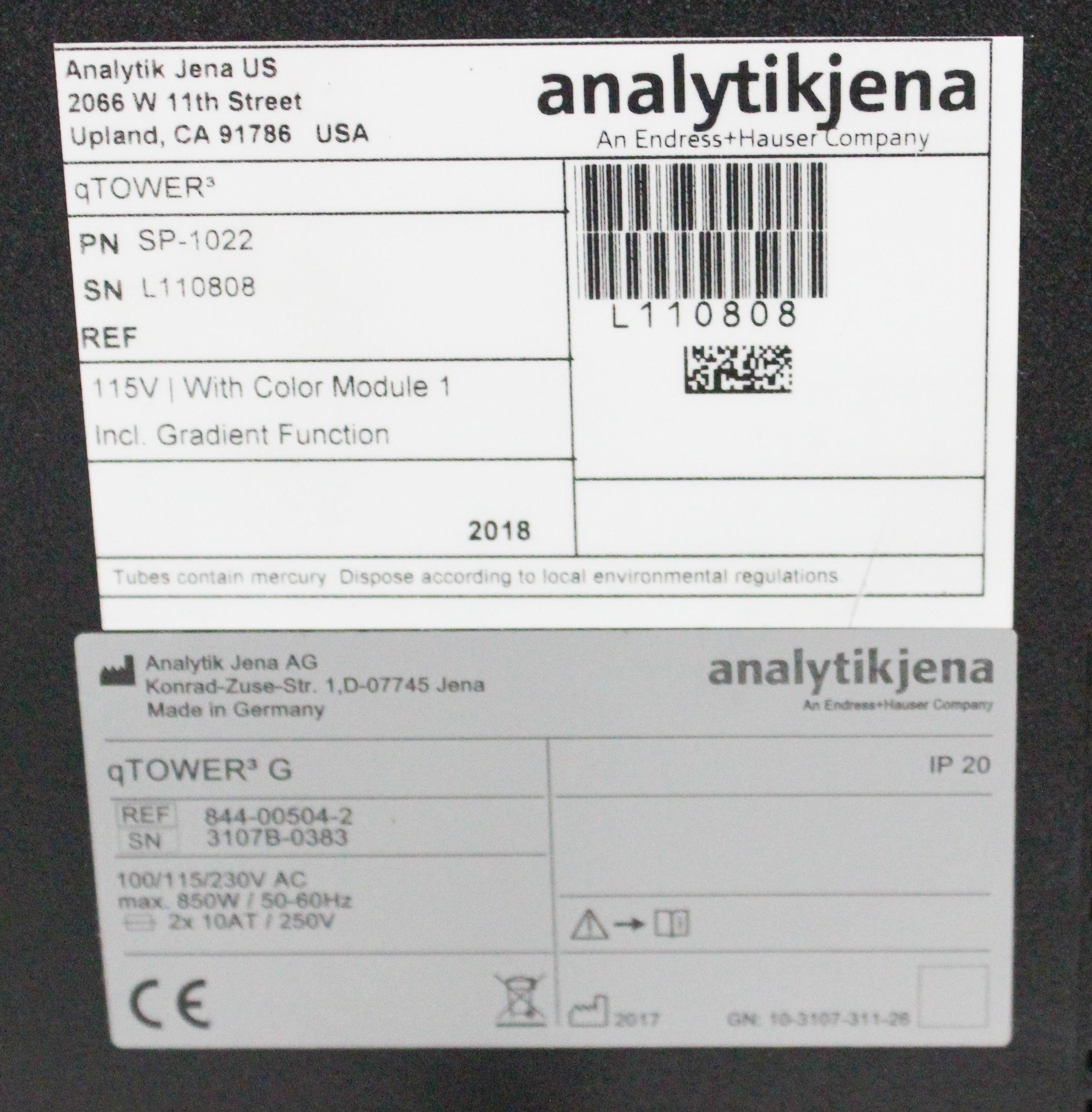

Serial3107B-0383
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Analytik Jena qTOWER3G Real Time PCR Thermal Cycler, model 844-00504-2, is a versatile 96-well cycler designed for precise thermal cycling with advanced control precision of 0.1°C. Despite cosmetic wear, it functions well, powers on, and passes basic tests, though it hasn't undergone full verification. Its core features include a patented fiber-optic system ensuring optimal PCR signals, a six-position filter module for multiplexing, and exceptional gradient technology ranging from 0.1°C to 40°C. With a light source of four high-performance LEDs and silver block technology, this thermal cycler is an ideal tool for laboratories striving for accuracy and adaptability in assays. Upgrading capabilities are supported, allowing integration of future innovations from Analytik Jena. Note: Computer is not included.
Technician comment

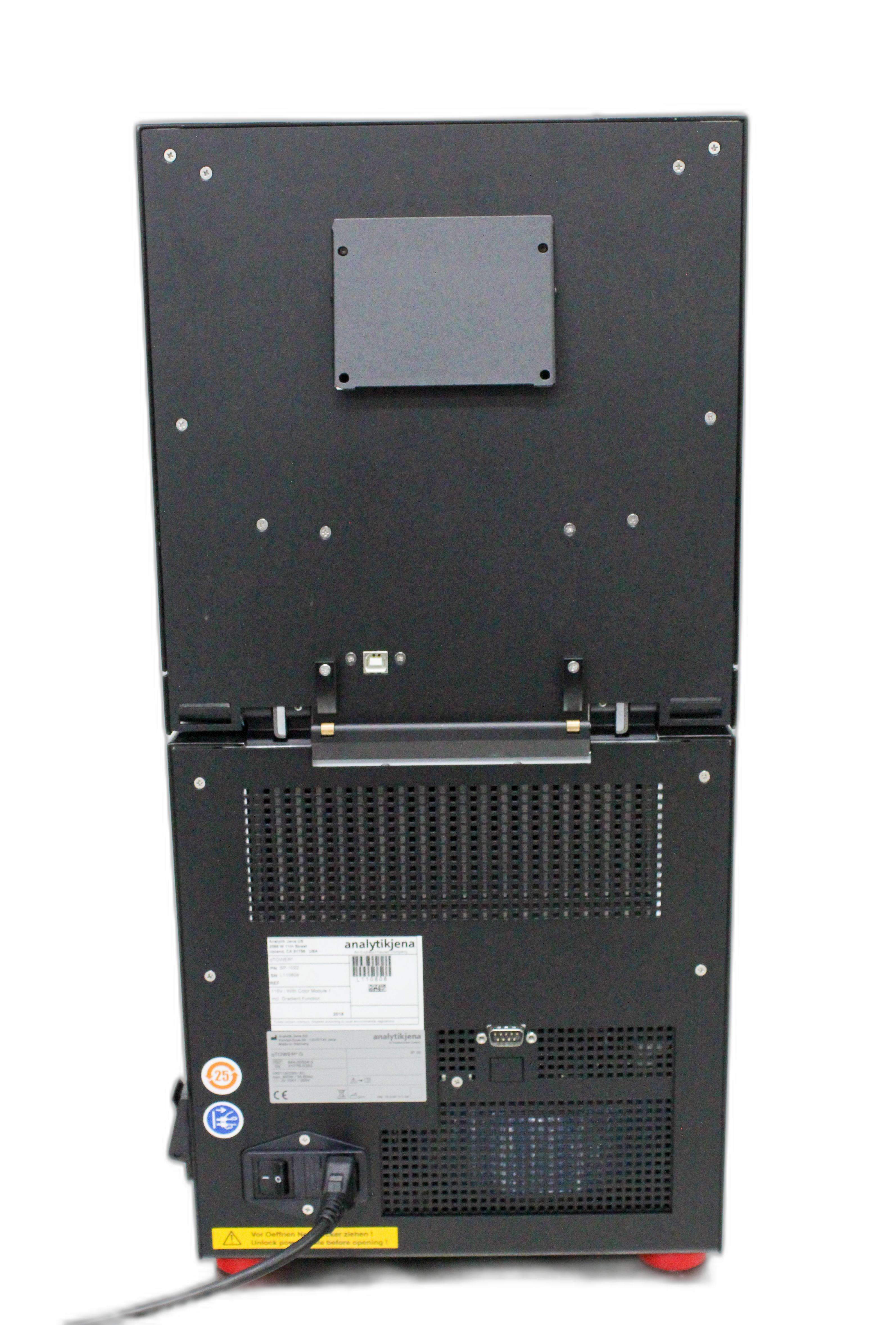

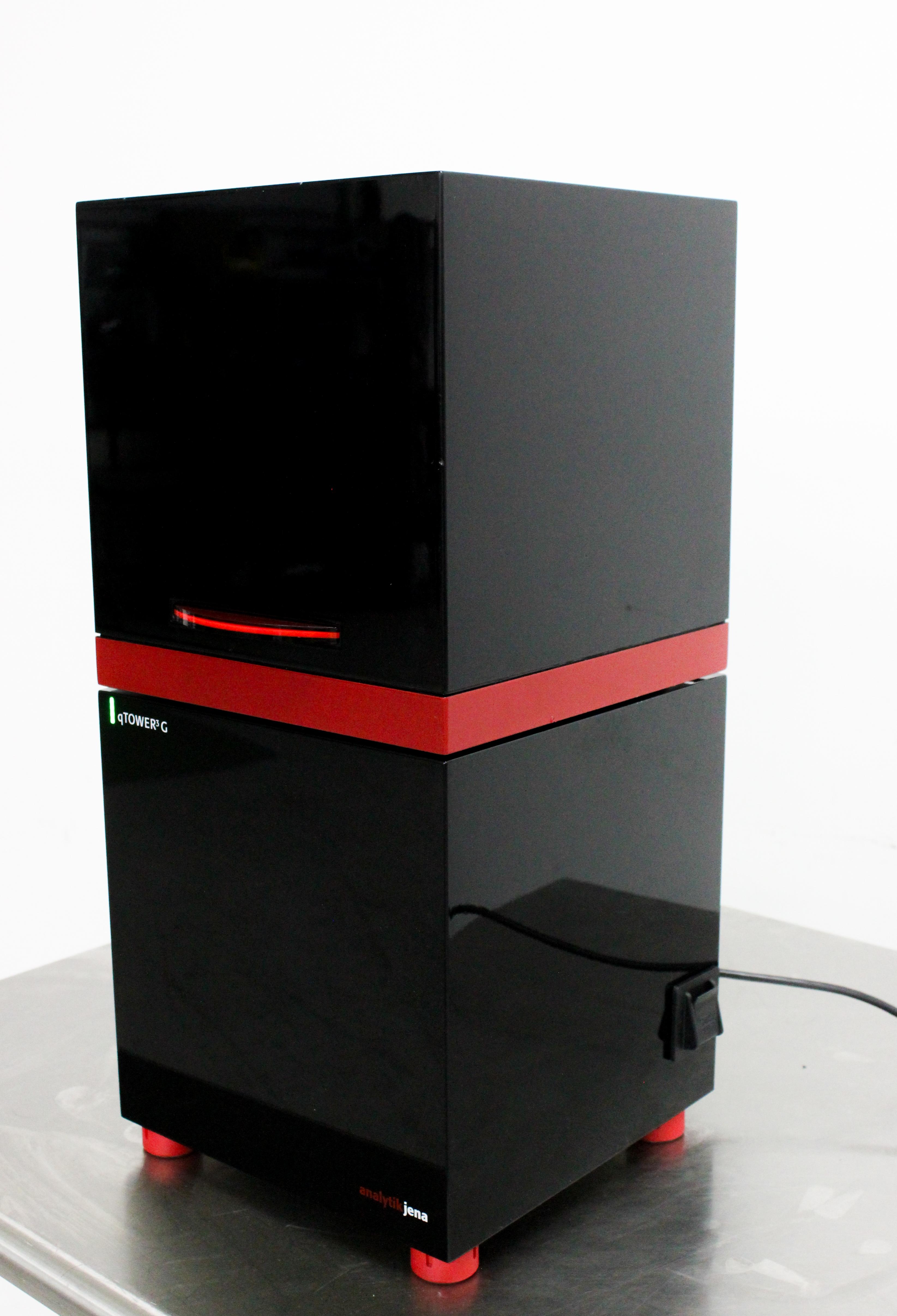

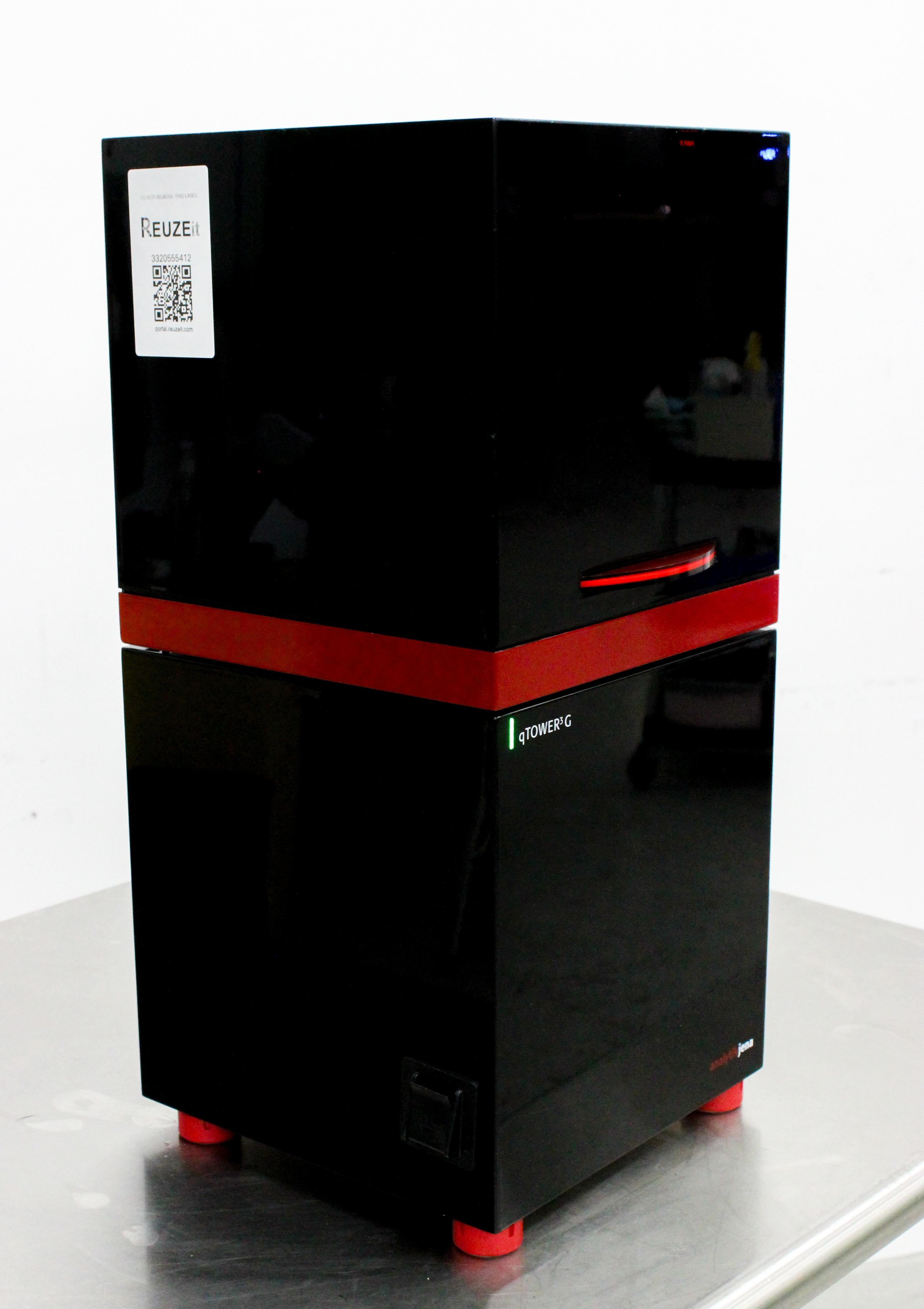

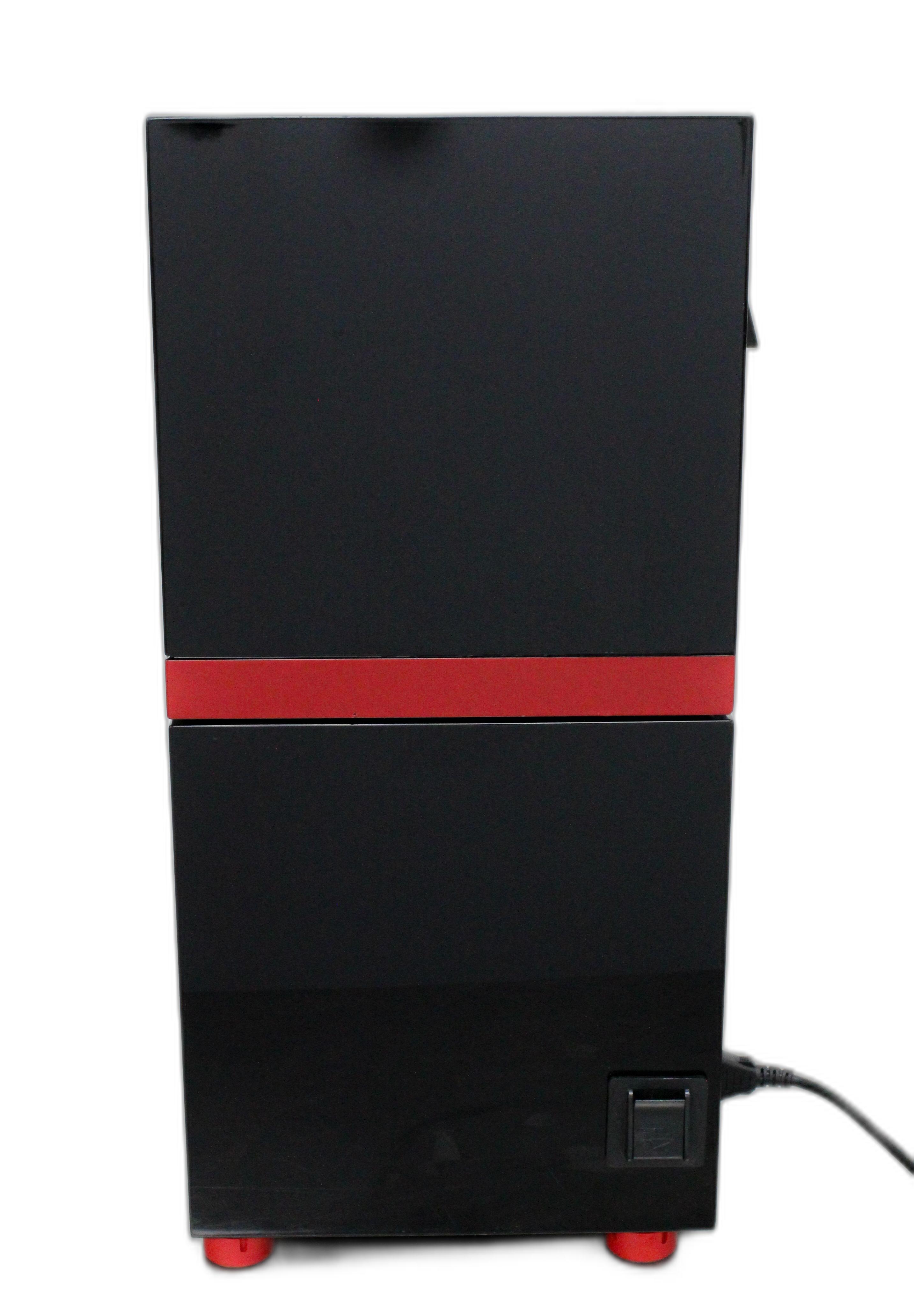

qTOWER3G was tested for power on function only. Software is not included. Unit is preowned from a working laboratory environment. See photos for details.
Key Features
- 96-well real-time thermal cycler
- No periodic calibration required
- Patented fiber-optic shuttle system
- Supports 12 color, FRET, and protein modules
- Exceptional temperature control precision (0.1°C)
- Six-position filter module system
- Gradient technology: 0.1°C to 40°C
- Compatible with future innovations
Specifications

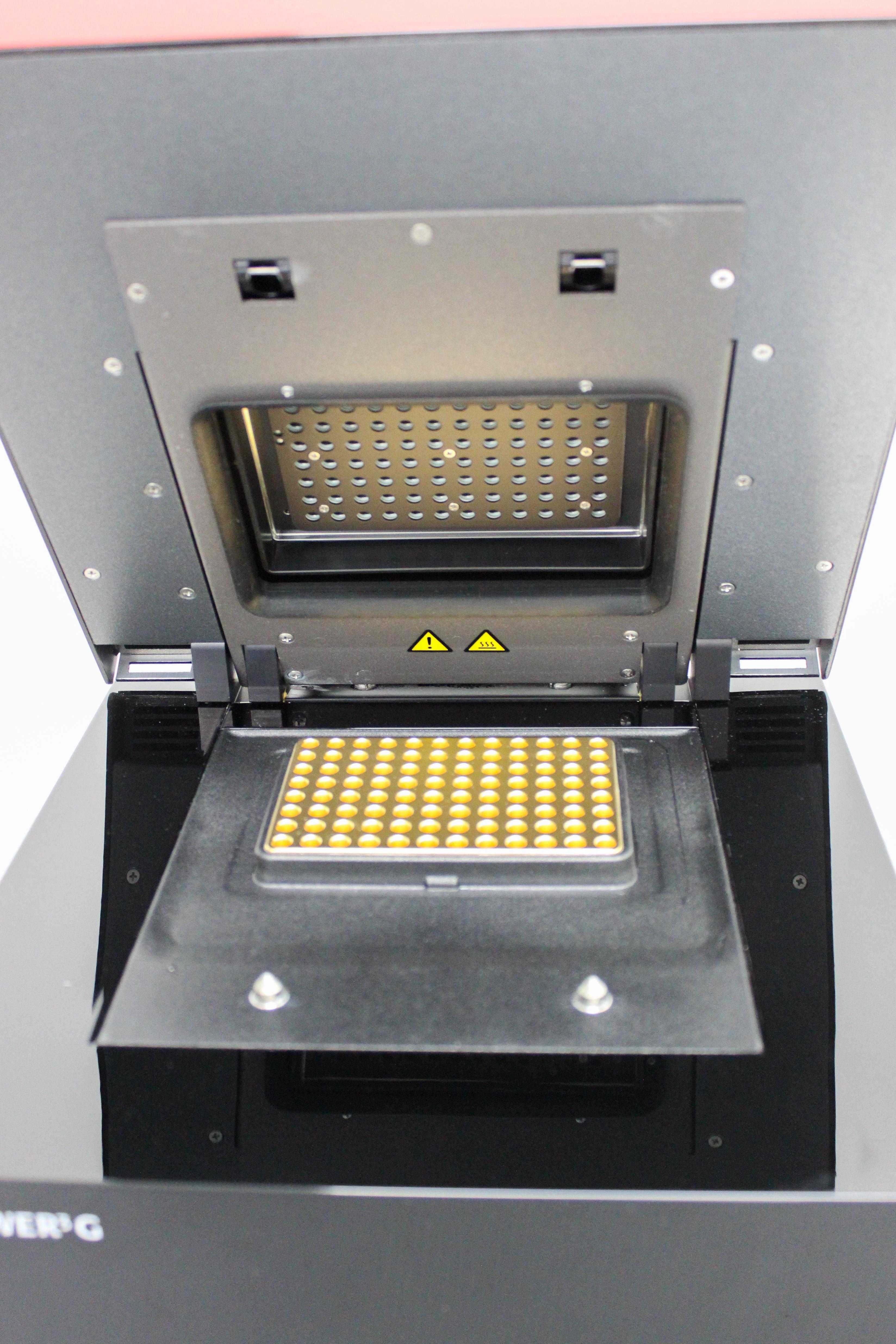

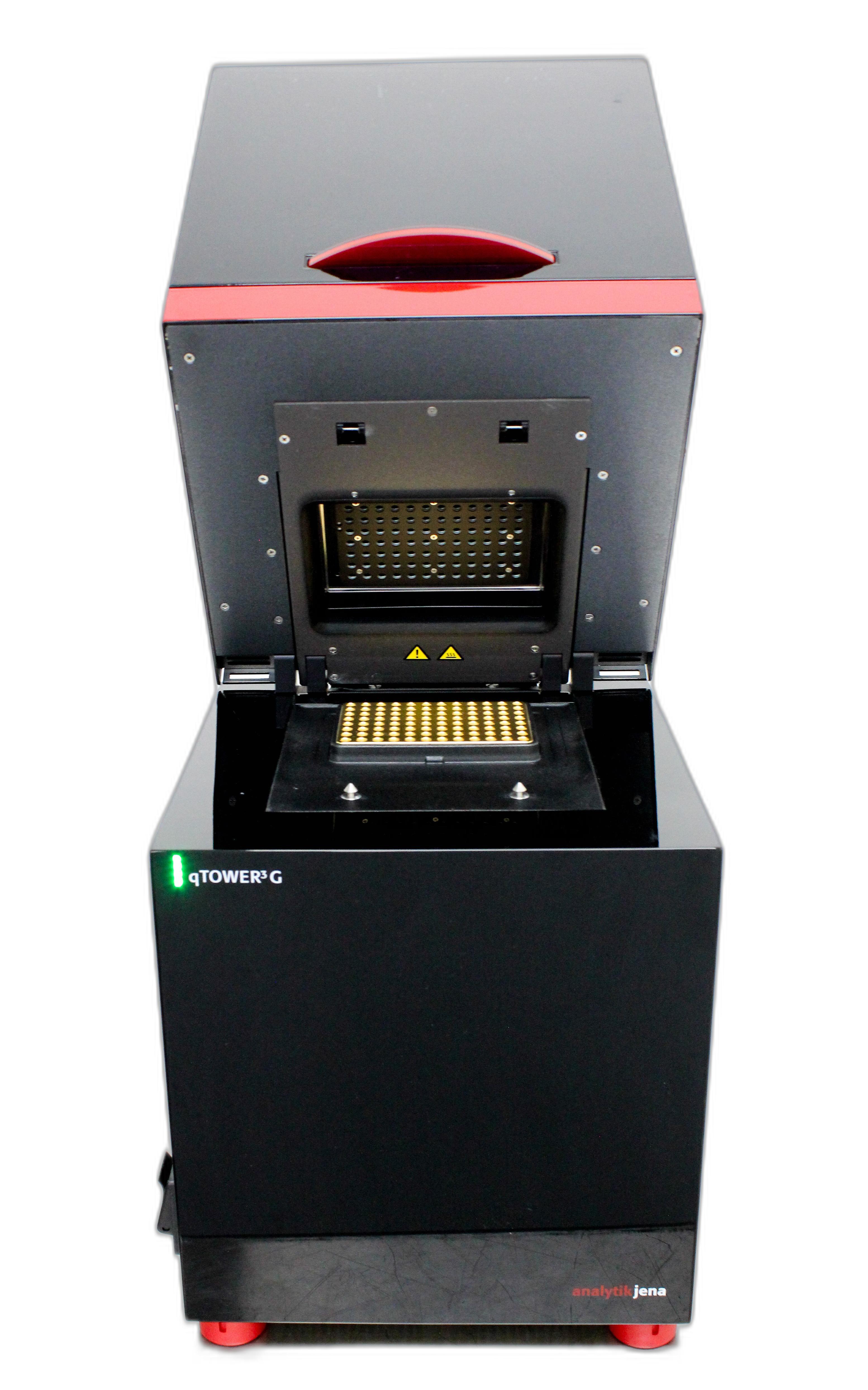

- Thermal Block: Silver sample block with gold coating
- Block Capacity: 96 wells in 0.2 mL format
- Sample Volume: 5-100 μL
- Heating Rate: 8°C/s
- Cooling Rate: 6°C/s
- Temperature Setting Range: 4-99°C
- Temperature Control Precision: 0.1°C
- Temperature Uniformity: ±0.15°C after 15 sec
- Max. / Min. Gradient: 40°C / 0.1°C
- Lid Temperature: 30°C to 110°C
- Contact Pressure: 30 kg, automated
- Sensitivity: 1 copy of the target sequence
- Dynamic Range: 10 log levels
- Measuring Principle: Fiber-optic shuttle system with 8-fold scanner
- Light Source: 4 long-life, high-performance LEDs (RGBW)
- Detector: Highly sensitive PMT (photo multiplier tube)
- Color Modules: 12 color, FRET, and protein modules, 6 positions in the device
- Read-out Time: 6 seconds for 96 wells
- PC Interface: USB
- Noise Emission: Max. 45 db
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 27.6 lb
Metric: 33.53 cm x 33.53 cm x 70.1 cm
Harmonized Code
902780
Harmonized Code Details
902780: Instruments and apparatus for physical or chemical analysis using optical radiations. This category is pertinent due to the photometric capabilities of the PCR thermal cycler.
