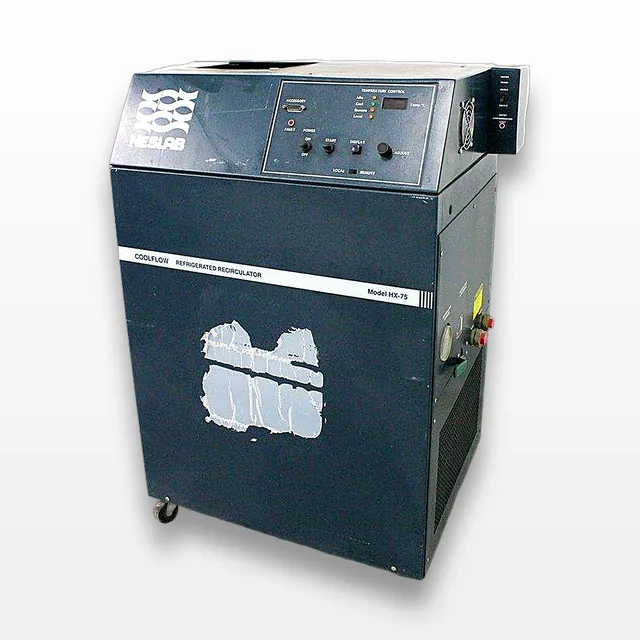

Neslab HX-75 Coolflow Refrigerated Recirculator - Semiconductor Cooling
Neslab
Details
-
CategoryChiller / Heater
-
Dimension20.0in x 26.0in x 36.0in
-
Shipping TypeFreight
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Neslab HX-75 Coolflow Refrigerated Recirculator, renowned in the semiconductor industry, offers ±0.1°C temperature stability for precise process control. With dimensions of 93.3 cm x 59 cm x 47.6 cm and weighing 118.4 kg, this unit supports both air and water-cooled condensers. Despite its fair condition, evident from stains and wear from normal use, the chiller is a robust solution for maintaining constant temperatures. It features a reservoir capacity of 5 gallons (18.9 liters) and cooling capacities of 2,000W at 60Hz and 1,660W at 50Hz. Multiple pump options cater to varied flow and pressure needs. Please note that the unit requires hardwiring for full operation and its complete functionality has not been verified. Power requirements are 220V at either 50Hz or 60Hz, complying with CE standards for 50Hz models.
Technician comment
HX-75 chiller is for sale AS/IS for parts. Unit will need to be hardwired to fully test. HX-75 chiller has slight wear from normal use, stains around unit. See photos for details.
Key Features
- ±0.1°C stability
- Air/Water-cooled condenser options
- 5 Gallon reservoir capacity
- 2,000W cooling at 60Hz
Specifications
- Temperature Stability: ±0.1°C
- Condenser Options: Air or Water-cooled
- Reservoir Size: 5 Gallons (18.9 Liters)
- Cooling Capacity: 60Hz - 2,000W, 50Hz - 1,660W
- Pump Performance: Multiple options
- Dimensions: 93.3 cm x 59 cm x 47.6 cm
- Weight: 118.4 kg
- Power Requirements: 220V, 50/60Hz
- Compliance: CE for 50Hz models
Weight
Imperial: 300.0 Pounds
Metric: 136.08 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 31.2 lb x 43.2 lb
Metric: 60.96 cm x 79.25 cm x 109.73 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating Freezers and Other Freezers; Neslab HX-75 qualifies as the recirculator for industrial use under this category.
