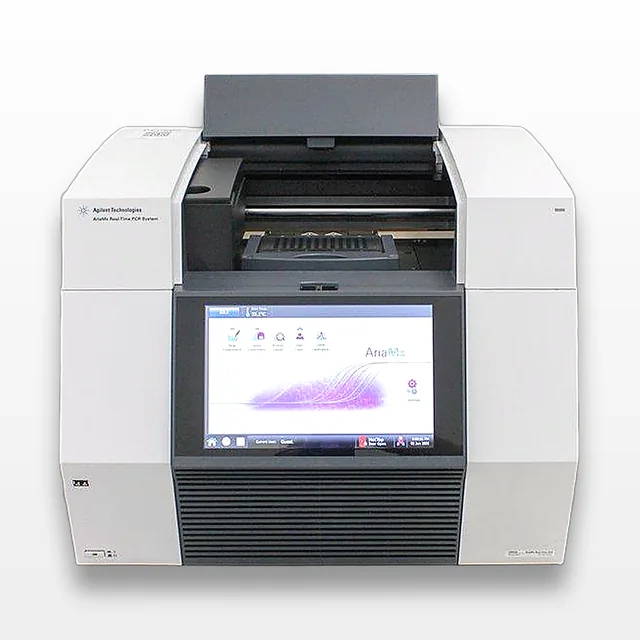

Agilent Technologies ARIA MX G8830-64001 Real-Time PCR System 96 Wells
Agilent Technologies
Details
-
CategoryMolecular Biology
-
Dimension20.0in x 20.0in x 17.0in
-

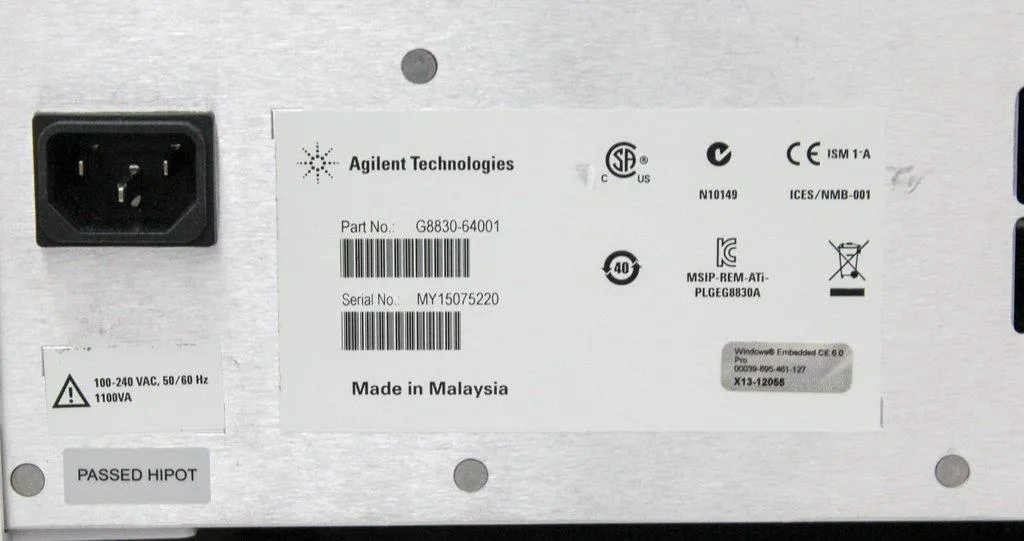

SerialMY15075220
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz100-240V / 50Hz/60Hz
Description
The Agilent Technologies ARIA MX G8830-64001 Real-Time PCR System offers a comprehensive qPCR solution for amplification, detection, and data analysis. Despite a door sensor malfunction preventing full functionality verification, this system incorporates a novel thermal cycler, advanced optical system, and comprehensive software. It supports various fluorescence detection chemistries including SYBR Green and TaqMan, coupled with multiplex capability across its 96 wells. Features include ultrafast chemistry, rapid hot-start enzymes, intuitive touchscreen interface, and modular optics. The system operates with a temperature range of 25.0-99.9°C and includes an open reagent platform for increased flexibility. This unit is best suited for laboratories seeking versatile PCR instrumentation with robust specifications.
Technician comment

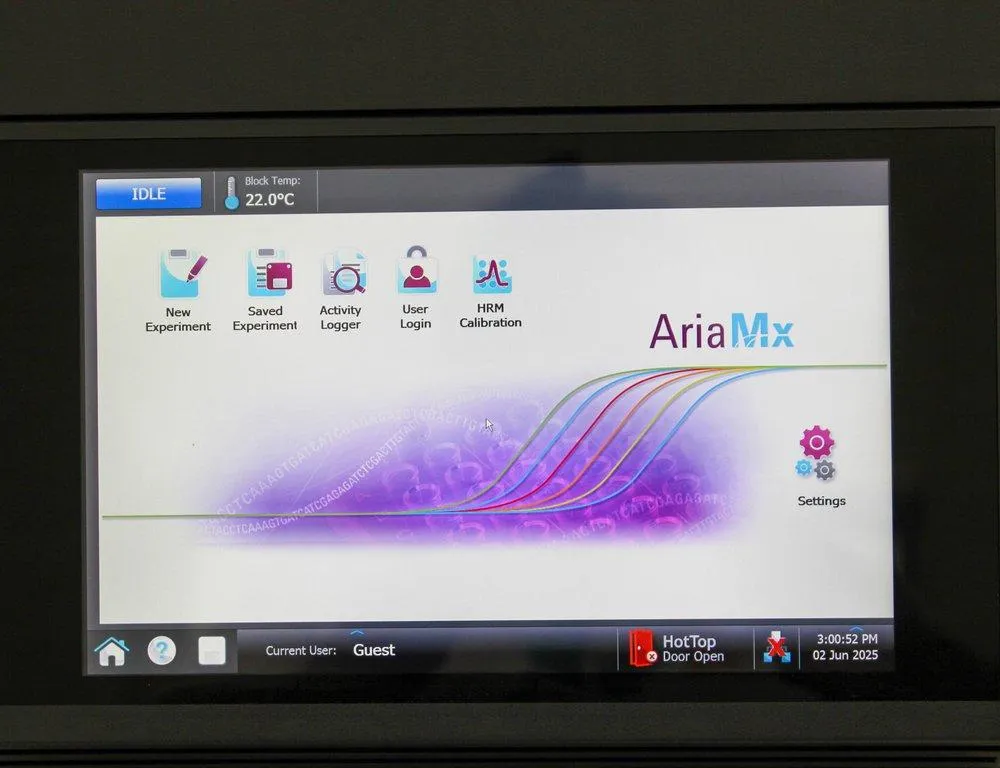

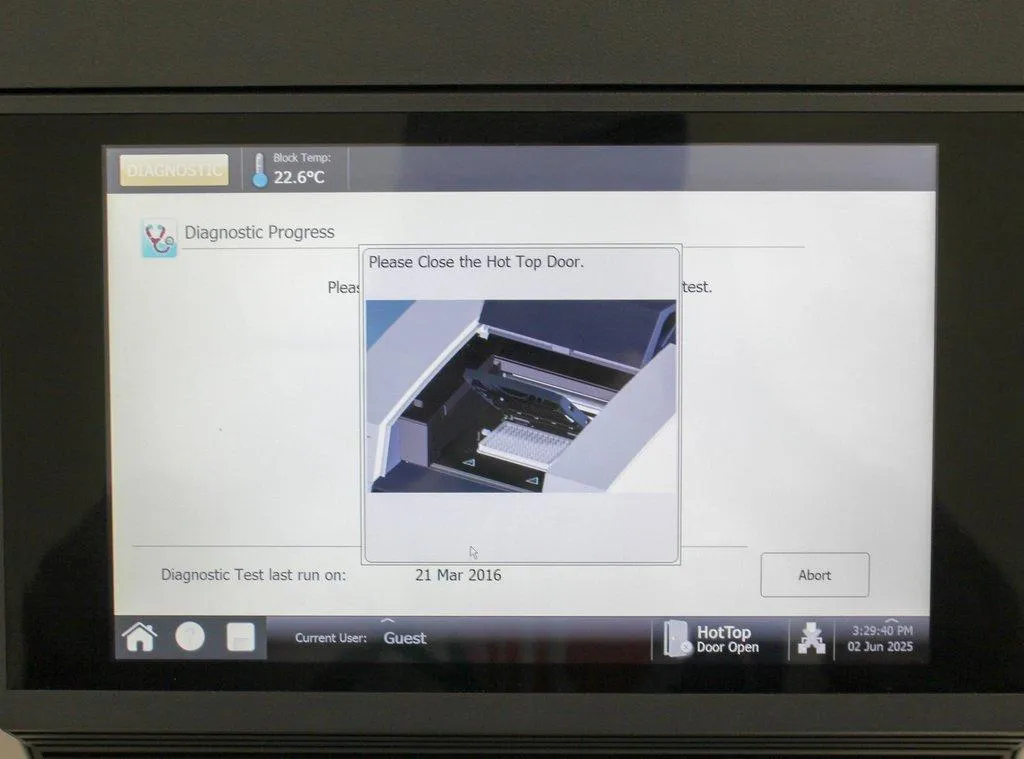

Unable for fully test(Unable for run a cycle) due to an Error displayed: sensor Hot Top Door malfunction. See photos. No warranty AS-IS
Key Features
- Integrated qPCR solution with novel thermal cycler
- Advanced optical system with LED excitation
- Usable with SYBR Green, EvaGreen, and TaqMan chemistries
- Multiplex capability with six filters

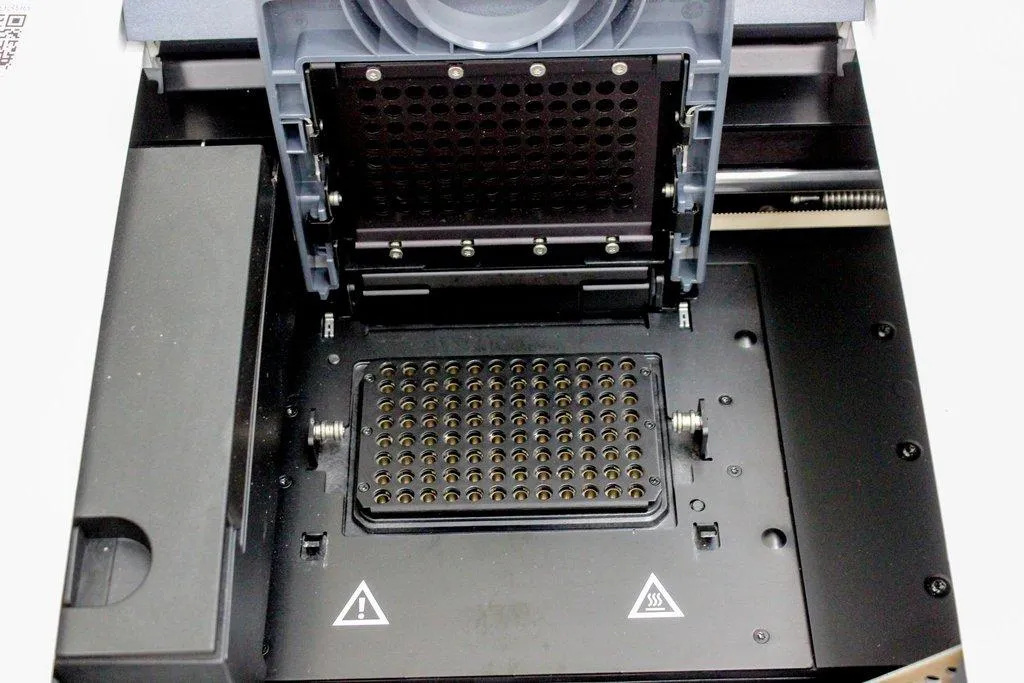

- 96 wells for high-throughput

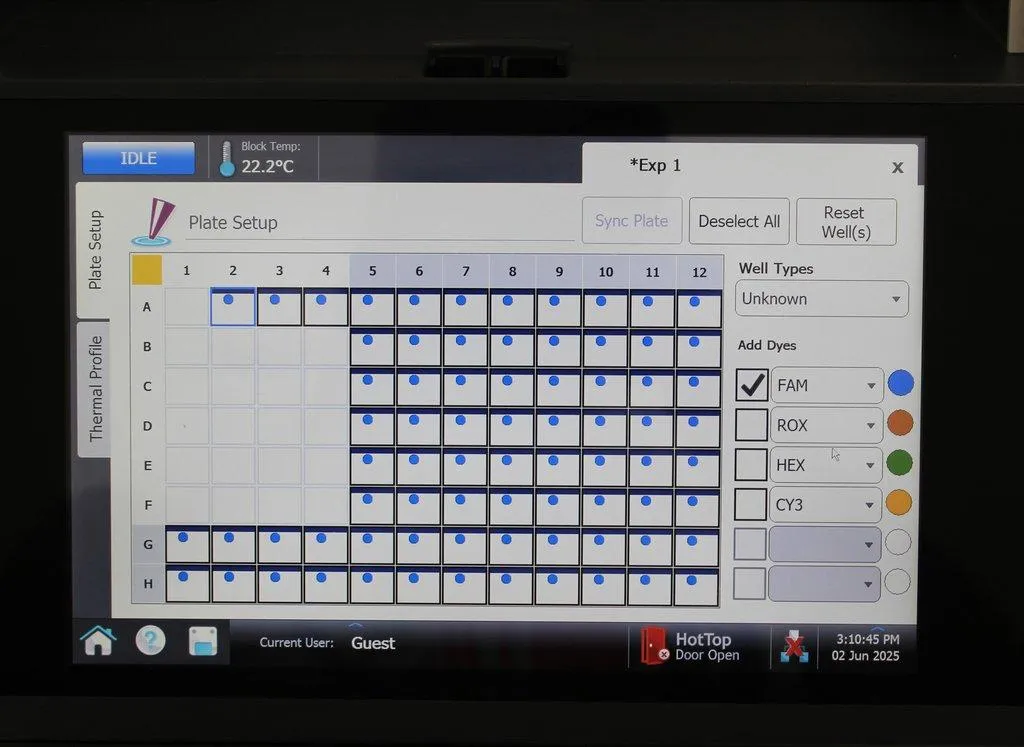

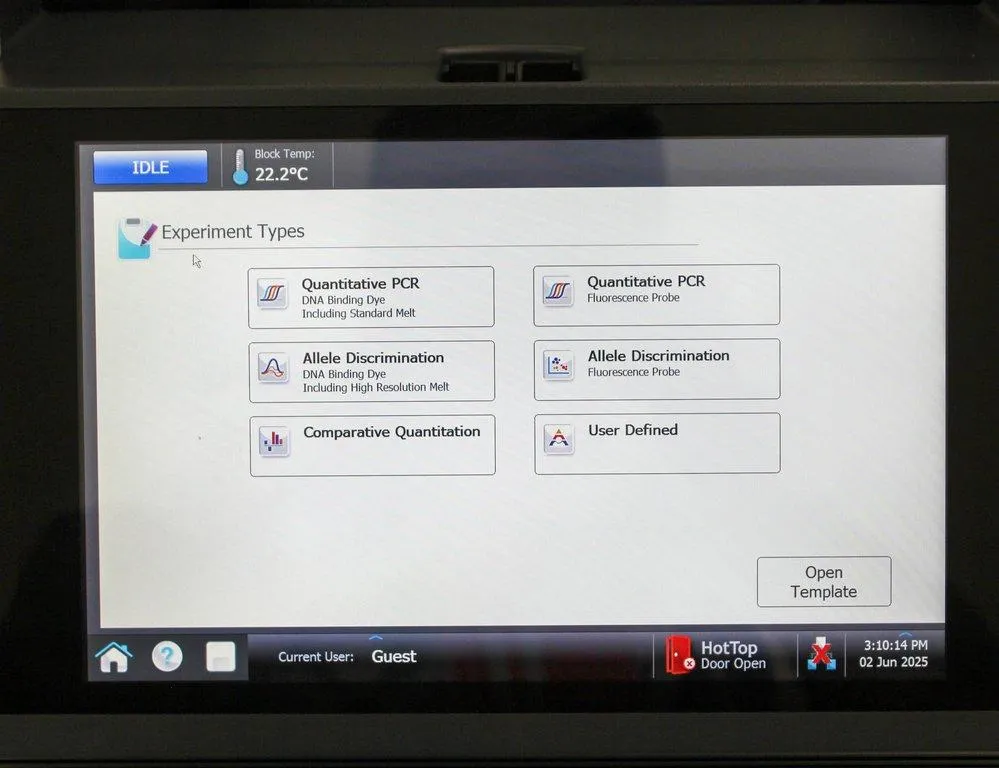

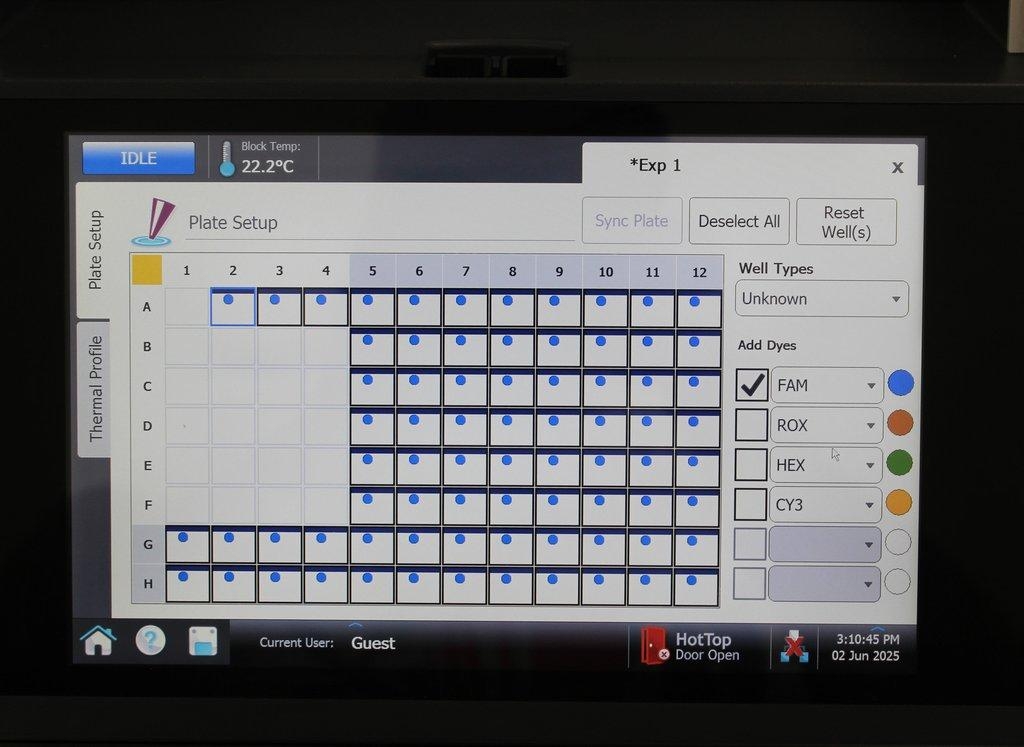

- Touchscreen interface with intuitive operation
- Supports fluorescence detection chemistries
Specifications
- Accuracy: ±0.2 °C
- Controller: Touchscreen
- Data Acquisition Time: <3 sec
- Detection Sources: 8 filtered photodiodes
- Dimensions (WxDxH): 50.0 x 46.0 x 42.0 cm (19.7 x 18.1 x 16.5 in)
- Excitation Source: 8 dye specific LEDs

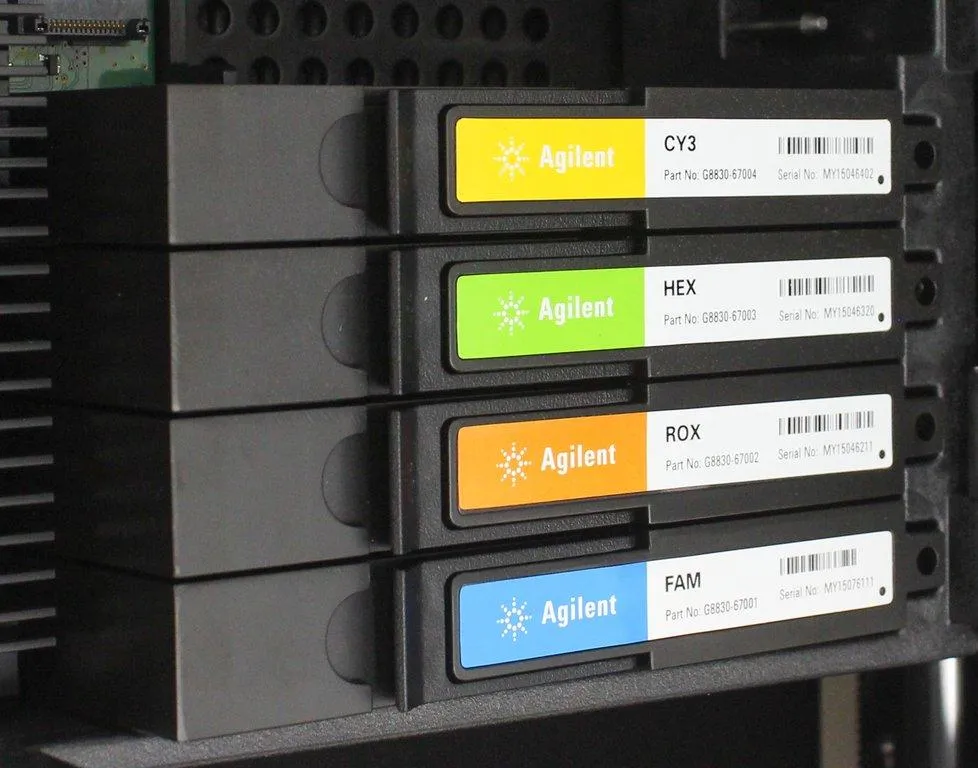

- Max Optical Modules: 6
- Maximum Block Ramp Rate: 6 °C/Sec
- Number of Peltiers: 6
- Number of Wells: 96
- Optical Module Types: SYBR/FAMROXHEXCY5CY3ATTO425
- PCR Uniformity: ±0.4 °C
- Protocol Storage Count: 5GB
- Reaction Volume: 10-30 µL
- Remote Monitoring: Yes
- Self-Installable Optical Modules: Yes
- Temperature Range: 25.0-99.9 °C
Weight
Imperial: 78.0 Pounds
Metric: 35.38 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 24.0 lb x 20.4 lb
Metric: 60.96 cm x 60.96 cm x 51.82 cm
Harmonized Code
9027.80.40
Harmonized Code Details
The harmonized code 9027.80.40 refers to instruments and apparatus for physical or chemical analysis using electrical or laser techniques. This is applicable due to the system's use in qPCR analysis utilizing electrical and optical methods.
