Herzan AEK-2022 Acoustic Enclosure Max Noise Isolation Customizable
Herzan
Details
-
CategoryFacility
-
Dimension43.0in x 46.0in x 70.0in
-

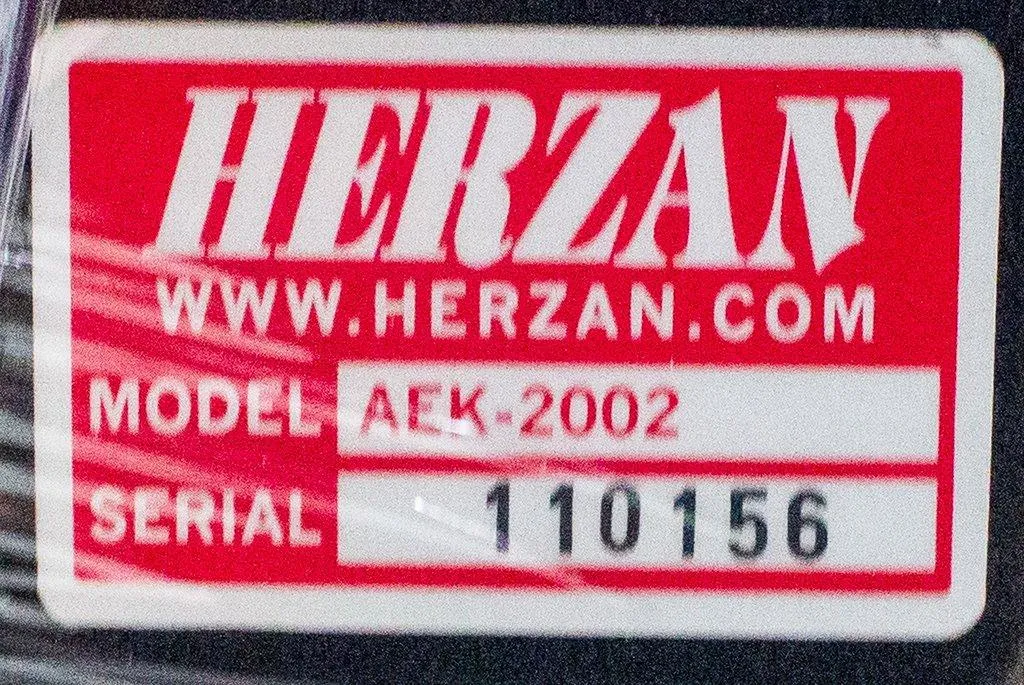

Serial110156
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description
Introducing the Herzan AEK-2022, a premier acoustic enclosure designed to protect sensitive instruments from disruptive acoustic noise. This field-tested enclosure has been optimized through over 20 years of research, providing researchers with superior acoustic isolation solutions. Customization and upgrade options ensure each user can tailor the enclosure to suit unique needs, whether for atomic force microscopy or high precision metrology. The AEK-2022 features a sturdy welded steel frame, enhancing stiffness and minimizing vibration transfer. Its multi-layered sound-damping material yields substantial reductions in acoustic noise across a broad frequency spectrum, with up to 45 dB broadband isolation. With dimensions suitable for various applications, the AEK-2022 is an essential tool for achieving a quiet environment necessary for precise research outcomes.

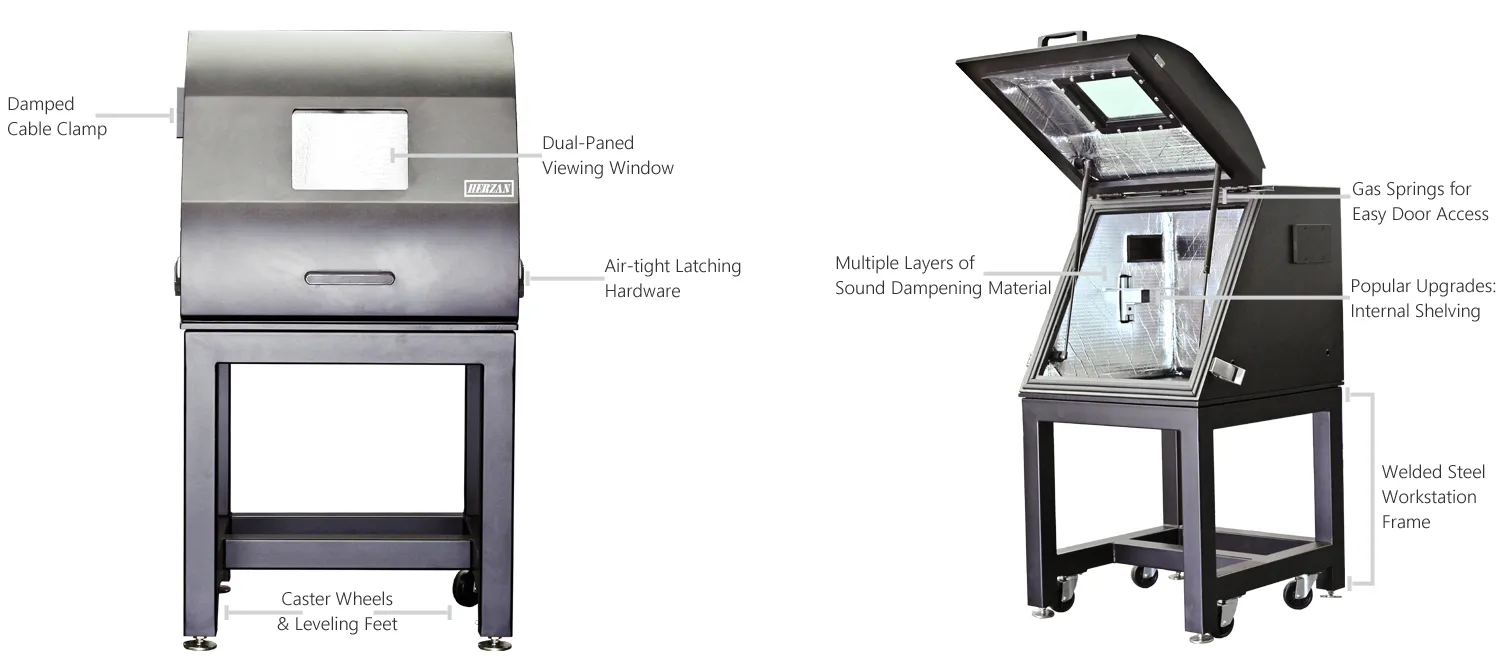

Key Features
- Field-tested and optimized acoustic enclosure
- Customizable and upgradable for unique applications
- Enhanced acoustic isolation up to 45 dB
- Sturdy welded steel frame for reduced vibration
- User-friendly features for seamless research
Specifications
- Broadband acoustic isolation: 50 - 5,000 Hz
- Sound loss levels: 30 dB at 100 Hz, 32 dB at 250 Hz, 35 dB at 500 Hz, 38 dB at 1000 Hz, 42 dB at 1500 Hz, 43 dB at 2000 Hz
- Internal dimensions: 650 x 731.5 x 609.6 mm (25.6 x 28.8 x 24 in)
- External dimensions: 815.3 x 878.8 x 1404.6 mm (32.1 x 34.6 x 55.3 in)
- Ease of access with caster wheels and a door opening force of <5 Lb
Weight
Imperial: 840.0 Pounds
Metric: 381.02 Kilograms
Shipping Dimensions
Imperial: 51.6 lb x 55.2 lb x 84.0 lb
Metric: 131.06 cm x 140.21 cm x 213.36 cm
Harmonized Code
902720
Harmonized Code Details
902720 - Instruments and apparatus for physical or chemical analysis. This code is applicable due to the AEK-2022's role in ensuring precise scientific measurements by minimizing acoustic interference.
