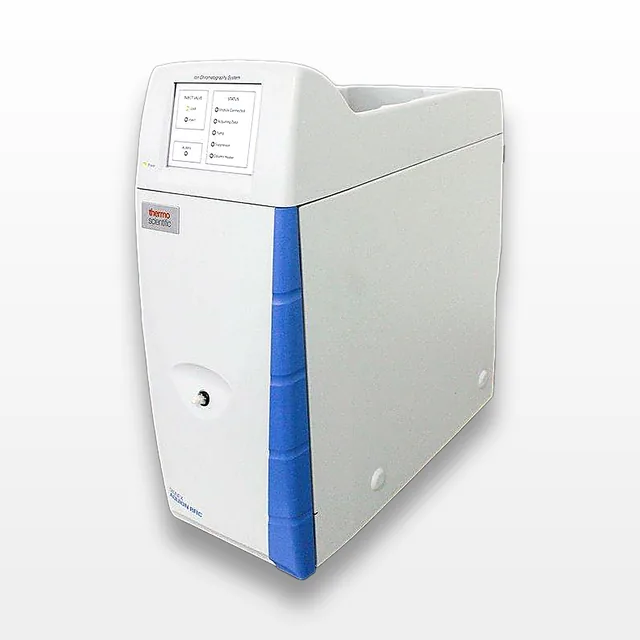

Thermo Scientific Dionex Aquion RFIC 22176-60018 Ion Chromatography System
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension24.0in x 29.0in x 29.0in
-
Serial240380045
-
Shipping TypeFedEx Ground
-
Manufacturing2024-03-04
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Thermo Scientific Dionex Aquion RFIC 22176-60018 Ion Chromatography System, manufactured in March 2024, provides reliable ion analysis for budget-conscious laboratories. This compact IC system features a chemically inert PEEK flow path and a serial dual-piston pump, supporting flow rates from 0.01 to 5.0 mL/min and pressures up to 5000 psi. It comes equipped with an electrically-actuated PEEK 6-port Rheodyne injection valve and a high-pressure pulse dampener. A key feature is the microprocessor-controlled digital signal processor conductivity detector, which offers a range of 0 to 15,000 µS. The system was reported to have an 'EGC-1 over-current' error during installation, which persisted even after replacing certain components. The item is sold as-is, includes a power cord, and operates on 120V/220V at 50Hz/60Hz. This system is ideal for applications in environmental, food safety, and academic labs.
Technician comment
During installation, an 'EGC-1 over-current' error occured. After replacing the EGD PCB (p/n 059585T) and KOH cartridge (p/n 074532) the symptoms persist.
Key Features
- PEEK flow path for chemical inertness
- Serial dual-piston pump (0.01 - 5.0 mL/min)
- Max Pressure: 5000 psi (35 MPa)
- Conductivity detector with digital signal processing
- Supports electrolytic and chemical suppressors
Specifications
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Microprocessor-Controlled DSP Conductivity Detector
- Flow Rate: 0.00 to 5.00 mL/min
- Pressure Range: 0 to 5000 psi
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 34.8 lb x 34.8 lb
Metric: 73.15 cm x 88.39 cm x 88.39 cm
Harmonized Code
9027.20.40
Harmonized Code Details
The code 9027.20.40 pertains to chromatographs, including ion chromatography systems. This code most accurately fits the Dionex Aquion system's function as a specialized analytical instrument used for ion analysis.
