Huber Ministat 230 Refrigerated Heating Bath Circulator -40C to 200C
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.0in x 25.0in x 24.0in
-
Serial338325
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description

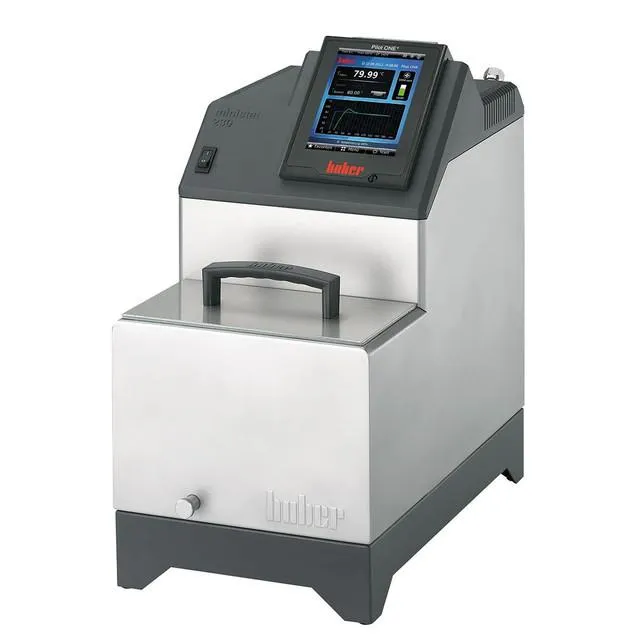

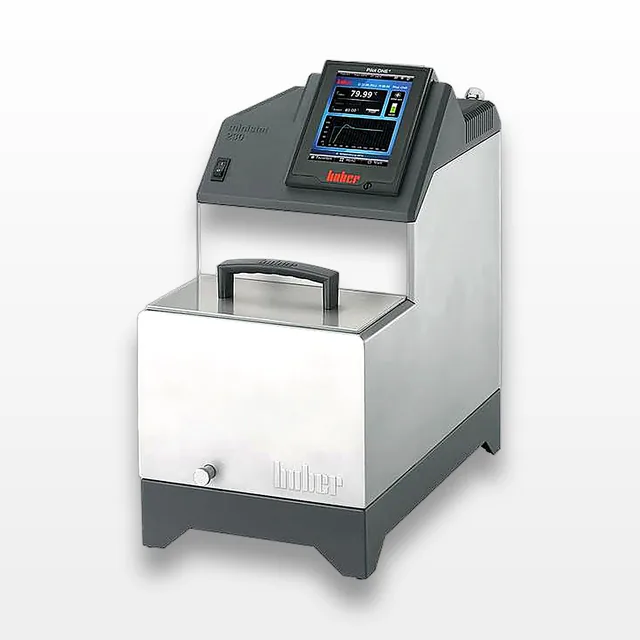

The Huber Ministat 230 is a refrigerated heating bath circulator ideal for precise temperature control applications in laboratories. Its compact design makes it suitable for placement in laboratory fume cupboards or technical plants. With a temperature range from -40°C to 200°C, this award-winning model features a Pilot ONE controller, a 5.7-inch touchscreen display, and plug-and-play technology for enhanced operational ease. The device delivers a cooling capacity of 0.42kW at 20°C and a heating capacity of 1.6 to 2.1 kW, bolstered by a powerful pressure and suction pump. Optimal for use with photometers, refractometers, viscometers, and various apparatus including reaction vessels and mini-plants, the Huber Ministat 230 offers overtemperature and low-level protection, guaranteeing experiment safety and efficiency. This unit is brand new, originating from the United States but does not include power cords, manuals, or software.
Technician comment
New and unused in open box.
Key Features
- Refrigerated heating circulator with temperature range -40°C to 200°C
- Pilot ONE controller with 5.7 in. touchscreen
- Cooling capacity: 0.42kW at 20°C
- Heating capacity: 1.6-2.1 kW
- Pressure pump: 22L/min, 0.7bar
- Suction pump: 16L/min, 0.4bar
- Plug and play technology, five-point calibration
- Compact design, suitable for fume cupboards
Specifications
- Temperature Range: -40°C to +200°C
- Cooling Capacities: 0.42kW (20°C), 0.38kW (0°C), 0.05kW (-40°C)
- Heating Capacity: 1.6-2.1 kW
- Pump Capacity: 22 L/min at 0.7 bar (Pressure) / 16 L/min at 0.4 bar (Suction)
- Display: 5.7 inch TFT Touchscreen
- Voltage: 208/240V, 50/60Hz
- USB, Ethernet, RS232 interfaces
- Safety Class: III/FL (DIN 12876)
- Dimensions (Metric): Height 476 mm, Width 255 mm
Weight
Imperial: 99.6 Pounds
Metric: 45.18 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 30.0 lb x 28.8 lb
Metric: 45.72 cm x 76.2 cm x 73.15 cm
Harmonized Code
841910
Harmonized Code Details
Code 841910 corresponds to machinery, plant or laboratory equipment, whether or not electrically heated, for the treatment of materials by a process involving a change of temperature. It is chosen due to its application in temperature control and heating in laboratory settings.
