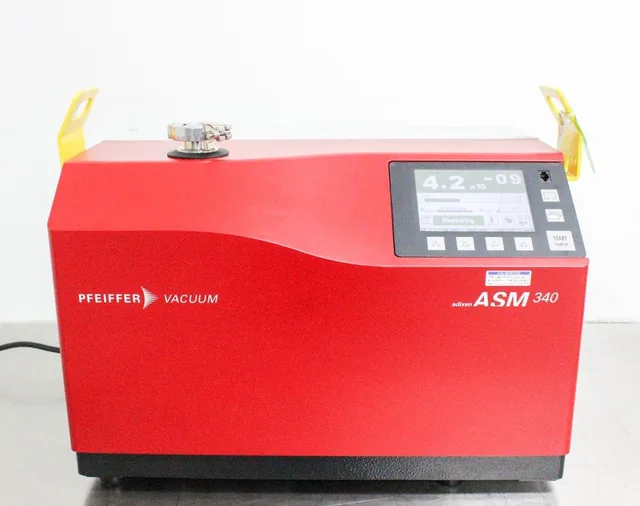

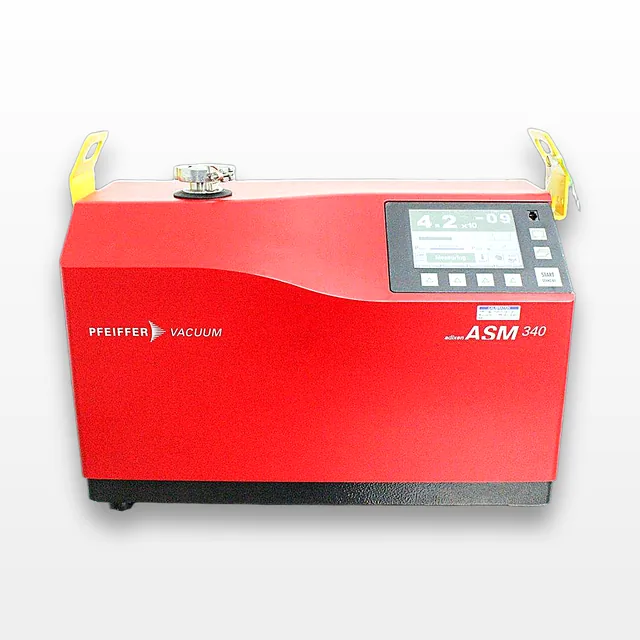

Pfeiffer ASM 340 Wet Helium Leak Detector High Sensitivity Multi-Purpose
Pfeiffer Vacuum
Details
-
CategoryProduction / Manufacturing
-
Dimension24.0in x 30.0in x 29.0in
-
SerialHLD1701544
-
Shipping TypeFreight
Description
The Pfeiffer Vacuum ASM 340 Wet Helium Leak Detector, model Adixen, represents high-performance and ease of operation in both vacuum and sniffing leak detection environments. Though unable to test fully, the unit powers on and passes basic diagnostics. The ASM 340 Wet Version is tailored for small production maintenance applications and offers ultra-fast response and recovery times. This compact tabletop unit integrates a hybrid turbomolecular drag pump and an 11 CFM rotary vane roughing/backing pump. It provides a high sensitivity of 5*E-12 atm. cc/sec. helium for inboard and 5E-9 atm. cc/sec. helium for outboard sniffer testing. Equipped with a high-resolution mass spectrometer and color touch screen, this versatile detector is fit for rapid, repetitive helium and hydrogen detection. The system allows quantitative and qualitative testing with integrated language options for global use.
Key Features
- Compact tabletop helium/hydrogen leak detector
- High sensitivity for both inboard and outboard testing
- Hybrid turbomolecular drag high-vacuum pump
- 11 CFM rotary vane roughing/backing pump
- Detachable color touch screen control with SD card
- Multi-lingual support with digital voice recognition
- Fast response and recovery times
Specifications
- Detectable Gases: 4He, 3He, H2
- Backing Pump Capacity: 250 l/min
- Helium Pumping Speed: 2.5 L/s
- DN 25 ISO-KF Inlet Flange
- High sensitivity: 5*E-12 atm. cc/sec. inboard, 5E-9 atm. cc/sec. outboard
- Mass Spectrometer: 180-degree deflection with VHS preamplifier
- Roughing Capacity: 11 CFM
- Independent yttria-coated iridium filaments
- Integrated helium-calibrated leak for automatic calibration
- Wireless remote control option
Weight
Imperial: 147.6 Pounds
Metric: 66.95 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 36.0 lb x 34.8 lb
Metric: 73.15 cm x 91.44 cm x 88.39 cm
Harmonized Code
90279050
Harmonized Code Details
The harmonized code 90279050 applies to 'Parts and accessories of instruments and apparatus for physical or chemical analysis'. This code is relevant due to the device's function as an analytical detector for helium.
