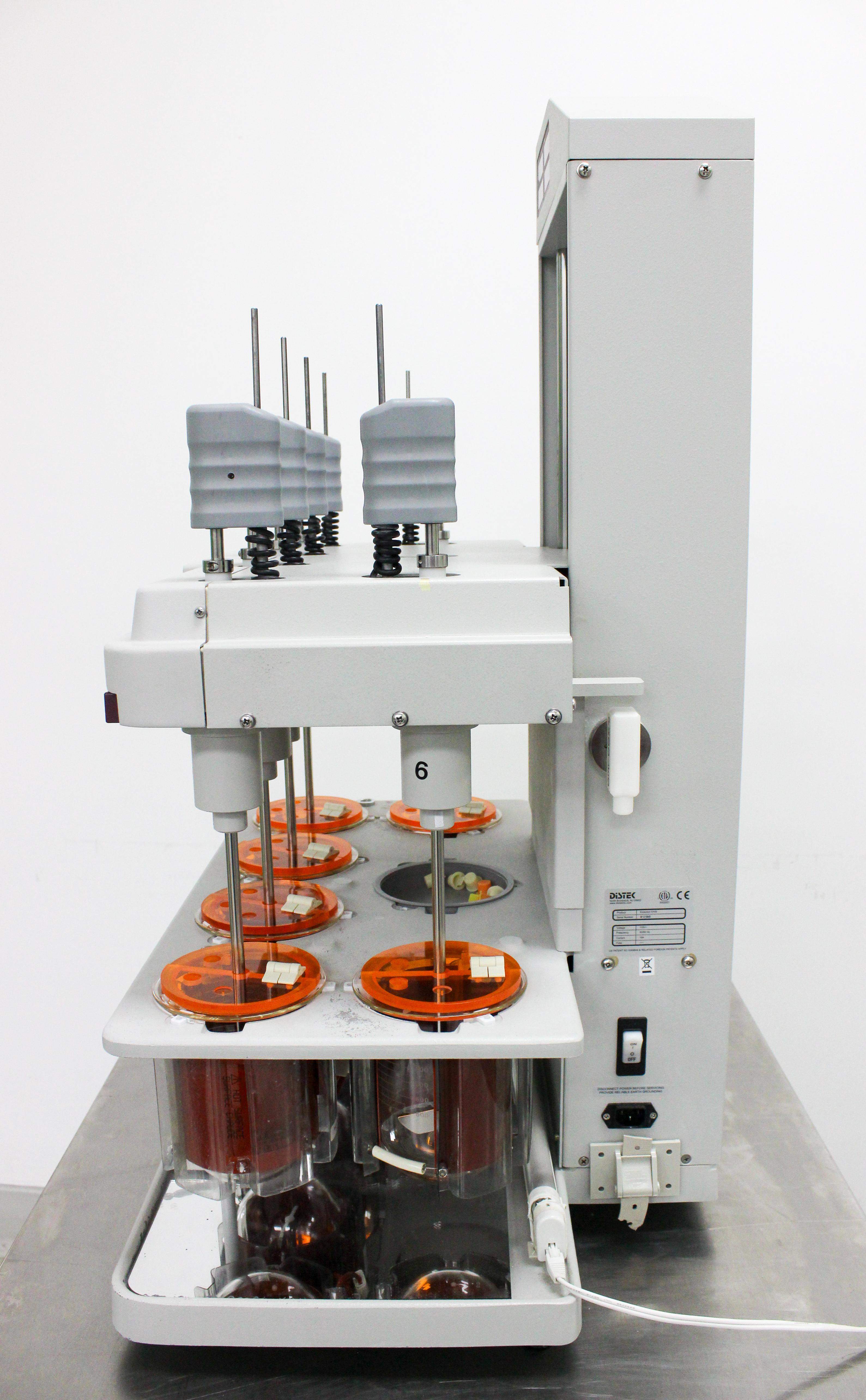

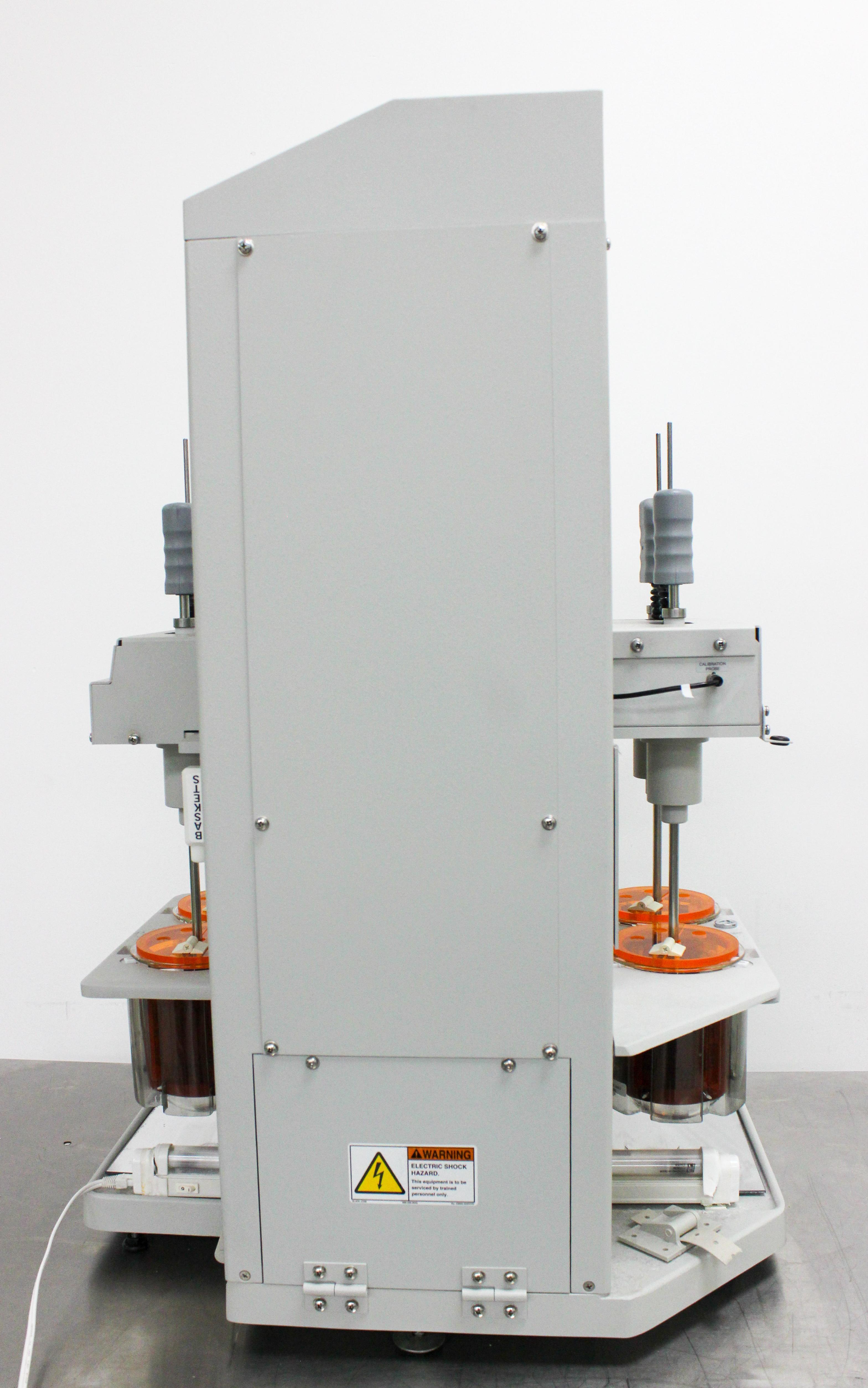

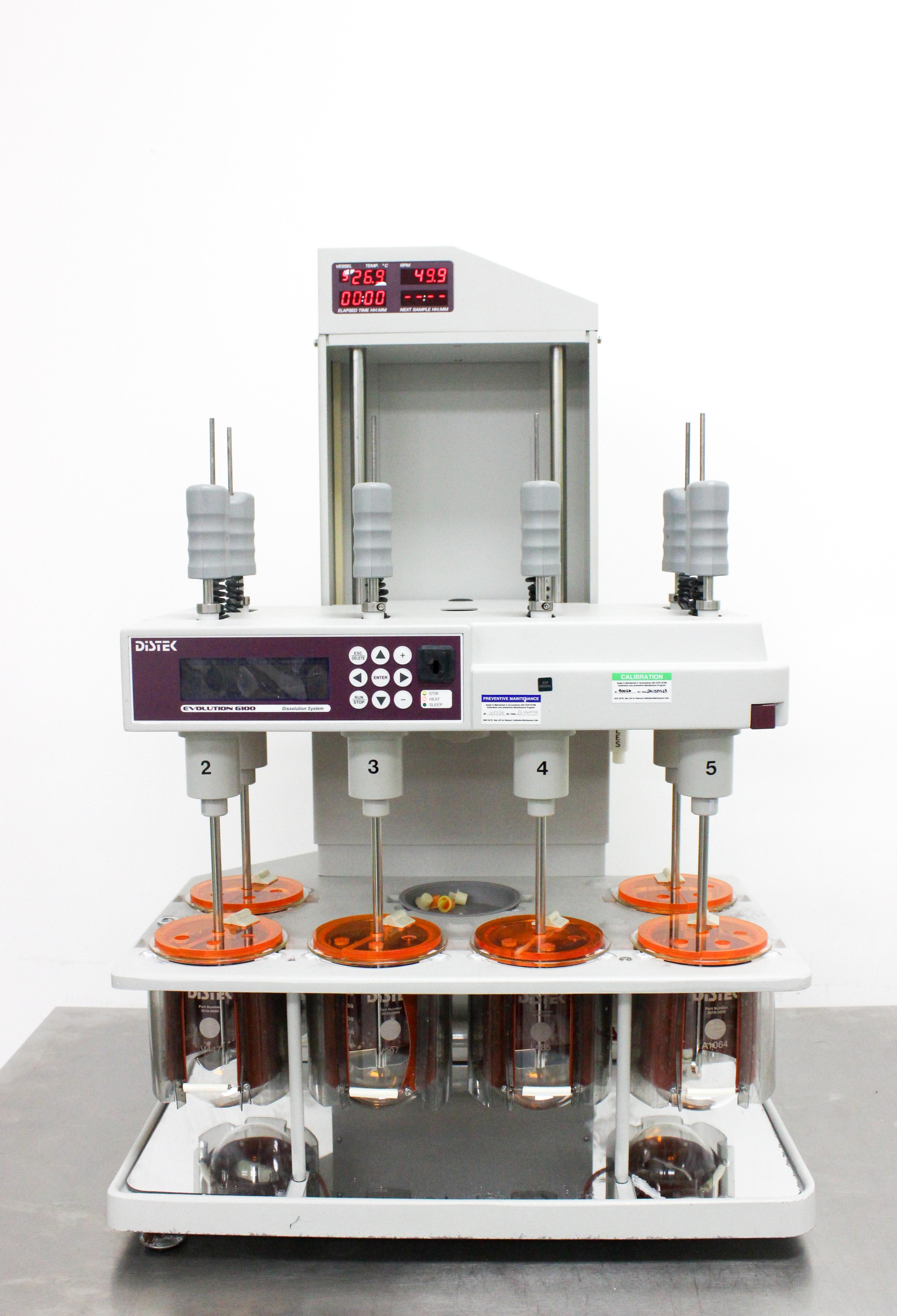

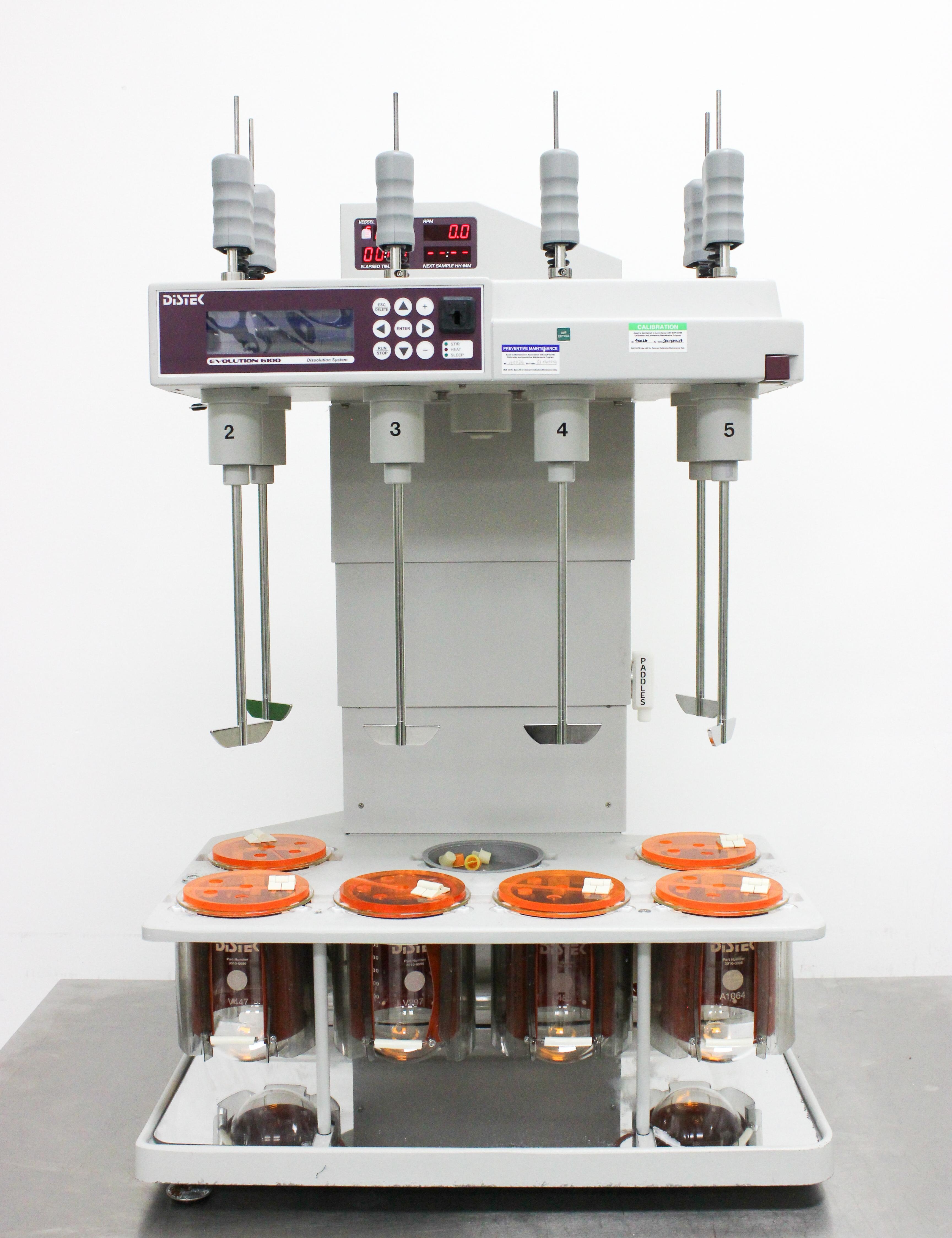

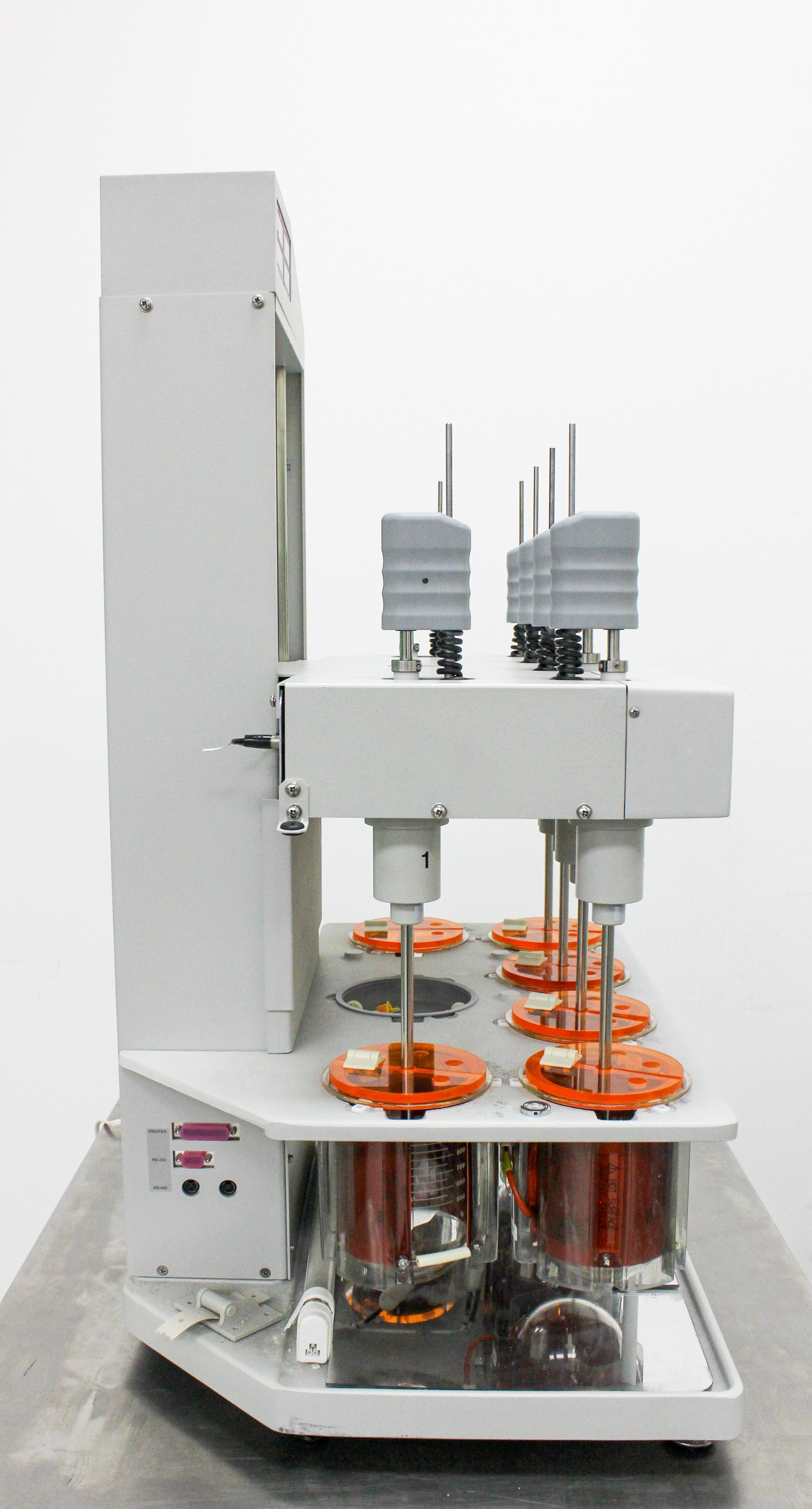

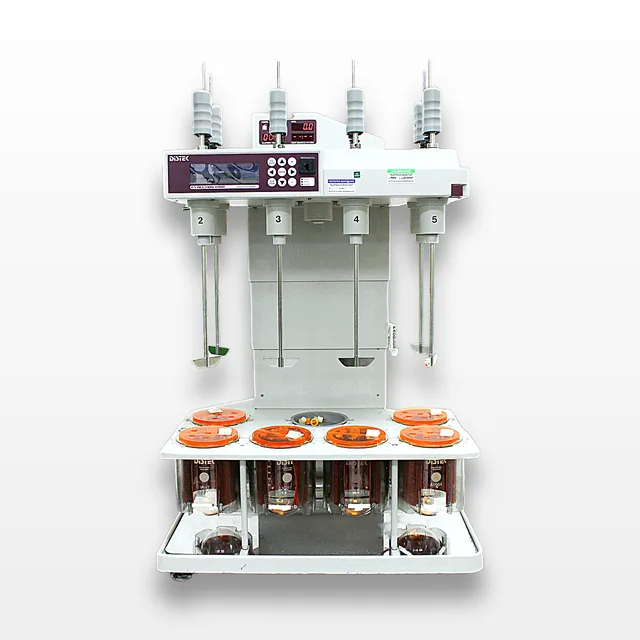

Distek Evolution 6100 Laboratory Chemistry Dissolution System Bathless Tech
Distek
Details
-
CategoryChemistry
-
Dimension20.0in x 26.0in x 39.0in
-

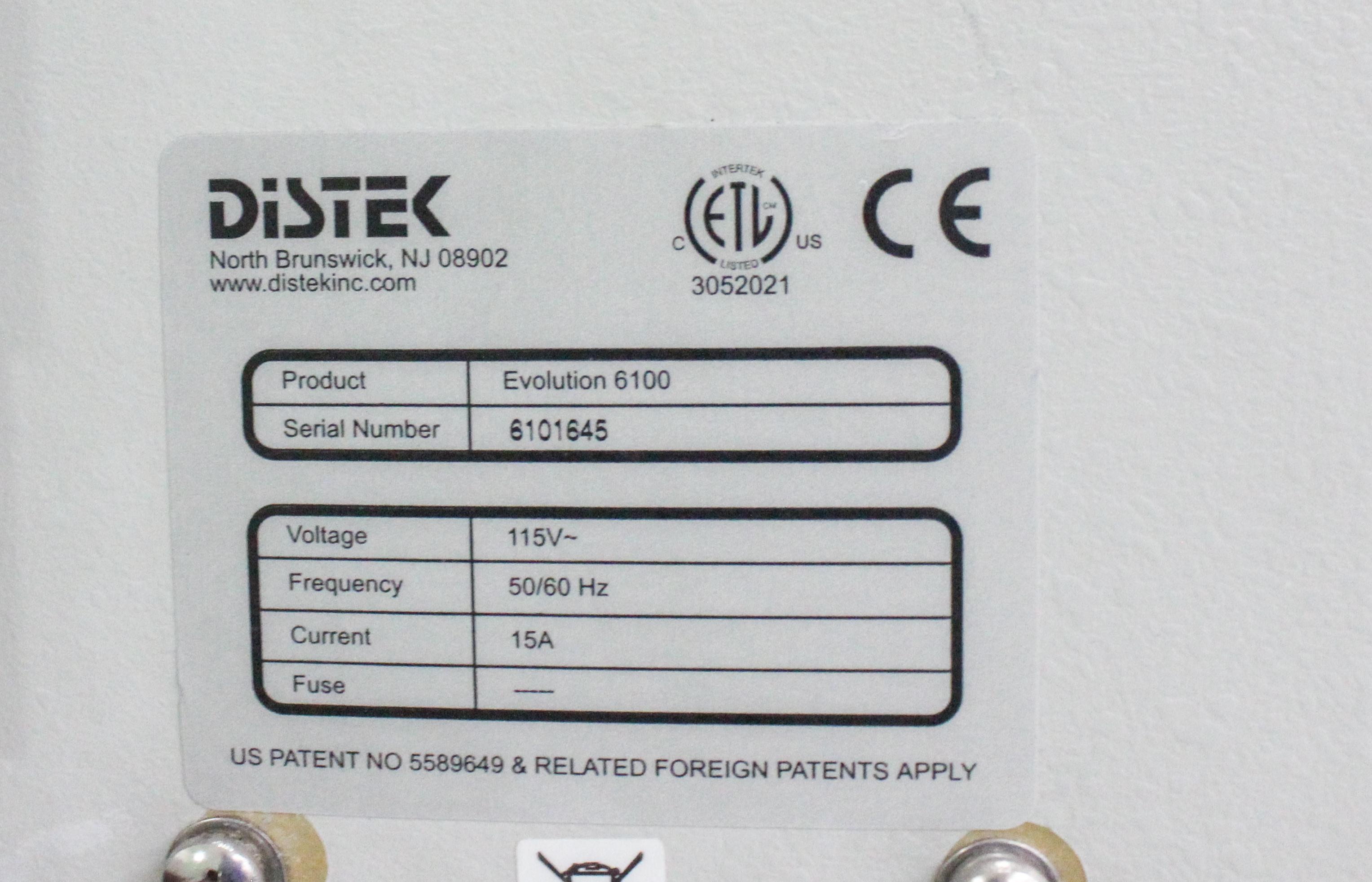

Serial6101645
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Distek Evolution 6100 is a refined bathless dissolution system designed for precise temperature control and accurate test results. Originally stemming from the reputable Model 5100, the 6100 model excels by eliminating water baths, thus reducing maintenance times and potential leaks. This equipment enhances laboratory productivity with features like menu-driven navigation, different access levels, and advanced method storage capabilities, accommodating up to 100 methods. With its auto-detection of shaft movements and rapid media heating, it maintains tight RPM and temperature tolerances. Additional attributes include ProduKey data transfer and a VisiChek system offering tablet visualization. Despite being previously used, the system powers on without fault reports, although attention to the LCD display brightness is needed along with lightbulb replacement for optimal viewing. Cosmetic wear is minimal, reflecting consistent use from a functional laboratory environment.
Technician comment
Distek Evolution 6100 bathless dissolution system powers on without errors, All functions on instrument are operational. (LCD is dark and brightness will need to be adjusted, minor scratches present on display, lightbulb on fixture will need to be replaced.) Unit is preowned from a working laboratory environment. User: Distek PW: Distek
Key Features
- Patented Bathless Technology
- Advanced temperature control
- Embedded temperature sensors
- USP tolerance checking
- Rapid media heating to 37C in less than 15 minutes
- Security and password protection
- Method storage for up to 100 methods
- VisiChek visual perspective enhancement system
- Printer sharing for linked systems
Specifications
- Holds up to seven dissolution vessels
- Programmable volume between 500 mL – 1000 mL
- Vessel heating rate: 2 degrees Celsius per minute
- RPM control range: 25 – 350 RPM

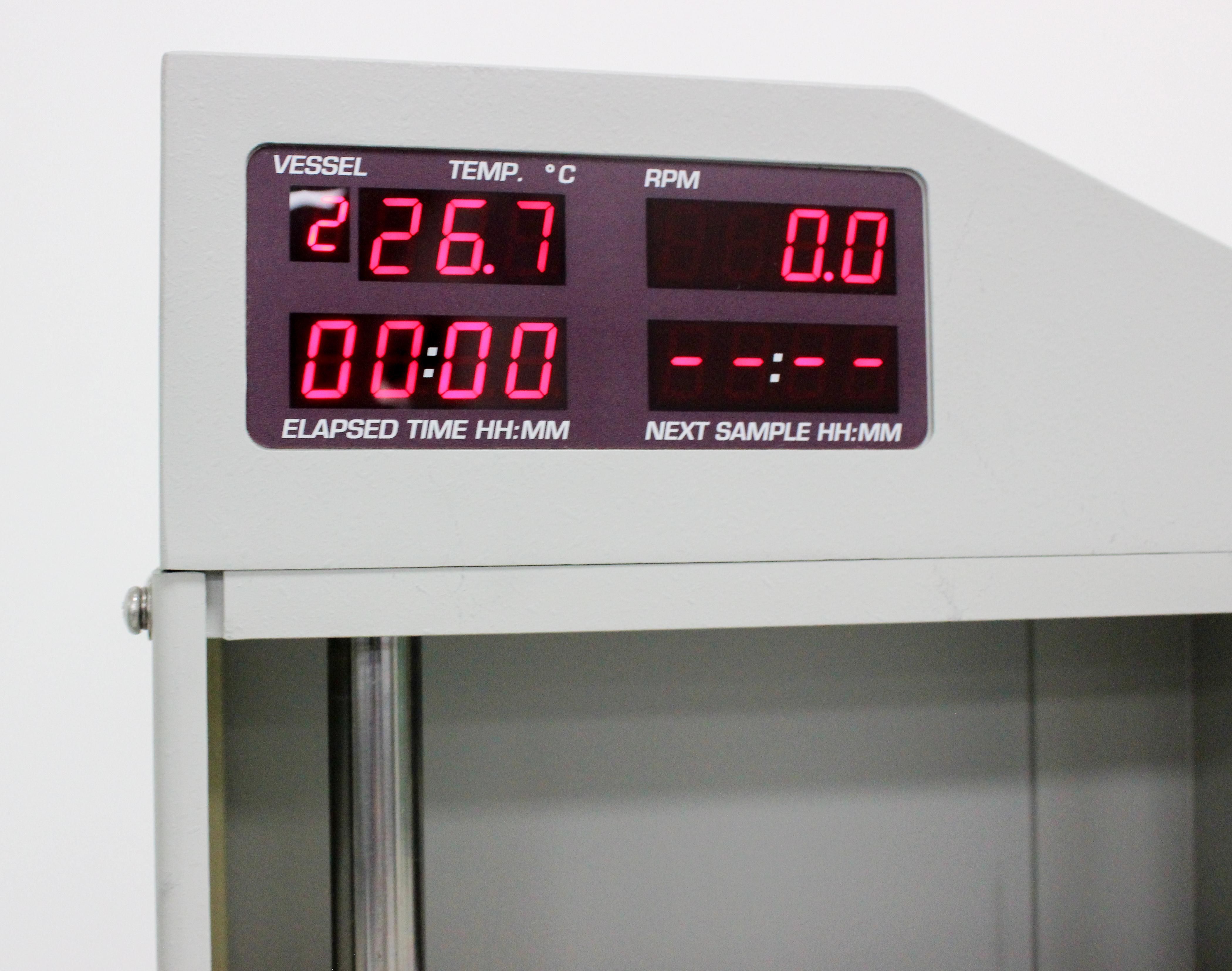

- LED display size: 0.75 inches (19 mm) high
- Built-in calibration probe for accuracy
- Motor: High torque, permanent magnet
- Construction materials: Cast aluminum, stainless steel, engineered plastics
- Interface ports: RS-232 (2), RS-485 (1), Parallel printer (1)
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 31.2 lb x 46.8 lb
Metric: 60.96 cm x 79.25 cm x 118.87 cm
Harmonized Code
902780
Harmonized Code Details
The harmonized code 902780 pertains to instruments for physical or chemical analysis. The Distek Evolution 6100 is used for precise dissolution testing in laboratory settings, aligning closely with this classification.
