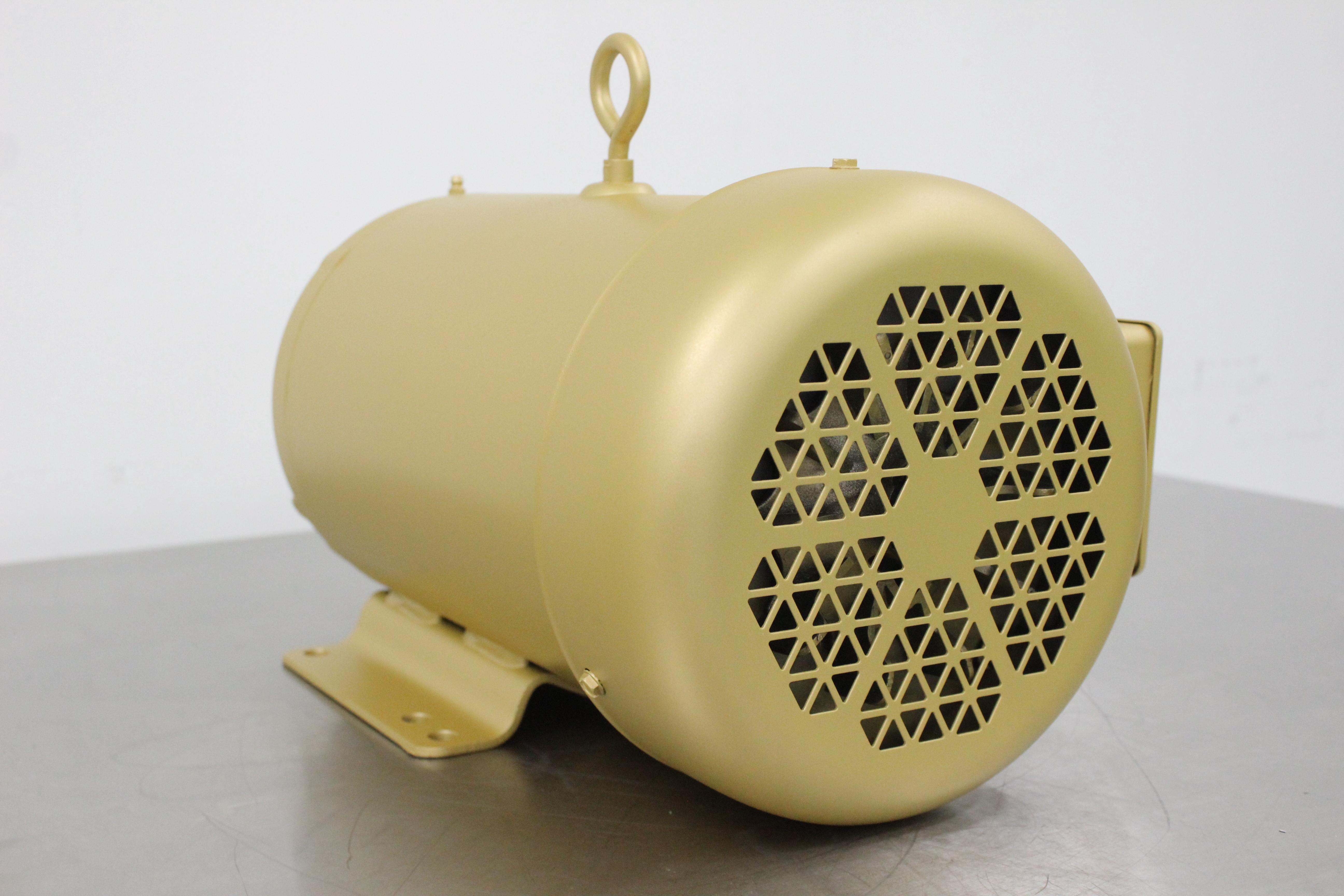

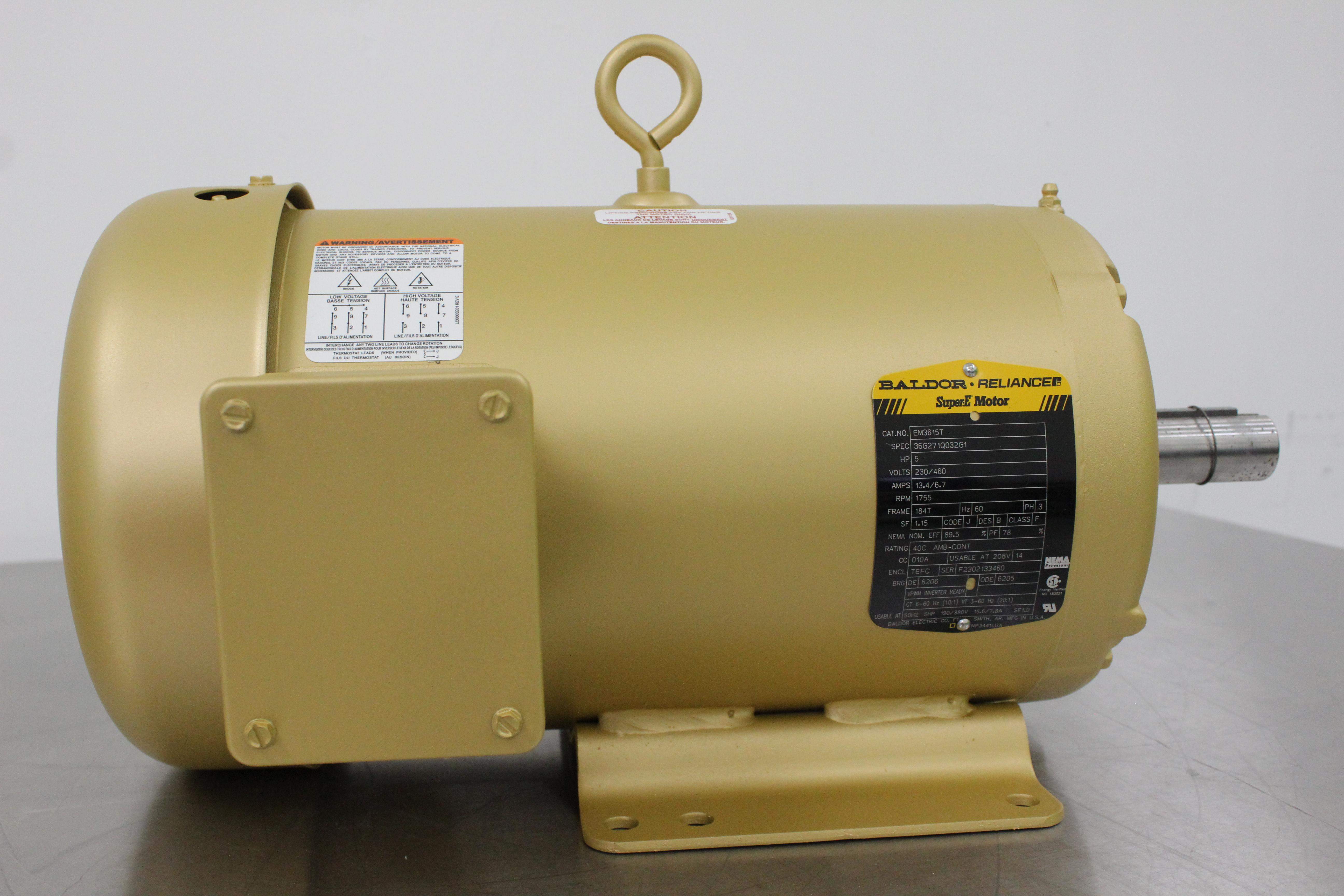

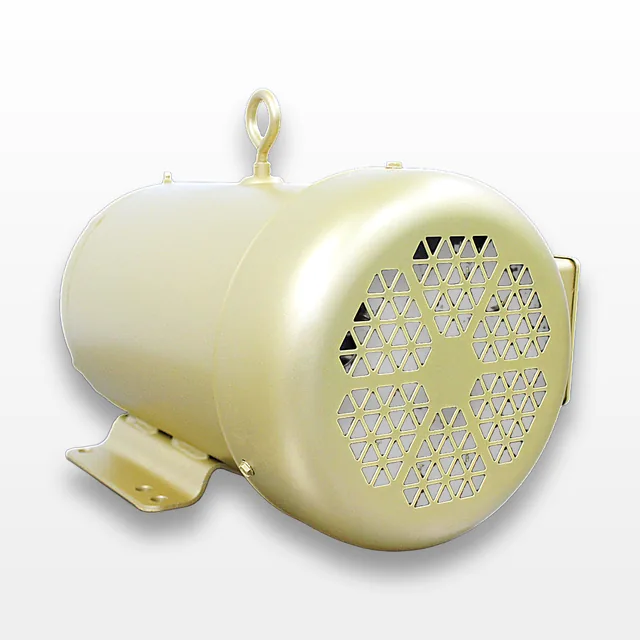

Baldor Reliance EM3615T Electric Motor 5HP 3-Phase TEFC Motor 1755RPM
Baldor Reliance Super-E Motor
Details
-
CategoryMiscellaneous
-
Dimension20.0in x 13.0in x 12.0in
-
Serial36G271Q032G1
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230-460V / 60Hz US
Description
The Baldor Reliance Super-E Motor EM3615T is a high-efficiency, three-phase electric motor designed for various industrial applications such as pumps, fans, and conveyors. With a power output of 5 horsepower and a speed of 1755 RPM, this motor features a durable 184T steel frame and a Totally Enclosed Fan Cooled (TEFC) enclosure for optimal protection and performance. This motor is inverter-ready, making it suitable for use with variable frequency drives (VFDs). The unit was received in near new condition with minimal usage and no evident cosmetic damage. It comes equipped with regreasable ball bearings to ensure long-lasting service. The electric motor operates at a voltage range of 208-230/460V and maintains an efficiency rate of 89.5%, endorsing its reliability and energy-saving design perfect for continuous duty applications.
Technician comment
Unable to test motor although it did come NEW unopened in the box, has instruction manual, no damages. expected to work as it should as it is brand new.
Key Features
- 5 HP Power Output
- 3-Phase Electric Motor
- 1755 RPM Speed
- TEFC Enclosure
- Durable 184T Steel Frame
- Inverter-Ready
- High Efficiency: 89.5%
- Voltage Range: 208-230/460V
Specifications
- Horsepower: 5 HP
- RPM: 1755
- Phase: 3
- Voltage: 208-230/460V
- Frame Size: 184T
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Frequency: 60 Hz
- Efficiency: 89.5% (NEMA Premium Efficiency)
- Duty: Continuous Duty
- Frame Material: Steel
- Insulation Class: F
- Service Factor: 1.15
- Design Code: B
- Pulley End Bearing Type: Ball
- Motor Standards: NEMA
- Starting Method: Direct on Line
- Shaft Rotation: Reversible
Weight
Imperial: 102.0 Pounds
Metric: 46.27 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 15.6 lb x 14.4 lb
Metric: 60.96 cm x 39.62 cm x 36.58 cm
Harmonized Code
85015220
Harmonized Code Details
85015220 - AC Motors, multi-phase, of an output exceeding 750 W but not exceeding 75 kW. Suitable for electric motors like the Baldor Reliance EM3615T used in industrial applications.
