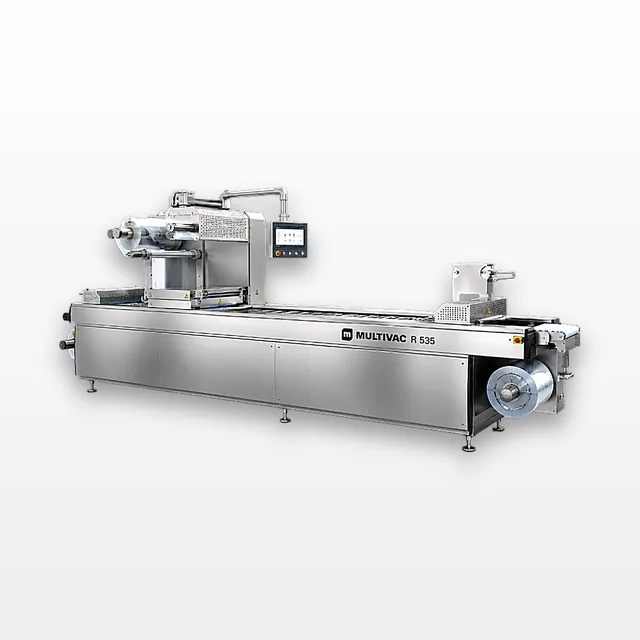

Multivac R535 Thermoforming Packaging Machine CIP Clean In Place Up to 30 Cycles/Min
Multivac
Details
-
CategoryProduction / Manufacturing
-
Dimension444.0in x 43.0in x 84.0in
-
Serial309580
-
Shipping TypeFreight
-
Manufacturing2021-08-08
Description
Multivac R535 thermoforming packaging machine (Manufacture Date: 2021-08-08) in excellent condition (Condition Class E). This high-performance, configurable packaging system is designed for high output thermoform packaging across food products, sterile medical goods, and industrial or consumer goods. The machine features hygienic design principles with streamlined interior components and easy-to-open frame profiles for cleaning and maintenance access. It includes Clean in Place (CIP) cleaning technology with protocolled cleaning cycles and mixing ratios, supported by an interior pipe system and an external manual spray gun. The R535 is equipped with IPC controls and production data acquisition (PDA) for monitoring operating conditions and stop reasons, with Ethernet connectivity and optional OPC interface for data exchange and line-level evaluation. Built for robust, corrosion-resistant operation, it supports tool cut-off lengths up to approximately 1,300 mm and forming depth up to 210 mm, with up to 30 cycles per minute depending on configuration. Working status is based on intake inspection.
Technician comment
Key Features
- Clean in Place CIP automatic cleaning system with protocolled cleaning cycles
- Hygienic interior design with streamlined components for easier cleaning
- Easy-to-open frame profiles for direct access during cleaning and maintenance
- IPC controls with production data acquisition PDA for monitoring operating conditions and stop reasons
- Ethernet connectivity with optional OPC interface for data exchange and evaluation
- Quick format change using a drawer procedure without disassembling the hot tool surface
- Tool cut-off length capability up to approximately 1300 mm (configuration dependent)
- Forming depth capability up to 210 mm (configuration dependent)
- Thermoformable, hot-sealable film packaging material compatibility
Specifications
- Cut-off lengths: depends on the equipment to approx. 1,300 mm
- Forming depth: depends on the equipment, max. 210 mm
- Nominal widths of standard machines: 320, 355, 420, 459, 560 mm
- Nominal widths of special machines: from 220 to 650 mm in increments of 5 mm
- Machine width (A): Nominal width of the machine + 650 mm
- Machine height: approx. 1,900 to 2,000 mm
- Line height (B): 850 to 950 mm
- Machine length (C): approx. 6,000 to 21,000 mm
- Frame length (D): 5,000 to 20,000 mm
- Packaging materials: thermoformable hot-sealable films; flexible or hard; aluminum multi-layer films; compostable films; hot-sealable tracks on paper and cardboard base
- Reel diameter: standard film unwind up to 500 mm, up to 100 kg reel weight
- Jumbo film unwind: max. 1,000 mm
- Electric connection (standard): 3 x 400 V / 50 Hz; 3 x 220 V / 60 Hz
- Compressed air: min 7 bar (usage depends on equipment)
- Cooling water: 1.5 to 4 bar (usage depends on equipment)
Weight
Imperial: 5400.0 Pounds
Metric: 2449.4 Kilograms
Shipping Dimensions
Imperial: 532.8 in x 51.6 in x 100.8 in
Metric: 1353.31 cm x 131.06 cm x 256.03 cm
