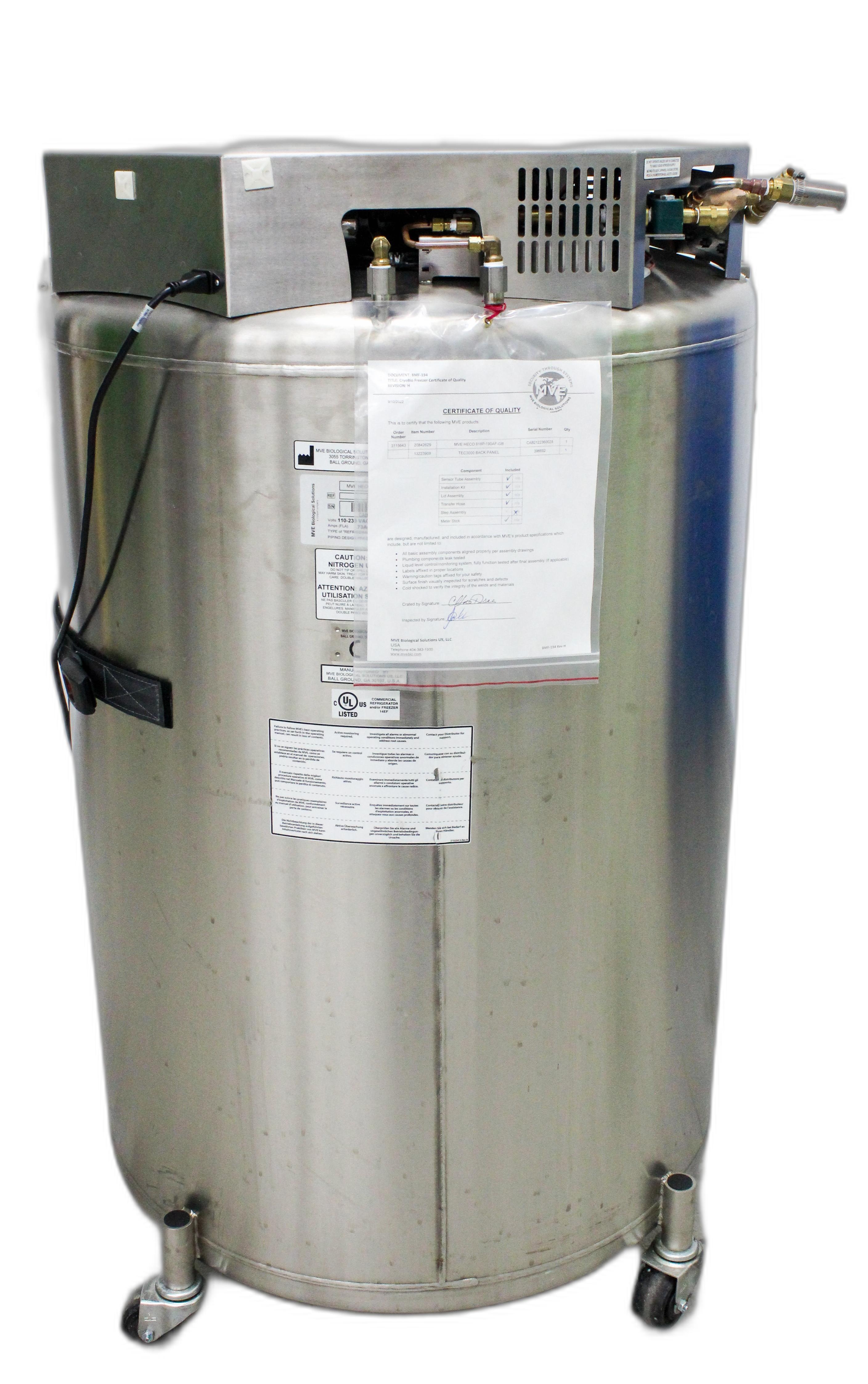

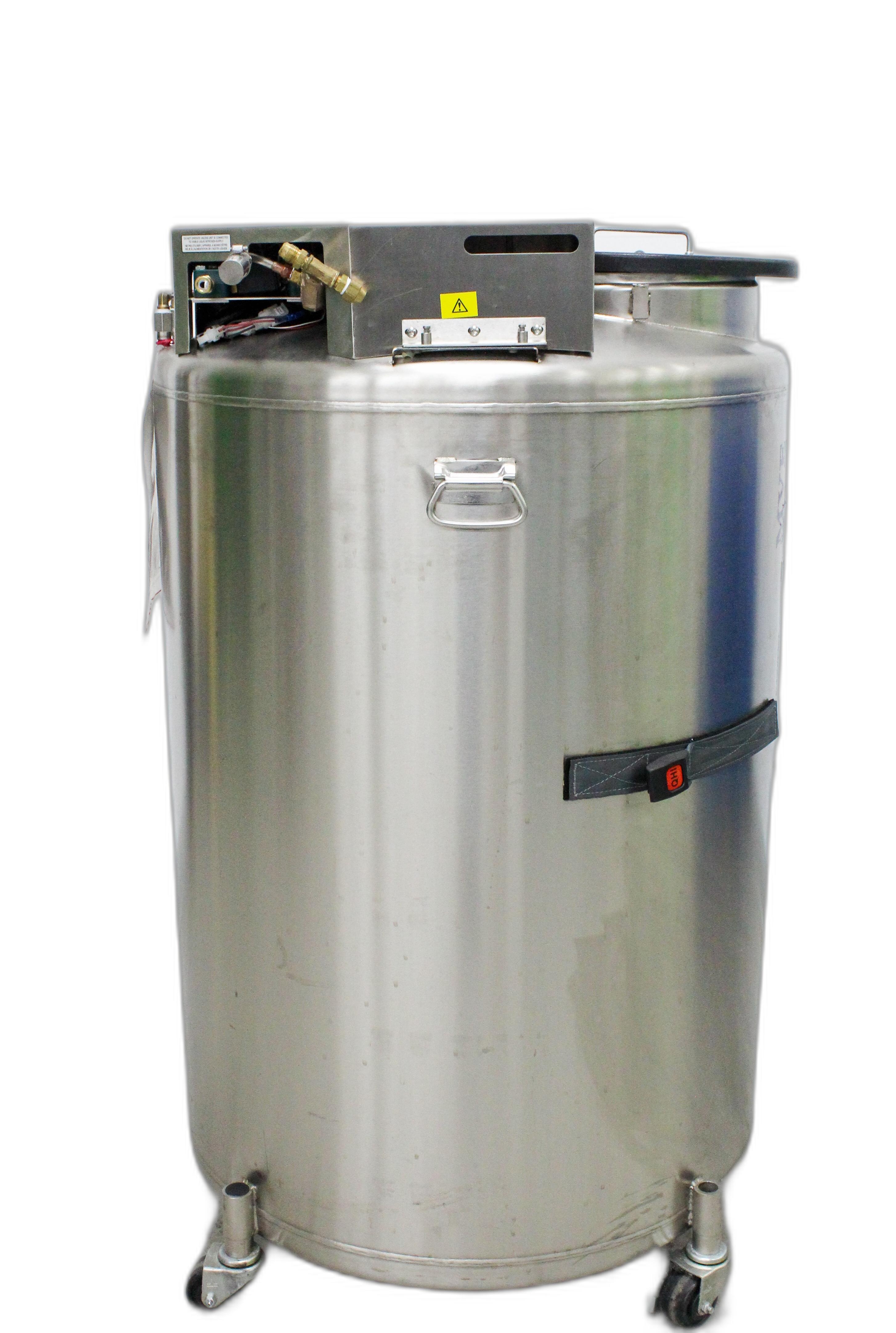

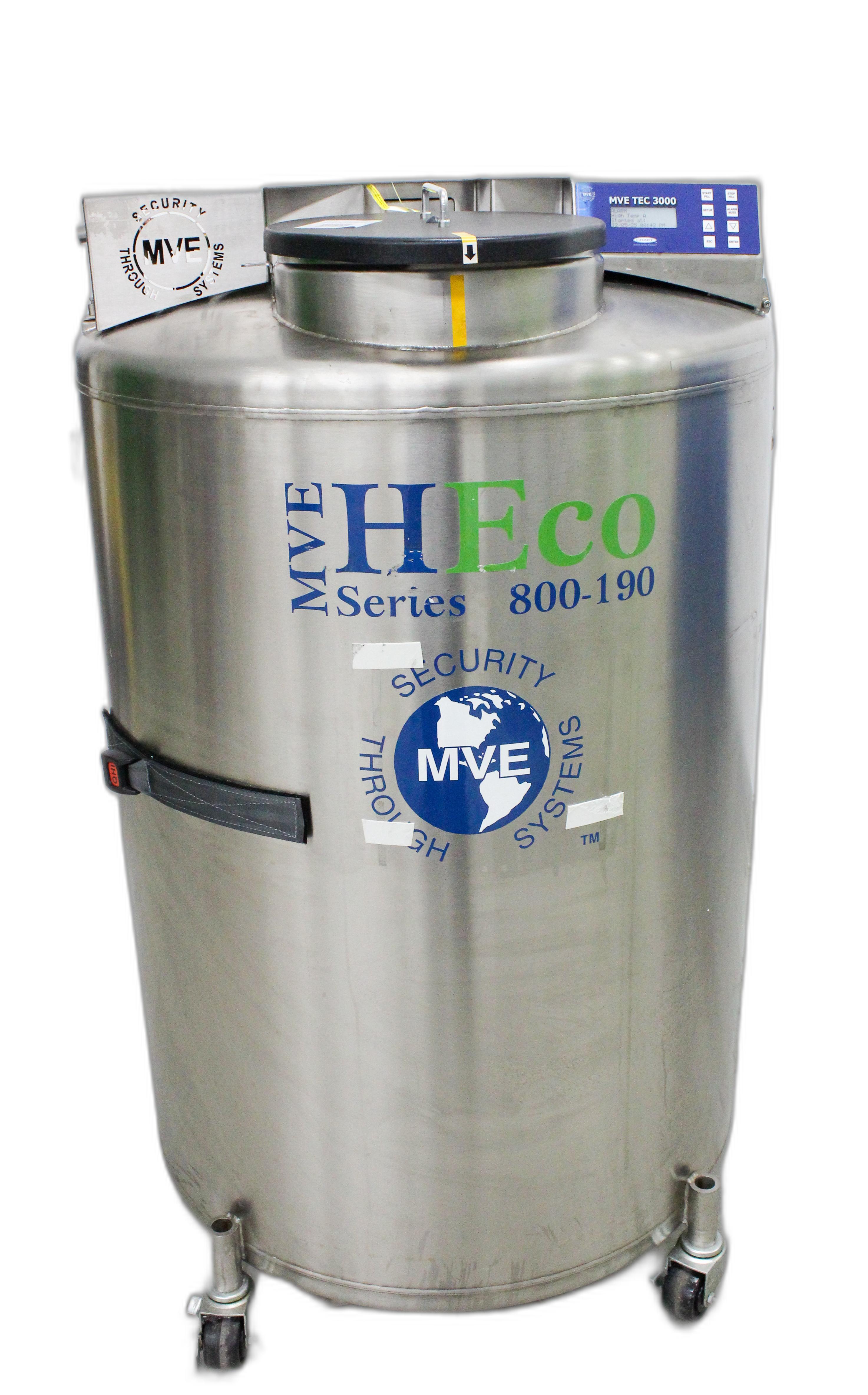

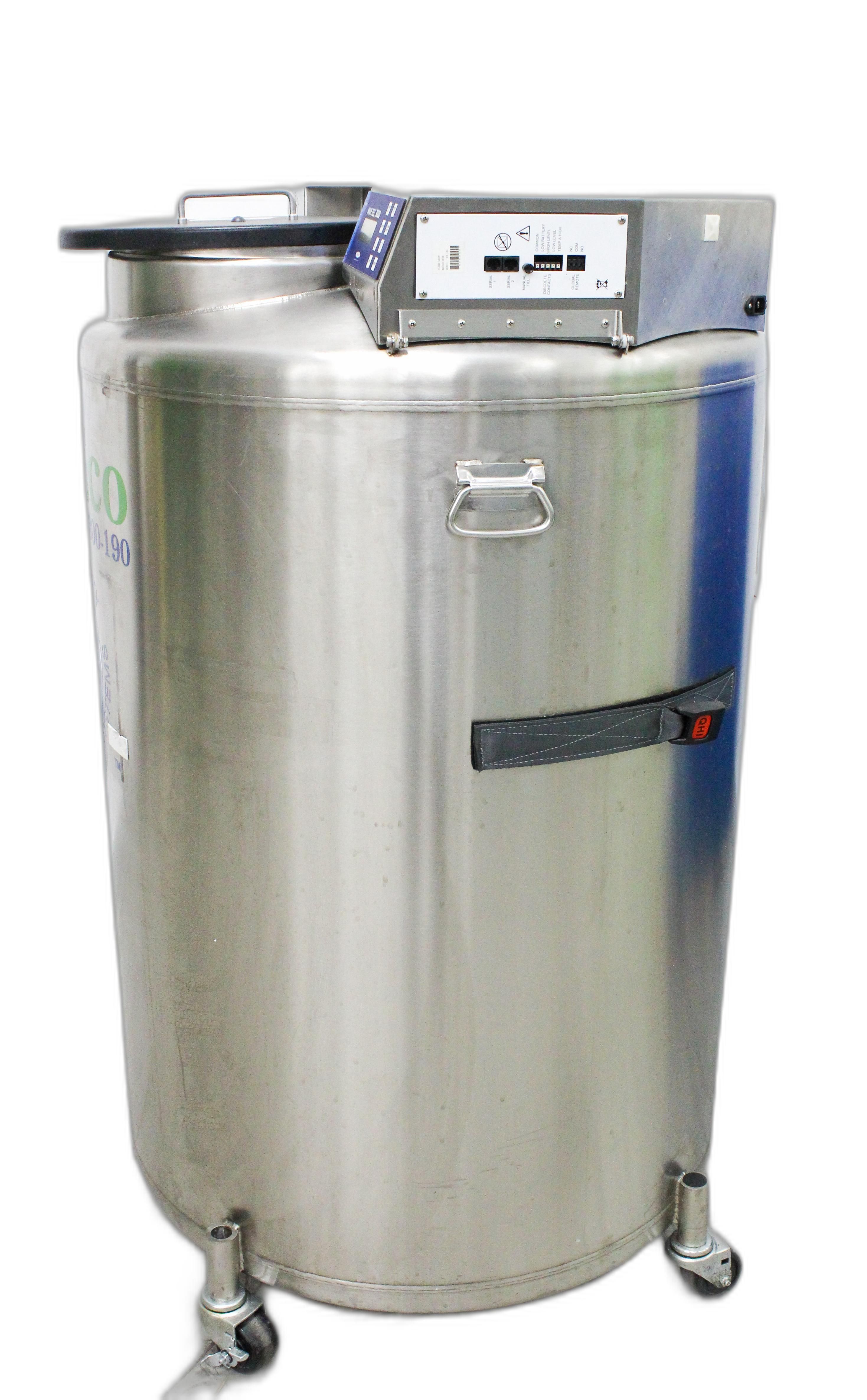

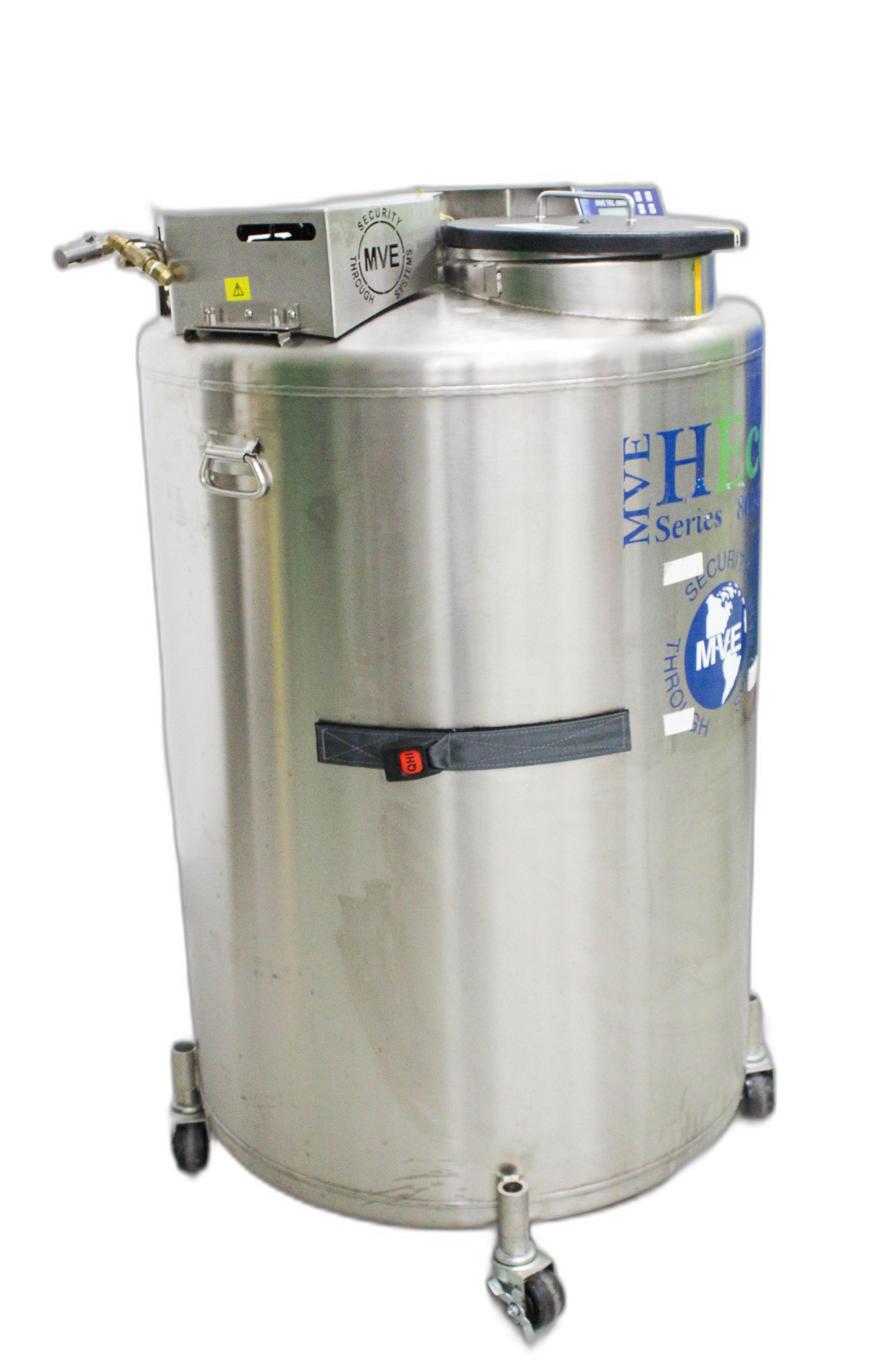

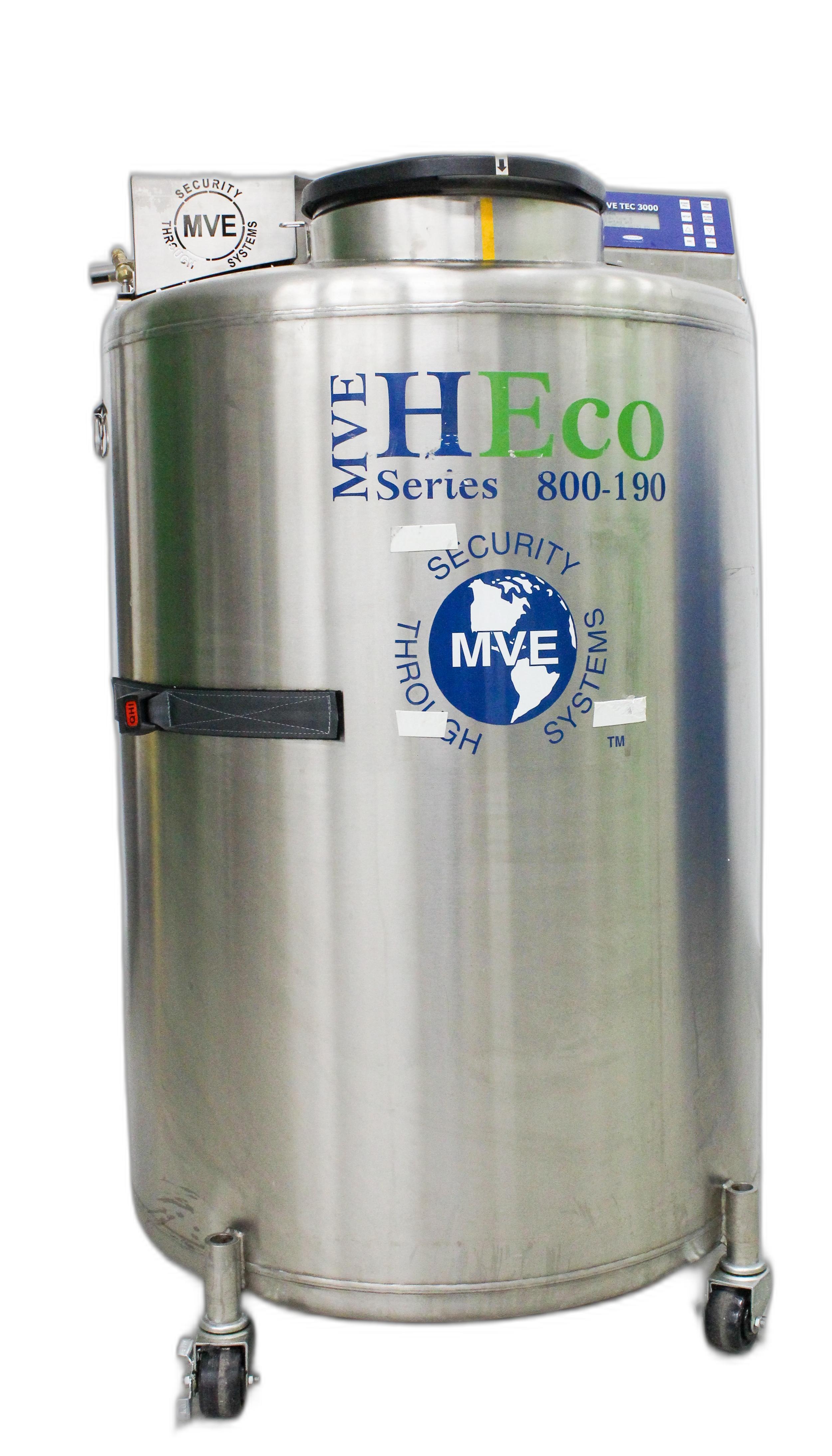

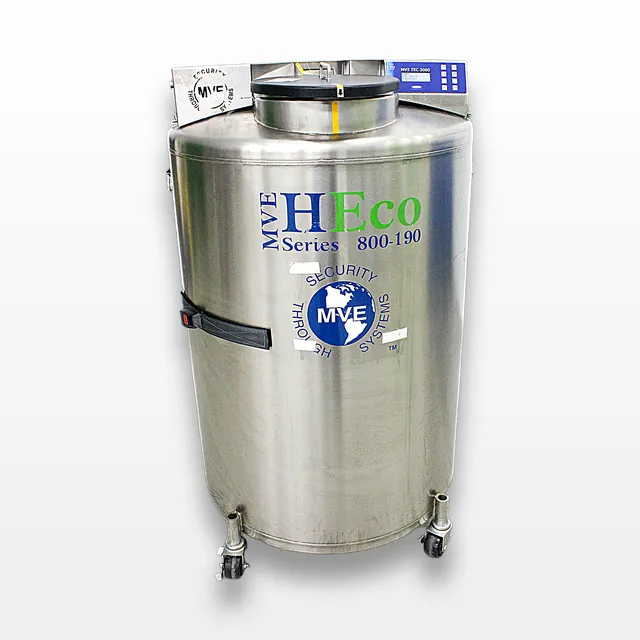

MVE MVE HECO 818P-190AF-GB High-Efficiency Vapor Phase LN2 Freezer
MVE
Details
-
CategoryCold Storage
-
Dimension32.0in x 32.0in x 54.0in
-

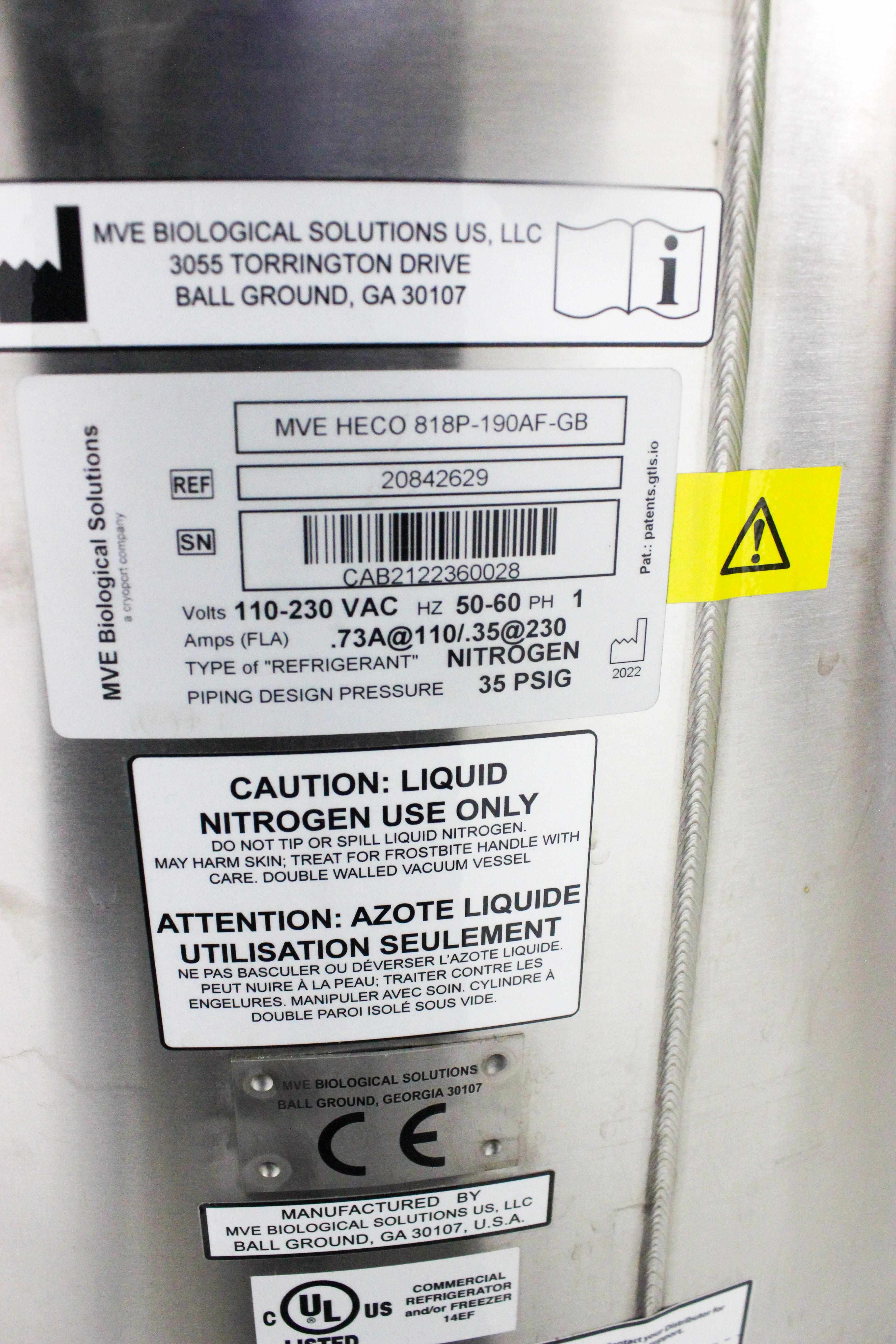

SerialCAB122360028
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

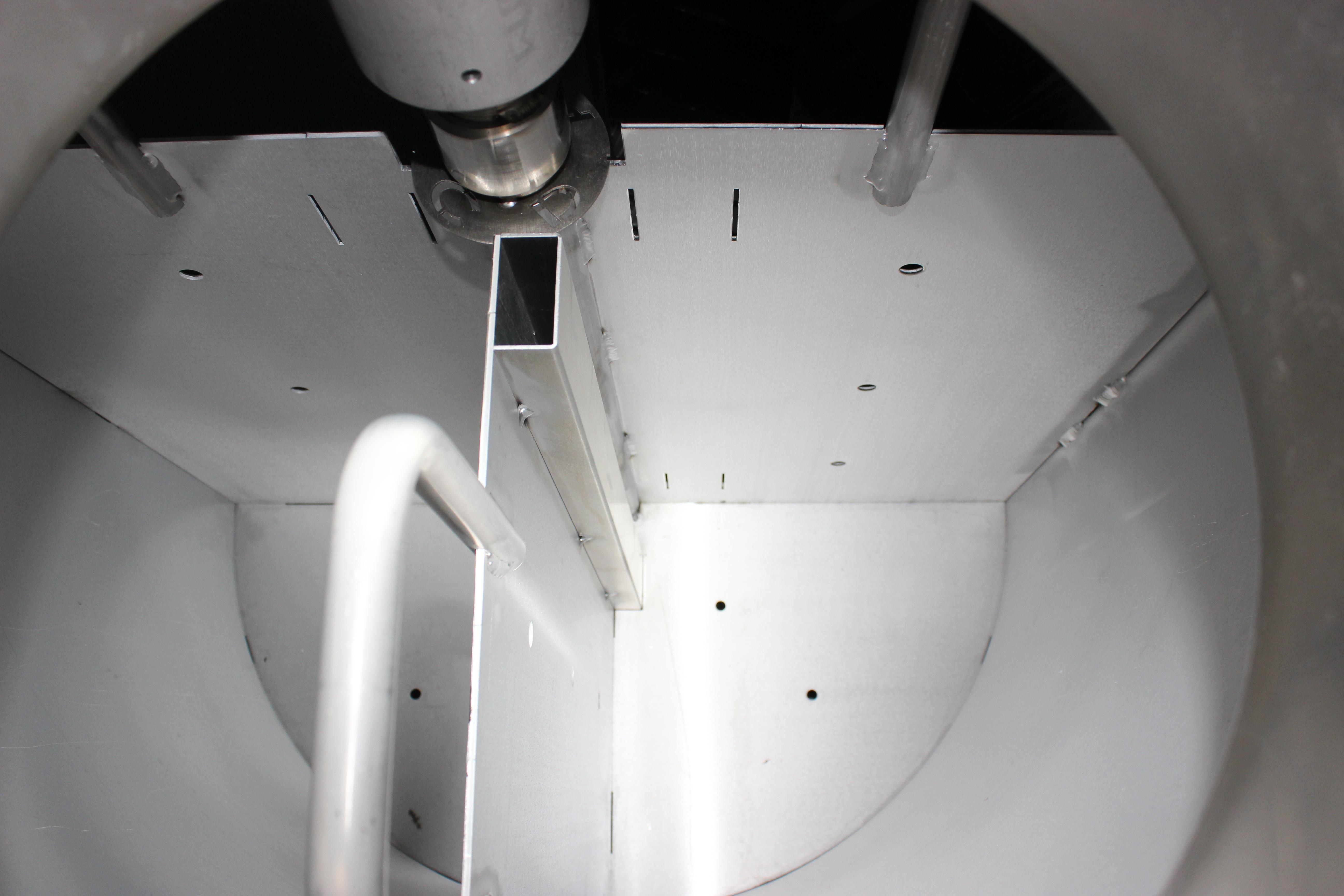

The MVE HECO 818P-190AF-GB is a high-efficiency vapor-phase liquid nitrogen freezer, designed for secure long-term biostorage. With its unique shroud design, streamlined LN2 plumbing, and vacuum-jacketed transfer hose, this freezer ensures efficient LN2 consumption. It features advanced controls with an autofill system, gas bypass, and TEC 3000 controller to maintain consistent vapor temperatures around -190°C. The unit was pulled from a working lab, powers on normally with responsive electronics, and shows no visible vacuum or plumbing issues on inspection. It is suitable for biobank, IVF, stem cell, and clinical research facilities. With a maximum storage capacity of 18,200 vials and an LN2 capacity of 420 liters, it offers substantial storage density, long hold times, and high sample security.
Technician comment

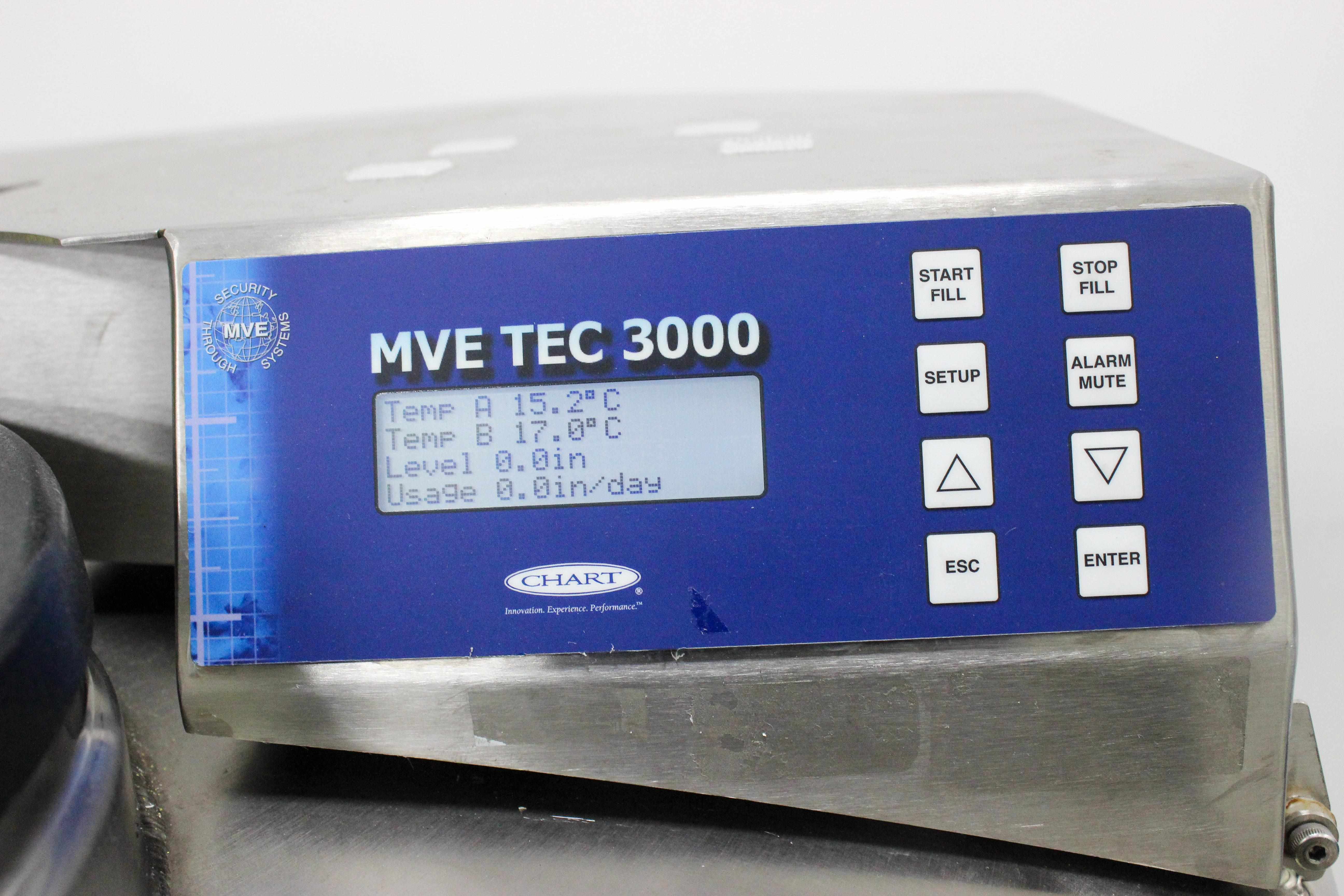

MVE HEco 818P-190AF-GB was sourced from a working lab, powers up normally with the controller, display, keypad all responsive. Full functional testing was not completed because liquid nitrogen was not available, so autofill performance, vapor temperature stability, and long-term hold were not verified under LN2 load.
Key Features
- High-efficiency LN2 consumption
- Vapor-phase storage at -190°C

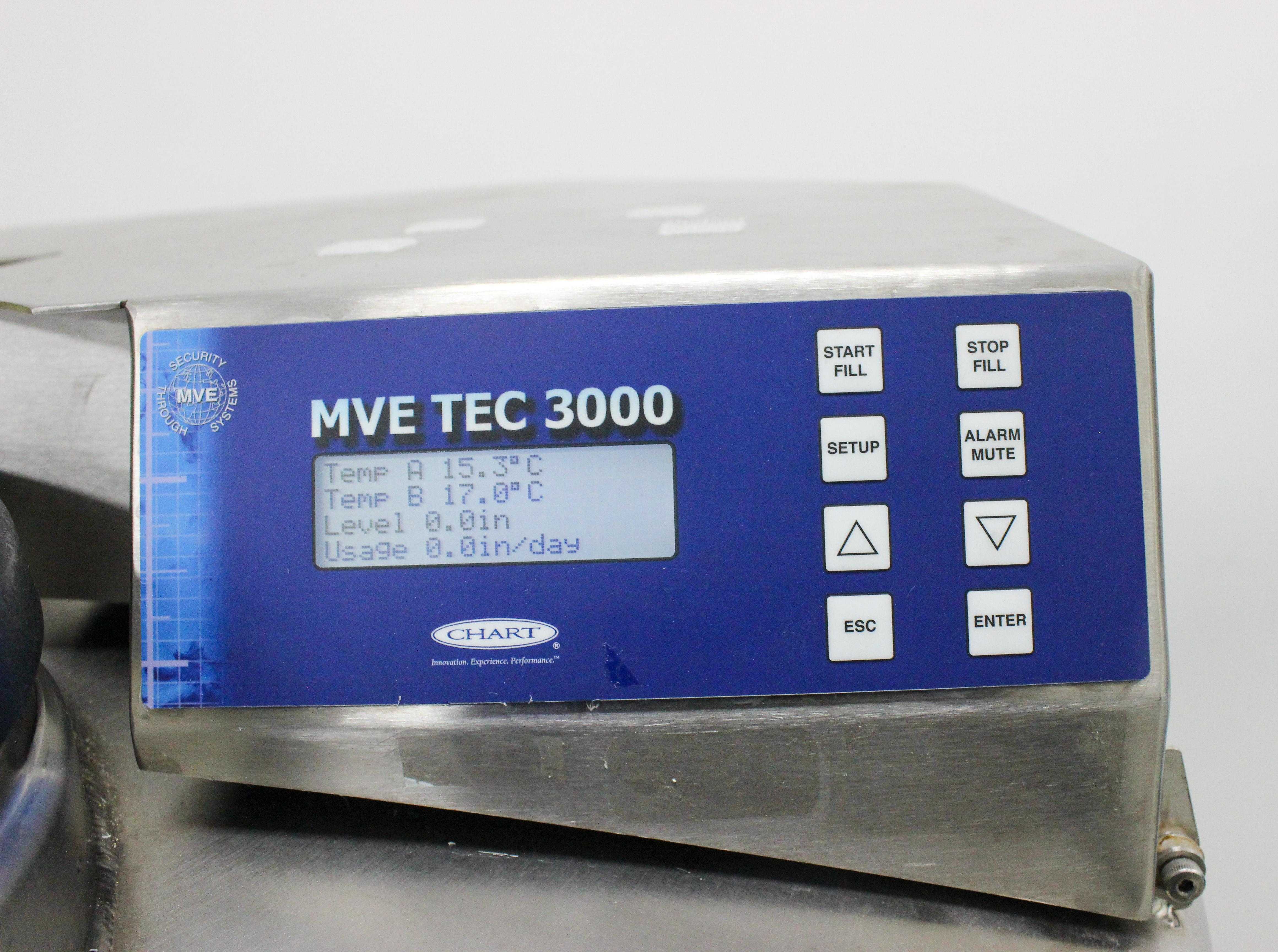

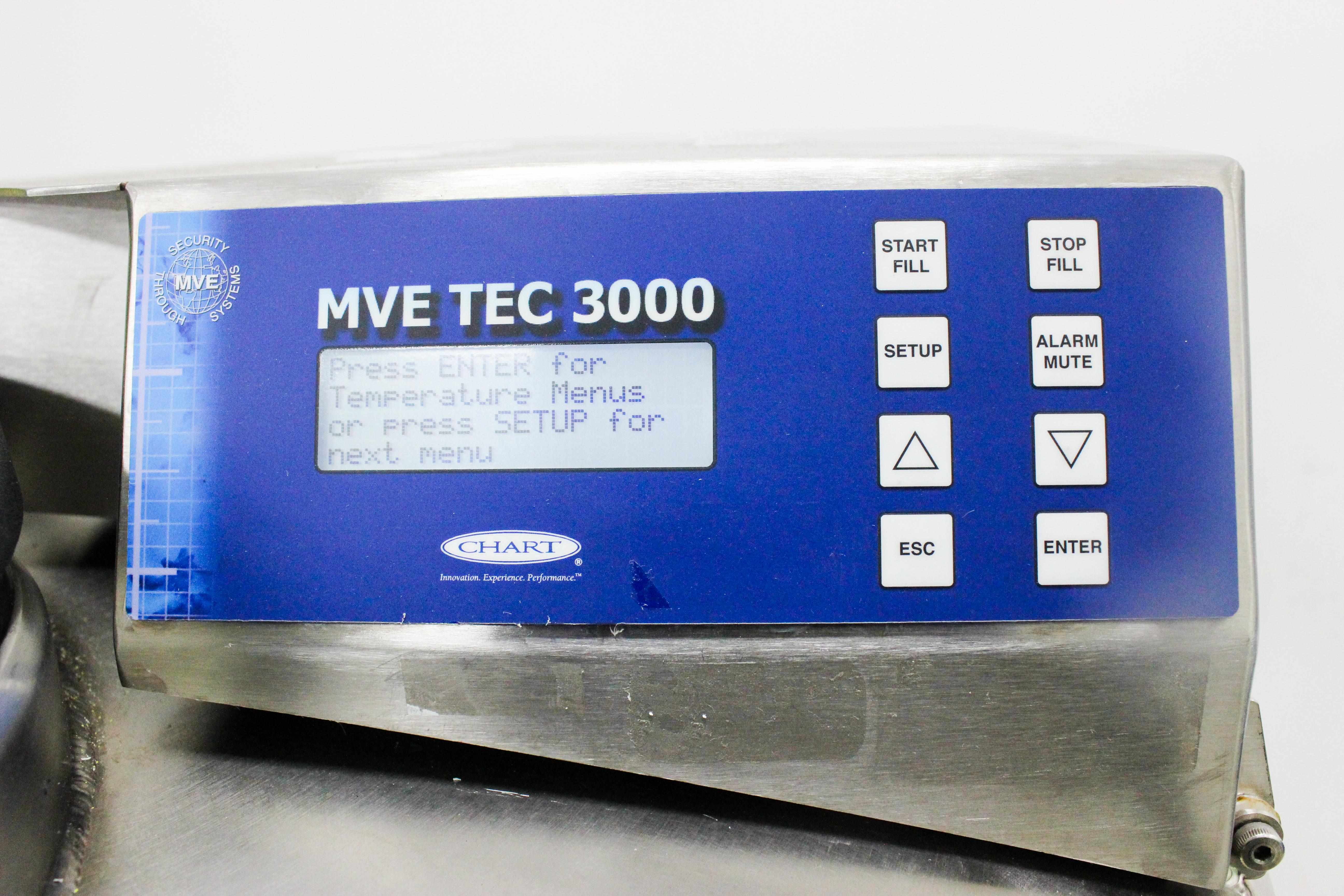

- Advanced TEC 3000 controller
- Autofill system and gas bypass
- LN2 capacity of 420 liters
- Storage capacity for 18,200 vials
- Fully enclosed electronics and plumbing
Specifications
- LN2 Capacity: 420 liters
- Maintains top box temperatures at -190°C
- Storage Capacity: 18,200 vials
- 12 racks for 100 cell boxes, 4 racks for 25 cell boxes
- 14 stages per rack
- Static Hold Time (Vapor): 11 days
- Static Hold Time (Liquid): 84 days
- Neck Opening: 317mm
- Usable Internal Height: 781mm
- Inner Diameter: 731mm
- Overall Height: 1370mm
- Weight Empty: 495 lbs / 225kg
- Weight Liquid Full: 1168 lbs / 530kg
- Conforms to MDD 93/42/EEC
- UL/C-UL Listed
Weight
Imperial: 594.0 Pounds
Metric: 269.43 Kilograms
Shipping Dimensions
Imperial: 38.4 lb x 38.4 lb x 64.8 lb
Metric: 97.54 cm x 97.54 cm x 164.59 cm
Harmonized Code
84196000
Harmonized Code Details
84196000 - Machinery for liquefying air or gases, including parts. This code is appropriate due to the device's role as a liquid nitrogen freezer within the industrial machinery category.
