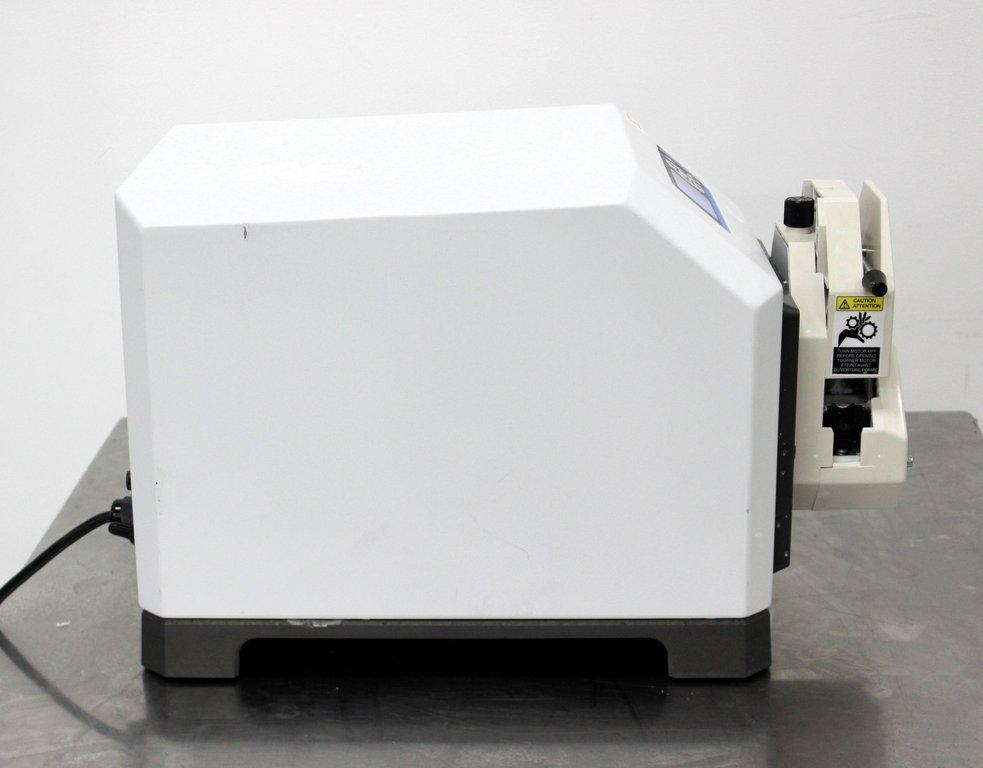

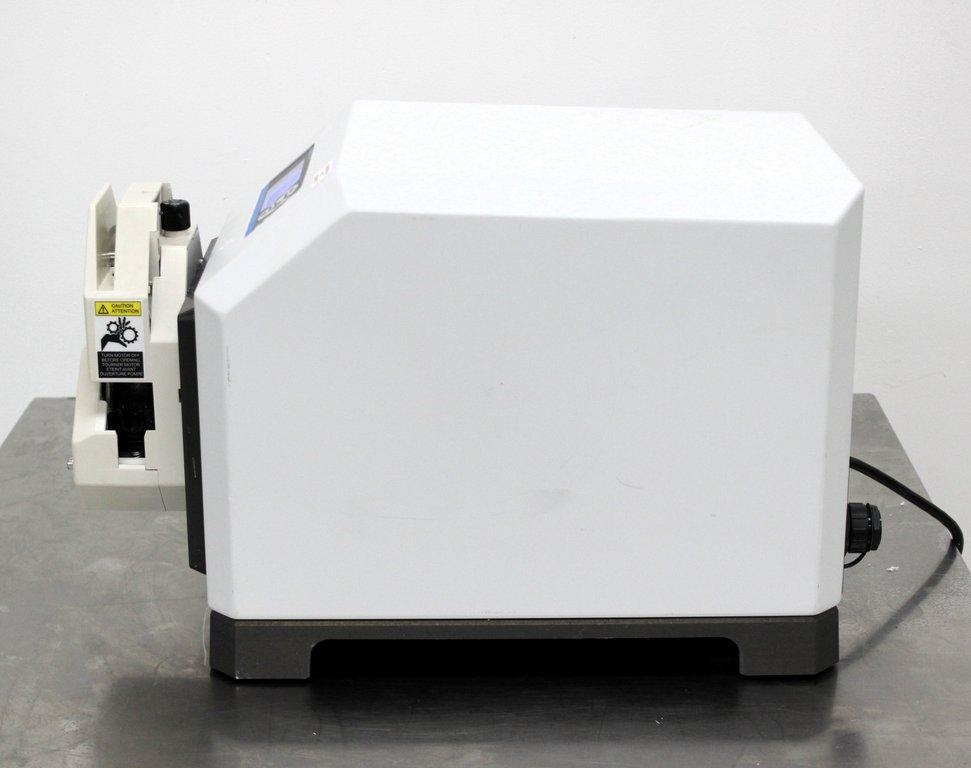

MasterFlex 77420-20 Pump w/Easy Load Head 115V-230V 8LPM Flow Rate
MasterFlex
Details
-
CategoryPump
-
Dimension20.0in x 11.0in x 13.0in
-
SerialJ21000393
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

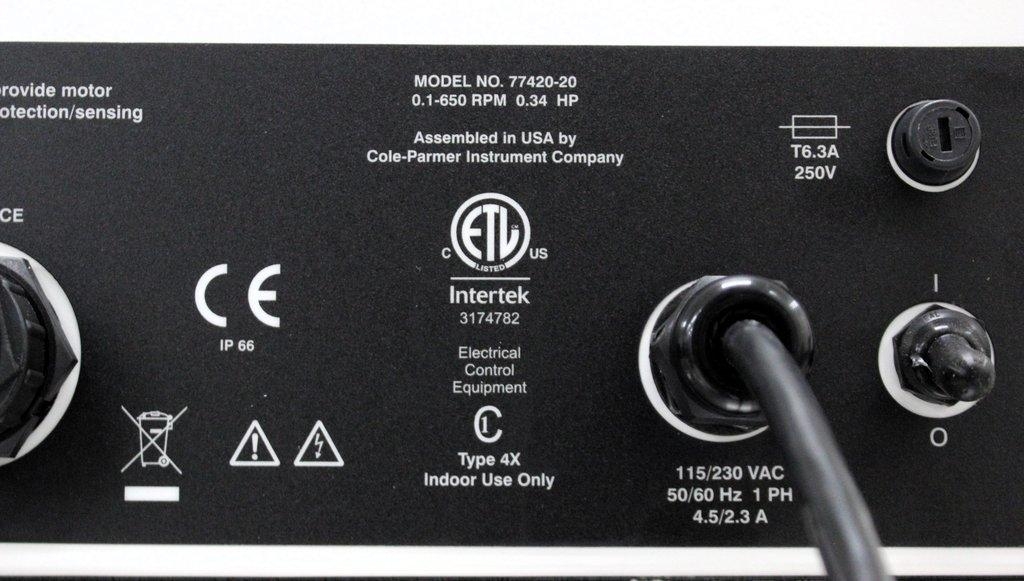

Voltage / Hertz115V-230V / 50Hz/60Hz
Description

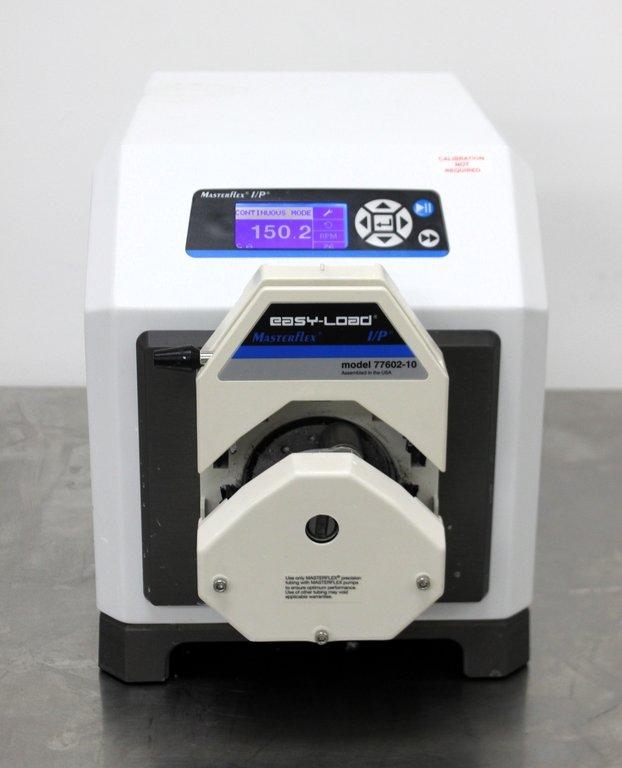

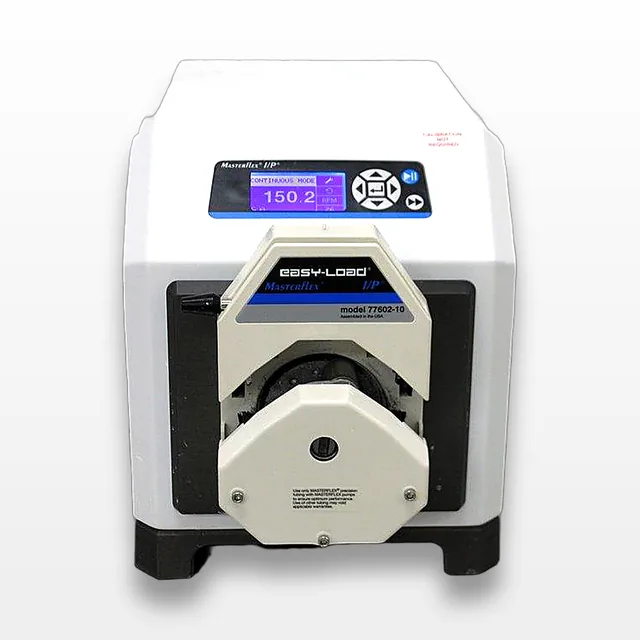

Discover the impressive capabilities of the MasterFlex 77420-20 I/P Pump with Easy Load Head 77602-10, a high-performing device suitable for a range of industrial and laboratory applications. This very good condition pump boasts a flow rate between 0.001 to 8 LPM, dependent on drive RPM, pump head, and tubing size. It features a digital interface with a graphical LCD and remote control via analog communication, ensuring easy operation and comprehensive performance monitoring. Additional benefits include an anti-drip function for precise dispensing, a low-maintenance brushless motor with ±0.1% speed control accuracy, and durable construction with IP66 washdown-rated housing. This device is perfect for environments that don’t require stainless steel, such as manufacturing and water treatment facilities. Although it has cosmetic wear, its usability and functionality remain reliable.
Key Features
- Flow rate: 0.001 to 8 LPM
- Graphical LCD with multiple modes
- Remote control via analog communication
- Antidrip function for accurate dispensing
- Brushless, maintenance-free motor
- NEMA 4X (IP66) rated rugged housing
Specifications
- Flow rate: 0.001 to 8 LPM with included I/P tubing

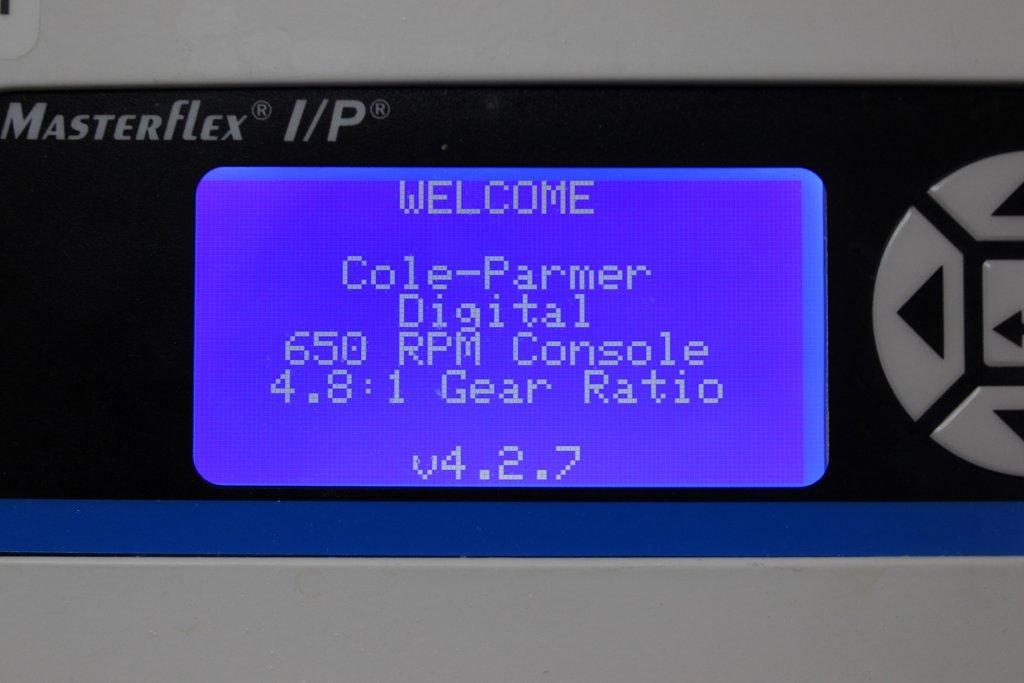

- Digital interface: Graphical LCD shows pump performance
- Operating modes: Continuous run, timed dispense, copy dispense, volume dispense
- Remote control: Available via voltage, current, and contact closure
- Dispense range: 0.001 to 9,999 mL, L or gal
- Motor control accuracy: ±0.1% with 6000 to 1 turndown ratio
- Housing: Powder-coated steel with anodized aluminum base
Weight
Imperial: 51.6 Pounds
Metric: 23.41 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 13.2 lb x 15.6 lb
Metric: 60.96 cm x 33.53 cm x 39.62 cm
Harmonized Code
8413.19
Harmonized Code Details
8413.19 - Pumps for liquids, fitted or designed to be fitted with a measuring device; liquid elevators. Most likely harmonized code due to the peristaltic pump design and features related to liquid flow and measurement.
