Keyence SL-V24H Light Curtain Transmitter Receiver 550mm 24 Beam Channels
Keyence
Details
-
CategoryProduction / Manufacturing
-
Dimension28.0in x 4.0in x 4.0in
-
SerialDoes Not Apply
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

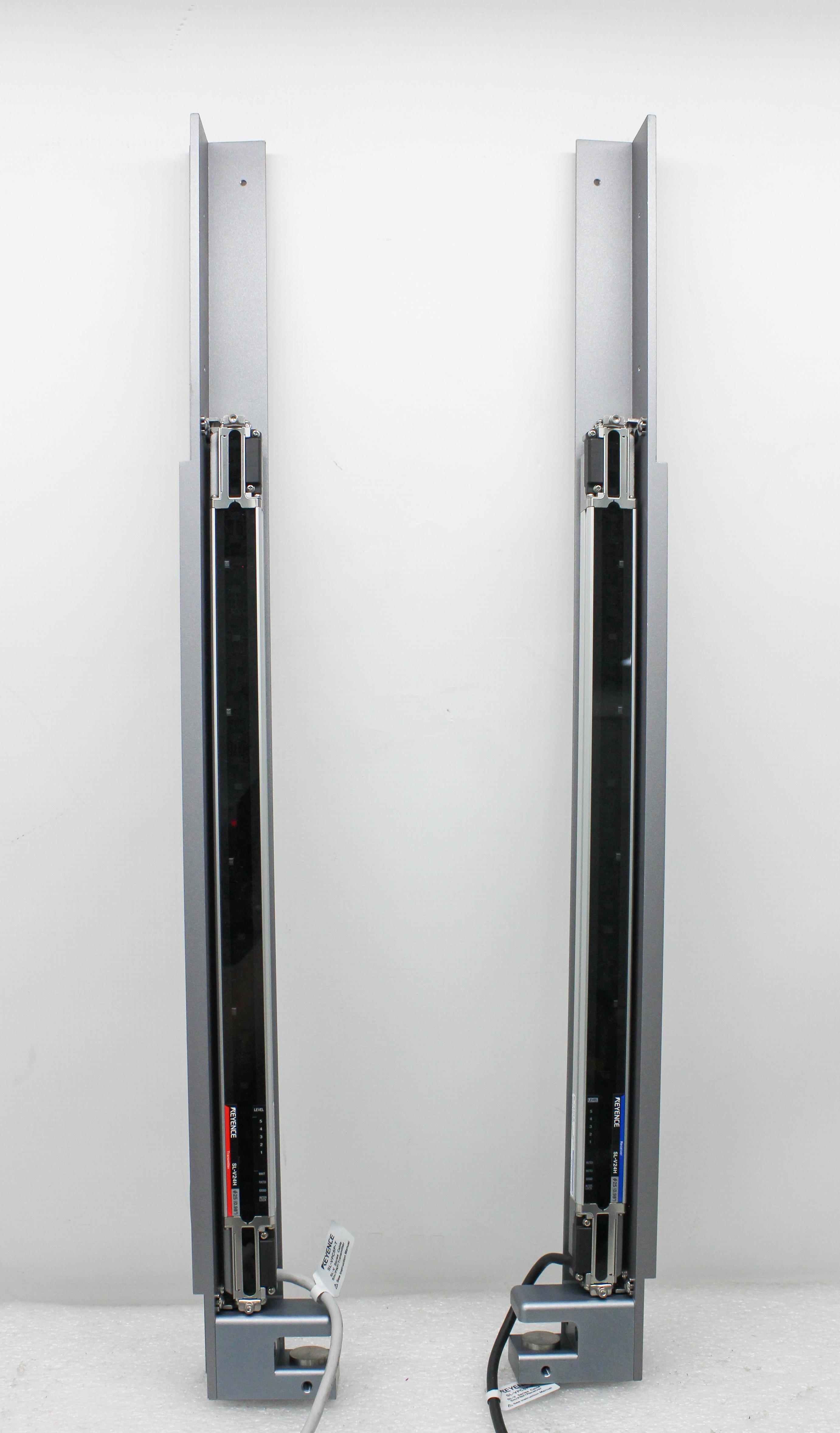

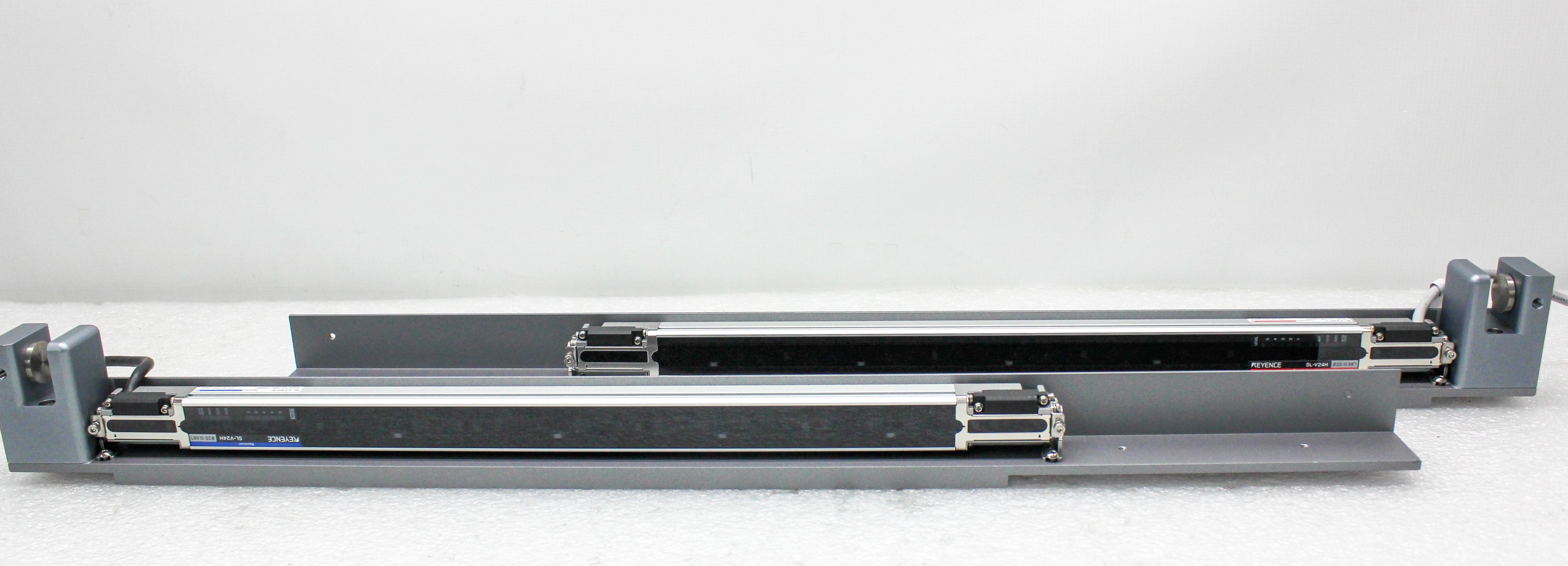

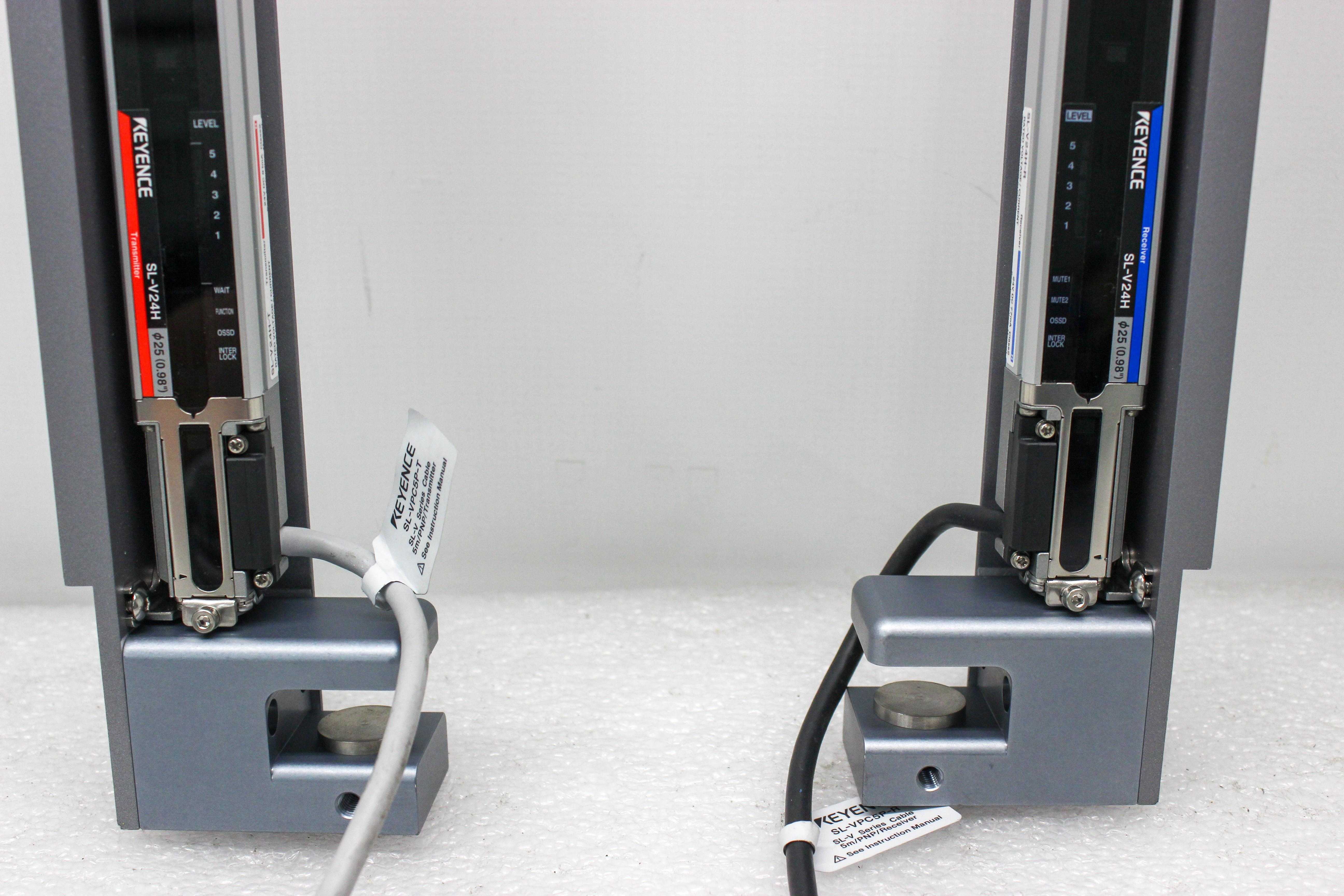

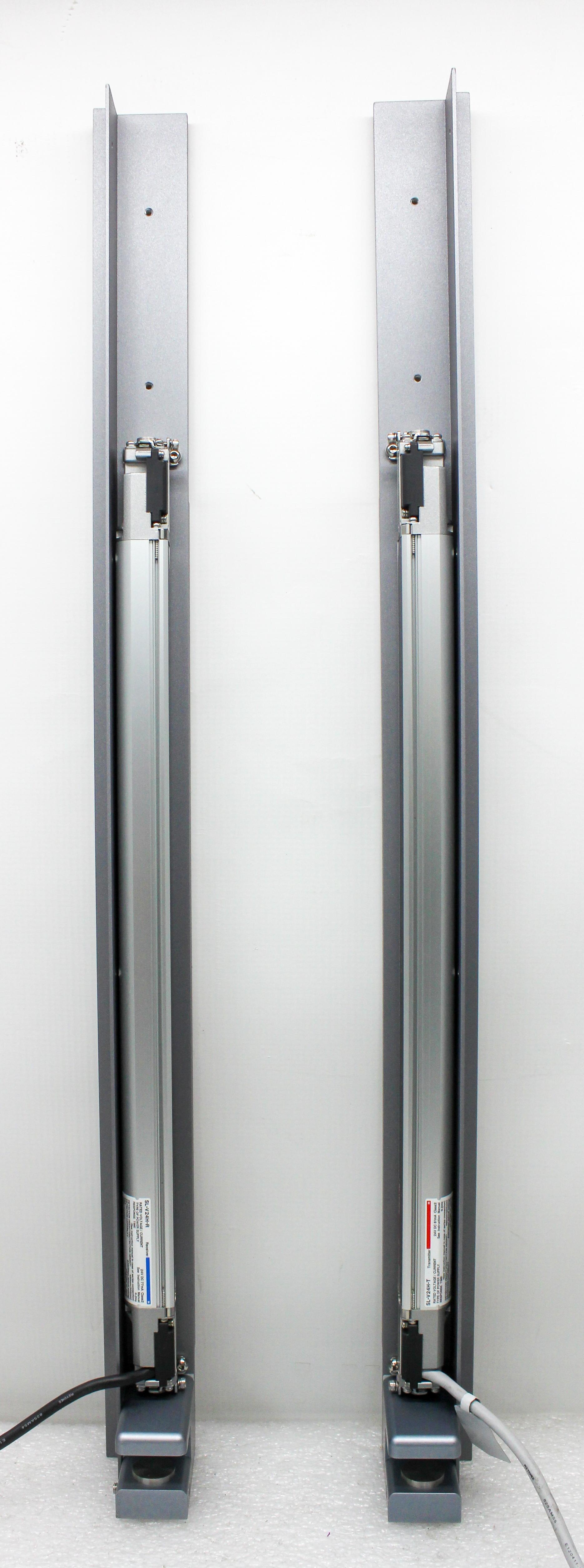

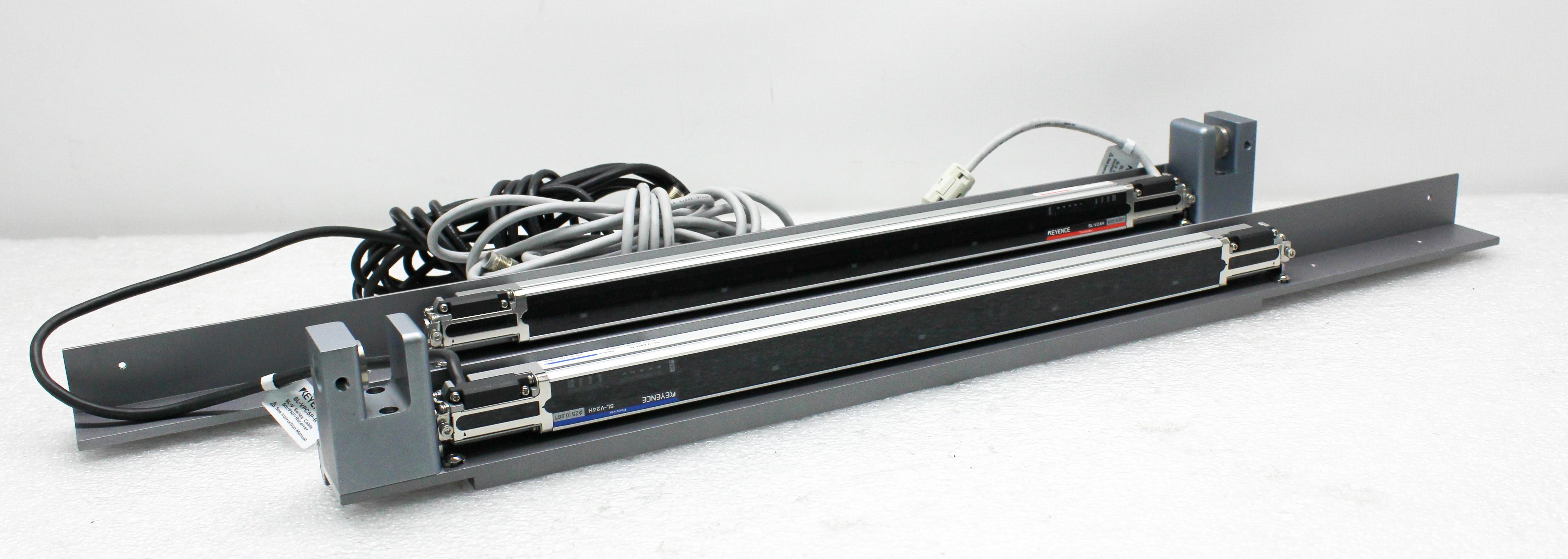

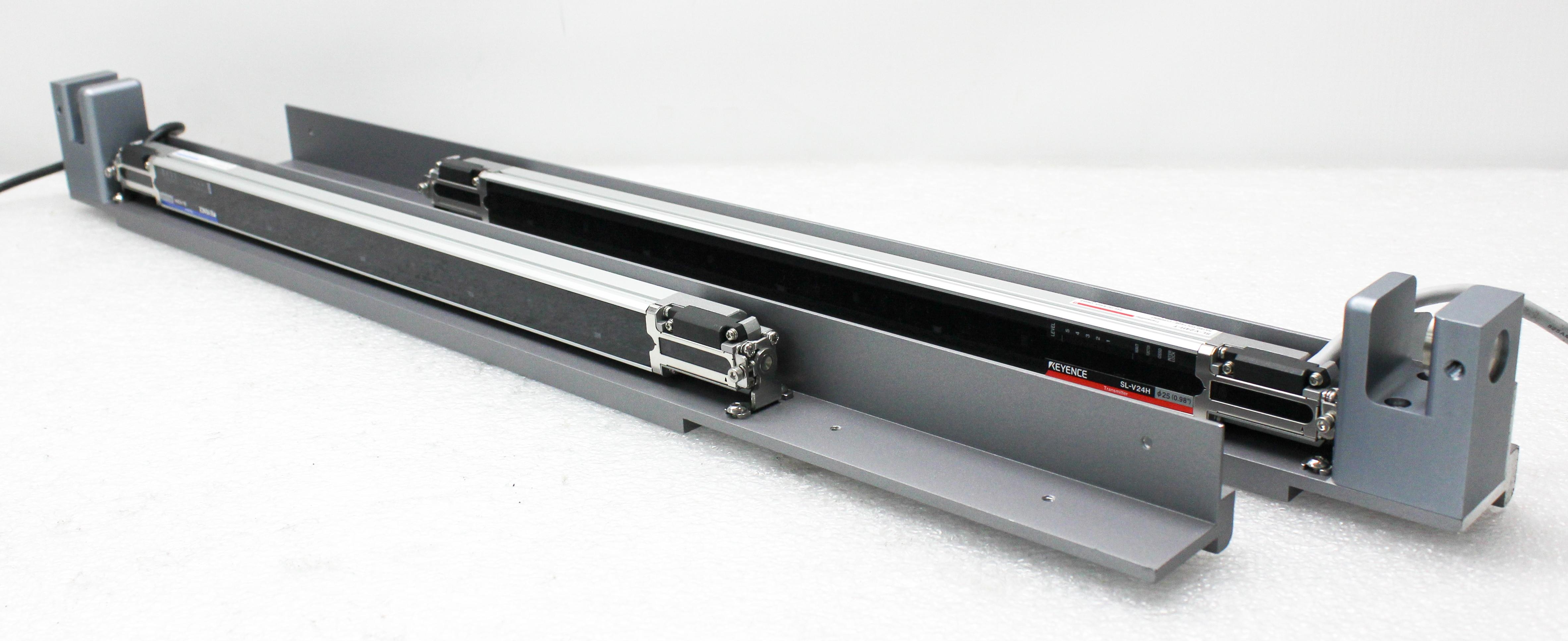

The Keyence SL-V24H, released around the early 2000s, is a high-performance safety light curtain designed for industrial applications in machine guarding and operator protection. Including both the transmitter and receiver units, this model provides a detection height of 550 mm and consists of 24 beam channels. Constructed with a slim, robust design, it withstands environmental challenges like dust and vibration. The SL-V24H boasts advanced self-diagnostics for reliable safety monitoring and simplified installation. Its wide detection angle makes it apt for various automation setups where safety and productivity are crucial. Although in good physical condition with minor wear, a full functional test necessitates compatibility checks with control systems. No additional accessories or software is included.
Technician comment

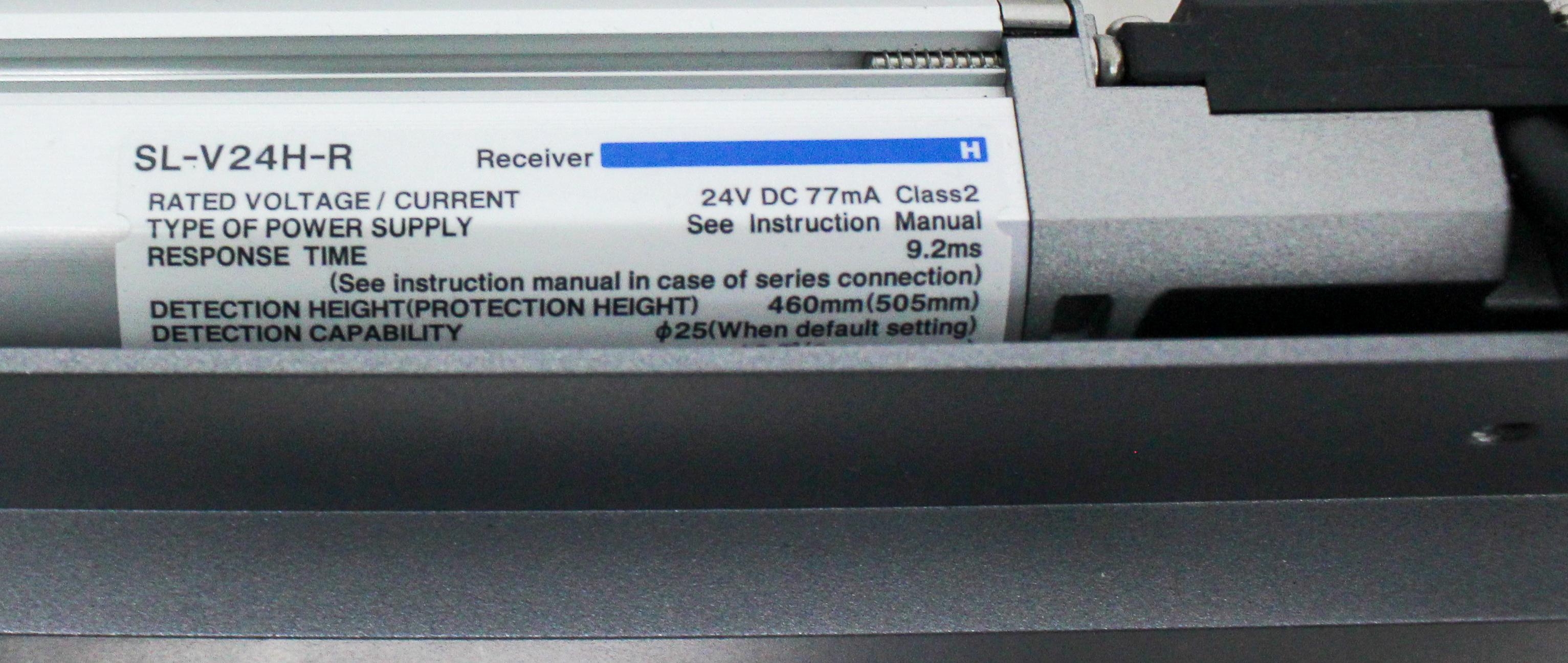

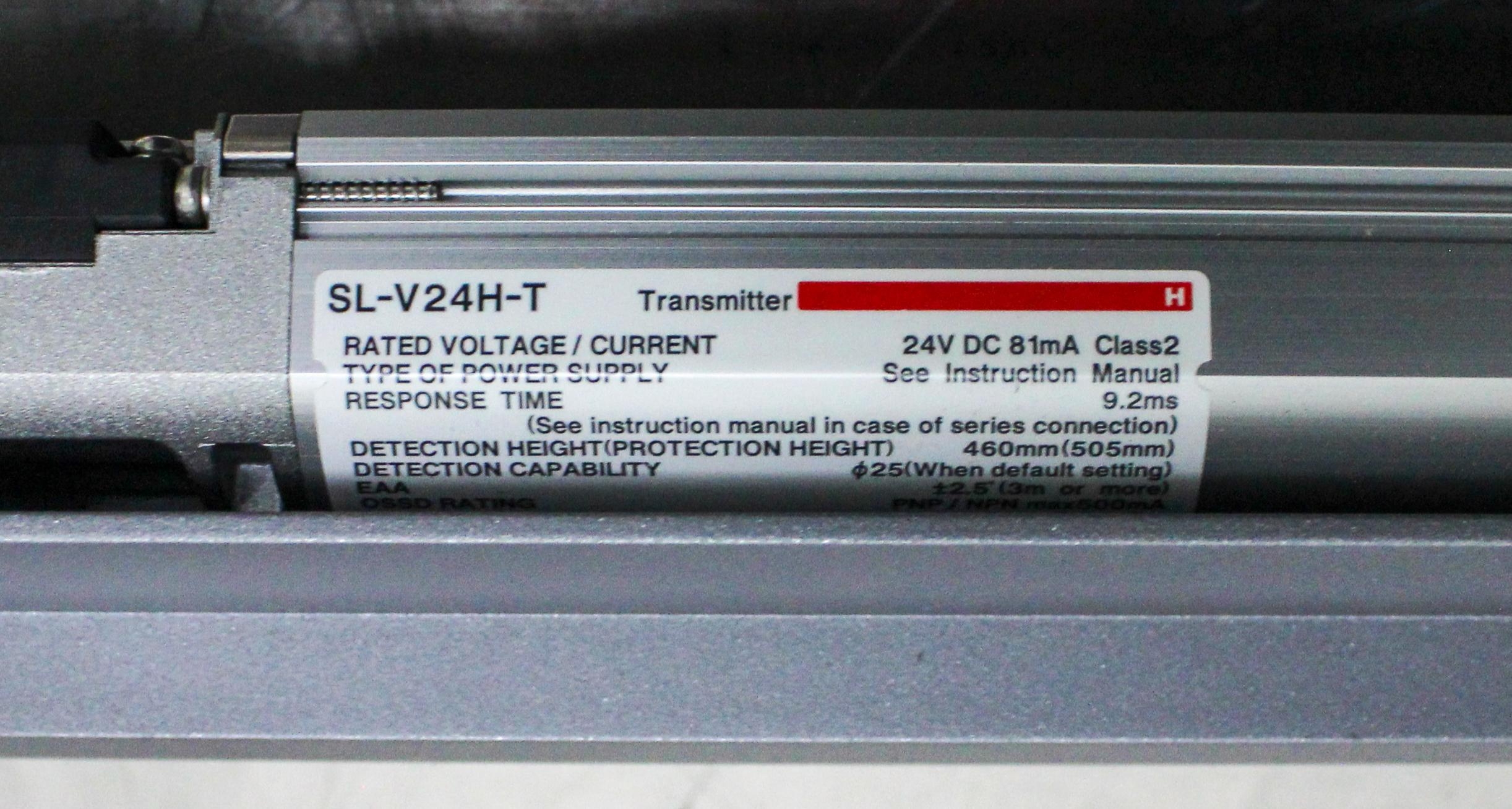

The Keyence SL-V24H light curtain set, including transmitter and receiver, was inspected and found to be in good physical condition with only minor wear from prior use. Unit is from a working lab environment. No additional accessories or mounting hardware are included. Full functional verification requires integration with a compatible control system.
Key Features
- Detection height: 550 mm
- 24 beam channels
- Detection capability: ø25 mm
- Wide aperture angle: Max. ±2.5°
- Operating distance: 0.1 to 9 m
- Response time: 9.2 ms
- Infrared LED light source
- OSSD output: 2 outputs for PNP and NPN
- IP65 enclosure rating
- Temperatures: -10°C to 55°C
- SIL3 safety (IEC61508)
Specifications
- Model: SL-V24H
- Detection capability: ø0.98 inch (ø25 mm)
- Beam axis spacing/Lens diameter: 20 mm/ø5 mm
- Effective aperture angle: Max. ±2.5° (3 m distance)
- Working distance: 0.1 to 9 m
- Response time (ON→OFF): 9.2 ms
- Light source: Infrared LED (850 nm)
- Operation mode: Normal mode when detection zone clear
- OSSD output: PNP/NPN, max load 500 mA
- Environmental resistance: IP65
- Enclosure material: Aluminum and zinc die-cast
- Dimensions: Length: 28.0 inch, Width: 4.0 inch, Height: 4.0 inch
Weight
Imperial: 10.8 Pounds
Metric: 4.9 Kilograms
Shipping Dimensions
Imperial: 33.6 lb x 4.8 lb x 4.8 lb
Metric: 85.34 cm x 12.19 cm x 12.19 cm
Harmonized Code
903289
Harmonized Code Details
Electrical machines and apparatus, having individual functions, not specified or included elsewhere; parts thereof: Parts and accessories: Other (903289) - for devices like sensors and industrial safety systems. Suitable given its nature as a safety sensor device.
