Lenze G500 Modular Gearmotor Helical Bevel 230V High Precision US
Lenze
Details
-
CategoryFacility
-
Dimension19.0in x 4.0in x 7.0in
-
SerialG50BB124MHAR3C00
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 1ac15c531b
Description
The Lenze G500 series, manufactured in the United States, offers a comprehensive solution for various industrial applications requiring reliable drive technology. A versatile system of modular gearboxes, the G500 series includes helical, shaft-mounted helical, and bevel gearbox types. These gearboxes are capable of pairing with multiple Lenze motors, such as IE2 and IE3 AC motors, Smart Motors, and servo motors for a seamless configuration, meeting specific torque, performance, and size requirements. The gearboxes feature flexible mounting options with robust construction, providing high permissible radial forces, lifetime lubrication, and corrosion-resistant options up to IP65. Their low backlash and high torsional rigidity guarantee precision positioning, making them fit for applications demanding accuracy and resilience to harsh environmental conditions. The G500-H offers robust axial drive, the G500-S a space-saving design, and the G500-B a right-angle bevel solution. This system is perfect for application-specific designs, offering high efficiency and durability.
Technician comment

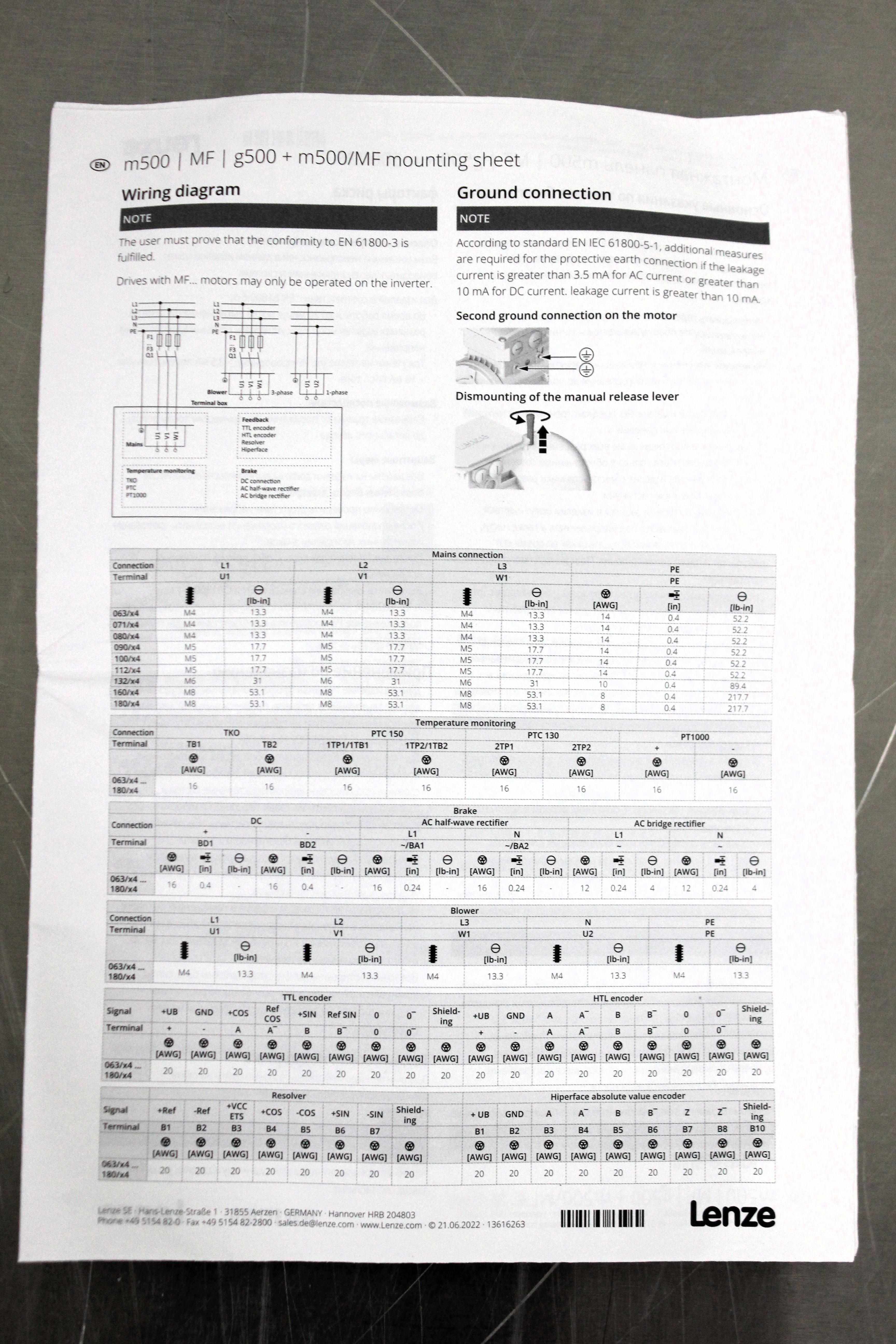

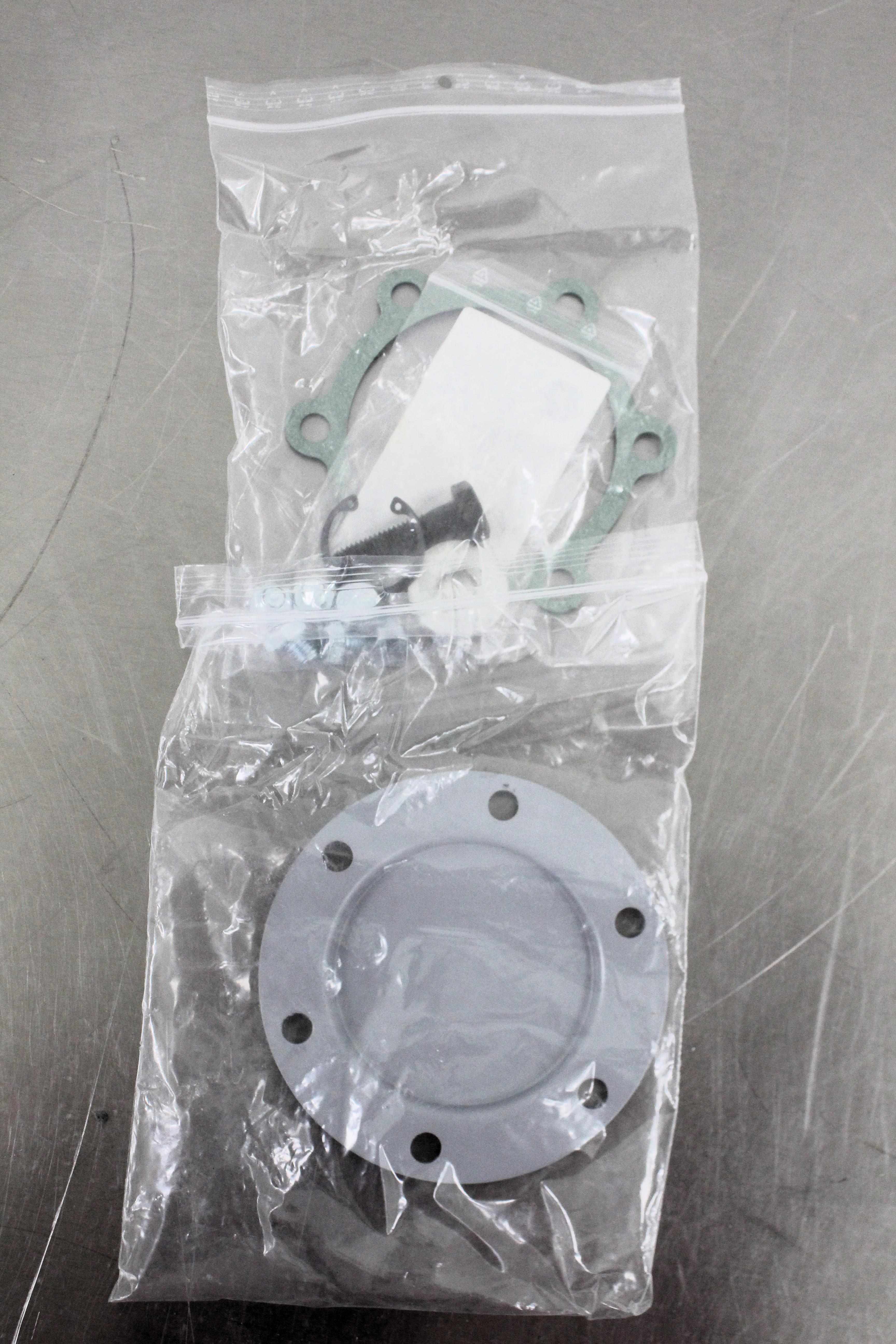

Motor came unopened new in box intended to work as it should, NO damages. Comes with spare parts and manual as shown in pics.
Key Features
- Modular design for customizable configurations
- Compatible with IE2 and IE3 AC motors and servo motors
- Versatile mounting options
- Lifetime lubrication for maintenance-free operation
- High permissible radial forces
- Corrosion resistance up to IP65
- Low backlash and high torsional rigidity for precision
- Aerodynamic helical, bevel, and shaft-mounted designs
Specifications
- Voltage: 230V
- Torque capability: Up to 20,000 Nm
- Gear ratio: G500-B Up to i=2,950; G500-H Up to i=3,250; G500-S Up to i=4,650
- Stages: Available in 2-, 3-, and 4-stage designs
- Environment: Robust and corrosion-resistant, suitable for harsh climates
- Connections: Standard shaft dimensions with flexible flanges
- Dimensions: Length 19 in, Width 4 in, Height 7 in
- Actual Weight: 35 lb
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 4.8 lb x 8.4 lb
Metric: 57.91 cm x 12.19 cm x 21.34 cm
Harmonized Code
850151
Harmonized Code Details
850151 - AC motors, multi-phase, of an output not exceeding 750W. This harmonized code is applicable as the Lenze G500 is a multi-phase motor solution, suitable for integration with various applications matching the power range.
