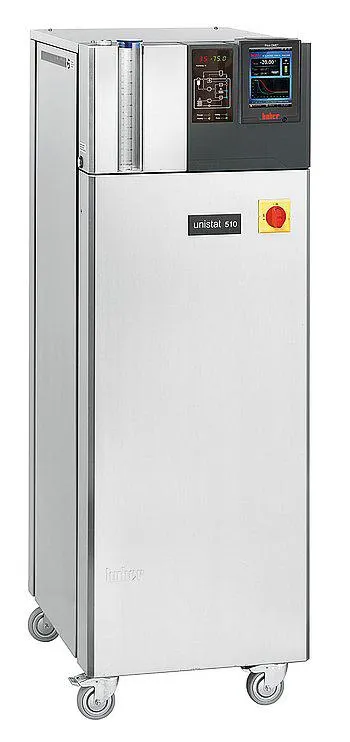

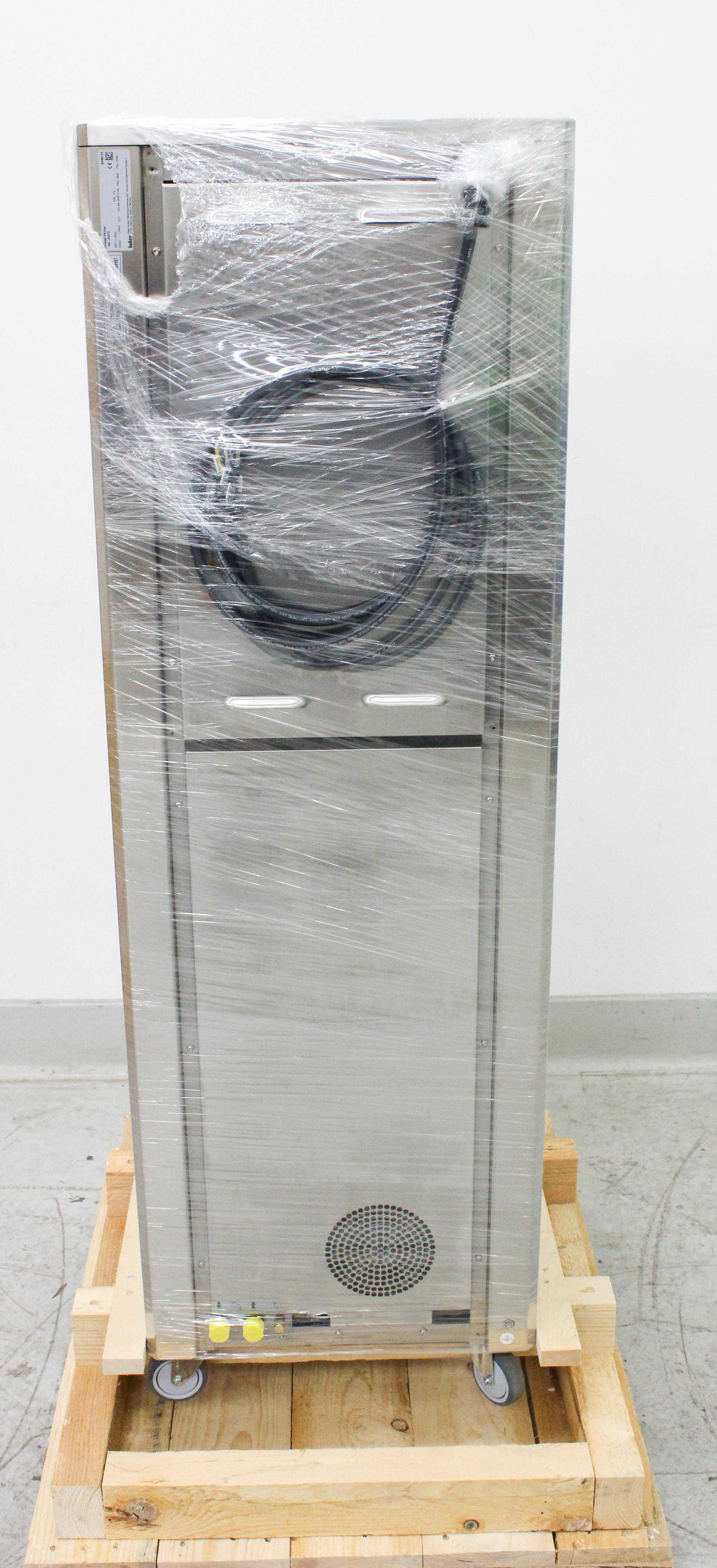

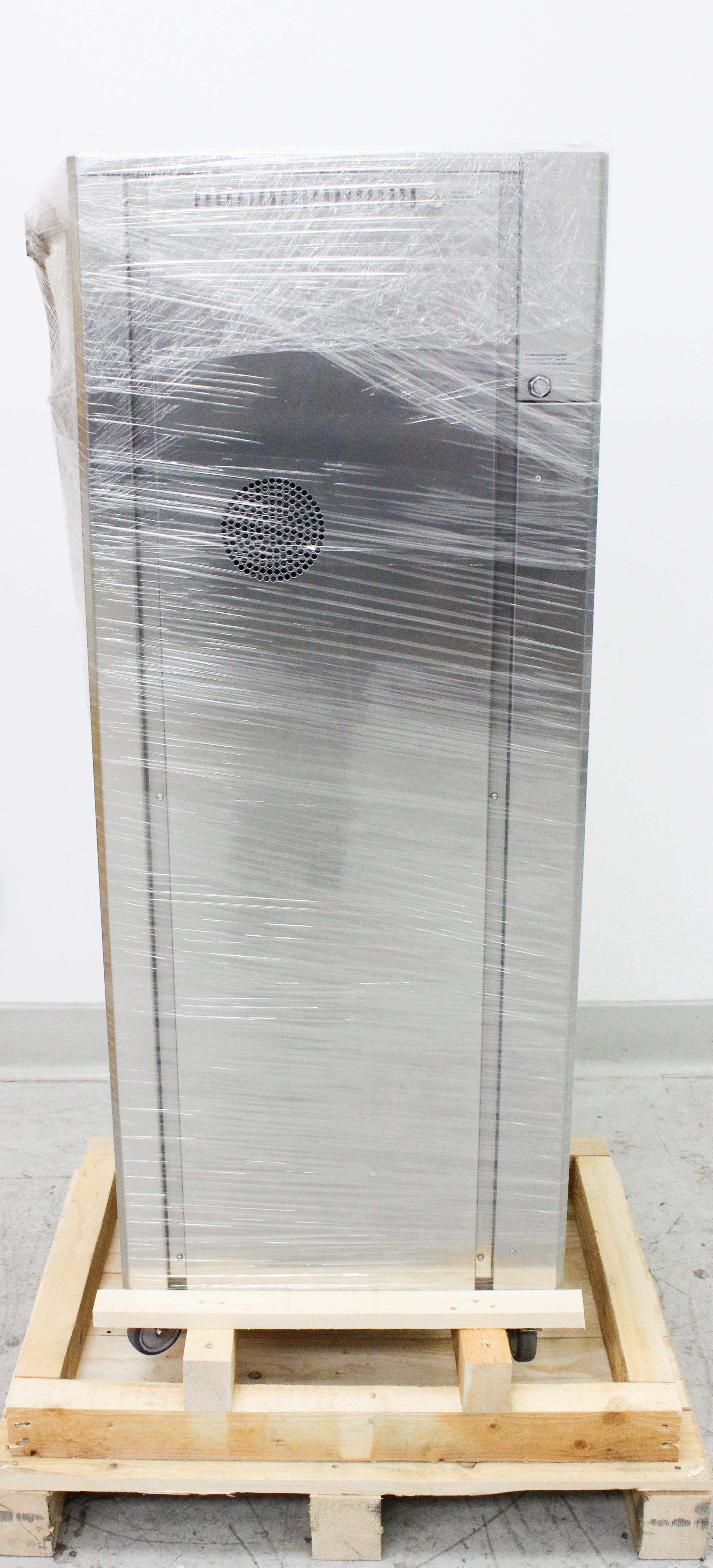

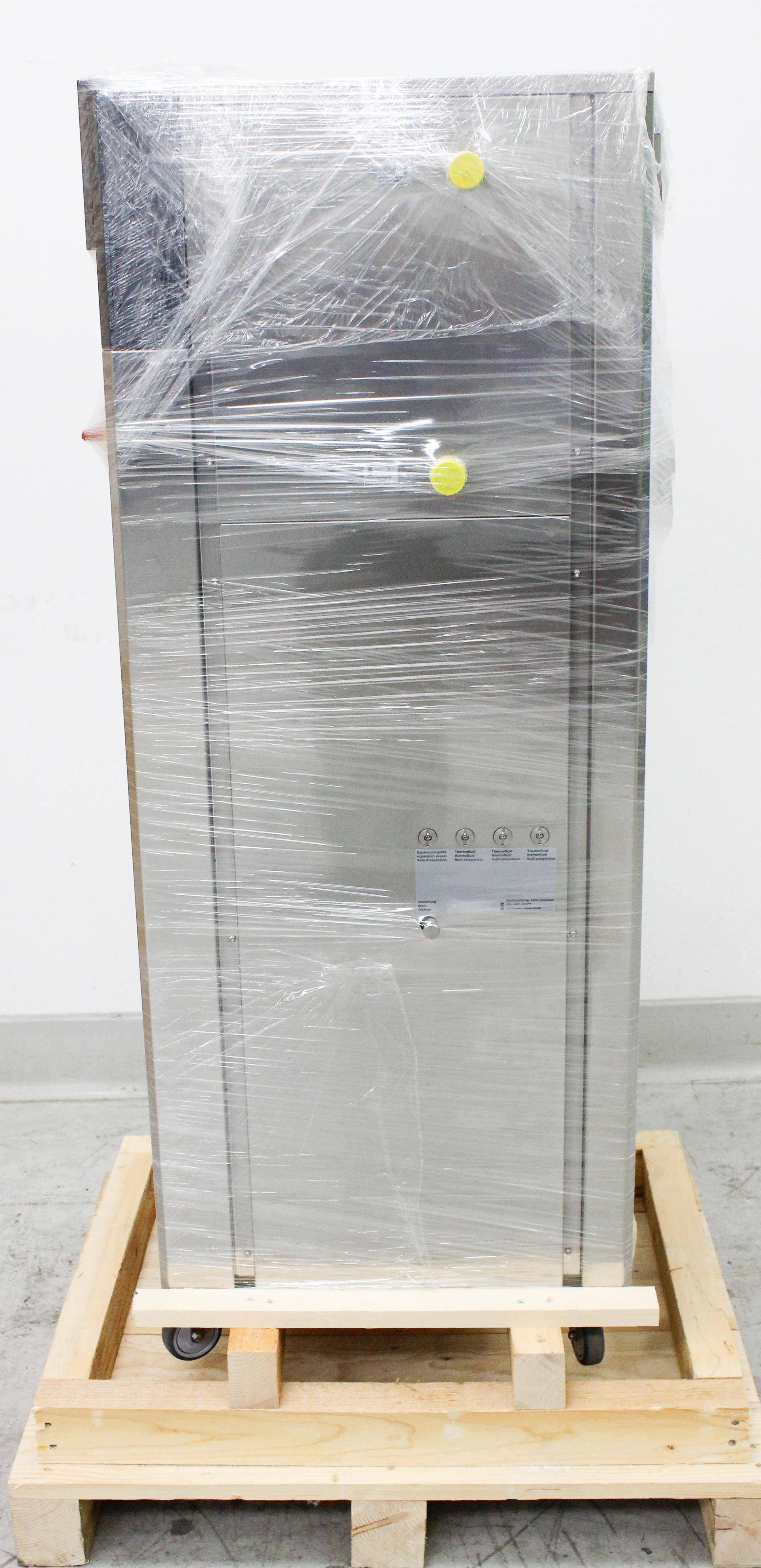

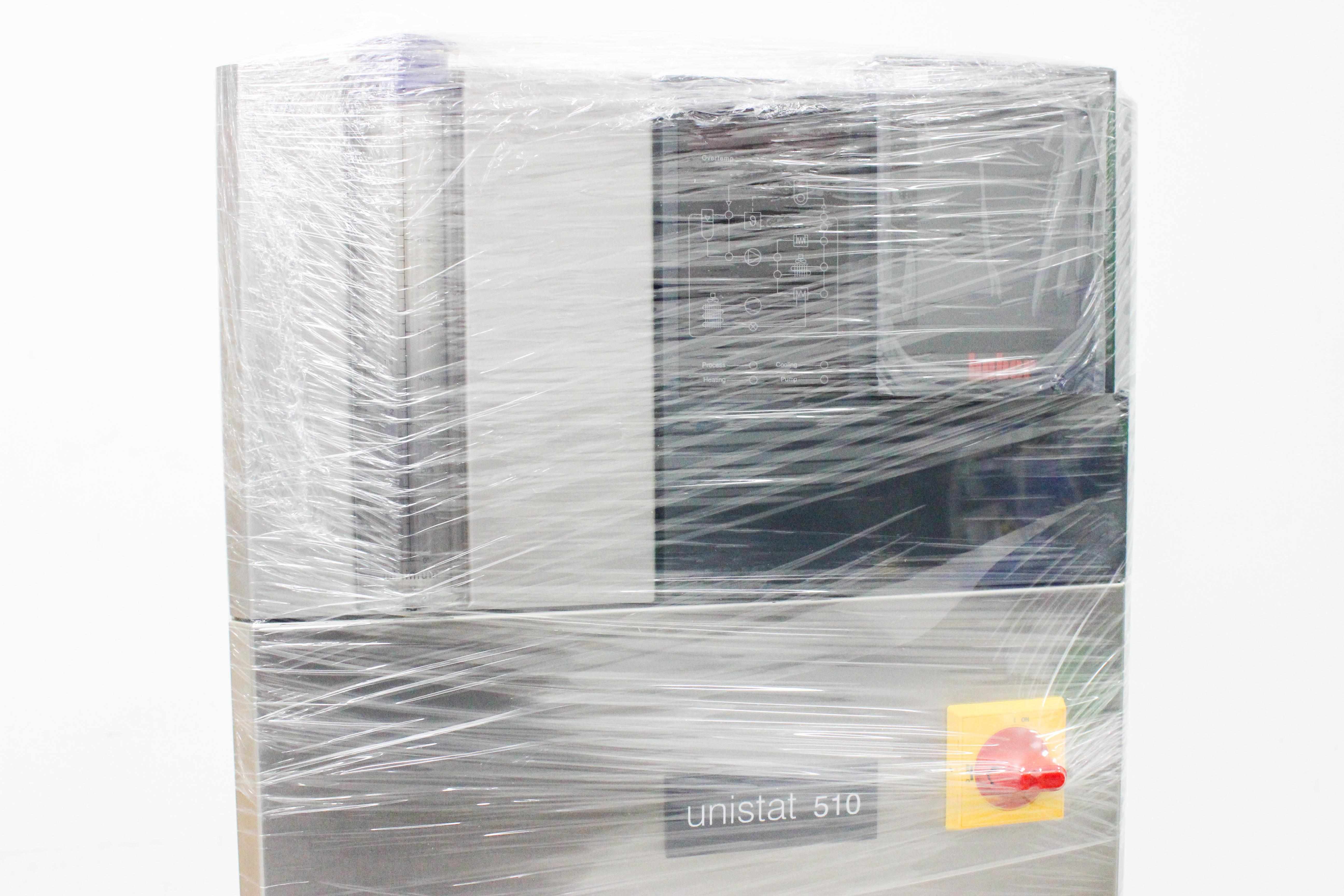

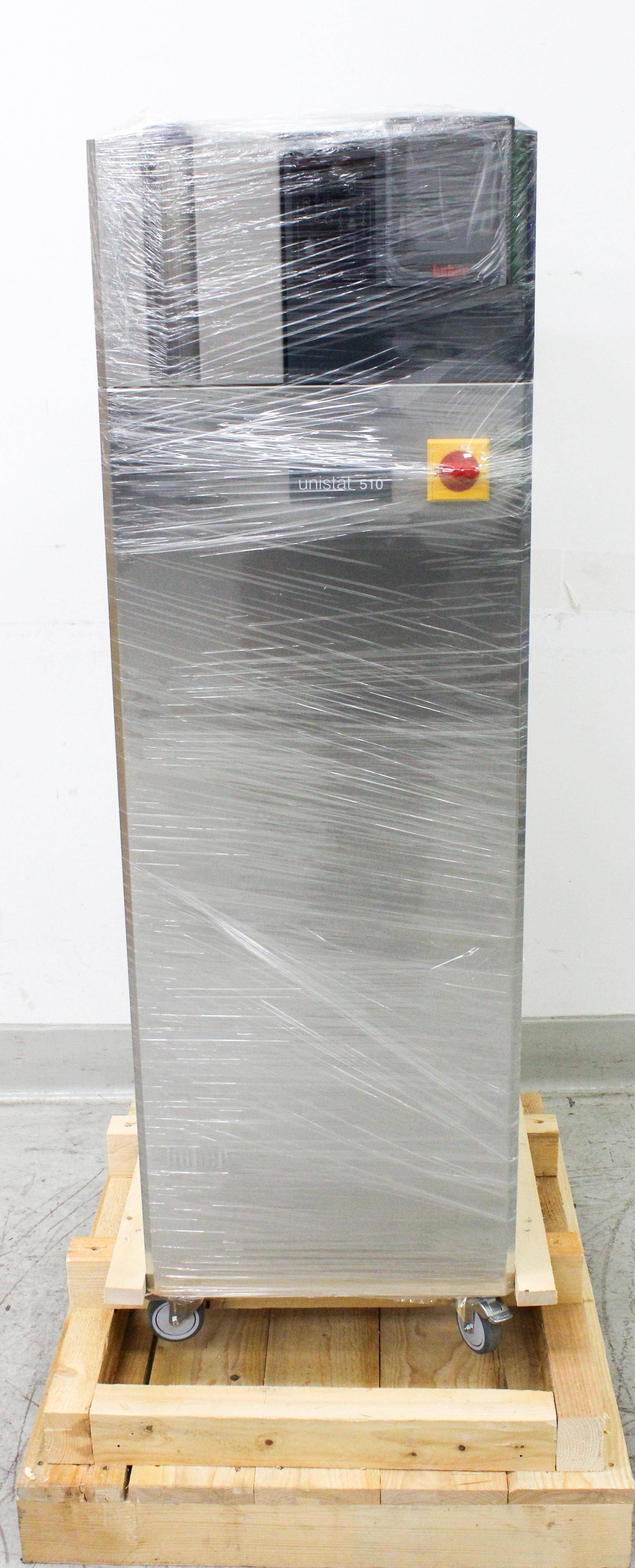

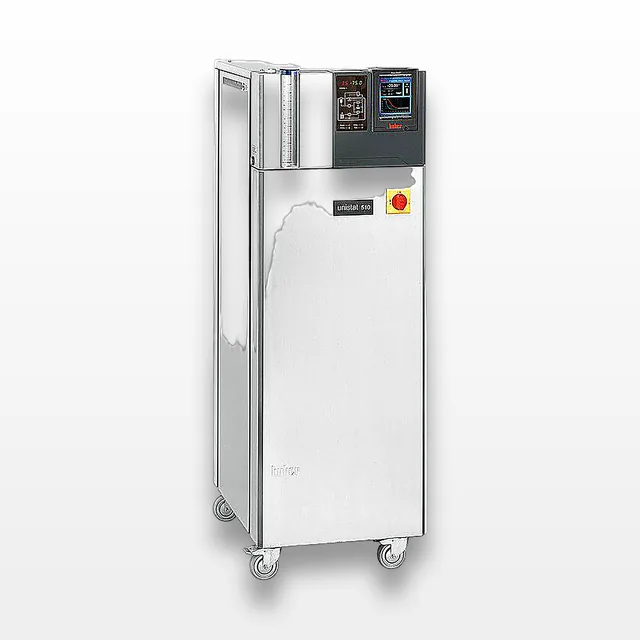

Huber Unistat P510w Dynamic Temperature Control System - Precise Temp Range -50C to 250C
Huber
Details
-
CategoryWater Bath / Circulator
-
Dimension19.0in x 22.0in x 58.0in
-

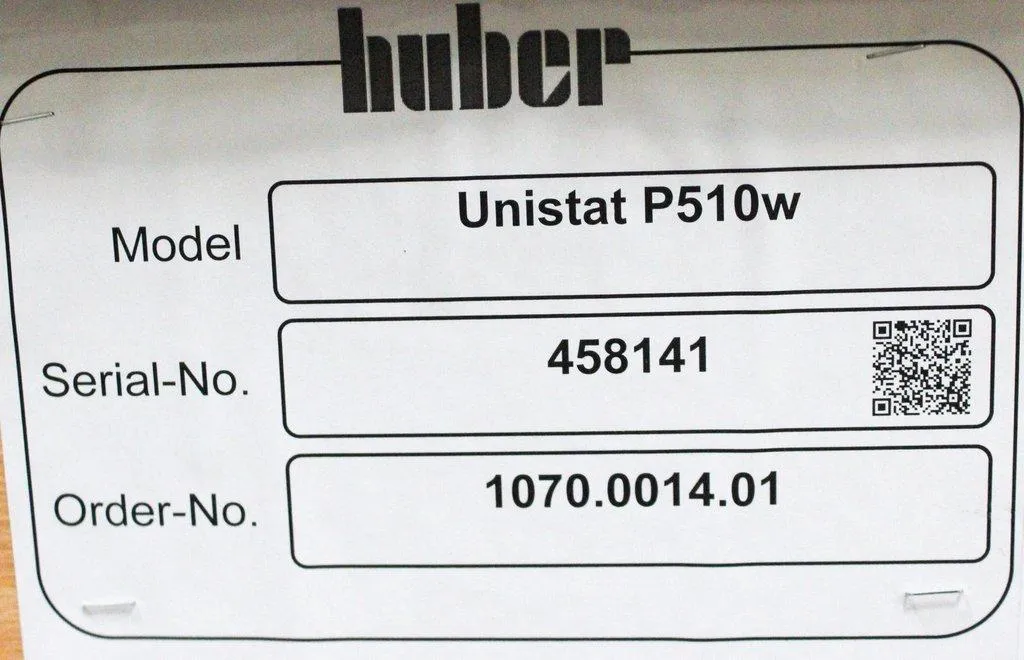

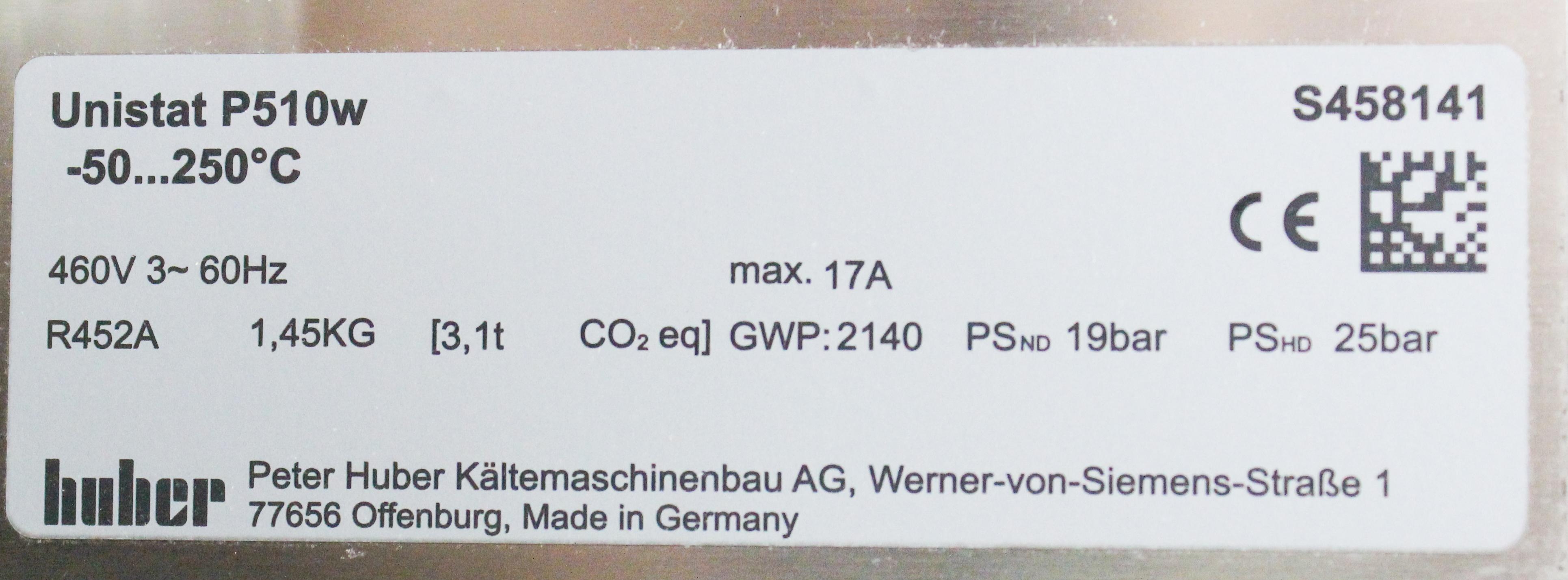

SerialS458141
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz460V / 60Hz US
Description
The Huber Unistat P510w is a robust dynamic temperature control system designed to deliver precise thermal regulation for demanding laboratory applications. With a temperature range of -50°C to 250°C and stability of ±0.01, it offers fast heating and cooling with no need for fluid changes. The unit features a Pilot ONE controller with a user-friendly 5.7” touchscreen interface, allowing for real-time monitoring and adaptive self-optimizing control. It includes a magnetically coupled stainless steel circulation pump tailored to meet high circulation and heat transfer requirements. Notably, the Unistat P510w is water-cooled and free from CFC and HCFC refrigerants. Built for efficient energy management, the system is suitable for continuous and unsupervised operation, equipped with safety mechanisms and an emergency cooling circuit. While the item is new, it may have minor cosmetic imperfections.
Key Features
- Temperature range: -50°C to 250°C
- Stability: ±0.01°C

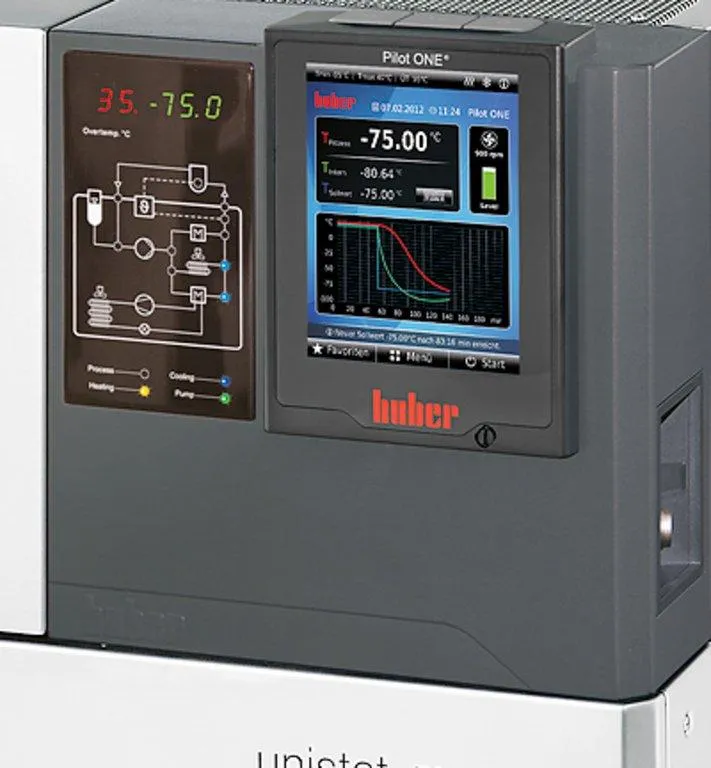

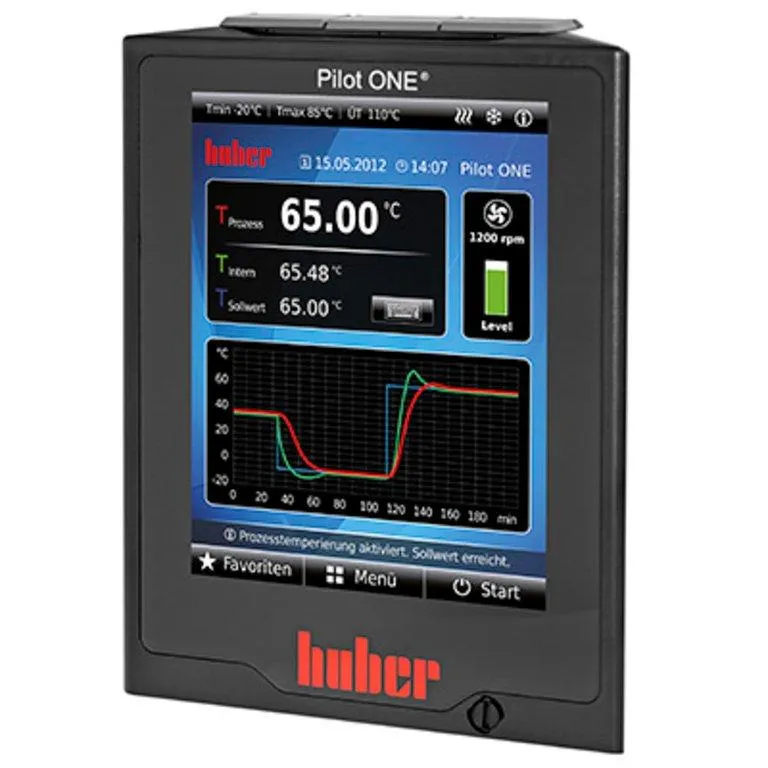

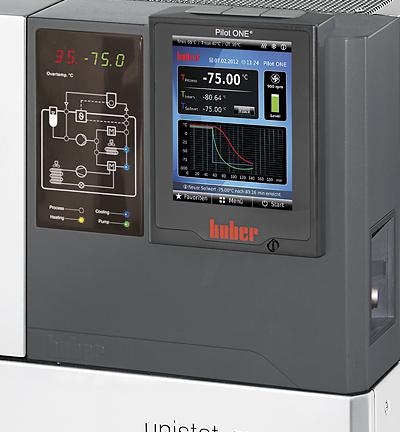

- Pilot ONE controller with 5.7" touchscreen
- Efficient circulation pump, magnetically coupled
- Water-cooled, CFC- and HCFC-free refrigerants
- Self-optimizing, adaptive temperature control
- Real-time temperature monitoring and graphical interface
Specifications
- Heating capacity: 9 kW
- Cooling capacity at 250°C: 5.3 kW, 200°C: 5.3 kW, 100°C: 5.3 kW, 20°C: 5.3 kW, -20°C: 2.8 kW, -40°C: 0.9 kW, -50°C: 0.25 kW
- Power supply: 460V 60Hz
- Max current: 17A, Fuse: 3x20A
- Permissible ambient temperature: 5...40 °C
- Filling volume min: 4.1 L, Expansion volume: 3.6 L
- Cooling water connection: G1/2 male, Consumption: 355 l/h
- Dimensions (W x D x H): 460 x 554 x 1455 mm
- Net weight: 186 kg
- Interface: USB, Ethernet, RS232
Weight
Imperial: 475.2 Pounds
Metric: 215.55 Kilograms

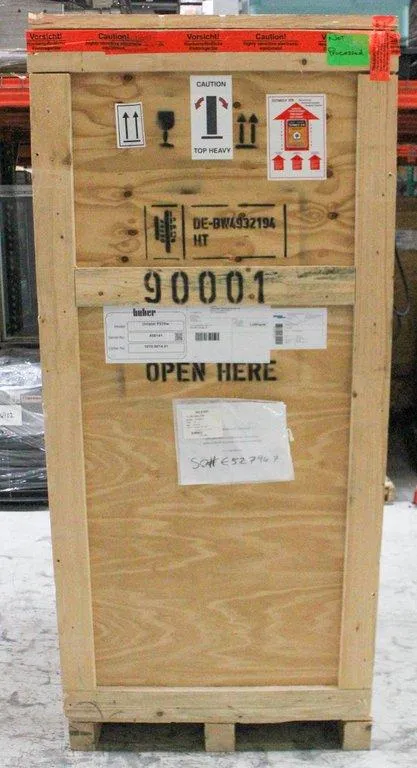

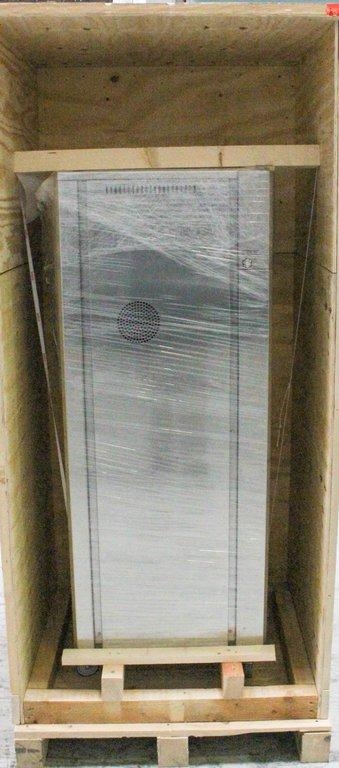

Shipping Dimensions
Imperial: 22.8 lb x 26.4 lb x 69.6 lb
Metric: 57.91 cm x 67.06 cm x 176.78 cm
Harmonized Code
8419.89.9580
Harmonized Code Details
8419.89.9580 - Machinery, plant or laboratory equipment whether or not electrically heated, for the treatment of materials by a process involving a change of temperature. This code is used as it covers laboratory equipment for heating and cooling applications, like the Huber Unistat P510w.
